PROAIM VI-TRIW-00 Manuel utilisateur

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Tri-Way Damper System (VI-TRIW-00)

Assembly Manual

Tri-Way Damper

5/16mm

Allen Key

4mm

Allen Key 2x Bolts

 Aach the Tri-way Damper with L-plate

(not included) or your Mounng plate. There

are several threaded holes on the L-plate for

aachment of the Tri-way Damper.

 Now match the holes of the Tri-way Damper

with L-plate. Now insert the bolt and ghten it

properly with 5/16 Allen key, as shown in the

image.

Tri-Way Damper System Setup

 Similarly, you can set the Le & Right damping

adjustments by rotang the knobs marked in

the image.

 You can set the front damping adjustment by

rotang the top knob.

 Loosen the knob to aach the Camera Gimbal

setup with it.

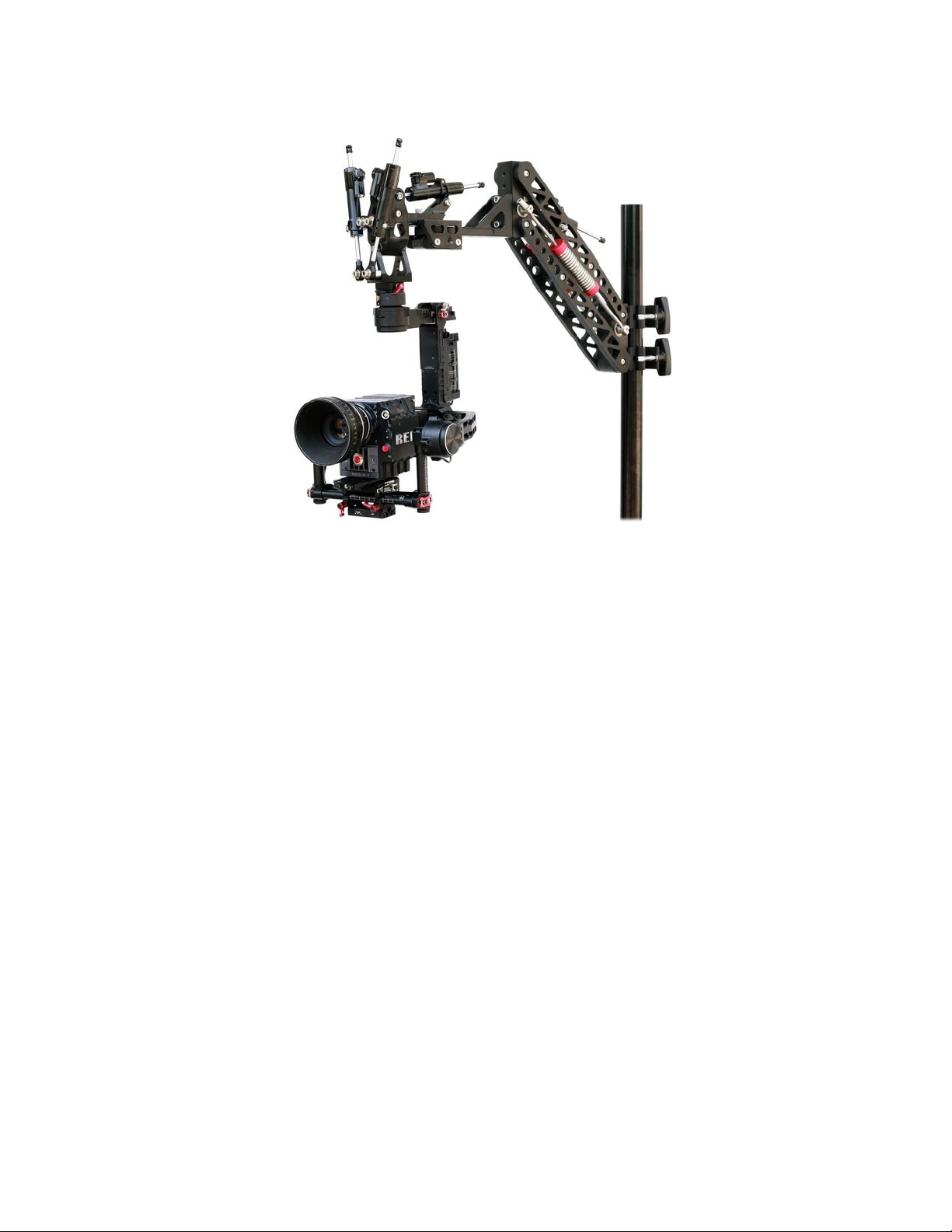

YOUR PROAIM TRI-WAY DAMPER SYSTEM

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.
