I N S T R U C T I O N M A N U A L
TDL 275 Dolly with 12ft Straight Track
(TDL-275)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied by
the applicable copyright statutes or in wring by the Publisher.
PROAIM TDL 275 DOLLY WITH 12FT STRAIGHT TRACK 2
INTRODUCTION
Proaim Camera Dolly is a 3 wheel dolly which allows the camera and camera operator to move around
very smoothly. This is 3-legged Track Dolly, very strong and durable that carry the weight of Jib, Pan Tilt
Head and camera very easily. The total weight capacity of this portable camera dolly is up to 330lbs. You
can use it independently with your own Dolly Tripod Stand. The Dolly System is excellent for making
Professional and Independent videos.
IN THE BOX
Please inspect the contents of your shipped package to ensure you have received all that is pictured and
listed below. The shipping bag have been especially designed to protect your purchase while in transit
and is a good place to keep your Proaim TDL Dolly-275.
ASSEMBLING THE SECTIONS OF 12FT TRACK
Proaim TDL Dolly-275
12 Straight Track
2 x End Adapters
10 x Black wedges
Using the secons with the aached nylon bushings remove the outboard set of screws, slide an
extension secon on to each end to complete a 12’ run and install.
Storage Bag
10 x Blue wedges
3 x Foot Clamps
PROAIM TDL 275 DOLLY WITH 12FT STRAIGHT TRACK 3
Now tighten the screw to attach it properly
as shown.
Aach the end adapter at both the
ends of the track.
Now, track is ready as shown in the picture below.
Aer assembling the track, put the
blue/black wedges below the track for
beer balancing.
PROAIM TDL 275 DOLLY WITH 12FT STRAIGHT TRACK 4
You will receive your 3-leg dolly
collapsed for shipping / storage
purposes. Extend the legs and pull out
each leg unl it locks into place.
Now place the dolly on the track. Make
sure that dolly’s wheels are properly
set on track.
Place the tripod legs on Tripod Locking Adapter of Dolly. Lock the Tripod in place with the provided
rubber grips on Dolly.
PROAIM TDL-275 Dolly with 12 Straight Track
All set and ready to use
Mounng Tripod Stand on Dolly
PROAIM TDL 275 DOLLY WITH 12FT STRAIGHT TRACK 5

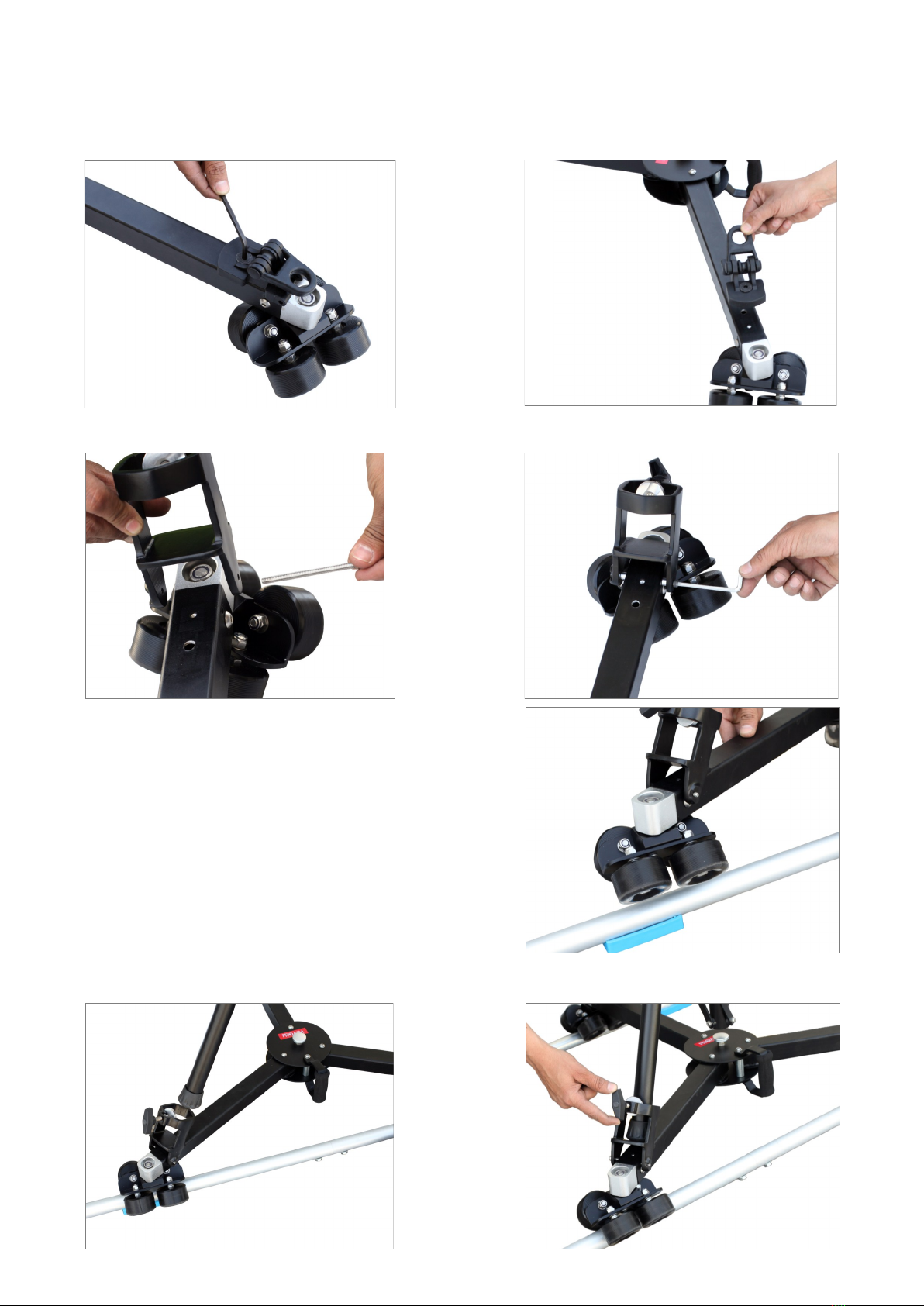

Loosen the screw with the help of allen key and remove the Tripod Locking Adapter as shown below.
Insert the screw as shown to aach the foot clamp with dolly and ghten with the help of allen key.
Mounng Jib Stand on Dolly
Now, Place the dolly on track.
Place the tripod legs on foot clamp of dolly and ghten with the help of knob to secure properly.
PROAIM TDL 275 DOLLY WITH 12FT STRAIGHT TRACK 6
WARRANTY
We oer a one year warranty for our products from the date of purchase.
We will repair or replace your product, free of charge, in the event of a defect in materials or crasman-
ship obtained during normal use or handling based on the user manual. Please note that we will not cover
any shipping costs for returning the product to us. If any VAT or import dues are applied to the return,
we will also charge these costs to the customer.
The warranty does not include, by the way of example, damage caused by products that we do not supply
or from mishandling in transit, accident, misuse, neglect, lack of care of the product , or service by anyone
other than our company.
We are not liable for incidental or consequenal damages resulng from the use of the unit or occurring
due to any breach of this warranty.
Replacement parts of the product will be provided at nominal cost (covering the cost price of the replace-
ment parts only) to the customers aer the Warranty Period has expired. We will cover the complete cost
of sending replacement parts within the warranty period. Aer that, nominal cost of the product & Actual
shipping cost will be charged.
Do not send the unit to us without rst geng a response and geng the approval to send back the item.
In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our best to
help you out.
For any other assistance you can reach us via email.
YOUR PROAIM TDL-275 DOLLY WITH 12FT STRAIGHT TRACK
ALL SET AND READY TO GO.
(SHOWN WITH OPTIONAL ACCESSORES)
