Debut RecordMaster II

Pro-Ject Debut RecordMaster II

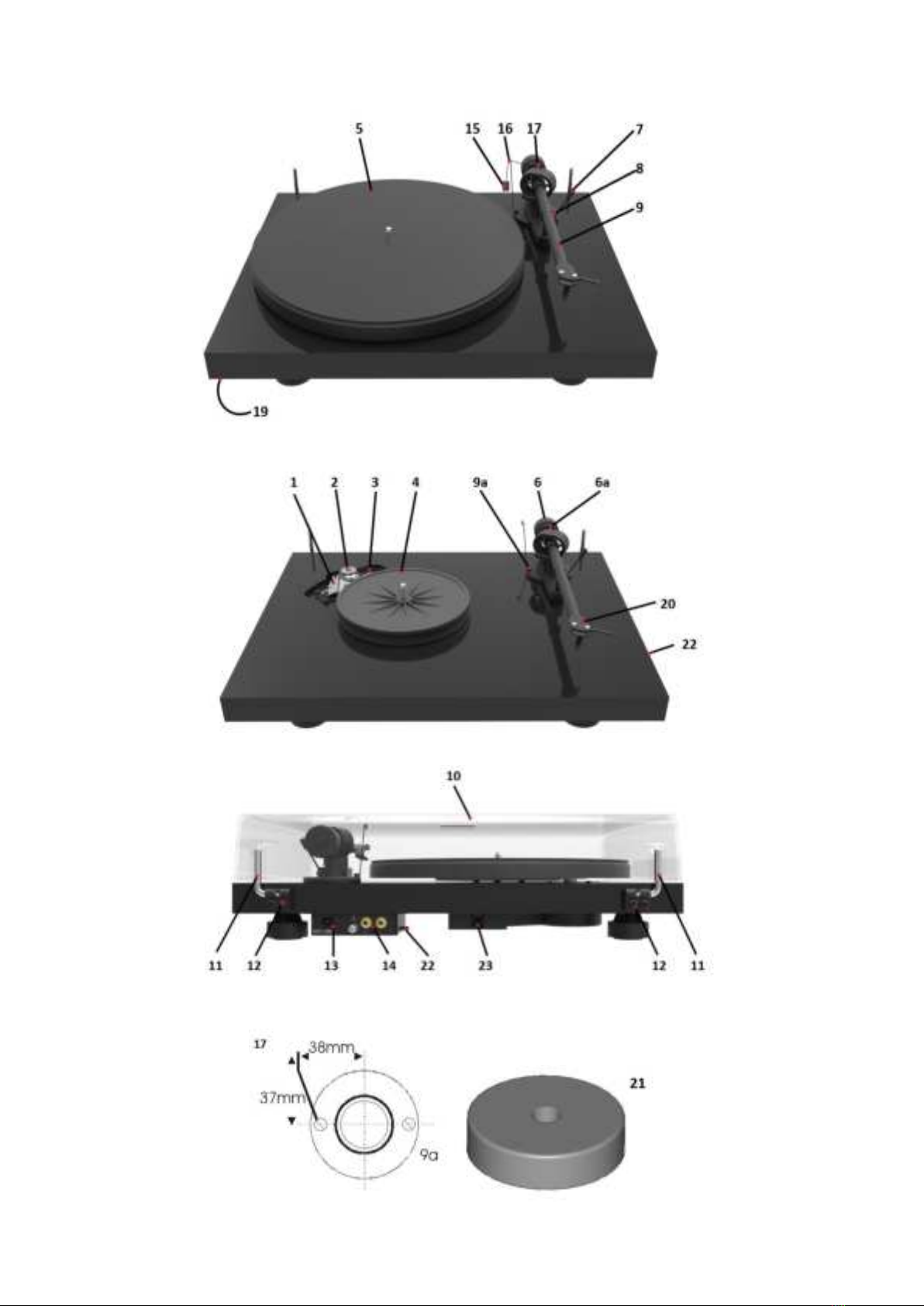

Controls, features and connections

(1) Motor with TPE damped flange

(2) Stepped drive pulley

(3) Drive belt

(4) Sub-platter

(5) Platter and felt mat

(6) Tonearm counterweight 6a Downforce scale

(7) Tonearm lift lever

(8) Tonearm rest and removable transport lock

(9) Tonearm tube 9a Tonearm base

(10) Lid

(11) Lid hinges

(12) Hinge fasteners

(13) USB output socket

(14) RCA output socket with earth connection

(15) Anti-skating weight

(16) Anti-skating weight support hoop

(17) Anti-skating weight adjustment scale

(18) Feet with TPE damping

(19) Speed selector

(20) Headshell with finger lift and fitted Ortofon OM 5E

(21) Single adapter

(22) Switch between Phono / Line RCA output

(23) Power supply socket

Signal cable Connect IT E RCA (not shown)

Dear music lover,

Thank you for purchasing a Pro-Ject Audio record player.

In order to achieve maximum performance and reliability with this record player you should study these instructions

for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a

different model at a later date.

During assembly and adjustment of the deck small parts could be lost if not carefully placed in a suitable

receptacle. Before starting to assemble, get familiar with the parts listed above and correspondingly numbered

in the technical drawings above.

Safety instructions

The power supply is used to connect and disconnect the unit from the mains. Make sure that the plug

is easily accessible at all times. Hold the plug when unplugging the power cord. Never handle the

power cord while your hands are wet or damp.

Avoid letting liquids enter the device. Never place any item containing liquid, like a flower vase, on

or near the device. Never spill any liquid on the device. Never place any naked flame sources, like

lighted candles, on or near the device. The product shall not be used in damp or wet locations, next to

a bathtub, sink, swimming pool or any other similar conditions.

Keep plastic bags away from children to prevent any risk of suffocation.

Set-up

The deck is supplied partially disassembled and carefully packaged for safe transport. Carefully remove all

parts from the transport packaging.

Make sure the surface you wish to use the turntable on is level (use a spirit level) before placing the turntable on it.

Remove the transport lock (8) from the tonearm. Store it in the original packaging so it is available for any

future transportation.

Fit the drive belt (3) around the hub (4) and the smaller diameter part of the motor pulley (2). Avoid getting

sweat or grease on the belt as these will deteriorate the performance and reduce the belt's lifespan. Use

absorbent kitchen paper to remove any oil or grease from the outer edge of the hub and the belt. Fit the

platter (5) and felt mat over the spindle of the hub (4).

Cartridge downforce adjustment

The counterweight (6) supplied is suitable for cartridges weighing between 3.5 –5.5g (Ortofon OM 5e -

weight no. 00).

Pushing carefully, turn the counterweight (6) onto the rear end of the tonearm tube (9), so that the downforce

scale (6a) shows towards the front of the player. Lower the armlift and position the cartridge in the space

between arm rest and platter. Carefully rotate the counterweight (6) until the armtube balances out. The arm

should return to the balanced position if it is moved up or down. This adjustment must be done carefully. Do

not forget to remove the cartridge protection cap if fitted.

Once the arm is correctly balanced return it to the rest. Hold the counterweight (6) without moving it, and gently

revolve the downforce scale ring (6a) until the zero is in line with the anti-skating prong (17). Check whether the

arm still balances out.

Rotate the counterweight counter clockwise (seen from the front) to adjust the downforce according to the

cartridge manufacturer's recommendations. One mark on the scale represents 1 mN (= 0.1g / 0.1 Pond) of

downforce.

Please note: Adjust the downforce prior to installing the anti-skating weight.

The recommended downforce for the Ortofon OM 5E cartridge is 17.5mN.

Anti-skating force adjustment

The anti-skating force must be adjusted corresponding to the downforce as

follows:

Downforce Groove in the stub (17)

10 - 14mN 1st from bearing rings

15 - 19mN 2nd " " "

20mN and bigger 3rd " " "

Slip the loop of the anti-skating weight's thread over the second groove of the stub to set the correct anti-

skating force for the factory-fitted cartridge. Feed the thread through the loop of the wire support (15).

Connection to the amplifier

The record player has gold plated female RCA phono sockets and possibility to choose between Phono and LINE

output. With LINE OUT on, you can use a line input (such as AUX, CD, Tuner, Tape or Video) on your amplifier.

With PHONO OUT on, you can use your own phono pre-amplifier (sometimes labelled gram, disc or RIAA).

Take care to connect the left and right channels correctly. The right channel is usually marked red, the left

channel black or white. The earthing wire of the tonearm lead should be connected to the earth terminal on

your amplifier (if provided).

Connecting to a Computer

Connect the USB-output of the unit to a free USB-socket on your computer and turn it on/make sure it is

powered on.

The “new hardware found assistant“will automatically detect the unit and announces it as a Microphone USB

audio codec. There is no need to install a driver manually.

After installation, one setting has to be done. For example - Windows 7®operating system:

→Control Panel →Sound →Recording →Microphone USB Audio CODEC →Properties →

Advanced: set to 2 channel, 16 bit, 48000 Hz (DVD Quality)

Please note: Connection should be made to an USB-socket of your computer directly. Connecting to

USB-hubs or switches can cause problems.

Recording Programme

In case you do not have a recording programme installed on your computer, you may download one free from

the Internet. Recording programmes may be found by searching Google.

In the menu of the recording programme, source or input may have to be set to Microphone USB audio codec.

Please be aware that downloads from the Internet are made entirely at your own risk. Under no

circumstances can we carry responsibility or provide support for third-party software products sourced

from the internet or for any damage or problems arising from the use thereof. All downloads should

be checked with an up-to-date anti-virus programme. License fees may be applicable.

Mains power connection

The turntable is supplied with the universal power supply with 3 exchangeable sockets adapters suitable for

all countries. Select the correct adapter for your country and insert the adapter to the exchangeable part of

the power supply.

Connect the low voltage plug from the power supply to the socket (14) on the rear of the record player before

connecting the power supply to the mains.

Fitting the lid

Fit the lid (dust cover 10) carefully over the hinge prongs and adjust the screws (12) until the lid stays open

where you want it to without being too stiff to open or close.

Switching on and off, changing replay speed

The turntable is equipped with a three-position switch for ON/OFF and electronic speed change. To play

records at 33 r.p.m. press this switch (19) to the left side. To play records at 45 r.p.m. press this switch (19)

to the right side. To be able to play 78 r.p.m. the flat drive belt has to be removed and the round drive belt

has to be fitted around the sub-platter (4) and the larger diameter part of the motor pulley (2). To do so, the

platter (5) has to be removed.

After the round drive belt has been fitted, pressing the ON/OFF switch to the right selects 78 r.p.m.

Useful tips

The record player should be positioned on a low-resonance surface such as wood or multiple layer ply board

to avoid structural vibrations disturbing replay.

Adjusting the azimuth

** The cartridge needle must be vertical in the record groove in order to trace the groove wall modulations

correctly.

A small screw at the bearing end of the arm allows incorrect azimuth to be corrected if your needle is not

mounted exactly perpendicular to the cartridge body (which is often the case).

Slacken off the screw just enough to be able to revolve the arm tube without applying force. Please note: do

not remove the screw completely!

With the aid of a good magnifying glass adjust the needle until it is vertical in the groove (i.e. perpendicular

to the record's surface). Ideally this should correspond to the top surface of the cartridge body being parallel

to the record surface.

When you are satisfied that the needle is vertical retighten the screw carefully.

Please note: Under no circumstances should the arm tube be adjusted with the needle still in the

record groove! Irreparable damage may be caused to the cantilever suspension! The arm must be

lifted to make each adjustment and lowered afterwards to check it.

Fitting and connecting the cartridge

** All cartridges with half inch mounting holes can be fitted. Leaving the needle's protection cover on, fit the

cartridge to the headshell using the screws supplied with the cartridge by passing one screw through each

slot in the headshell (20). Do not tighten the nuts yet.

Connect the tonearm wires to the cartridge pins as follows:

white left channel positive (L+)

red right channel pos. (R+)

green right channel return (R -)

blue left channel return (L -)

The full sound quality of the record player can only be achieved if the cartridge is correctly adjusted. Particular

tools like the Pro-Ject alignment tool are required to accomplish this job properly.

If you are not well acquainted with the adjustment of cartridges you are advised to call upon the willing help of

your Pro-Ject dealer to accomplish this task for you.

Please note: Adjusting a cartridge and tonearm calls for the greatest care in order to avoid damaging

the cartridge or tonearm bearings. Leave this work to your dealer if you are in any way unsure of the

necessary steps and precautions to be taken.

Maintenance and cleaning

Your record player requires little or no regular maintenance. Remove dust with a slightly moistened antistatic

cloth. Never use a dry cloth because this will create static electricity which attract more dust! Antistatic

cleaning fluids are available at specialist stores but must be applied sparingly to avoid damage to rubber

parts. It is recommended to fit the needle cover before cleaning or maintenance is carried out to avoid damage.

If the player is not used over a long period of time the drive belt can be removed to prevent unequal stretching.

Always disconnect the record player from the mains power supply as a precaution before maintenance!

Technical specifications Pro-Ject Debut RecordMaster II/ Pro-Ject 8.6

Nominal speeds

33/45 r.p.m.. *** 78 r.p.m. optional

Speed variance

33: ±0.70% 45: ±0.60%

Wow and flutter

33: ±0.19% 45: ±0.17%

Signal to noise

68dB

Effective tonearm mass

Effective tonearm length

8.6 " ( 218.5mm)

Overhang

18,5mm

Power consumption

4W/0W in Stand-By

Outboard power supply

15V / 0 –0.8mA DC (set at 0.5mA), universal power supply

Dimensions (W x H x D)

415 x 118 x 320mm, dust cover open 415 x 365 x 405mm

Weight

5,6kg

Dimensions packaging (W x H x D)

488 x 235 x 393mm

Weight incl. packaging

8.0kg

Technical specifications MM-Cartridge Ortofon OM 5e

Frequency range

20-22.000Hz

Channel separation

22dB/1kHz

Output voltage

4mV

Recommended load impedance

47kohms/amplifier connection –MM-input

Compliance/stylus type

20µm/mN –elliptical

Recommended tracking force

17.5mN

Weight

Technical specifications MM phono pre-amplifier

Gain

34dB

Output voltage typically

200mV/1kHz at 5mV/1kHz input

Input impedance

47kohms/100pF

Noise floor

-68dB

RIAA-equalisation curve accuracy

20Hz-20kHz / max. 0,5dB

Potential incorrect use and fault conditions

Pro-Ject turntables are manufactured to the highest standards and undergo strict quality controls before

leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but

can sometimes be caused by incorrect use or unfortunate circumstances. Therefore, the following list of

common fault symptoms is included.

The platter doesn't turn although the unit is switched on:

The unit is not connected to the mains power supply.

No mains at the socket.

Drive belt is not fitted or has slipped off.

No signal through one or other channel or both channels:

No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or

from that to the phono box or between that and the amplifier. This could be due to a faulty plug,

broken wire or solder joint or simply loose plug/socket connection.

Phono input not selected at amplifier.

Amplifier not switched on.

Amplifier or speakers defective or muted.

No connection to the loudspeakers.

Strong hum on phono input:

No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.

Distorted or inconsistent sound from one or both channels:

Record player is connected to wrong input of amplifier, or MM/MC switch incorrectly set.

Needle or cantilever damaged.

Wrong r.p.m., drive belt overstretched or dirty, platter bearing without oil, dirty or damaged.

Service

Should you encounter a problem which you are not able to alleviate or identify despite the above information,

please contact your dealer for further advice. Only when the problem cannot be resolved there should the

unit be sent to the responsible distributor in your country.

Guarantee repairs will only be effected if the unit is returned correctly packaged. For this reason, we recommend

keeping the original packaging.

Never return a record player without making sure that is it safely disassembled and correctly packaged in the

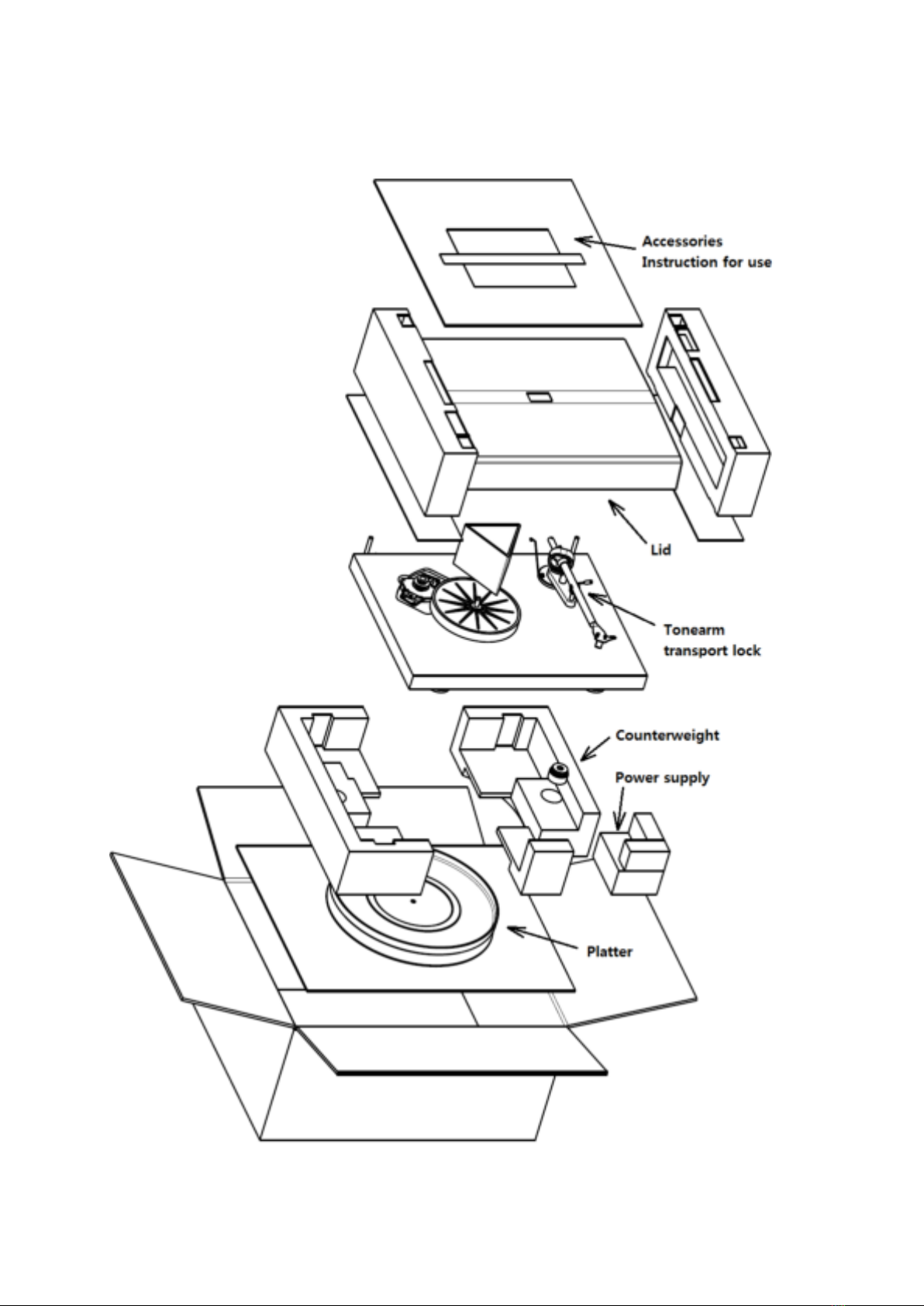

original packaging according to the diagrams on the last page of this user guide. Please remove these parts

and pack them separately: lid, counterweight, anti-skating weight, platter and belt. Fit the cartridge

protection cap. Insert the transport lock for the tonearm prior to carefully packaging the record player.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use and/or by transportation without the original packaging. Modification or change to any part

of the product by unauthorized persons release the manufacturer from any liability over and above

the lawful rights of the customer.

PRO-JECT is a Registered Trademark of H. Lichtenegger.

This guide was produced by: Pro-Ject Audio Systems

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed necessary to uphold the ongoing

process of technical development.

Table des matières

Autres manuels Pro-Ject Audio Systems Platine

Pro-Ject Audio Systems

Pro-Ject Audio Systems X8 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems T1 Phono SB Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject 2 Xperience Comfort Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems SIGNATURE 10 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 5.1 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 9.2 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Perspective Final Edition Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 1 Carbon Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Align it DS3 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Essential II DIGITAL Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Debut III E Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems THE CLASSIC Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon EVO Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Primary Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Xtensions 9 S-Shape Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems 2Xperience Primary Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems 1 Xpression III Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject VC-S Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject VC-S Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject RPM 5 SuperPack Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 10.1 Evolution Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems 1 Xpression Carbon Classic Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems VC-S2 ALU Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems X2 Manuel utilisateur

Manuels Platine populaires d'autres marques

Gemini

Gemini CDT-05 MKII Manuel utilisateur

Rotel

Rotel RP-820 Manuel utilisateur

Shuman

Shuman MC-250BT Manuel utilisateur

Stanton

Stanton STR8-150 Manuel utilisateur

Audio Technica

Audio Technica AT-LPW40WN Manuel utilisateur

Crosley

Crosley McQueen CR7011-GY Manuel utilisateur

Reloop

Reloop SMP-1 Manuel utilisateur

auna

auna TT-Classic Plus Manuel utilisateur

COMO AUDIO

COMO AUDIO Turntable Analog Manuel utilisateur

Dual

Dual 1009 F Manuel utilisateur

REED

REED Muse3C Manuel utilisateur

AXIOMTEK

AXIOMTEK OPS883-H Series Manuel utilisateur

Pioneer

Pioneer PL-71 Manuel utilisateur

Vestax

Vestax PDX-a1 Manuel utilisateur

Denon

Denon DP-400 Manuel utilisateur

Dual

Dual 504 Manuel utilisateur

Audio-Techica

Audio-Techica AT-LP60XBT Manuel utilisateur

Goldring

Goldring G99 Manuel utilisateur
