Pro-Form PFTL71505.1 Manuel utilisateur

Model No. PFTL71505.1

Serial No.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction.If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:

www.proformservice.com

USER'S MANUAL

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.

PROFORM is a registered trademark of ICON IP, Inc.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at

least eight feet of clearance behind it and two

feet on each side. Do not place the treadmill

on any surface that blocks air openings. To

protect the floor or carpet from damage, place

amat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should be used only by persons

weighing 300 pounds or less.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women.

Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

10. When connecting the power cord (see page 10),

plug the power cord into a surge suppressor

(not included) and plug the surge suppressor

into a grounded circuit capable of carrying 15

or more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor

that meets all of the specifications described

on page 10. To purchase a surge suppressor,

see your local PROFORM dealer or call the

toll-free telephone number on the front cover

of this manual and order part number 146148,

or see your local electronics store.

12. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may change

speed, accelerate, or stop unexpectedly,

which may result in a fall and serious injury.

13. Keep the power cord and the surge suppres-

sor away from heated surfaces.

14. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See TROU-

BLESHOOTING on page 25 if the treadmill is

not working properly.)

15. Read, understand, and test the emergency

stop procedure before using the treadmill (see

OPERATION AND ADJUSTMENT on page 10).

16. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails or the upper body arms while using

the treadmill.

17. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

18. The pulse sensor is not a medical device.

Various factors, including the user’s move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only as

an exercise aid in determining heart rate

trends in general.

19. Never leave the treadmill unattended while it

is running. Always remove the key and unplug

the power cord when the treadmill is not in

use.

20. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 23.)

You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the treadmill.

WARNING: Toreduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

21. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

22. Inspect and properly tighten all parts of the

treadmill regularly.

23. Never insert any object into any opening.

24. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

representative only.

25. This treadmill is intended for in-home use

only. Do not use this treadmill in a commer-

cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown here have been placed on the treadmill. If a decal is missing, or if

it is not legible, call the toll-free telephone number on the front cover of this manual

and order a free replacement decal. Apply the decal in the location shown.

Thank you for selecting the new PROFORM®CROSS-

WALK CALIBER ELITE treadmill. The CROSSWALK

CALIBER ELITE treadmill offers an impressive array of

features designed to make your workouts at home

more enjoyable and effective. And when you’re not ex-

ercising, the unique CROSSWALK CALIBER ELITE

treadmill can be folded up, requiring less than half the

floor space of other treadmills.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before calling. The model

number of the treadmill is PFTL71505.1. The serial

number can be found on a decal attached to the tread-

mill (see the front cover of this manual for the location).

To avoid a registration fee for any service needed

under warranty, you must register the treadmill at

www.proformservice.com/registration.

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Upright

Storage Latch

Key/Clip

Reset/Off

Circuit Breaker

Walking Belt

Cushioned Walking Platform

for maximum exercise comfort

Foot Rail

Power Cord

RIGHT SIDE

Rear Roller

Adjustment Bolts

Console

Bookrack

Accessory Tray

BACK

Upper Body Arm

ASSEMBLY

To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly

requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the

packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with

high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walk-

ing belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lu-

bricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included allen wrenches and your own phillips screwdriver ,

rubber mallet , and adjustable wrench .

For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, first

check to see if it has been pre-assembled.

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip the

treadmill onto its left side as shown. Partially fold the

Frame (86) so the treadmill is more stable. Do not fully

fold the treadmill until it is completely assembled.

Insert an Extension Leg (63) into the base of the

Uprights (69) with the Extension Leg Pad (61) oriented

as shown. If necessary, use a rubber mallet to fully insert

the Extension Leg. Next, hold two Extension Leg Nuts

(46) in the bottom of the Extension Leg, and insert two

Extension Leg Bolts (93) into the top of the Extension

Leg. Firmly tighten the Extension Leg Bolts into the

Extension Leg Nuts.

Attach two Round Base Pads (57) to the base of the

Uprights (69) with two 1” Tek Screws (39).

3/4” Screw (2)–11

Nut (13)–2

Wheel Bolt (64)–2

Silver Ground

Screw (75)–1

1” Tek Screw (39)–4

Handrail Bolt (37)–2

Washer (38)–4

1/2” Screw (48)–2

3 1/2” Bolt (45)–4

Star Washer

(106)–4

Handrail Star

Washer (95)–2

Extension Leg

Nut (46)–4

Extension Leg Bolt (93)–4

Small Star

Washer (118)–4

2. Attach a Wheel (66) to the base of the Uprights (69) with

aWheel Bolt (64) and a Nut (13) as shown. Do not

overtighten the Bolt; the Wheel should turn freely.

With the help of a second person, carefully tip the tread-

mill onto its other side. See assembly step 1, and attach

the other Extension Leg (63) and the remaining two

Round Base Pads (57). Then, attach the other Wheel

(66) as described above.

With the help of a second person, carefully lower the

base of the Uprights (69) to the floor so the Uprights are

in a vertical position.

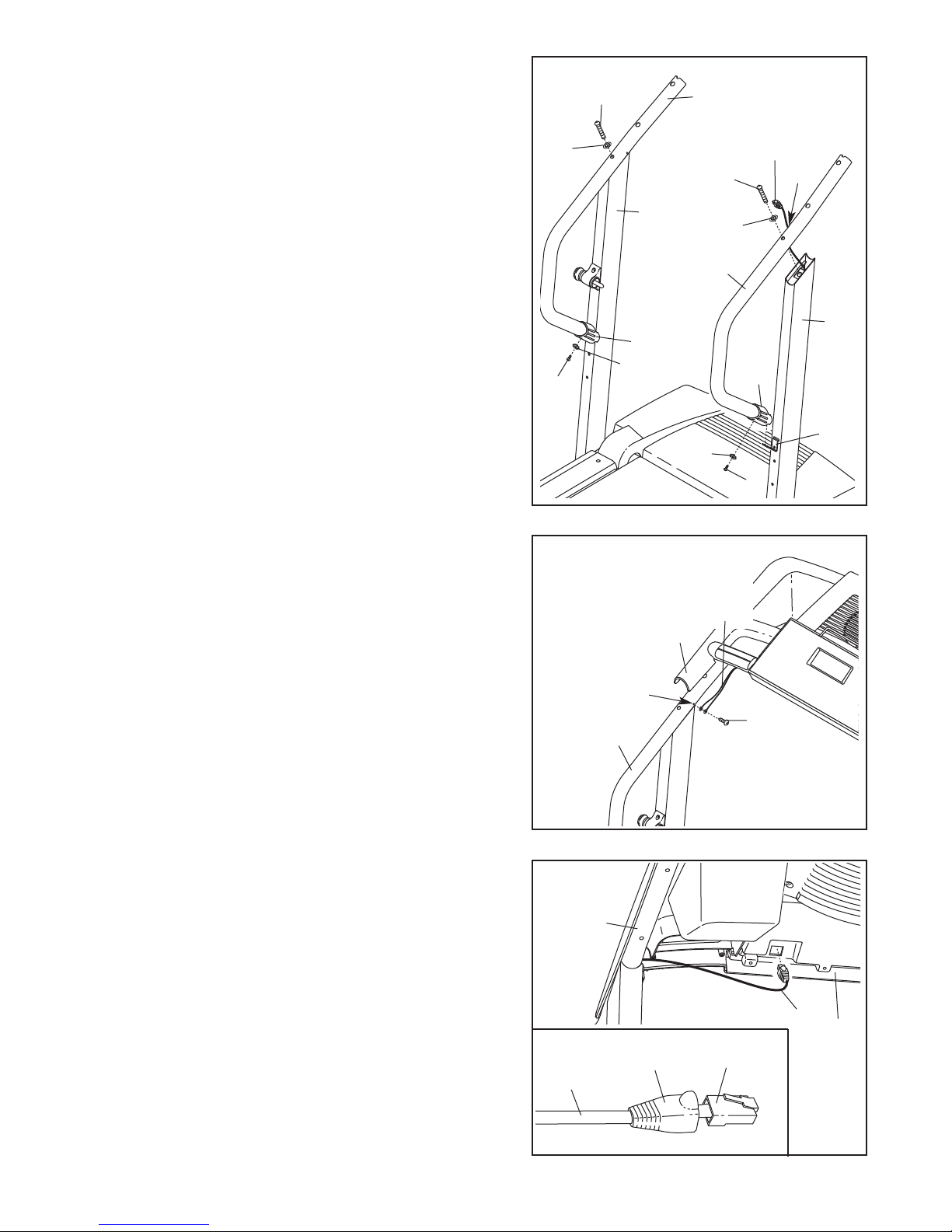

4. Insert the tab on one of the Handrail Brackets (119) into

the slot in the right Upright (69). Attach the Handrail

Bracket with a 3/4” Screw (2) and a Small Star Washer

(118). Attach the other Handrail Bracket to the left

Upright (not shown) in the same way.

118

119

Slot

3. Attach the Latch Housing (29) to the left Upright (69) with

two 3/4” Screws (2). Make sure that the large hole in

the Latch Housing is on the side shown.

Remove the knob from the pin. Make sure that the col-

lar and the spring are on the pin as shown. Then, in-

sert the pin into the Latch Housing (29), and tighten the

knob back onto the pin.

Collar

Spring

Knob

Large

Hole

Small

Hole

6. Hold the Console Base (47) near the Left Handrail (71).

Attach the ends of the ground wires on the Console Base

to the indicated small hole in the Left Handrail with the

Silver Ground Screw (75).

Ground

Wires

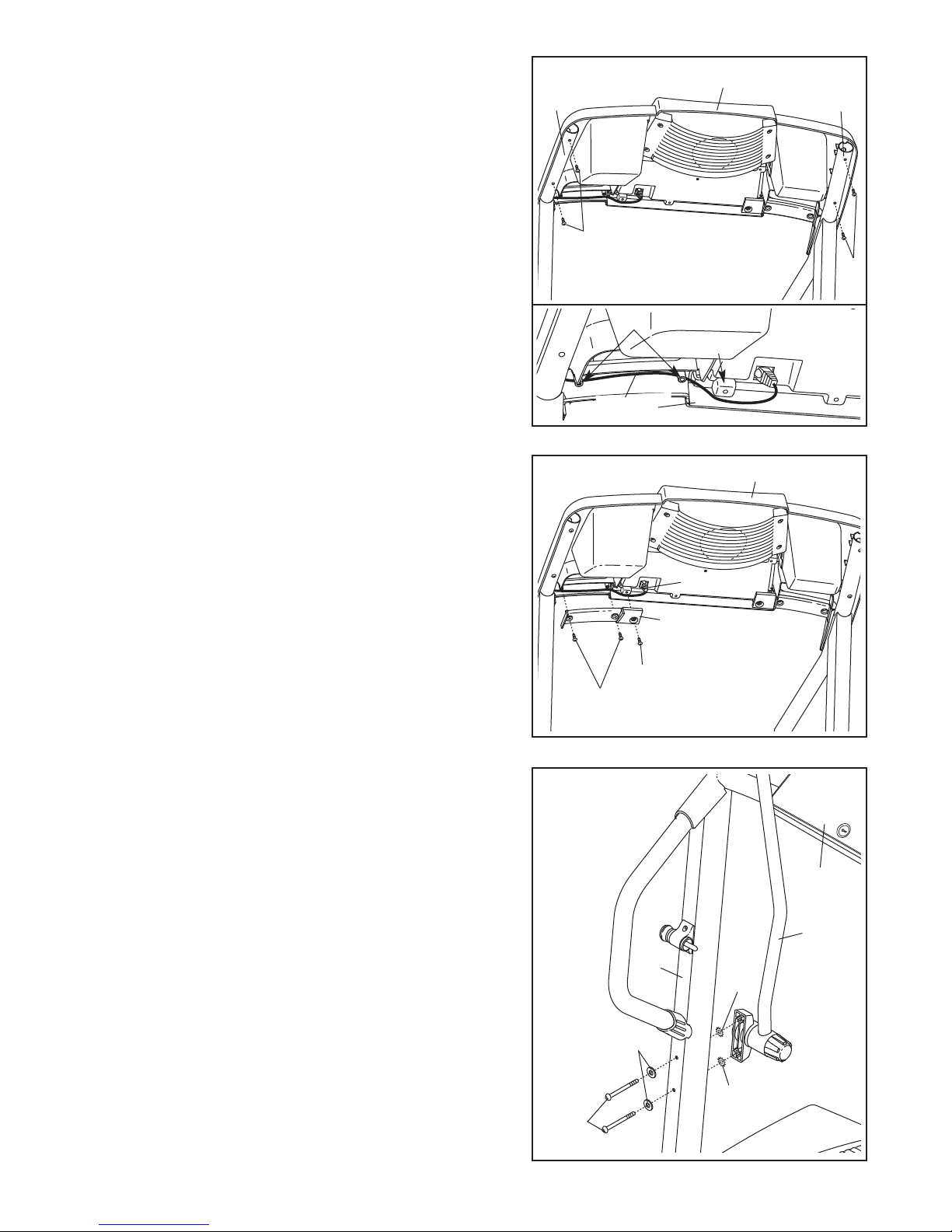

7. Touch the Right Handrail (72) to discharge any static.

Slide the sleeve off the connector on the Upright Wire

(42) as shown in the inset drawing. Next, press the end of

the Upright Wire into the socket in the bottom of the

Console Base (47). The connector should slide easily

into the socket and snap into place. If the connector

does not slide easily and snap into place, turn the connec-

tor and then insert it. Then, slide the sleeve back over the

connector.

Sleeve Connector

5. If there is a board between the Uprights (69), remove the

two bolts attaching the board. Discard the board and the

bolts.

Identify the Right Handrail (72), which has a large hole in

the left side. Remove the wire tie securing the Upright

Wire (42) inside of the right Upright (69). Feed the

Upright Wire into the hole in the bottom of the Right

Handrail and out of the large hole in the side. Note: It

may be helpful to use needlenose pliers to pull the Wire

Harness out of the hole.

Press a Handrail Cap (16) onto the lower end of the

Right Handrail (72) as shown. Set the Right Handrail on

the right Upright (69), while sliding the lower end of the

Right Handrail onto the Handrail Bracket (119). Attach

the Right Handrail with a Handrail Bolt (37) and a

Handrail Star Washer (95) in the upper end and a 3/4”

Screw (2) and a Small Star Washer (118) in the lower

end. Be careful not to pinch the Upright Wire (42).

Attach the Left Handrail (71) as described above. Note:

There is not an upright wire on the left side.

Hole

118

119

118

9. Cover the Upright Wire (42) with the Right Grip Plate

(36). Be careful not to pinch the Upright Wire. Tighten

two 1/2” Screws (48) and a 3/4” Screw (2) into the Right

Grip Plate and the Console Base (47).

10.Attach the Left Upper Body Arm (24) to the left Upright

(69) with two 3 1/2” Bolts (45), two Washers (38), and

two Star Washers (106) as shown. Make sure that the

Left Upper Body Arm is on the indicated side of the

Console Base (47).

Attach the Right Upper Body Arm (not shown) to the right

Upright (not shown) in the same way.

11. Make sure that all parts are properly tightened be-

fore you use the treadmill. Note: Extra hardware may

be included. Keep the included allen wrenches in a se-

cure place; the large allen wrench is used to adjust the

walking belt (see page 26). To protect the floor or car-

pet, place a mat under the treadmill.

106

8. Set the Console Base (47) on the Handrails ( 71, 72).

Attach the Console Base with four 3/4” Screws (2). Start

all four Screws before tightening them; do not over-

tighten the Screws.

See the lower drawing. Make sure that the Upright

Wire (42) is routed below the two indicated round

posts (A). Next, press the Upright Wire into the slot be-

tween the square post (B) and the Console Base (47).

72 71

OPERATION AND ADJUSTMENT

THE PRE-LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with high-

performance lubricant. IMPORTANT: Never apply sil-

icone spray or other substances to the walking

belt or the walking platform. Such substances will

deteriorate the walking belt and cause excessive

wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right). To purchase a surge suppressor, see

your local PROFORM dealer or call the toll-free

telephone number on the front cover of this man-

ual and order part number 146148, or see your local

electronics store.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps. There must be a moni-

toring light on the surge suppressor to indicate

whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill. If

the control system is damaged, the walking belt

may change speed, accelerate or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pro-Form vélo elliptique

Pro-Form

Pro-Form 390 E Manuel utilisateur

Pro-Form

Pro-Form 785s Elliptical Manuel utilisateur

Pro-Form

Pro-Form PFIVEL85712.0 Manuel utilisateur

Pro-Form

Pro-Form 20.0 Crosstrainer Elliptical Manuel utilisateur

Pro-Form

Pro-Form 450 Hr Elliptical Guide de démarrage rapide

Pro-Form

Pro-Form PFIVEL81412.0 Manuel utilisateur

Pro-Form

Pro-Form PFIVEL87513.0 Manuel utilisateur

Pro-Form

Pro-Form 480 Spacesaver Elliptical Guide de configuration

Pro-Form

Pro-Form PFEL53911.0 Manuel utilisateur

Pro-Form

Pro-Form 510 E Elliptical Guide de démarrage rapide

Pro-Form

Pro-Form 485e Manuel utilisateur

Pro-Form

Pro-Form 660 Xt Guide de l'utilisateur

Pro-Form

Pro-Form 470 Hr Elliptical Manuel utilisateur

Pro-Form

Pro-Form 220 Zle Elliptical Manuel utilisateur

Pro-Form

Pro-Form PFEL64907.0 Manuel utilisateur

Pro-Form

Pro-Form PFEL29221 Manuel utilisateur

Pro-Form

Pro-Form PFEL7806.1 Manuel utilisateur

Pro-Form

Pro-Form PFEL71032 Manuel utilisateur

Pro-Form

Pro-Form 850 PFEL5105.0 Manuel utilisateur

Pro-Form

Pro-Form 550 Hr Elliptical Guide de démarrage rapide

Pro-Form

Pro-Form 1100 E Elliptical Manuel utilisateur

Pro-Form

Pro-Form PFEL53909.0 Manuel utilisateur

Pro-Form

Pro-Form 831.23935.0 Manuel utilisateur

Pro-Form

Pro-Form 650 Cardio Cross Trainer Elliptical Guide de l'utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur
