Pro-Form 850 PFEL77807.0 Manuel utilisateur

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manu-

al for future reference.

Serial

Number

Decal

Model No. PFEL77807.0

Serial No.

Write the serial number in the

space above for reference.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. If you have questions,

or if parts are damaged or missing,

PLEASE DO NOT CONTACT THE

STORE; please contact Customer

Care.

IMPORTANT: You must note the

product model number and serial

number (see the drawing above)

before contacting us:

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MST

Sat. 8 a.m.–4 p.m. MST

ON THE WEB:

www.proformservice.com

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

WARNING DECAL PLACEMENT

The warning decal shown here has

been applied in the location shown. If

the decal is missing or illegible, call

the telephone number on the front

cover of this manual and request a

free replacement decal. Apply the

decal in the location shown. Note:

The decal may not be shown at actual

size.

PROFORM is a registered trademark of ICON IP, Inc.

iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. Your elliptical exerciser is intended for home

use only. Do not use your elliptical exerciser

in a commercial, rental, or institutional set-

ting.

4. Keep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around your elliptical exerciser to mount,

dismount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from your elliptical exerciser at all times.

7. Your elliptical exerciser should not be used

by persons weighing more than 275 lbs.

(124 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the han-

dlebars when mounting, dismounting, or

using your elliptical exerciser.

10. Keep your back straight while using your

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the user’s move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. If you feel pain or dizziness while exercising,

stop immediately and cool down.

14. Use your elliptical exerciser only as

described in this manual.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

850 elliptical exerciser. The 850 elliptical exerciser

provides an impressive array of features designed to

make your workouts at home more effective and

enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

To avoid a registration fee for any service needed

under warranty, you must register the elliptical

exerciser at www.proformservice.com/registration.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Game Controller

Power Supply

Handlebar

Wheel

Pedal

Console

Water Bottle Holder*

Leveling Foot

*No water bottle is included

Integrated Universal

Dock for iPod

M4 x 16mm

Screw (80)–4

M10 x 120mm Patch Screw (58)–2

M8 Hex Nylon

Locknut (77)–4

M8 x 19mm Patch

Screw (65)–4

M6 x 18mm Patch

Screw (57)–6

M10 x 27mm Patch

Screw (64)–4

M6 x 14mm

Flat Head

Screw (55)–1

M10 x 15mm Patch

Screw (71)–2

M10 x 22mm x

1.5mm Washer

(63)–2

Barrel Nut (56)–1

#8 x 1/2"

Screw (79)–6

#8 x 2"

Screw (68)–4

M8 x 55mm Patch

Bolt (61)–4

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included hex keys and your own Phillips screwdriver , adjustable

wrench , and rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number

following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-

assembled. If a part is not in the hardware kit, check to see if it has been preassembled.

Remove the two M10 x 120mm Patch Screws

(58) and the shipping bracket (not shown)

attached to the front of the Frame (1). Discard

the shipping bracket. Do not discard the two

M10 x 120mm Patch Screws.

Orient the Stabilizer (49) with the Wheels (8) in

the position shown. While a second person tips

the Frame (1) backward, attach the Stabilizer to

the Frame with the two M10 x 120mm Patch

Screws (58).

2. Identify the Right Handlebar (36), which is

marked with an “R” sticker, and orient it as

shown. Attach the Right Handlebar to the Frame

(1) with three M6 x 18mm Patch Screws (57).

Repeat this step to attach the Left Handlebar

(22).

To make assembly easier, read the

information on page 5 before you begin

assembling the elliptical exerciser.

4. While a second person holds the Console (4)

near the Upright (3), connect the console wire to

the Wire Harness (46). Insert the excess wire

downward into the Upright.

Tip: Avoid pinching the wires during this

step. Attach the Console (4) to the Upright (3)

with four M4 x 16mm Screws (80).

3. Identify the Upright (3) and orient it as shown.

Have a second person holds the Upright near

the top of the Frame (1). Locate the wire tie

(see the inset drawing) in the Upright. Tie the

lower end of the wire tie to the Wire Harness

(46). Next, pull the upper end of the wire tie

upward out of the top of the Upright. Then, untie

and discard the wire tie. Tip: Do not allow the

Wire Harness to fall into the Upright. Use a

piece of tape or an elastic band to hold the

Wire Harness in place until step 4.

Tip: Avoid pinching the Wire Harness (46)

during this step. Insert the Upright (3) into the

Frame (1). Attach the Upright with four M8 x

19mm Patch Screws (65).

Console Wire

Avoid pinching the

Wire Harness (46)

during this step

Avoid pinching the

wires during this step

Wire Tie

5. Identify and orient the Ramp (2) as shown.

Tip: Remove the Ramp Cover (not shown)

from the Ramp and set it aside until step 9.

Attach the Ramp to the Frame (1) with four M10

x 27mm Patch Screws (64). Tip: To prevent

squeaking, do not overtighten the Patch

Screws.

Grease

Holes

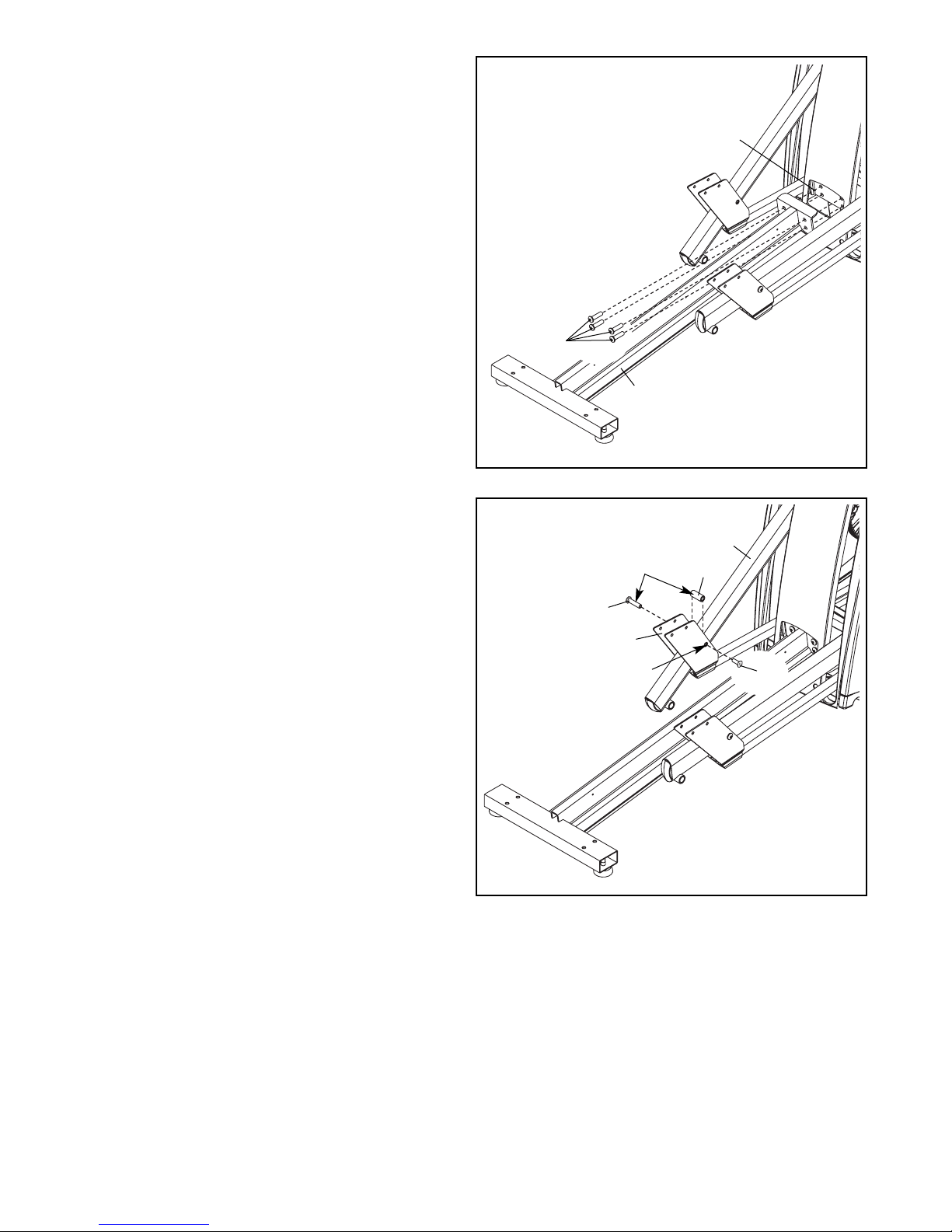

6. Cut and remove the wire tie that holds the Link

Tube (30) inside the left Link Arm (25). Leave

the Link Tube inside the left Link Arm and then

position the Left Pedal Leg (24) and the left Link

Arm as shown.

Apply a small amount of the included grease to

a Barrel Nut (56). Insert the Barrel Nut through

the indicated holes in the Left Pedal Leg (24)

and the left Link Arm (25). Then, insert the

Barrel Nut through the Link Tube (30) inside the

left Link Arm.

Tighten an M6 x 14mm Flat Head Screw (55)

into the Barrel Nut (56).

8. Orient a Pedal (26) as shown. Attach the Pedal

to the bracket on the Left Pedal Leg (24) with

two M8 x 55mm Patch Bolts (61) and two M8

Hex Nylon Locknuts (77).

Repeat this step to attach the other Pedal

(26).

7. Insert the axle of a Roller (27) through the right

Link Arm (25); make sure that the Roller is on

the inner side of the Link Arm. Attach the

Roller with an M10 x 15mm Patch Screw (71)

and an M10 x 22mm x 1.5mm Washer (63). Tip:

Use a wrench to hold the axle of the Roller

firmly in place while you tighten the Patch

Screw into the axle.

Repeat this step to attach the other Roller

(27) to the left Link Arm (25).

24 77

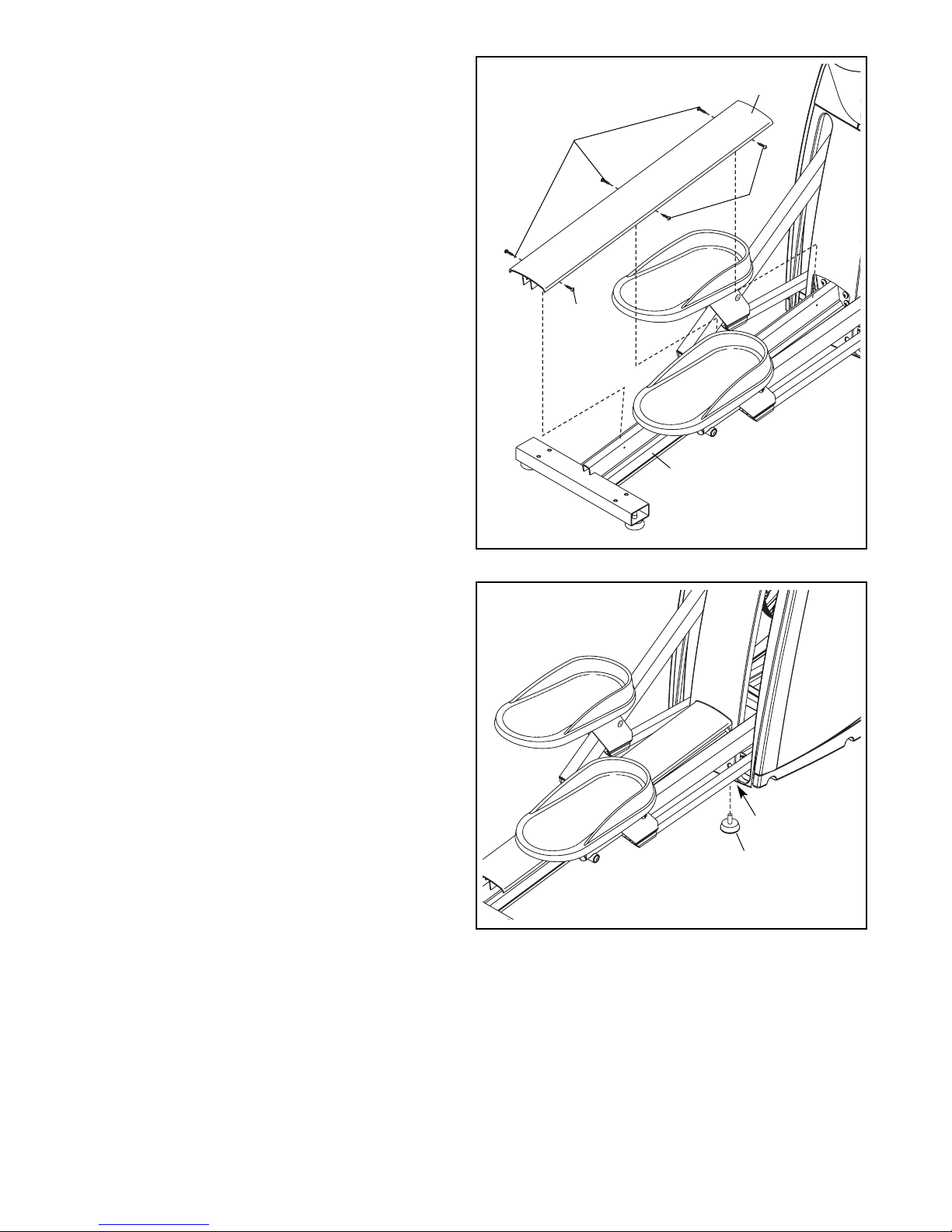

9. Attach the Ramp Cover (7) to the Ramp (2) with

six #8 x 1/2” Screws (79). 9

10. Remove the shipping bracket (not shown)

inserted into the underside of the Frame (1).

Discard the shipping bracket.

While a second person tips the Frame (1) for-

ward, tighten a Foot (9) into the underside of the

Frame.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pro-Form vélo elliptique

Pro-Form

Pro-Form PFEL3905.0 Manuel utilisateur

Pro-Form

Pro-Form PFEL6905.1 Manuel utilisateur

Pro-Form

Pro-Form PFEL5105.3 Manuel utilisateur

Pro-Form

Pro-Form PFEX39911 Manuel utilisateur

Pro-Form

Pro-Form 420 Zle Elliptical Guide de configuration

Pro-Form

Pro-Form PFEL05807.0 Manuel utilisateur

Pro-Form

Pro-Form SpaceSaver 700 PFIVEL74313.0 Manuel utilisateur

Pro-Form

Pro-Form 545 Ekg Elliptical Manuel du système

Pro-Form

Pro-Form 850 Elliptical Manuel utilisateur

Pro-Form

Pro-Form 390 E Manuel utilisateur

Pro-Form

Pro-Form 690 Hr Elliptical Guide de l'utilisateur

Pro-Form

Pro-Form 764hr Bike Guide de l'utilisateur

Pro-Form

Pro-Form PFEL1303.3 Manuel utilisateur

Pro-Form

Pro-Form 605 Hr Elliptical Manuel utilisateur

Pro-Form

Pro-Form 1200 Pro Elliptical Manuel utilisateur

Pro-Form

Pro-Form Crossxover Manuel utilisateur

Pro-Form

Pro-Form 890 E Elliptical Manuel utilisateur

Pro-Form

Pro-Form 764hr Bike Manuel utilisateur

Pro-Form

Pro-Form PFEL55911.6 Manuel utilisateur

Pro-Form

Pro-Form 470 Hr Elliptical Guide de l'utilisateur

Pro-Form

Pro-Form 300 Zle Elliptical Guide de configuration

Pro-Form

Pro-Form CROSSWALK 8.0 Manuel utilisateur

Pro-Form

Pro-Form 595 HR Manuel utilisateur

Pro-Form

Pro-Form 485 E Eng/french Manuel utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur
