Owner’s Manual

www.pridemobility.com Ultimate

SAFETY GUIDELINES

Pride Mobility Products Corporation

INFMANU3049/Rev B/October 2012

The symbols below are used throughout this owner's manual and on the scooter to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Failure to follow designated procedures can cause either personal injury,

component damage, or malfunction (black symbol on yellow triangle with black border).

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause injury to personnel and/or damage to equipment (white

symbol on blue dot with white border).

PROHIBITED! These actions should be prohibited. These actions should not be performed

at any time or in any circumstances. Performing a prohibited action can cause injury to

personnel and/or damage to equipment (black symbol with red circle and red slash).

My authorized Pride Provider is:

Name:_____________________________________________________________________________

Address:___________________________________________________________________________

Phone Number:______________________________________________________________________

Purchase Date:_______________________________________________________________________

Provider

Ultimate www.pridemobility.com

CONTENTS

I. INTRODUCTION......................................................................................................................... 4

II. SAFETY ......................................................................................................................................... 5

III. SPECIFICATIONS ................................................................................................................... 16

IV. YOUR SCOOTER...................................................................................................................... 18

V. BATTERIES AND CHARGING ............................................................................................ 22

VI. OPERATION............................................................................................................................... 26

VII. COMFORT ADJUSTMENTS................................................................................................ 28

VIII.DISASSEMBLY AND ASSEMBLY ..................................................................................... 30

IX. BASIC TROUBLESHOOTING ............................................................................................. 33

X. CARE AND MAINTENANCE................................................................................................ 35

XI. WARRANTY................................................................................................................................37

This owner’s manual is compiled from the latest specifications and product information available at the time

of publication. We reserve the right to make changes as they become necessary.Any changes to our products

maycause slightvariations betweenthe illustrationsand explanationsin thismanual andthe productyou have

purchased.

4www.pridemobility.com Ultimate

I. INTRODUCTION

SAFETY

WELCOMEto Pride MobilityProducts Corporation(Pride). The productyou havepurchased combines state-

of-the-artcomponentswithsafety,comfort,andstylinginmind.Weareconfidentthedesignfeatureswill provide

youwiththeconveniencesyouexpectduring your daily activities.Understandinghowtosafelyoperateandcare

forthisproduct should bringyouyears of troublefreeoperations and service.

Readandfollowallinstructions,warnings,andnotesinthismanualandallotheraccompanyingliteraturebefore

attemptingto operatethis product for the firsttime. Inaddition, yoursafetydependsupon you, as well as your

provider,caretaker,or healthcareprofessionalinusinggoodjudgement.

Ifthereisany information inthismanualwhich you donotunderstand,or if yourequireadditionalassistance for

setuporoperation,pleasecontact your authorized PrideProvider.Failuretofollowtheinstructions,warnings,

andnotesinthismanualandthoselocatedonyourPrideproductcanresultinpersonalinjuryorproduct

damageandvoidPride’sproductwarranty.

NOTE:Any tasks and work procedures not described in this manual must be carried out by your autho-

rized Pride Provider.

PURCHASER’S AGREEMENT

Byacceptingdeliveryofthisproduct,youpromisethatyouwillnotchange,alter,ormodifythisproductorremove

orrender inoperable or unsafeanyguards,shields,orothersafetyfeaturesofthisproduct;fail,refuse,orneglectto

installanyretrofit kits fromtime to timeprovidedby Pride toenhance or preservethesafe useofthis product.

INFORMATION EXCHANGE

Wewant to hearyourquestions,comments, and suggestionsaboutthismanual.We would alsoliketohear about

thesafety andreliabilityofyournewPrideproduct,andabouttheservice youreceivedfromyourauthorizedPride

Provider.Pleasenotify usofanychange of address,sowecan keep youapprisedofimportant information about

safety, newproducts, andnewoptions thatcan increase yourability touse and enjoyyour Prideproduct.Please

feelfree tocontact usat theaddress below:

PrideMobilityProductsEurope B.V.

CastricummerWerf 26

1901RWCastricum

TheNetherlands

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Shipping

Duringshippingtheoriginalpackagingmustbeusedandindividualcomponents(batteries,etc.)shouldbesecured

againstslipping. During transportation with forexample, atruck, the scooter must besecured against slipping

(hazardwhen braking).Before usingyour scooter,make sure your delivery is complete.Should thisnot bethe

case,pleasecontact yourauthorizedPride Providerimmediately.Where damagehasoccurred duringtransport,

eithertothe packaging orcontent,pleasecontact thedeliverycompanyresponsible.

Ultimate www.pridemobility.com

PRODUCT SAFETY SYMBOLS

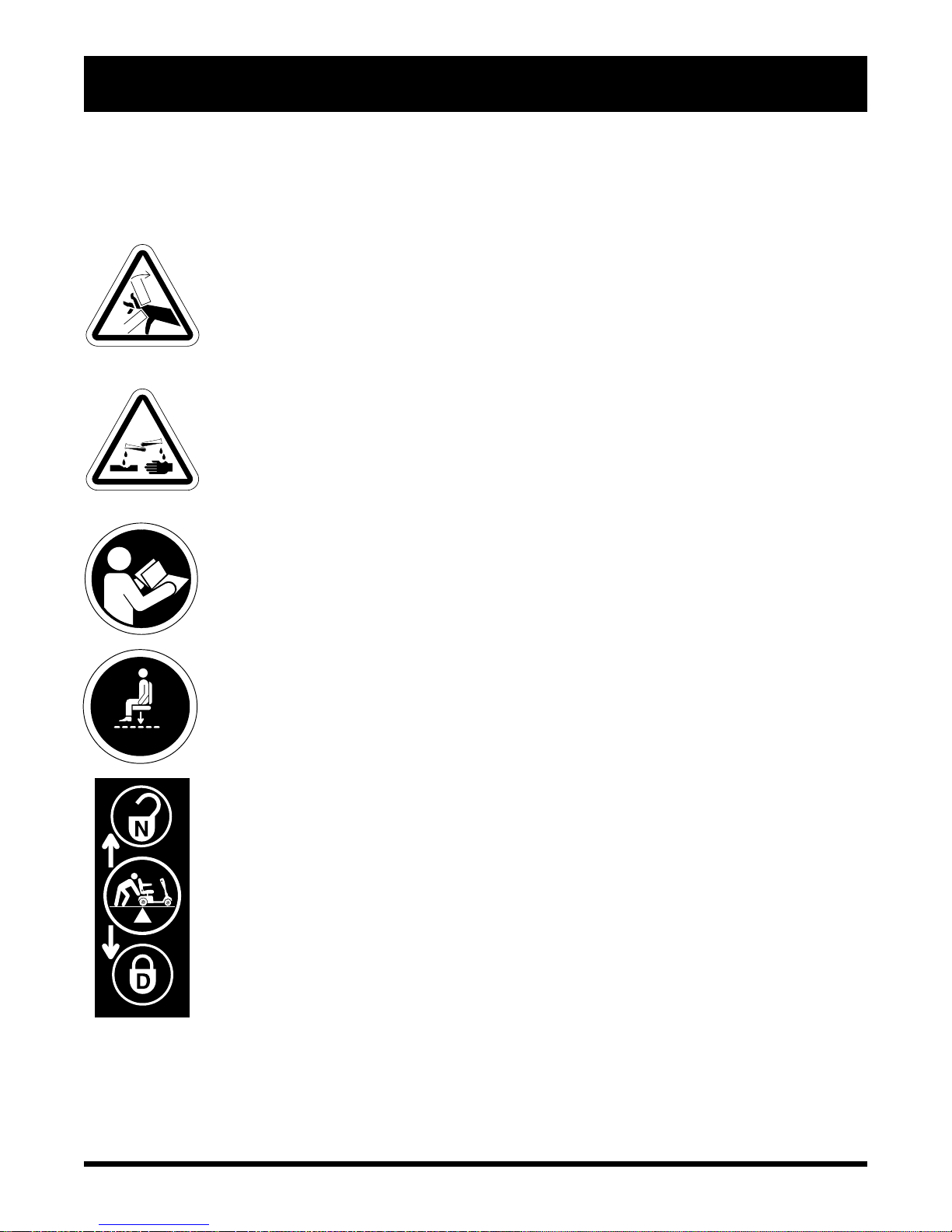

Thesymbolsbelow are usedonthe scooter toidentifywarnings, mandatory actions,andprohibited actions. Itis

veryimportantforyou to readandunderstandthemcompletely.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery. Use only AGM or Gel-Cell

batteries to reduce the risk of leakage or explosive conditions.

Read and follow the information in the owner’s manual.

Maximum seating weight.

Place unit on level ground and stand behind or to one side when changing

from drive mode to freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Unlocked and in freewheel mode.

II. SAFETY

6www.pridemobility.com Ultimate

Front-to-rear plug orientation.

Do not remove anti-tip wheels.

Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while

operating.

Avoid exposure to rain, snow, ice, salt, or standing water whenever possible.

Maintain and store in a clean and dry condition.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug

access. Failure to heed could result in personal injury and/or property damage.

Prevent personal injury and equipment damage. Do not connect an extension lead

to the AC/DC converter or the battery charger.

II. SAFETY

Ultimate www.pridemobility.com

II. SAFETY

GENERAL

MANDATORY! Do not operate your new scooter for the first time without completely reading and

understandingthisowner’s manual.

Yourscooterisastate-of-the-artlife-enhancementdevicedesignedtoincreasemobility.Prideprovidesanextensive

varietyofproducts to bestfitthe individualneedsofthe scooteruser. Please beawarethat the finalselectionand

purchasingdecision regarding the typeofscootertobeusedistheresponsibilityofthescooteruserwhoiscapable

ofmakingsuchadecisionand his/her healthcareprofessional(i.e.,medicaldoctor,physicaltherapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the

scootertotheuserandhasassistedtheprescribinghealthcareprofessionaland/ortheauthorizedPrideProviderin

theinstructionprocess forthe use ofthe product.

There are certain situations, including some medical conditions, where the scooter user will need to practice

operatingthescooterinthepresenceofatrainedattendant.Atrainedattendantcanbedefinedasafamilymember

orcare professional speciallytrainedinassistingascooteruserinvariousdailylivingactivities.

Asyoubeginusingyour scooterduringdailyactivities,you will probablyencountersituationsinwhich you will

needsome practice.Simply take your time andyou willsoon be in full andconfident controlas you maneuver

throughdoorways,on andoff of lifts,up and downramps, andovermoderate terrain.

Beloware some precautions,tips, andother safety considerationsthat willhelp the userbecome accustomedto

operatingthescootersafely.

Modifications

Pridehasdesignedandengineeredyourscootertoprovidemaximummobilityandutility.Awiderangeofaccessories

isavailablefromyourauthorizedPrideProvidertofurthercustomizeyourscootertobettersuityourneedsand/or

preferences.However,under no circumstancesshould youmodify,add, remove, ordisable anyfeature,part, or

functionofyourscooter.

WARNING! Do not modify your scooter in any way not authorized by Pride. Unauthorized

modifications may result in personal injury and/or damage to your scooter.

Removable Parts

WARNING!Donotattempttoliftor move yourscooter byanyof itsremovableparts. Personalinjury

and damage to the scooter may result.

Pre-Ride Safety Check

Getto know the feel ofyourscooteranditscapabilities.Priderecommendsthatyouperformasafetycheckbefore

eachuseto makesureyour scooteroperatessmoothly andsafely. Fordetails on howtoperform thesenecessary

inspections,seeX. “Care andMaintenance.”

8www.pridemobility.com Ultimate

II. SAFETY

Performthe followinginspectionspriortousingyourscooter:

!Checkforpropertireinflation(ifequippedwithpneumatictires).

!Checkallelectrical connections.Make sure theyare tight andnot corroded.

!Checkall harness connections.Make surethey are securedproperly.

!Check the brakes.

!Checkbattery charge.

Tire Inflation

Ifyour scooter isequipped with pneumatictires, you shouldcheck or havethe air pressurechecked regularly.

Properinflationpressureswillprolongthe life ofyourtiresandhelpensurethe smooth operationofyourscooter.

WARNING! It is critically important that 2-2,4 bar tire pressure be maintained in pneumatic tires at

all times. Do not underinflate or overinflate your tires. Low pressure may result in loss of control,

andoverinflated tiresmay burst.Failure tomaintain 2-2,4bar tirepressure inpneumatic tiresat all

timesmay resultintireand/orwheelfailure,causingseriouspersonalinjuryand/ordamageto your

scooter.

WARNING! Inflate your scooter tires from a regulated air source with an available pressure gauge.

Inflating your tires from an unregulated air source could overinflate them, resulting in a burst tire

and/or personal injury.

Weight Limitations

Yourscooterisratedforamaximum weight capacity.Refertothespecifications table for thisinformation.

WARNING! Exceeding the weight capacity voids your warranty and may result in personal injury

and damage to your scooter. Pride will not be held responsible for injuries and/or property damage

resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers may result in personal

injury and/or property damage.

Incline Information

Moreand more buildings have rampswith specified degrees of inclination,designed for easy and safeaccess.

Somerampsmay have turningswitchbacks(180-degree turns)thatrequireyou tohavegood cornering skillson

yourscooter.

!Proceedwith extreme cautionas youapproachthe downgradeof a rampor otherincline.

!Take wideswingswithyourscooteraroundanytightcorners.Ifyou dothat,therearwheelswillfollowawide

arc,not cut thecorner short, andnot bumpinto or gethung up onany railingcorners.

!When driving down a ramp, keep the speed adjustment set to the slowest speed setting to ensure a safely

controlleddescent.

!Avoidsudden stopsand starts.

Ultimate www.pridemobility.com

II. SAFETY

When climbing an incline, try to keep your scooter moving. If you must stop, start up again slowly, and then

acceleratecautiously.When driving down anincline, do soby setting the speed adjustment dial to theslowest

settingand drivingin the forwarddirection only. If your scooterstarts tomove downthe incline faster than you

anticipatedor desired,allow itto come to a complete stop byreleasing thethrottle controllever.Then pushthe

throttlecontrolleverforwardslightlytoensureasafelycontrolled descent.

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the incline.

Drive your scooter straight up the incline. This greatly reduces the possibility of a tip or a fall.

Always exercise extreme caution when negotiating an incline.

WARNING! Do not drive your scooter across the side of an incline or diagonally up or down an

incline; do not stop, if possible, while driving up or down an incline.

WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas covered

with snow, ice, cut grass, or wet leaves).

WARNING! When on any sort of an incline or decline, never place the scooter in freewheel mode

while seated on it or standing next to it.

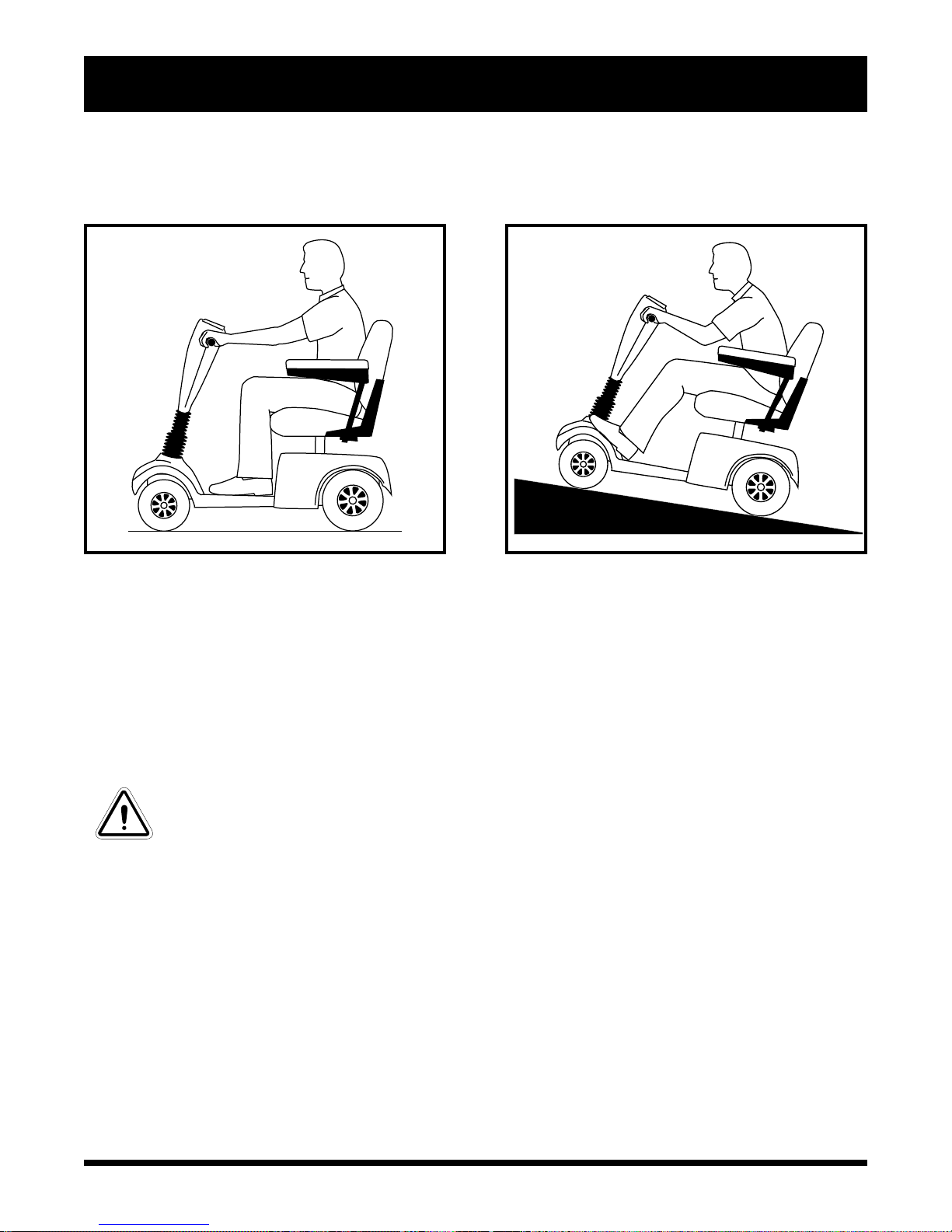

WARNING!Eventhough your scooteriscapableof climbing slopesgreaterthan those illustratedin

figures 1 and 2, do not, under any circumstances, exceed the incline guidelines or any other

specifications presented in this manual. Doing so could cause instability in your scooter, resulting

in personal injury and/or damage to your scooter.

Handicap public access ramps are not subject to government regulation in all countries, and therefore do not

necessarilysharethesamestandardpercentofslope.Otherinclines may be natural or, if man-made,notdesigned

specificallyforscooters. Figures1 and 1Aillustrateyour scooter’s stabilityand its abilityto climbgradesunder

variousweightloads and under controlled testingconditions.

Thesetestswere conducted withthe scooter’sseat inthehighest position andadjustedrearward ontheseat base

toitsfarthestrearward position.Usethisinformation asaguideline.Your scooter’sabilityto travel upinclinesis

affectedby yourweight, yourscooter’s speed,your angleof approach tothe incline,and your scootersetup.

WARNING! Any attempt to climb or descend a slope steeper than what is shown in figures 1 and 2

may put your scooter in an unstable position and cause it to tip, resulting in personal injury.

WARNING! Never carry an oxygen tank weighing more than 7 kg. Never fill the rear basket with

contents exceeding 7 kg.

Figure 1. 3-wheel Maximum Recommended

Incline Angles Figure 2. 4-wheel Maximum Recommended

Incline Angles

10 www.pridemobility.com Ultimate

II. SAFETY

Figure 2A.Increased Stability Driving PositionFigure 2.Normal Driving Position

Whenyouapproachan incline, itisbestto lean forward.Seefigures2 and 2A.Thisshiftsthe center ofgravityof

youandyour scootertowardthe frontof the scooterfor improved stability.

Cornering Information

Excessivelyhigh cornering speedscan create the possibility oftipping. Factors whichaffect the possibility of

tippinginclude,butarenotlimitedto,corneringspeed,steeringangle(howsharply you are turning),uneven road

surfaces,inclinedroadsurfaces,ridingfromanareaoflowtractiontoanareaofhightraction(suchaspassingfrom

a grassy area to a paved area – especially at high speed while turning), and abrupt directional changes. High

cornering speeds are not recommended. If you feel that you may tip over in a corner, reduce your speed and

steeringangle(i.e.,lessen the sharpnessofthe turn) topreventyourscooter from tipping.

WARNING!

When corneringsharply, reduceyourspeed.When using yourscooterathigherspeeds,

donot corner sharply.Thisgreatly reducesthe possibility of atip orfall. To avoid personal injury or

property damage, always exercise common sense when cornering.

Braking Information

Yourscooter isequippedwith two powerfulbrakesystems:

!Regenerative:Useselectricitytorapidlyslowthe vehicle whenthethrottlecontrolleverreturnstothe center/

stopposition.

!DiscPark Brake:Activatesmechanicallyafter regenerativebraking slows thevehicle tonear stop,orwhen

powerisremoved fromthesystem for anyreason.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pride Scooter

Pride

Pride Victory Viper-3 Manuel utilisateur

Pride

Pride Hurricane Manuel utilisateur

Pride

Pride Victory Viper Manuel utilisateur

Pride

Pride PATHRIDER ES10 Manuel utilisateur

Pride

Pride CELEBRITY XL Manuel utilisateur

Pride

Pride Celebrity X LE Manuel utilisateur

Pride

Pride Sonic Manuel utilisateur

Pride

Pride Go-Go ES8 Manuel utilisateur

Pride

Pride Rally Manuel utilisateur

Pride

Pride 36 Manuel utilisateur

Pride

Pride BAJA MOBILITY WRANGLER Manuel utilisateur

Pride

Pride CELEBRITY X Manuel utilisateur

Pride

Pride JAZZY 1113 ATS Manuel utilisateur

Pride

Pride Hurricane PMV PMV5001 Manuel utilisateur

Pride

Pride Victory ES Series Manuel utilisateur

Pride

Pride Icon Manuel utilisateur

Pride

Pride Elite Trsveller Manuel utilisateur

Pride

Pride Hurricane PMV Manuel utilisateur

Pride

Pride Go-Go Elite Traveller SC40E Manuel utilisateur

Pride

Pride Rally shopper Manuel utilisateur

Pride

Pride Hurricane PMV Manuel utilisateur

Pride

Pride Victory 9 Manuel utilisateur

Pride

Pride COLT ES10 Manuel utilisateur

Pride

Pride ELITE TRAVELLER PLUS Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
