Pride Mobility REVO Manuel utilisateur

Exeter, PA

St. Catharines, ON 1-800-800-8586

www.pridemobility.com

The Ultimate In Style & Performance

Owner’s Manual

SAFETY GUIDELINES

PrideMobilityProductsCorp.

INFMANU2427/RevG/August2006

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased.

Thesymbolsbelowareusedthroughoutthisowner'smanualandonthescootertoidentifywarningsandimportant

information.It is very important foryoutoreadthemandunderstandthemcompletely.

WARNING! Indicates a potentially hazardous condition/situation that can cause personal

injury, equipment and/or property damage (black symbol on yellow triangle with black

border).

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause injury to personnel and/or damage to equipment (white

symbol on blue dot).

PROHIBITED! These actions are prohibited; do not perform at any time or in any situation.

Performing a prohibited action can cause personal injury and/or equipment damage (black

symbol with red circle and red slash).

Pleasefilloutthefollowinginformationforquickreference:

Pride Provider:______________________________________________________________________

Address:___________________________________________________________________________

PhoneNumber:__________________________

Purchase Date:__________________________ Serial Number:_____________________________

Revo www.pridemobility.com

CONTENTS

I. INTRODUCTION......................................................................................................................... 4

II. SAFETY......................................................................................................................................... 5

III. EMI/RFI ........................................................................................................................................ 16

IV. SPECIFICATIONS ................................................................................................................... 17

V. YOUR SCOOTER...................................................................................................................... 19

VI. BATTERIES AND CHARGING ............................................................................................ 22

VII. OPERATION............................................................................................................................... 28

VIII.COMFORT ADJUSTMENTS................................................................................................ 30

IX. DISASSEMBLY AND ASSEMBLY ..................................................................................... 32

X. BASIC TROUBLESHOOTING ............................................................................................. 35

XI. CARE AND MAINTENANCE ................................................................................................ 37

XII. WARRANTY................................................................................................................................40

4www.pridemobility.com Revo

I. INTRODUCTION

SAFETY

WELCOMEto Pride Mobility ProductsCorporation(Pride).Theproductyouhavepurchasedcombinesstate-of

the-artcomponentswithsafety,comfort,andstylinginmind.Weareconfidentthedesignfeatureswillprovideyou

withtheconveniencesyouexpectduringyourdaily activities. Understanding how tosafelyoperateand care for

thisproductshouldbringyouyearsoftrouble free operations and service.

Readandfollowallinstructions,warnings,andnotes inthismanualandallotheraccompanying literaturebefore

attemptingto operate this product for the first time. Inaddition, yoursafetydependsupon you, as well as your

provider,caretaker,or healthcare professional in usinggoodjudgement.

Ifthereisanyinformationinthismanualwhichyoudonotunderstand,or if you require additional assistance for

setuporoperation,pleasecontact your authorized Pride Provider.Failuretofollowtheinstructions,warnings,

andnotesinthismanualandthoselocatedonyourPrideproductcanresultinpersonalinjuryorproduct

damageandwillvoidPride’sproductwarranty.

PURCHASER’S AGREEMENT

Byacceptingdeliveryofthisproduct,youpromisethatyouwillnotchange,alter,ormodifythisproductorremove

orrenderinoperableorunsafeany guards,shields,orothersafetyfeaturesofthisproduct; fail,refuse,orneglectto

installanyretrofitkitsfrom time to timeprovidedbyPride to enhance or preservethesafeuse of this product.

INFORMATION EXCHANGE

Wewanttohearyourquestions,comments,andsuggestionsaboutthismanual.Wewouldalsoliketohearabout

the safety and reliability of your new scooter, and about the service you received from your authorized Pride

Provider.Pleasenotifyusofanychangeofaddress,sowe can keep you apprised of important informationabout

safety, new products,andnewoptionsthatcanincreaseyourability to use andenjoyyourscooter.Pleasefeel free

tocontact us at the address below:

PrideMobilityProductsCorporation

Attn:CustomerCare Department

182SusquehannaAve.

Exeter, PA18643-2694

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

PRIDE OWNERS CLUB

Asan ownerofaPrideproduct,youare encouragedtoenrollinthePrideOwners Club.Completeandreturnyour

enclosedproductregistrationcardorvisitPride'swebsiteatwww.pridemobility.com.

From our home page, select “Owners Club” to enter a page dedicated to current and potential Pride product

owners.Youwillgainaccesstointerviews,stories,recreationideas,dailylivingtips,productandfundinginforma-

tion,and interactive message boards. These message boards inviteyoutocommunicatewithotherPridecustom-

ersaswellas Pride representativeswhoare available to assistyouwith any questions orconcerns.

Revo www.pridemobility.com

II. SAFETY

PRODUCT SAFETY SYMBOLS

Thesymbolsbelowareusedon the scooter to identifywarnings,mandatoryactions,and prohibited actions. It is

veryimportantforyoutoreadandunderstandthemcompletely.

Maximum seating weight.

Place unit on level ground and stand behind or to one side when changing from

drive mode to freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Unlocked and in freewheel mode.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery. Use only AGM or Gel-Cell batteries to

reduce the risk of leakage or explosive conditions.

EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m.

Read and follow the information in the owner’s manual.

Revo www.pridemobility.com

II. SAFETY

GENERAL

Yourscooterisastate-of-the-artlife-enhancementdevicedesignedtoincreasemobility.Prideprovidesan exten-

sivevarietyofproductstobestfittheindividual needs of the scooter user. Please beawarethatthefinalselection

andpurchasing decision regarding the typeof scooter to be used is theresponsibility of the scooter user who is

capableofmakingsuchadecisionandhis/herhealthcareprofessional(i.e.,medicaldoctor,physicaltherapist,etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the

scooterto theuserandhasassistedtheprescribing healthcare professionaland/ortheauthorizedPrideProviderin

theinstructionprocess for the useofthe product.

There are certain situations, including some medical conditions, where the scooter user will need to practice

operatingthescooterinthepresenceof atrainedattendant.Atrainedattendantcan bedefinedasafamilymember

orcareprofessionalspeciallytrainedinassistingascooteruserinvariousdailyliving activities.

Asyoubeginusingyourscooterduringdailyactivities,youwillprobablyencountersituationsinwhichyouwill

needsome practice. Simply take your time and you will soon bein fulland confident control as you maneuver

throughdoorways,on and offelevators, up anddownramps, and overmoderate terrain.

Below are some precautions, tips, and other safety considerations that will help you become accustomed to

operatingthescootersafely.

MODIFICATIONS

Pridehas designed and engineered your scooter to provide maximum mobilityandutility.Awide range of acces-

soriesis available from your authorized Pride Provider to furthercustomizeyourscootertobettersuityourneeds

and/orpreferences. However,under no circumstancesshould youmodify,add, remove, ordisable any feature,

part,orfunction of your scooter.

MANDATORY! Do not operate your new scooter for the first time without completely reading

and understanding this owner’s manual.

WARNING! Do not modify your scooter in any way not authorized by Pride. Unauthorized

modifications may result in personal injury and/or damage to your scooter.

REMOVABLE PARTS

WARNING! Prevent personal injury and/or product damage! Do not attempt to lift or move

your scooter by any of its removable parts, including the armrests, seat, or shroud.

Revo www.pridemobility.com

II. SAFETY

GENERAL

Yourscooterisastate-of-the-artlife-enhancementdevicedesignedtoincreasemobility.Prideprovidesan exten-

sivevarietyofproductstobestfittheindividual needs of the scooter user. Please beawarethatthefinalselection

andpurchasing decision regarding the typeof scooter to be used is theresponsibility of the scooter user who is

capableofmakingsuchadecisionandhis/herhealthcareprofessional(i.e.,medicaldoctor,physicaltherapist,etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the

scooterto theuserandhasassistedtheprescribing healthcare professionaland/ortheauthorizedPrideProviderin

theinstructionprocess for the useofthe product.

There are certain situations, including some medical conditions, where the scooter user will need to practice

operatingthescooterinthepresenceof atrainedattendant.Atrainedattendantcan bedefinedasafamilymember

orcareprofessionalspeciallytrainedinassistingascooteruserinvariousdailyliving activities.

Asyoubeginusingyourscooterduringdailyactivities,youwillprobablyencountersituationsinwhichyouwill

needsome practice. Simply take your time and you will soon bein fulland confident control as you maneuver

throughdoorways,on and offelevators, up anddownramps, and overmoderate terrain.

Below are some precautions, tips, and other safety considerations that will help you become accustomed to

operatingthescootersafely.

MODIFICATIONS

Pridehas designed and engineered your scooter to provide maximum mobilityandutility.Awide range of acces-

soriesis available from your authorized Pride Provider to furthercustomizeyourscootertobettersuityourneeds

and/orpreferences. However,under no circumstancesshould youmodify,add, remove, ordisable any feature,

part,orfunction of your scooter.

MANDATORY! Do not operate your new scooter for the first time without completely reading

and understanding this owner’s manual.

WARNING! Do not modify your scooter in any way not authorized by Pride. Unauthorized

modifications may result in personal injury and/or damage to your scooter.

REMOVABLE PARTS

WARNING! Prevent personal injury and/or product damage! Do not attempt to lift or move

your scooter by any of its removable parts, including the armrests, seat, or shroud.

8www.pridemobility.com Revo

II. SAFETY

PRE-RIDE SAFETY CHECK

Gettoknowthefeelof yourscooteranditscapabilities. Priderecommendsthatyouperform asafetycheckbefore

eachuse to make sure your scooter operates smoothly and safely.

Performthefollowinginspectionspriortousingyourscooter:

!Checkfor proper tireinflation(ifequippedwithpneumatictires).

!Checkallelectrical connections. Make suretheyare tight andnotcorroded.

!Checkallharness connections. Makesure they aresecuredproperly.

!Check the brakes.

!Checkbatterycharge.

Ifyoudiscoveraproblem, contact your authorizedPrideProviderfor assistance.

INCLINE INFORMATION

Moreand morebuildings haveramps withspecified degreesof inclination,designed foreasy andsafe access.

Somerampsmayhaveturning switchbacks (180-degree turns) thatrequireyoutohave good cornering skillson

yourscooter.

!Proceedwithextreme caution asyouapproach the downgradeofa ramp orotherincline.

!Take wide swings with your scooter around any tight corners. If you do that, the scooter’s rearwheels will

followawide arc, not cutthecorner short, andnotbump into or gethungup on anyrailingcorners.

!Whendrivingdown a ramp,keepthe scooter’s speedadjustmentset to theslowest speed setting toensure a

safelycontrolled descent.

!Avoidsudden stops andstarts.

WEIGHT LIMITATIONS

Yourscooterisratedforamaximumweightcapacity. Refer to the specifications table for information.

TIRE INFLATION

Ifyour scooter is equipped with pneumatic tires, you should check or havethe air pressure checked regularly.

Properinflationpressures will prolong the life of your tires and help ensure thesmoothoperationofyourscooter.

WARNING! It is critically important that 30-35 psi tire pressure be maintained in pneumatic

tires at all times. Do not underinflate or overinflate your tires. Low pressure may result in

loss of control, and overinflated tires may burst. Failure to maintain 30-35 psi tire pressure

in pneumatic tires at all times may result in tire and/or wheel failure, causing serious

personal injury and/or damage to your scooter.

WARNING! Inflate your scooter tires from a regulated air source with an available pressure

gauge. Inflating your tires from an unregulated air source could overinflate them, resulting

in a burst tire and/or personal injury.

WARNING! Exceeding the weight capacity voids your warranty and may result in personal

injury and damage to your scooter. Pride will not be held responsible for injuries and/or

property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers may result in

personal injury and/or property damage.

Revo www.pridemobility.com

II. SAFETY

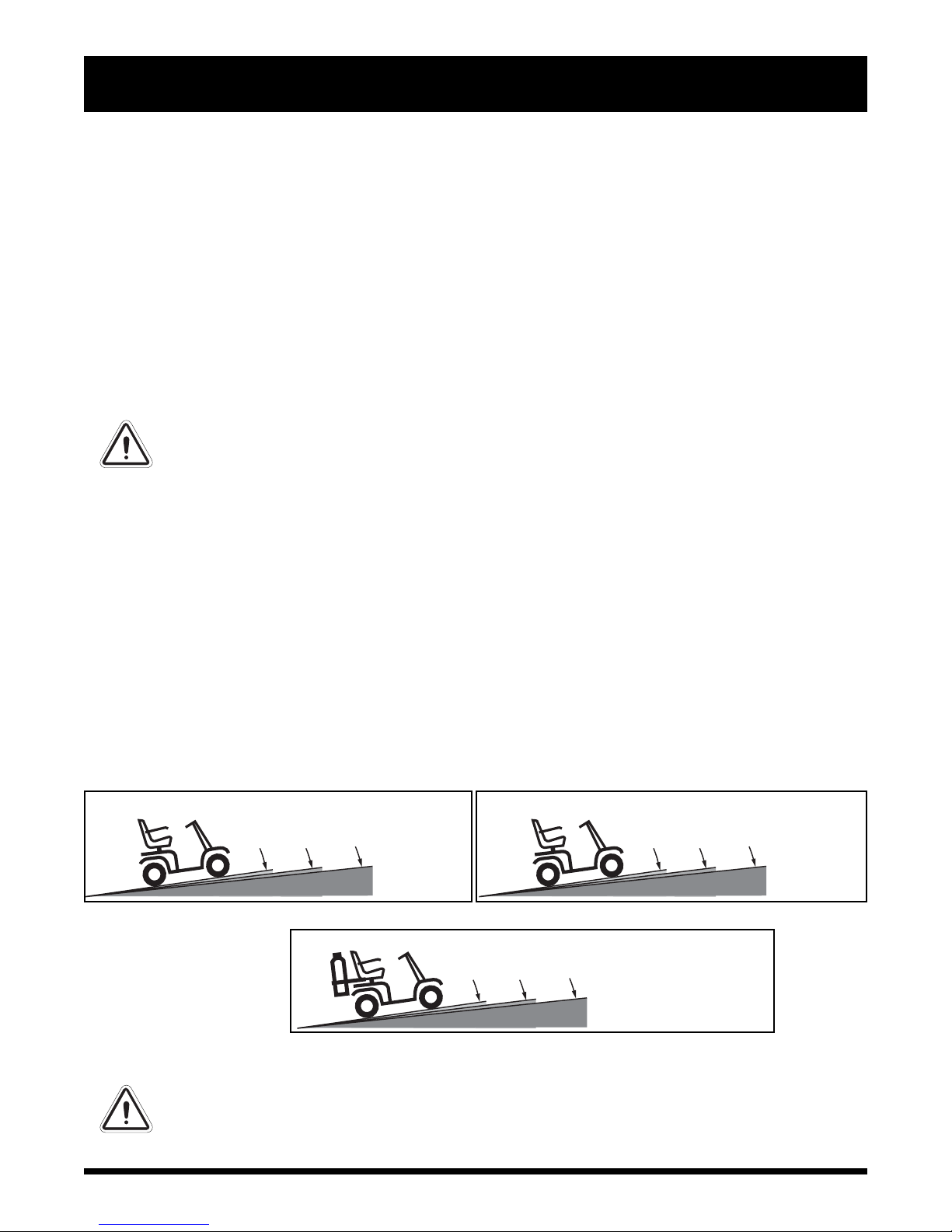

When climbing an incline, try to keep your scooter moving. If you must stop, start up again slowly, and then

acceleratecautiously.When drivingdown an incline, do so by setting the speed adjustment dial to theslowest

settingand driving in the forward direction only. Ifyour scooter startsto move downthe incline fasterthan you

anticipatedor desired, allow it tocome toa complete stop by releasing the throttlecontrol lever.Then push the

throttlecontrol lever forward slightlytoensureasafelycontrolleddescent.

WARNING! Any attempt to climb or descend a slope steeper than what is shown in figures 1, 1A,

and 1B may put your scooter in an unstable position and cause it to tip, resulting in personal

injury.

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the

incline. Drive your scooter straight up the incline. This greatly reduces the possibility of a

tip or a fall. Always exercise extreme caution when negotiating an incline.

WARNING! Do not drive your scooter across the side of an incline or diagonally up or down

an incline; do not stop, if possible, while driving up or down an incline.

WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas

covered with snow, ice, cut grass, or wet leaves).

WARNING! When on any sort of an incline or decline, never place the scooter in freewheel

mode while seated on it or standing next to it.

WARNING! Even though your scooter is capable of climbing slopes greater than those

illustrated in figures 1, 1A, and 1B do not, under any circumstances, exceed the incline

guidelines or any other specifications presented in this manual. Doing so could cause

instability in your scooter, resulting in personal injury and/or damage to your scooter.

WARNING! Never carry an oxygen tank weighing more than 13 lbs. Never fill the rear

basket with contents exceeding 13 lbs.

Handicap public access ramps are not subject to government regulation in all countries, and therefore do not

necessarilyshare thesamestandardpercentofslope. Otherinclinesmaybenaturalor,ifman-made, not designed

specificallyforscooters.Figures1,1Aand1Billustrateyourscooter’sstabilityanditsabilitytoclimbgradesunder

variousweightloadsandundercontrolledtestingconditions.

Thesetestswereconductedwith the scooter’s seatinthehighest position and adjustedrearwardonthe seat base

toitsfarthestrearwardposition.Usethis information as a guideline.Yourscooter’sabilitytotravelupinclines is

affectedby yourweight, your scooter’sspeed, your angleof approach to theincline, and yourscooter setup.

Figure 1. 3-wheel Maximum Recommended Incline Angles Figure 1A.4-wheel Maximum Recommended Incline Angles

Figure 1B. Maximum Recommended Incline Angles (With OxygenTank)

300LBS

5° (8.7%)

150LBS

7° (12.3%)

200-250 LBS

6° (10.5%)

300LBS

7° (12.3%)

150-200LBS

9° (15.8%) 250LBS

8° (14.1%)

300LBS

6° (10.5%)

150-200LBS

8° (14.1%) 250LBS

7° (12.3%)

10 www.pridemobility.com Revo

II. SAFETY

CORNERING INFORMATION

Excessivelyhigh corneringspeeds can create the possibility of tipping. Factors which affect thepossibility of

tippinginclude, but arenotlimitedto,corneringspeed,steeringangle (how sharplyyouareturning),unevenroad

surfaces,inclinedroadsurfaces,ridingfromanareaoflowtractiontoanareaofhightraction(suchaspassingfrom

a grassy area to a paved area – especially at high speed while turning), and abrupt directional changes. High

cornering speeds are not recommended. If you feel that you may tip over in a corner, reduce your speed and

steeringangle(i.e.,lessenthesharpnessoftheturn) to prevent your scooter from tipping.

WARNING!

When cornering sharply, reduce your speed. When using your scooter at higher

speeds, do not corner sharply. This greatly reduces the possibility of a tip or fall. To avoid

personal injury or property damage, always exercise common sense when cornering.

Whenyouapproachanincline,itisbesttoleanforward.Seefigures2and 2A. This shifts the center of gravity of

youandyourscooter toward thefrontof the scooter forimprovedstability.

NOTE: When negotiating ramps, if the throttle control lever is released while moving forward, the

powered scooter may "rollback" approximately 1 foot before the brake engages. If the throttle control

lever is released while moving in reverse, the powered scooter may "rollback" approximately one meter

3 feet before the brake engages.

BRAKING INFORMATION

Your scooter is equippedwiththesepowerfulbrakesystems:

!Regenerative:Uses electricity to rapidly slow the vehicle whenthethrottlecontrolleverreturnstothecenter/

stopposition.

!DiscParkBrake:Activates mechanicallyafter regenerative braking slowsthe vehicle tonear stop, orwhen

powerisremovedfrom the system foranyreason.

Figure 2A. Increased Stability Driving Position

Figure 2. Normal Driving Position

Autres manuels pour REVO

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pride Mobility Scooter

Pride Mobility

Pride Mobility Mini Crosser Manuel utilisateur

Pride Mobility

Pride Mobility Celebrity X Sport Manuel utilisateur

Pride Mobility

Pride Mobility Path rider Manuel utilisateur

Pride Mobility

Pride Mobility Legend Manuel utilisateur

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manuel utilisateur

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Manuel utilisateur

Pride Mobility

Pride Mobility Pathrider 130 XL Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY SERIES Manuel utilisateur

Pride Mobility

Pride Mobility Sonic Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Manuel utilisateur

Pride Mobility

Pride Mobility 39 Manuel utilisateur

Pride Mobility

Pride Mobility REVO Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY SERIES Manuel utilisateur

Pride Mobility

Pride Mobility raptor series Manuel utilisateur

Pride Mobility

Pride Mobility SC40X Manuel utilisateur

Pride Mobility

Pride Mobility Sidekick Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY DELUXE Manuel utilisateur

Pride Mobility

Pride Mobility 613 Manuel utilisateur

Pride Mobility

Pride Mobility Ranger Manuel utilisateur

Pride Mobility

Pride Mobility Victory XL-8 Manuel utilisateur

Pride Mobility

Pride Mobility Victory XL Manuel utilisateur

Pride Mobility

Pride Mobility SPORTRIDER SR-XL3 Manuel utilisateur

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manuel utilisateur

Pride Mobility

Pride Mobility Shuttle Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
