Please fill out the following information for quick reference:

S.V.P. veuillez compléter les informations ci dessous:

Vul alstublieft de volgende informatie in voor snelle referentie:

Mein autorisierter Fachhändler ist:

Informazioni di riferimento:

Por favor, rellene la siguiente información para tener siempre a mano:

Provider:

Détaillant:

Leverancier:

Name:

Rivenditore:

Proveedor:

Address:

Adresse:

Adres

Adresse:

Indirizzo:

Dirección:

Telephone:

Téléphone:

Telefoon nummer:

Tel. Nummer:

Telefono:

Número de teléfono:

Purchase Date:

Date d’achat:

Koop Datum:

Kaufdatum:

Data di acquisto:

Fecha de compra:

Model

AB

1-piece frame 2-piece

frame Included Hi-Low

Switch Handbrake

Suspension Seat

Post

Reset

Button Reset Lever Auto Reset

613       

614      

713       

714      

Console

Style

Anti-tip

wheels

Frame Style

(Assembly/Disassembly) Main Circuit Breaker (Type)

Options*

SCOOTER FEATURES TABLE

INFMANU4530/Rev B/December 2015

NOTE: Please become familiar with your scooter’s model number. The number can be found on the product

specification sheet in your owner’s package. Throughout this owner’s manual, Scooter attributes are

identified by model number (far left-hand column on Scooter Features Table). Knowing your unit’s model

number will aid you in determining your particular scooter’s unique characteristics.

INTENDED USE

The intended use of the mobility device is to provide mobility to persons limited to a seated position that have

the capability of operating a scooter.

REGARDING DEVICES FOR PRESCRIPTION USE

CAUTION! Federal law restricts this device to sale by or on the order of a physician or other

certified personnel licensed by the law of the State (US only) or region in which this personnel

practices to use or order the use of this device.

NOTE: This owner’s manual is compiled from the latest specifications and product information available

at the time of publication. We reserve the right to make changes as they become necessary. Any changes to

our products may cause slight variations between the illustrations and explanations in this manual and the

product you have purchased. The latest/current version of this manual is available on our website.

NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.

NOTE: This product complies with IPX4 Classification (IEC 60529).

NOTE: The scooter and its components are not made with natural rubber latex. Consult with the

manufacturer regarding any after-market accessories.

*NOTE: Scooter options vary by country. Please contact your Provider to determine which options are

available for your Scooter.

Full-size Scooter Series 3

WARNING! An authorized Provider or qualified technician must perform the initial setup

of this scooter and must perform all of the procedures in this manual.

The symbols below are used throughout this owner's manual and on the scooter to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage, or

malfunction. On the product, this icon is represented as a black symbol on a yellow

triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at

any time or in any circumstances. Performing a prohibited action can cause personal

injury and/or equipment damage. On the product, this icon is represented as a black

symbol with a red circle and red slash.

CONTENTS

SAFETY GUIDELINES .................................................................................................................... 3

I. SAFETY ....................................................................................................................................... 4

II. YOUR SCOOTER ....................................................................................................................... 7

III. BATTERIES AND CHARGING ........................................................................................... 19

IV. OPERATION ............................................................................................................................ 26

V. COMFORT ADJUSTMENTS ............................................................................................. 28

VI. DISASSEMBLY AND ASSEMBLY .................................................................................. 32

VII. BASIC TROUBLESHOOTING .......................................................................................... 34

VIII.CARE AND MAINTENANCE ............................................................................................. 36

SAFETY GUIDELINES

4Full-size Scooter Series

MODEL #

60 AMP

CIRCUIT BREAKER

125A/50V

BATTERY

I. SAFETY

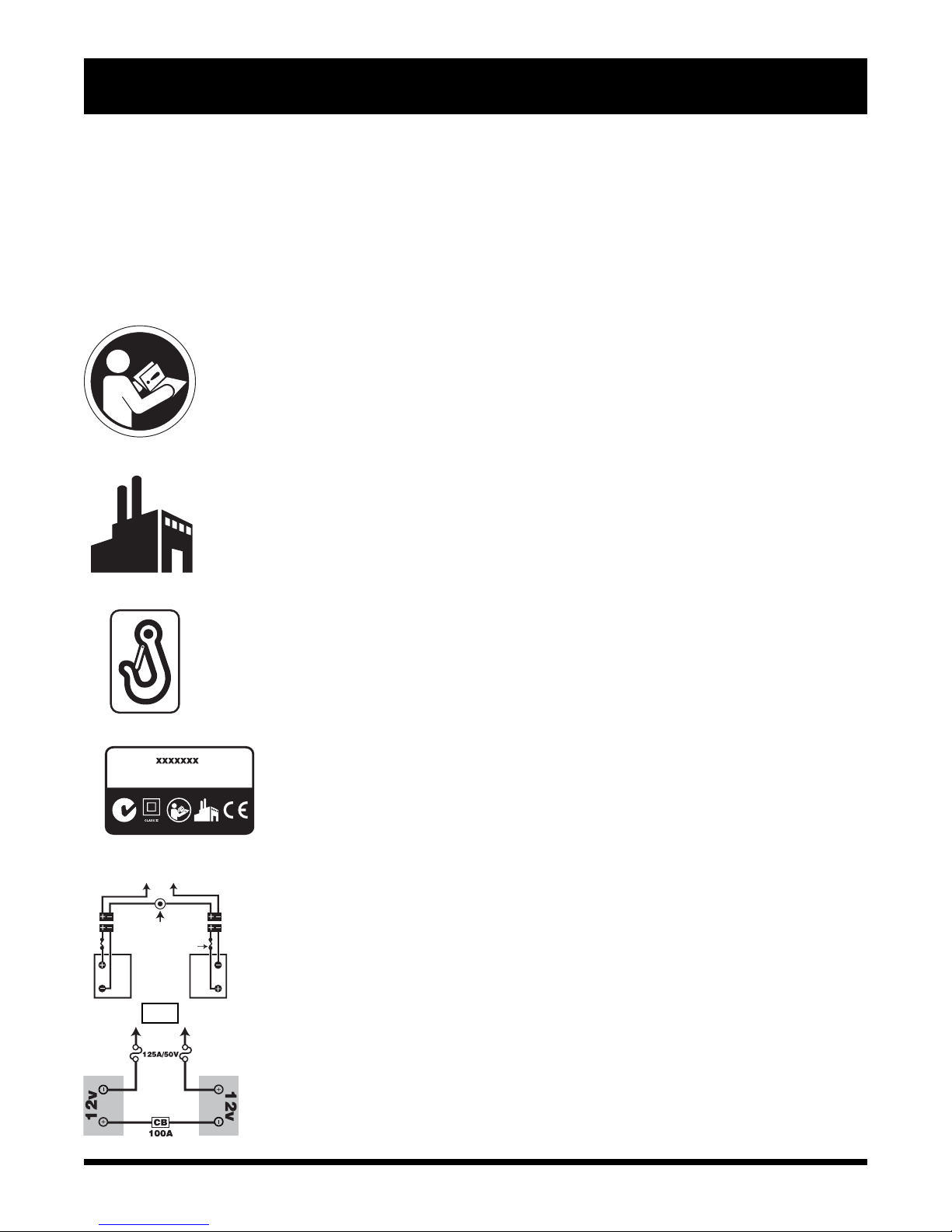

PRODUCT SAFETY SYMBOLS

The symbols below are used on the scooter to identify warnings, mandatory actions, and prohibited

actions. It is very important for you to read and understand them completely.

NOTE: There are more warnings identified and explained in the Consumer Safety Guide that is

included with your scooter. Please become familiar with all the warnings and safety information found

in the Consumer Safety Guide and refer to this resource often.

Read and follow the information in the owner’s manual.

Manufactured in.

Indicates tie-down points on the scooter.

Scooter information label.

Battery Set Configuration:

+ = Positive (Red) Terminal Post

- = Negative (Black) Terminal Post

Connect Red wires to Red Positive (+) Terminal Posts.

Connect Black wire to Black Negative (-) Terminal Posts.

Full-size Scooter Series 5

I. SAFETY

GENERAL

MANDATORY! Do not operate your new scooter for the first time without completely

reading and understanding this owner’s manual and the Consumer Safety Guide.

Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. We provide an

extensive variety of products to best fit the individual needs of the scooter user. Please be aware that the

final selection and purchasing decision regarding the type of scooter to be used is the responsibility of the

scooter user, who is capable of making such a decision and his/her healthcare professional (i.e., medical

doctor, physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted

the scooter to the user and has assisted the prescribing healthcare professional and/or the authorized Pro-

vider in the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the scooter user will need to prac-

tice operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a

family member or care professional specially trained in assisting a scooter user in various daily living

activities.

As you begin using your scooter during daily activities, you will probably encounter situations in which

you will need some practice. Simply take your time and you will soon be in full and confident control as

you maneuver through doorways, on and off elevators, up and down ramps and over moderate terrain.

Additional general information can be found on the supplemental information sheets and booklets

included in your Owner’s Package. Please fully read and review the information, and keep it readily

available for future reference.

Below are some precautions, tips and other safety considerations that will help you become accustomed

to operating the scooter safely.

PRE-RIDE SAFETY CHECK

Get to know the feel of your scooter and its capabilities. We recommend that you perform a safety check

before each use to make sure your scooter operates smoothly and safely.

Perform the following inspections prior to using your scooter:

Check the condition of the tires. Make sure they are not damaged or excessively worn.

Check all electrical connections. Make sure they are tight and not corroded.

Check all harness connections. Make sure they are secured properly.

Check the brakes to ensure they operate properly.

Check the battery condition meter to ensure the batteries are fully charged.

Ensure the manual freewheel lever is in drive mode before sitting on the scooter.

If you discover a problem, contact your authorized Provider for assistance. Please refer to the Contact

Information insert in your Owner’s Package.

6Full-size Scooter Series

I. SAFETY

BRAKING INFORMATION

Your scooter is equipped with these powerful brake systems:

Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the

cener/stop position.

Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop or

when power is removed from the system for any reason.

(Optional) Handbrake: This lever provides you with emergency stopping power. See II. “Your

Scooter.”

HANDBRAKE LEVER (OPTIONAL — MODELS 613, 713, AND 714)

The handbrake lever contains hydraulic fluid. When the lever is depressed, the fluid is pushed through the

brake line to engage the brake pads against the brake discs. The handbrake lever is a completely sealed

unit, meaning that the hydraulic fluid should not leak; however, there are certain safety measures that

should be taken if the handbrake lever becomes cracked or damaged.

Do not touch spilled material unless wearing protective equipment, such as safety goggles and gloves.

For small spills, cover the material with dry earth, sand or other non-combustible absorbent material.

Once absorbed, enclose the material in a plastic bag and contact your local waste disposal agency for

proper disposal measures. Do not expose the material to waterways or sewers.

If the eyes are exposed, check for and remove contact lenses. Flush eyes with cool, clean, low-

pressure water while occasionally lifting and lowering the eyelids. Seek medical attention if excessive

tearing, redness or pain persists.

If the skin is exposed, remove all contaminated clothing. Wipe off excess material and wash exposed

skin with soap and water. Seek medical attention if skin appears damaged or if irritation persists.

Thoroughly clean contaminated clothing before reuse. Discard contaminated leather goods.

If ingested, do not induce vomiting or give anything to drink unless directed to by a physician. Never

give anything by mouth to a person who is not fully conscious. Seek medical attention immediately.

If inhaled, move the affected individual to fresh air. If the affected individual is not breathing,

immediately begin rescue breathing. If breathing is difficult, 100% humidified oxygen should be

administered by a qualified individual. Seek medical attention immediately and keep the affected

individual warm and at rest.

If ignited, use dry chemical, foam, carbon dioxide or water fog to extinguish.

WARNING! Do not modify the handbrake lever or attempt to replace the hydraulic fluid.

If damage occurs, follow the safety information in this section and contact your

authorized dealer for handbrake replacement. The hydraulic handbrake should only be

serviced or replaced by your authorized dealer.

WARNING! The handbrake contains hydraulic fluid that can cause mild skin, eye and

nasal/bronchial irritation. Do not attempt to adjust or service the handbrake without

proper protective equipment such as safety goggles and gloves and wash hands after

handling.

Full-size Scooter Series 7

TILLER CONSOLE

The tiller console houses all of the controls needed to drive your scooter, including the speed adjustment

dial, key switch, battery condition meter, status LED, horn buttons, turn signal buttons, handbrake lever,

tiller adjustment lever, and the throttle control lever. Please note that some of the features listed in this

section are optional items and may not appear on your scooter. See figure 1.

NOTE: If your scooter is equipped with an LCD Control Panel, please advance to the page in this

section that begins TILLER CONSOLE: LCD CONTROL PANEL.

PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller

console does become exposed to moisture, do not attempt to operate your scooter until

the tiller console has dried thoroughly.

8 9 10

2 5

II. YOUR SCOOTER

Figure 1. Tiller Console Components - Style A

IDENTIFICATION KEY

1. HORN BUTTON 8. SPEED ADJUSTMENT DIAL

2.*LEFT TURN SIGNAL BUTTON 9. BATTERY CONDITION METER

3.*HAZARD LIGHTS SWITCH 10. KEY SWITCH

4. LIGHT SWITCH 11. MIRROR AND MIRROR PLUGS

5.*RIGHT TURN SIGNAL BUTTON 12. TILLER ADJUSTMENT LEVER

6.*HI-LOW SWITCH 13. *HANDBRAKE LEVER

7. THROTTLE CONTROL LEVER 14. BRAKE LOCK

*OPTIONAL COMPONENTS AVAILABLE ON SOME MODELS

8Full-size Scooter Series

Horn Buttons

These buttons activate a warning horn. Your scooter must be powered up for the horn to be operational.

Do not hesitate to use the warning horn when doing so may prevent accident or injury.

Turn Signal Buttons

Use these buttons to turn on the left and right turn signal (amber) lights.

Push the left button to activate the left turn signal light. The turn signal LED located in the battery

condition meter will flash.

Push the right button to activate the right turn signal light. The turn signal LED located in the battery

condition meter will flash.

The turn signals are timed to shut off automatically.

Lights Switch

This switch controls your scooter’s lighting system.

Toggle the switch forward to turn on the lighting system.

Toggle the switch rearward to turn off the lighting system.

WARNING! Scooter users are required to use their lights when visibility is restricted—day

or night.

Hazard Lights Switch

This switch activates the 4-way flashers on your scooter.

Toggle the hazard lights switch forward to turn on the flashers.

Toggle the hazard lights switch rearward to turn off the flashers.

Hi-Low Switch

This switch toggles the scooter’s speed between Hi and Low. Toggle the switch forward (Hi) to achieve

the maximum preprogrammed speed for the scooter. Toggle the switch rearward (Low) to achieve half the

maximum preprogrammed speed of the scooter.

Throttle Control Lever

This lever allows you to control the forward speed and the reverse speed of your scooter up to the

maximum speed you preset with the speed adjustment dial.

To Move Forward, use either of the following:

Use your left thumb to push the left side of the throttle control lever.

Use your right hand fingers to pull back on the right side of the throttle control lever.

To Move Rearward, use either of the following:

Use your right thumb to push the right side of the throttle control lever.

Use your left hand fingers to pull back on the left side of the throttle control lever.

Release the throttle control lever and allow your scooter to come to a complete stop before engaging the

other side of the lever. When the throttle control lever is completely released, it automatically returns to

the center “stop” position and engages your scooter’s brakes.

Speed Adjustment Dial

This dial allows you to preselect and limit your scooter’s top speed.

The image of the tortoise represents the slowest speed setting.

The image of the hare represents the fastest speed setting.

II. YOUR SCOOTER

Full-size Scooter Series 9

IDENTIFICATION KEY

1. CHARGER POWER CORD

RECEPTACLE

2. OFF-BOARD CHARGER FUSE

3. KEY SWITCH FUSE

4. LOWER HEADLIGHT FUSE

5. REAR TAIL LIGHTS FUSE

6. LEFT TURN SIGNAL FUSE

7. RIGHT TURN SIGNAL FUSE

Battery Condition Meter

When the key is fully inserted and turned clockwise to power up your scooter, this meter indicates the

approximate battery voltage strength. For further information on battery charging, see III. “Batteries and

Charging.”

Status LED

The status LED alerts you to electrical problems that may occur with the scooter. The LED remains

constantly lit while your scooter is on. If your scooter develops an electrical problem, the status LED will

flash a code. See VII. “Basic Troubleshooting” for flash codes.

Key Switch

Insert the key into the key switch and turn it clockwise to power up (turn on) your scooter.

Turn the key counterclockwise to power down (turn off) your scooter.

WARNING! If the key is turned to the “off” position while your scooter is in motion, the

electronic brakes will engage and your scooter will come to an abrupt stop!

Mirror Positioning and Adjustment

For information on positioning and adjusting your mirror, see V. “Comfort Adjustments.”

Tiller Angle Adjustment

For information on positioning and adjusting your tiller, see V. “Comfort Adjustments.”

II. YOUR SCOOTER

Handbrake Lever

This lever provides you with emergency stopping power. When

in motion, release the throttle control lever and gently squeeze

the handbrake lever to come to a stop.

The handbrake can be locked and used as a parking brake by

squeezing the handbrake lever fully and moving the brake lock

to the locked position. See figure 1. To release the brake lock,

fully squeeze the handbrake.

WARNING! The handbrake is intended for use as

an emergency brake and/or parking brake only.

Off-board Charger Port

The off-board charger power cord plugs into this port during bat-

tery charging. The off-board charger port will be located on the

tiller. See figure 2.

Electrical System Fuses

Your scooter is equipped with a series of electrical system fuses,

which help protect the off-board charging system, key switch,

and lighting system from receiving an overload of electrical cur-

rent. These fuses are the same type used in automobiles and are

located in a compartment on the tiller. See figure 2.

NOTE: Keep all electrical areas clean and free of moisture and

foreign material.

Figure 2. Off-board Charger Port/Tiller

Console Fuses

10 Full-size Scooter Series

TILLER CONSOLE: LCD CONTROL PANEL

The tiller console and lower tiller house all of the controls needed to drive your scooter, including the LCD

control panel, throttle control levers, key switch, and the throttle control lever switch. See figure 3.

PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller

console does become exposed to moisture, do not attempt to operate your scooter until

the tiller console has dried thoroughly.

II. YOUR SCOOTER

Horn Buttons

These buttons activate a warning horn. Your

scooter must be powered up for the horn to be

operational. Do not hesitate to use the warning

horn when doing so may prevent accident or

injury.

Turn Signal Buttons

Press the appropriate turn signal button once

to activate it. The turn signal will flash on the

LCD screen.

Press the same signal button to turn it off.

NOTE: The turn signals are timed to shut off

after 15 seconds. A warning beep will sound as

long as the turn signal is on. See figure 5 for

volume control.

Lights Button

Press the lights button once to activate the

lighting system. The light symbol will be

shown on the LCD screen.

Press the lights button again to turn the

lighting system off.

WARNING! Scooter users are

required to use their lights

when visibility is

restricted—day or night.

LCD Screen and Control Panel Settings

The LCD control panel offers easily intuited

feedback information via the LCD screen. See

figure 3. The LCD screen is also used during

the set-up (activation) of the various control

panel settings.

IDENTIFICATION KEY

1. HORN BUTTON 8. HI-LOW BUTTON

2. TURN SIGNAL BUTTONS 9. SPEED ADJUSTMENT

3. LIGHTS BUTTON (INCREASE)

4. LCD SCREEN 10. SPEED ADJUSTMENT

5. SET BUTTON (DECREASE)

6. HAZARD LIGHTS BUTTON 11. THROTTLE CONTROL

7. MODE BUTTON

Figure 3. LCD Control Panel - Style B

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pride Mobility Scooter

Pride Mobility

Pride Mobility Celebirty The Ultimate In Style &... Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Manuel utilisateur

Pride Mobility

Pride Mobility Rally SC151 Manuel utilisateur

Pride Mobility

Pride Mobility Traveller Plus Manuel utilisateur

Pride Mobility

Pride Mobility Victory XL-8 Manuel utilisateur

Pride Mobility

Pride Mobility Wrangler Manuel utilisateur

Pride Mobility

Pride Mobility Sundancer SC2000PS Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY SERIES Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY XL Manuel utilisateur

Pride Mobility

Pride Mobility COLT PURSUIT Manuel utilisateur

Pride Mobility

Pride Mobility Victory XL Manuel utilisateur

Pride Mobility

Pride Mobility Legend 4-Wheel Scooter Manuel utilisateur

Pride Mobility

Pride Mobility Victory Economy Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Elite traveller Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY 10 Manuel utilisateur

Pride Mobility

Pride Mobility Celebrity DX Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY X Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY SPORT Manuel utilisateur

Pride Mobility

Pride Mobility Jazzy Elite ES Manuel utilisateur

Pride Mobility

Pride Mobility Path rider Manuel utilisateur

Pride Mobility

Pride Mobility go-go ES2 Manuel utilisateur

Pride Mobility

Pride Mobility Celebrrity XL Manuel utilisateur

Pride Mobility

Pride Mobility Victotory XL Manuel utilisateur

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
