JAZZY

Elite ES Series

Including Models: Jazzy Elite ES, Jazzy Elite ES Portable, and Jazzy Elite ES-1

WARNING! An authorized Pride Provider or a qualified technician must perform the initial setup

of this power chair and must perform all of the procedures in this manual.

The symbols below are used throughout this owner’s manual and on the power chair to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated

procedures can cause either personal injury, component damage, or malfunction. On the

product, this icon is represented as a black symbol on a yellow triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform mandatory

actions can cause personal injury and/or equipment damage. On the product, this icon is

represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at any time

or in any circumstances. Performing a prohibited action can cause personal injury and/or

equipment damage. On the product, this icon is represented as a black symbol with a red circle

and red slash.

INTENDED USE

The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated

position that have the capability of operating a powered wheelchair.

Quick Reference Information

SAFETY GUIDELINES

Pride Mobility Products Corp.

INFMANU4355/Rev B/May 2013

Authorized Pride Provider:

Address:

Phone Number:

Purchase Date:

NOTE: This owner’s manual is compiled from the latest specifications and product information available at

the time of publication. We reserve the right to make changes as they become necessary. Any changes to our

products may cause slight variations between the illustrations and explanations in this manual and the product

you have purchased. The latest/current version of this manual is available on our website.

NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.

NOTE: The Jazzy Elite ES Series power chair and its components are not made with natural latex rubber.

Consult with the manufacturer regarding any after-market accessories.

Jazzy Elite ES Series www.pridemobility.com 3

I. INTRODUCTION................................................................................................................................... 4

II. SAFETY .................................................................................................................................................... 5

III. YOUR POWER CHAIR........................................................................................................................ 7

IV. ASSEMBLY AND DISASSEMBLY ............................................................................................... 11

V. COMFORT ADJUSTMENTS .......................................................................................................... 14

VI. BATTERIES AND CHARGING ...................................................................................................... 20

VII. CARE AND MAINTENANCE .......................................................................................................... 24

CONTENTS

LANGUAGE USAGE

This owner’s manual is intended for distribution in all English-speaking countries where Pride Power Chairs are

sold. We have chosen to compose this manual using language and spelling common to the USA. Since we recog-

nize that not all English-speaking countries use the same words or spellings, please refer to the following chart for

some common word variations that may be encountered throughout this manual.

Table 1. Word Variations

USA Variation USA Variation USA Variation

asphalt tarmac backward(s) rearward(s) center centre

color colour cord lead curb kerb

elevator lift meter metre provider dealer; agent

sidewalk pavement tire tyre trunk boot

turn signal turn indicator yard grounds wrench spanner

caster castor pocketbook handbag

counterclockwise

anticlockwise

authorized authorised path footpath

path

bridleway

4 www.pridemobility.com Jazzy Elite ES Series

I. INTRODUCTION

SAFETY

WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art

components with safety, comfort, and styling in mind. We are confident that these design features will provide

you with the conveniences you expect during your daily activities. Once you understand how to safely operate

and care for your power chair, it should give you years of trouble free operation and service.

Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power chair

for the first time. You must also read all instructions, warnings, and notes contained in any supplemental instruc-

tional booklets for the controller, front riggings, and/or seating system that accompanied your power chair before

initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare professional in

using good judgement.

If there is any information in this manual which you do not understand, or if you require additional assistance for

setup or operation, please contact your authorized Pride Provider. Failure to follow the instructions in this

manual and those located on your power chair can lead to personal injury and/or damage to the power

chair, including voiding the warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter, or modify this product or

remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or

neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the safe use of this

product.

SHIPPING AND DELIVERY

Before using your power chair, make sure your delivery is complete as some components may be individually

packaged. If you do not receive a complete delivery, please contact your authorized Pride Provider immediately.

Where damage has occurred during transport, either to the packaging or content, please contact the delivery com-

pany responsible.

INFORMATION EXCHANGE

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the

safety and reliability of your new power chair, and about the service you received from your authorized Pride Provider.

Please notify us of any change of address, so we can keep you apprised of important information about safety,

new products, and new options that can increase your ability to use and enjoy your power chair. Please feel free

to contact us at the address below:

USA: Canada:

Pride Mobility Products Corporation Pride Mobility Products Company

Attn.: Customer Care Department 380 Vansickle Road

182 Susquehanna Avenue St. Catharines, Ontario L2R 6P7

Exeter, PA 18643-2694

[email protected]

United Kingdom: Australia:

Pride Mobility Products Ltd. Pride Mobility Products Australia Pty. Ltd.

32 Wedgwood Road 20-24 Apollo Drive

Bicester, Oxfordshire OX26 4UL Hallam, Victoria 3803

UK Australia

NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new

one immediately.

Jazzy Elite ES Series www.pridemobility.com 5

PRODUCT SAFETY SYMBOLS

The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.

It is very important for you to read and understand them completely.

NOTE: There are more warnings identified and explained in the Consumer Safety Guide that is included with

your power chair. Please become familiar with all the warnings and safety information found in the Consumer

Safety Guide and refer to this resource often.

Read and follow the information in the owner’s manual.

Unlocked and in freewheel mode.

Place unit on level ground and stand to one side when changing from drive mode to

freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Class II Equipment.

Manufactured in

Power chair information label

II. SAFETY

Main Frame

6 www.pridemobility.com Jazzy Elite ES Series

GENERAL GUIDELINES

MANDATORY! Do not operate your new power chair for the first time without completely reading

and understanding this owner’s manual.

Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final

selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power

chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,

physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the

power chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride Pro-

vider in the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the power chair user will need to practice

operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family

member or care professional specially trained in assisting a power chair user in various daily living activities.

As you begin using your power chair during daily activities, you will probably encounter situations in which you

will need some practice. Simply take your time and you will soon be in full and confident control as you maneuver

through doorways, on and off of elevators, up and down ramps, and over moderate terrain.

Below are some precautions, tips, and other safety considerations that will help you become accustomed to oper-

ating your power chair safely.

Pre-Ride Safety Check

Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check

before each use to make sure your power chair operates smoothly and safely.

Perform the following inspections prior to using your power chair:

Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on each

tire if equipped with pneumatic tires.

Check all electrical connections. Make sure they are tight and not corroded.

Check all controller connections to the power base. Make sure they are secured properly.

Check the brakes. See VII. “Care and Maintenance.”

Check battery charge. See VI. “Batteries and Charging.”

Ensure the manual freewheel levers are in drive mode before sitting on the power chair.

NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.

II. SAFETY

Jazzy Elite ES Series www.pridemobility.com 7

III. YOUR POWER CHAIR

THE JAZZY ELITE ES SERIES POWER CHAIR

The Jazzy Elite ES Series Power Chair has two main assemblies: the seat assembly and the power base assembly.

See figure 1. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly

includes two motor/brake assemblies, two drive wheels, two rear caster wheels, two front anti-tip wheels, two

batteries, and wiring harnesses. See figure 2.

Figure 1. The Jazzy Elite ES Series Power Chair (Elite ES Shown)

SEAT

ASSEMBLY

FRONT RIGGING

(FOOT PLATFORM SHOWN)

DRIVE WHEEL

ANTI-TIP WHEELS

SEATBACK

ARMRESTS

MAIN SHROUD

CONTROLLER

SEAT BASE

CASTER WHEEL

SEAT

RELEASE

LEVER

(OPTIONAL)

POWER BASE

ASSEMBLY

8 www.pridemobility.com Jazzy Elite ES Series

Figure 2. The Jazzy Elite ES Series Power Base

MAIN SHROUD SEAT POST

FRONT COVER

CONTROLLER HARNESS

ANTI-TIP

WHEELS

CASTER WHEEL

III. YOUR POWER CHAIR

Electrical Components

The electrical components are located either on or inside the power base. The main circuit breaker is located on

the side of the power base. The power module is located under the front cover. See figures 3 and 4.

Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries

and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage

to the motors and the electronics. If the circuit trips, allow your power chair to “rest” for approximately one

minute. Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main

circuit breaker continues to trip repeatedly, contact your authorized Pride Provider.

Power Module: Provides connection between the controller and the motors and batteries.

ANTI-TIP WHEELS ON ES-1

Jazzy Elite ES Series www.pridemobility.com 9

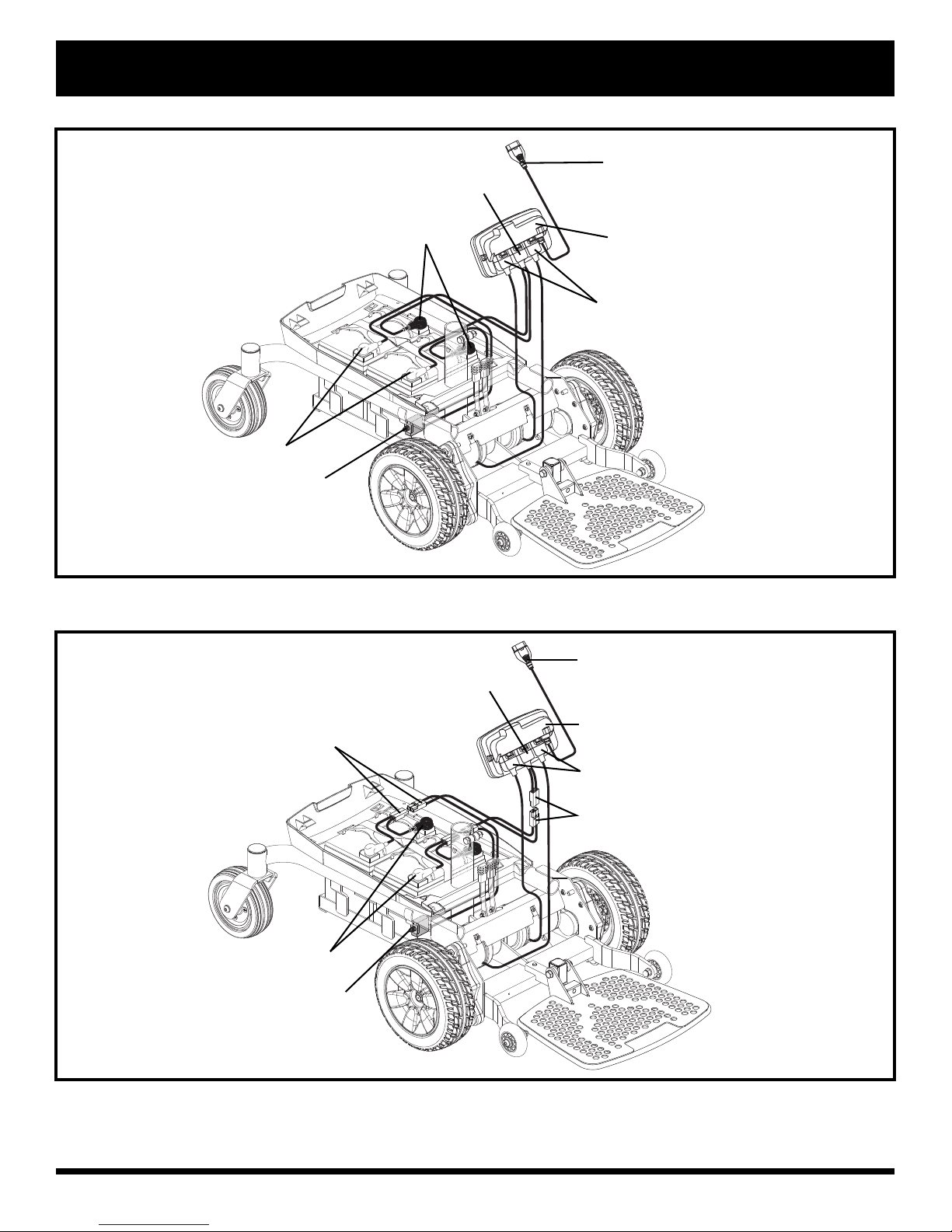

Figure 3. Jazzy Elite ES Series Electrical Components (Elite ES Shown)

III. YOUR POWER CHAIR

Figure 4. Jazzy Elite ES Series Electrical Components (Elite ES Portable Shown)

POWER MODULE

CONTROLLER HARNESS

MOTOR CONNECTORS

BATTERY TERMINALS

MAIN CIRCUIT BREAKER

BATTERY TERMINALS

BATTERY CONNECTOR

CONTROLLER HARNESS

BATTERY CONNECTOR

POWER MODULE

MOTOR CONNECTORS

QUICK RELEASE

POWER MODULE

CONNECTOR

MAIN CIRCUIT BREAKER

QUICK RELEASE BATTERY

CONNECTORS (1 OF 2)

BATTERY TERMINALS

(2 OF 4)

10 www.pridemobility.com Jazzy Elite ES Series

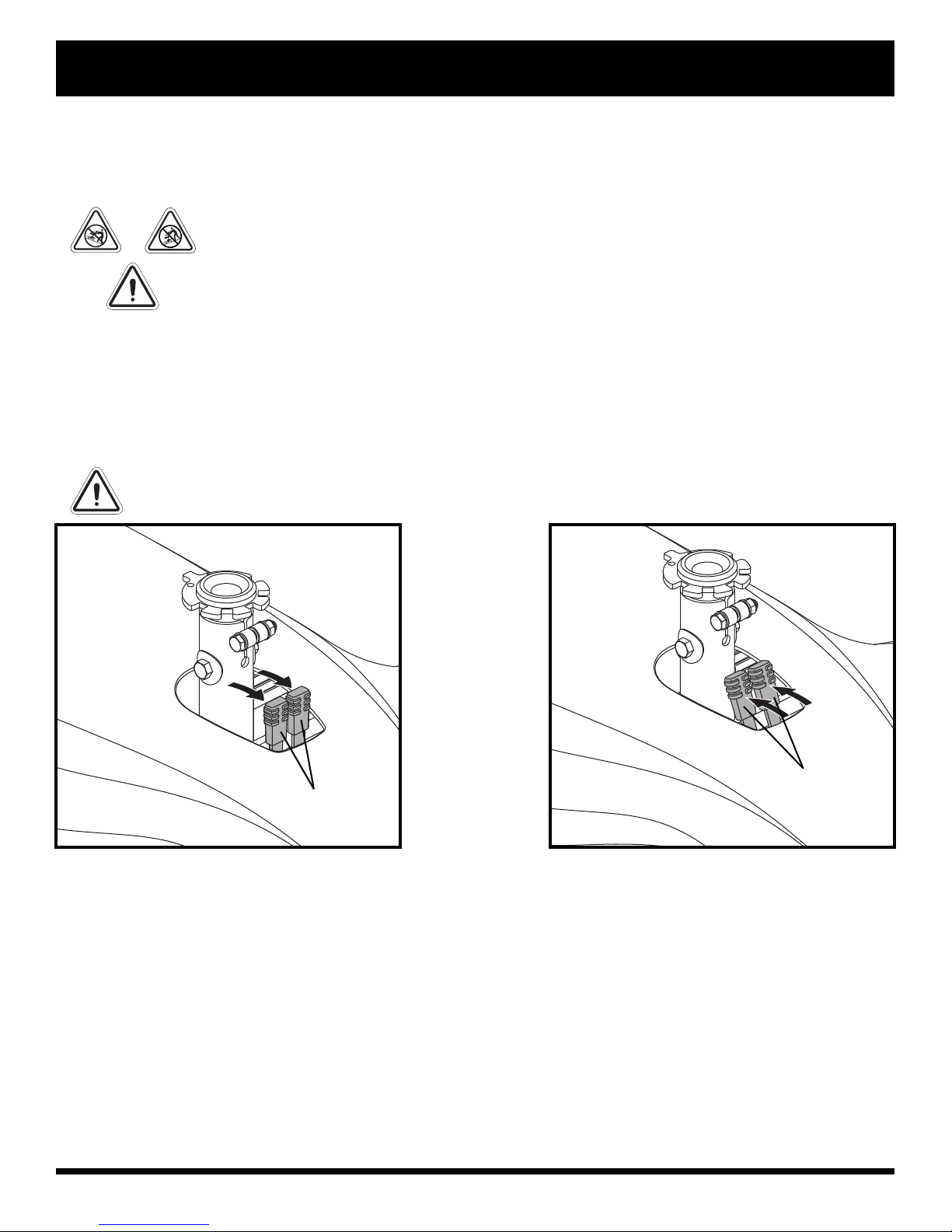

Manual Freewheel Levers

Your power chair has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage

the drive motors from the gearboxes and maneuver the chair manually.

WARNING! Do not use the power chair while the drive motors are disengaged! Do not

disengage the drive motors when the power chair is on an incline or decline, as the

unit could roll on its own. Only engage the freewheel mode when on a level surface.

WARNING! It is important to remember that when your power chair is in freewheel

mode, the braking system is disengaged.

To engage or disengage the drive motors:

1. Locate the lever on the top of the power base.

Push both levers forward away from the seat post to engage the drive motors (drive mode).

See figure 5.

3. Pull both levers rearward toward the seat post to disengage the drive motors (freewheel mode). See figure 6.

If a lever is difficult to move in either direction, slightly rock the power chair back and forth. The lever should

then move to the desired position.

WARNING! Do not use the freewheel lever handles as tie-down points to secure this product.

FREEWHEEL LEVERS

Figure 6. Freewheel Mode (Drive Disengaged)Figure 5. Drive Mode (Drive Engaged)

III. YOUR POWER CHAIR

FREEWHEEL LEVERS

Autres manuels pour Jazzy Elite ES

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pride Mobility Scooter

Pride Mobility

Pride Mobility REVO Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY 10 Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY X Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY DELUXE Manuel utilisateur

Pride Mobility

Pride Mobility Ranger Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY SERIES Manuel utilisateur

Pride Mobility

Pride Mobility Celebrity X Sport Manuel utilisateur

Pride Mobility

Pride Mobility Celebrrity XL Manuel utilisateur

Pride Mobility

Pride Mobility Victotory XL Manuel utilisateur

Pride Mobility

Pride Mobility Hurricane SCUK4500 Manuel utilisateur

Pride Mobility

Pride Mobility go-go ES2 Manuel utilisateur

Pride Mobility

Pride Mobility Colt Series Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY X Manuel utilisateur

Pride Mobility

Pride Mobility Sonic Manuel utilisateur

Pride Mobility

Pride Mobility Zero Turn 10 Manuel utilisateur

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manuel utilisateur

Pride Mobility

Pride Mobility Colt Twin Manuel utilisateur

Pride Mobility

Pride Mobility Victory XL Manuel utilisateur

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY X Manuel utilisateur

Pride Mobility

Pride Mobility Legend XL Manuel utilisateur

Pride Mobility

Pride Mobility TRAVEL SCOOTER Series Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Series Manuel utilisateur

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
