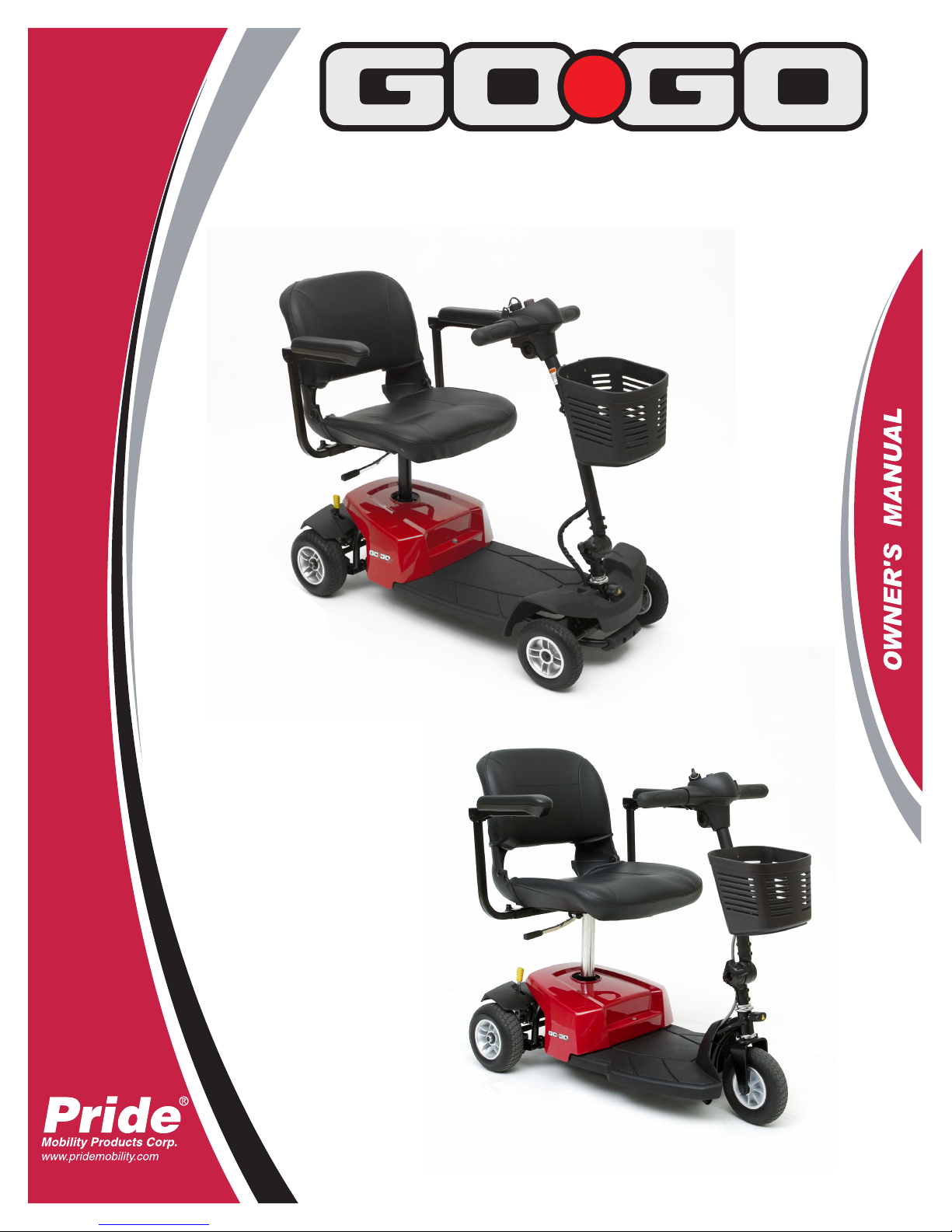

Pride Mobility Go Go ES Manuel utilisateur

*INFMANU4060*

WARNING! An authorized Pride Provider or qualified technician must perform the initial

setup of this Travel Scooter and must perform all of the procedures in this manual.

The symbols below are used throughout this owner's manual and on the scooter to identify warnings

and important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage, or

malfunction. On the product, this icon is represented as a black symbol on a yellow

triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at

any time or in any circumstances. Performing a prohibited action can cause personal

injury and/or equipment damage. On the product, this icon is represented as a black

symbol with a red circle and red slash.

INTENDED USE

The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated

position that have the capability of operating a scooter.

SAFETY GUIDELINES

NOTE: This owner’s manual is compiled from the latest specifications and product information

available at the time of publication. We reserve the right to make changes as they become necessary.

Any changes to our products may cause slight variations between the illustrations and explanations in

this manual and the product you have purchased. The latest/current version of this manual is available

on our website.

Pride Provider:___________________________________________________________________

Address:_________________________________________________________________________

Phone Number: _________________________

Purchase Date:___________________________ Serial Number:___________________________

Pride Mobility Products Corp.

INFMANU4060/Rev B/February 2012

Please fill out the following information for quick reference:

Go-Go ES www.pridemobility.com

CONTENTS

I. INTRODUCTION .......................................................................................................................4

II. SAFETY ........................................................................................................................................5

III. YOUR TRAVEL SCOOTER ...................................................................................................19

IV. BATTERIES AND CHARGING ..........................................................................................24

V. OPERATION .............................................................................................................................29

VI. COMFORT ADJUSTMENTS ..............................................................................................31

VII. DISASSEMBLY AND ASSEMBLY ...................................................................................33

VIII. BASIC TROUBLESHOOTING ..........................................................................................35

IX. CARE AND MAINTENANCE ..............................................................................................37

4www.pridemobility.com Go-Go ES

I. INTRODUCTION

SAFETY

WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines

state-of the-art components with safety, comfort, and styling in mind. We are confident that these design

features will provide you with the conveniences you expect during your daily activities. Understanding

how to safely operate and care for this product should bring you years of trouble free operations and

service.

Read and follow all instructions, warnings, and notes in this manual before attempting to operate your

Travel Scooter for the first time. You must also read all instructions, warnings, and notes contained in any

supplemental instructional booklets that accompanied your Travel Scooter before initial operation. Your

safety depends upon you, as well as your provider, caretaker, or healthcare professional in using good

judgement.

If there is any information in this manual which you do not understand, or if you require additional

assistance for setup or operation, please contact your authorized Pride Provider. Failure to follow the

instructions, warnings, and notes in this manual and those located on your Pride product can result

in personal injury or product damage and will void Pride’s product warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter, or modify this product

or remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail,

refuse, or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the

safe use of this product.

SHIPPING AND DELIVERY

Before using your Travel Scooter, make sure your delivery is complete as some components may be

individually packaged. If you do not receive a complete delivery, please contact your authorized Pride

Provider immediately. Where damage has occurred during transport, either to the packaging or content,

please contact the delivery company responsible.

INFORMATION EXCHANGE

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear

about the safety and reliability of your new Travel Scooter, and about the service you received from your

authorized Pride Provider. Please notify us of any change of address, so we can keep you apprised of

important information about safety, new products, and new options that can increase your ability to use

and enjoy your Travel Scooter. Please feel free to contact us at the address below:

USA: Australia:

Pride Mobility Products Corporation Pride Mobility Products Australia Pty. Ltd.

Attn: Customer Care Department 20-24 Apollo Drive

182 Susquehanna Ave. Hallam, Victoria 3803

Exeter, PA 18643-2694 Australia

[email protected]

1-800-424-8250

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Go-Go ES www.pridemobility.com

Do not place the Travel Scooter in freewheel mode when on an incline.

PRODUCT SAFETY SYMBOLS

The symbols below are used on the Travel Scooter to identify warnings, mandatory actions, and prohibited

actions. It is very important for you to read and understand them completely.

II. SAFETY

Pinch/Crush points created during assembly.

Maximum seating weight.

Read and follow the information in the owner’s manual.

Place unit on level ground and stand to one side when changing from drive mode

to freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Unlocked and in freewheel mode.

EMI/RFI - This product has been tested and passed at an immunity level of 20 V/m.

Corrosive chemicals contained in battery.

Indicates electrical shock hazard.

Do not place the Travel Scooter in freewheel mode when on a decline.

6www.pridemobility.com Go-Go ES

II. SAFETY

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged

plug access.

Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while

operating.

Do not connect an extension cord to the AC/DC converter or the battery charger.

Do not remove anti-tip wheels.

Avoid exposure to rain, snow, ice, salt, or standing water whenever possible.

Maintain and store in a clean and dry condition.

Keep tools and other metal objects away from battery terminals. Contact with

tools can cause electrical shock.

Do not allow unsupervised children to play near the Travel Scooter while the

batteries are charging.

Keep your hands away from the tires when driving. Be aware that loose fitting

clothing can become caught in the drive tires.

Do not expose to heat sources such as open flame or sparks. Do not transport

batteries with flammable or combustible items.

Go-Go ES www.pridemobility.com

II. SAFETY

Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and

new batteries. Always replace both batteries at the same time.

Battery posts, terminals, and related accessories contain lead and lead

compounds. Wear goggles and gloves when handling batteries and wash hand

after handling.

Disposal and recycling - Contact your authorized Pride Provider for information on

proper disposal of your Pride product and its packaging.

Explosive conditions exist!

Battery charger for indoor use only.

Fully charge batteries before operating.

Remove key from an unattended Travel Scooter.

Do not mix AGM and Gel-Cell batteries. Always use batteries of the same type and

chemistry.

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive

conditions.

8www.pridemobility.com Go-Go ES

Contains sealed, non-spillable batteries that meet DOT CRF 173.159 (d), IATA

packing instructions 806, IATA provision A67 for safe transportation.

Keep area dry.

Manufactured in.

Keep area clean.

Travel Scooter does not conform to ISO 7176-19 for transport of an occupied

Travel Scooter in a motor vehicle.

II. SAFETY

Travel Scooter information label.

Indicates tie-down points on the scooter.

Go-Go ES www.pridemobility.com

II. SAFETY

GENERAL

MANDATORY! Do not operate your new Travel Scooter for the first time without

completely reading and understanding this owner’s manual.

Your Travel Scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride

provides an extensive variety of products to best fit the individual needs of the Travel Scooter user. Please

be aware that the final selection and purchasing decision regarding the type of Travel Scooter to be used

is the responsibility of the Travel Scooter user who is capable of making such a decision and his/her

healthcare professional (i.e., medical doctor, physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted

the Travel Scooter to the user and has assisted the prescribing healthcare professional and/or the authorized

Pride Provider in the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the Travel Scooter user will need

to practice operating the Travel Scooter in the presence of a trained attendant. A trained attendant can be

defined as a family member or care professional specially trained in assisting a Travel Scooter user in

various daily living activities.

As you begin using your Travel Scooter during daily activities, you will probably encounter situations in

which you will need some practice. Simply take your time and you will soon be in full and confident

control as you maneuver through doorways, on and off elevators, up and down ramps, and over moderate

terrain.

Below are some precautions, tips, and other safety considerations that will help you become accustomed

to operating the Travel Scooter safely.

MODIFICATIONS

Pride has designed and engineered your Travel Scooter to provide maximum mobility and utility. A wide

range of accessories is available from your authorized Pride Provider to further customize your Travel

Scooter to better suit your needs and/or preferences. However, under no circumstances should you modify,

add, remove, or disable any feature, part, or function of your Travel Scooter.

WARNING! Do not modify your Travel Scooter in any way not authorized by Pride. Do not

use accessories if they have not been tested or approved for Pride products.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your Travel Scooter by any of its removable

parts, including the armrests, seat, or shroud. Pride recommends use of only solid, non-

removable frame components such as Travel Scooter securement points or the front and

rear frame weldments to lift or move your Travel Scooter.

WARNING! Lifting the Travel Scooter should be accomplished with no fewer than three

people, one at the front and two at the rear of the unit.

PRE-RIDE SAFETY CHECK

Get to know the feel of your Travel Scooter and its capabilities. Pride recommends that you perform a

safety check before each use to make sure your Travel Scooter operates smoothly and safely.

10 www.pridemobility.com Go-Go ES

Perform the following inspections prior to using your Travel Scooter:

Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated

on each tire if equipped with pneumatic tires.

Check all electrical connections. Make sure they are tight and not corroded.

Check all harness connections. Make sure they are secured properly.

Check the brakes.

Check battery charge.

If you discover a problem, contact your authorized Pride Provider for assistance.

TIRE INFLATION

If your Travel Scooter is equipped with pneumatic tires, you should check or have the air pressure checked

at least once a week. Proper inflation pressures will prolong the life of your tires and help ensure the

smooth operation of your Travel Scooter.

WARNING! It is critically important that the psi/bar/kPa air pressure indicated on each

tire be maintained in pneumatic tires at all times. Do not underinflate or overinflate your

tires. Low pressure may result in loss of control, and overinflated tires may burst. Failure

to maintain the psi/bar/kPa air pressure rating indicated on pneumatic tires at all times

may result in tire and/or wheel failure.

WARNING! Inflate your Travel Scooter tires from a regulated air source with an available

pressure gauge. Inflating your tires from an unregulated air source could overinflate

them, resulting in a burst tire.

NOTE: If tires on your Travel Scooter list the psi rating only, use the following conversion formulas to

find the bar or kPa rating: bar = psi x 0.06895, kPa = psi x 6.89476.

WEIGHT LIMITATIONS

Your Travel Scooter is rated for a maximum weight capacity. Refer to the specifications table for

information. Keep in mind that the maximum weight capacity includes the combined weight of the user

and any accessories mounted to the Travel Scooter.

MANDATORY! Stay within the specified weight capacity for your Travel Scooter.

Exceeding the weight capacity voids your warranty. Pride will not be held responsible for

injuries and/or property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your Travel Scooter. Carrying passengers on your

Travel Scooter may affect the center of gravity, resulting in a tip or a fall.

INCLINE INFORMATION

More and more buildings have ramps with specified degrees of inclination, designed for easy and safe

access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good

cornering skills on your Travel Scooter.

Proceed with extreme caution as you approach the downgrade of a ramp or other incline.

Take wide swings with your Travel Scooter around any tight corners. If you do that, the Travel

Scooter’s rear wheels will follow a wide arc, not cut the corner short, and not bump into or get hung

up on any railing corners.

When driving down a ramp, keep the Travel Scooter’s speed adjustment set to the slowest speed setting

to ensure a safely controlled descent.

Avoid sudden stops and starts.

II. SAFETY

Table des matières

Autres manuels Pride Mobility Scooter

Pride Mobility

Pride Mobility Sonic Manuel utilisateur

Pride Mobility

Pride Mobility Celebrrity XL Manuel utilisateur

Pride Mobility

Pride Mobility Mini Crosser Manuel utilisateur

Pride Mobility

Pride Mobility TRAVEL SCOOTER Series Manuel utilisateur

Pride Mobility

Pride Mobility SC40X Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Ultra X Manuel utilisateur

Pride Mobility

Pride Mobility Sidekick Manuel utilisateur

Pride Mobility

Pride Mobility Elite Traveller Series INFINFB2039 Mode d’emploi

Pride Mobility

Pride Mobility Hurricane SCUK4500 Manuel utilisateur

Pride Mobility

Pride Mobility Apex Sprint Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY DELUXE Manuel utilisateur

Pride Mobility

Pride Mobility go-go ES2 Manuel utilisateur

Pride Mobility

Pride Mobility Jazzy Select gt Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Elite Traveller SC40LR Manuel utilisateur

Pride Mobility

Pride Mobility Colt Series Manuel utilisateur

Pride Mobility

Pride Mobility Legend XL Manuel utilisateur

Pride Mobility

Pride Mobility PMV Series Manuel utilisateur

Pride Mobility

Pride Mobility Victory XL-8 Manuel utilisateur

Pride Mobility

Pride Mobility PMV5000 Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Elite traveller Manuel utilisateur

Pride Mobility

Pride Mobility Sonic Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY SERIES Manuel utilisateur

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Manuel utilisateur

Pride Mobility

Pride Mobility Path rider Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
