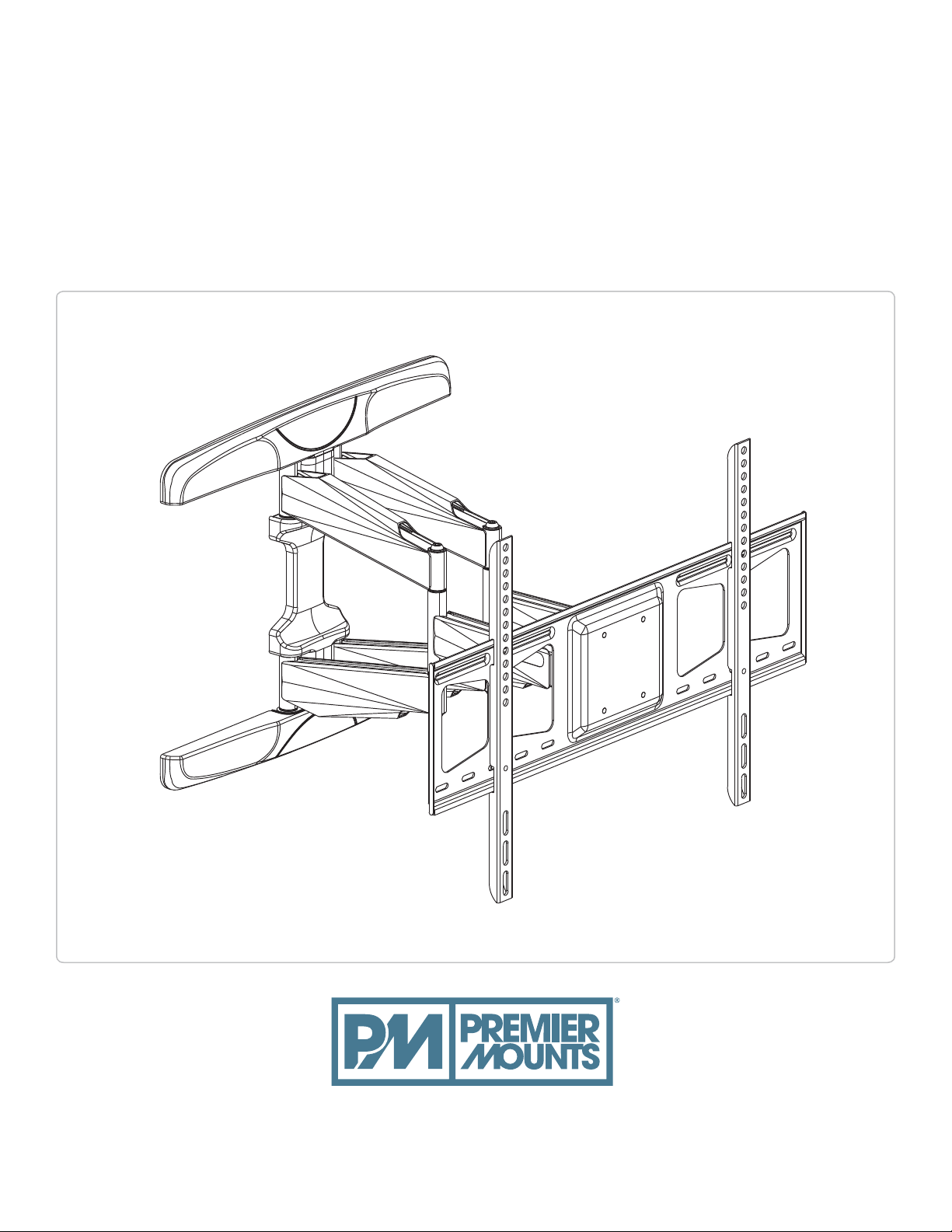

Premier Mounts AM95 Manuel utilisateur

INSTALLATION GUIDE

AM95

Articulating Mount

for Flat Panels up to 95 lb./43 kg.

9500159 v2.0 publ. 06/05/20

Maximum Flat Panel Weight:

95 lb. / 43.1 kg.

premiermounts.com | p. 800.368.9700 | e. [email protected]

500 W Central Ave, Suite A, Brea, CA 92821 USA

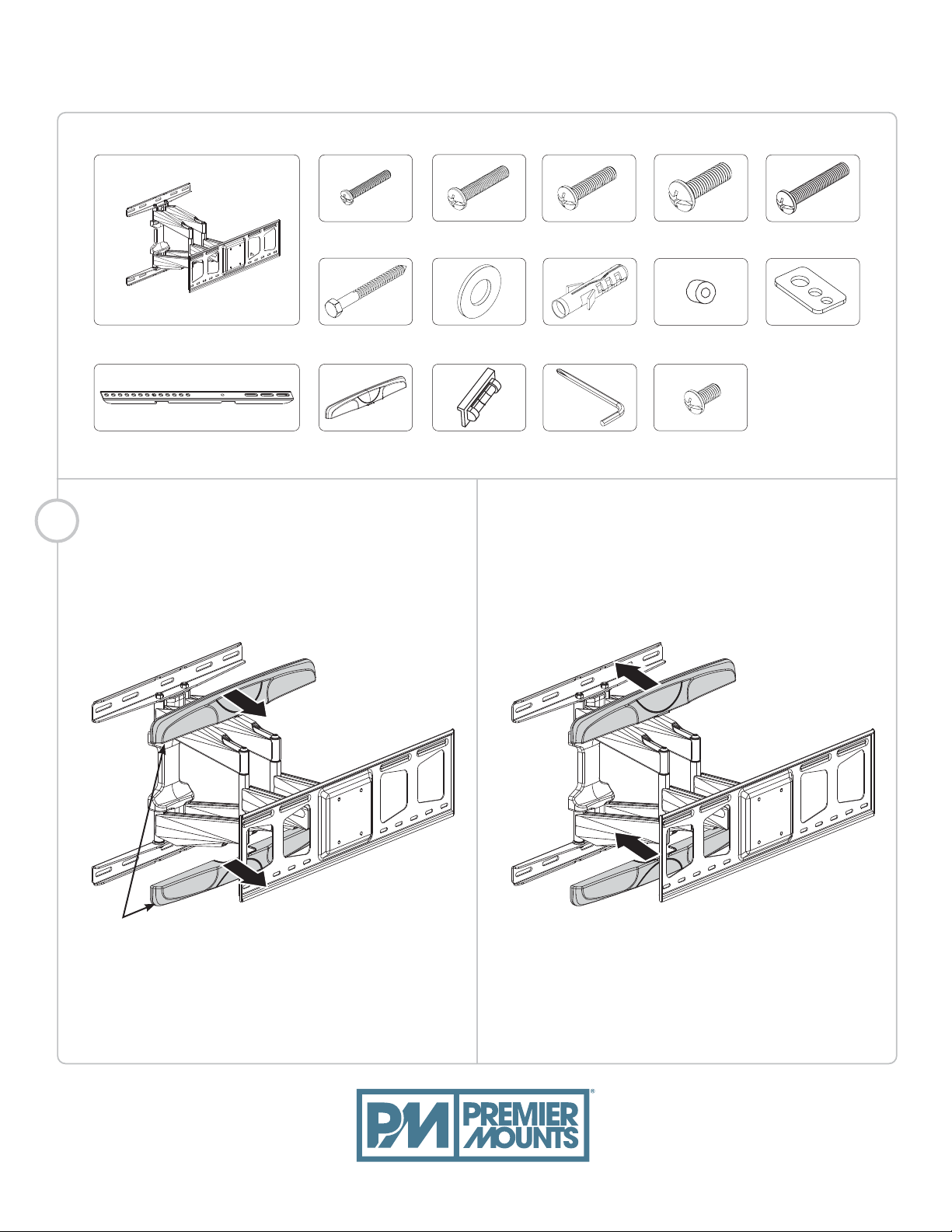

Page 2

INCLUDES:

Swivel Mount

(Qty 1)

Display Bracket

(Qty 2)

M6 x 12mm

(Qty 2)

M4 x 25mm

(Qty 4)

M5 x 25mm

(Qty 4)

5/16” x 2.5” Hex

Lag (Qty 6)

M8 Spacer

(Qty 4)

M6 x 25mm

(Qty 4)

M8 x 25mm

(Qty 4)

M8 Washer

(Qty 6)

M8 x 45mm

(Qty 4)

Level

(Qty 1)

Decorative

Cover (Qty 2)

Hex Phillips Key

(Qty 1)

Universal

Washers (Qty 4)

Finned Anchors

(Qty 6)

Remove and set aside the plastic covers

to access the mounting holes

Install plastic covers after

mounted to the wall

(Install after step 3)

(2) Plastic cover

Installation Guide

AM95

premiermounts.com | p. 800.368.9700 | e. [email protected]

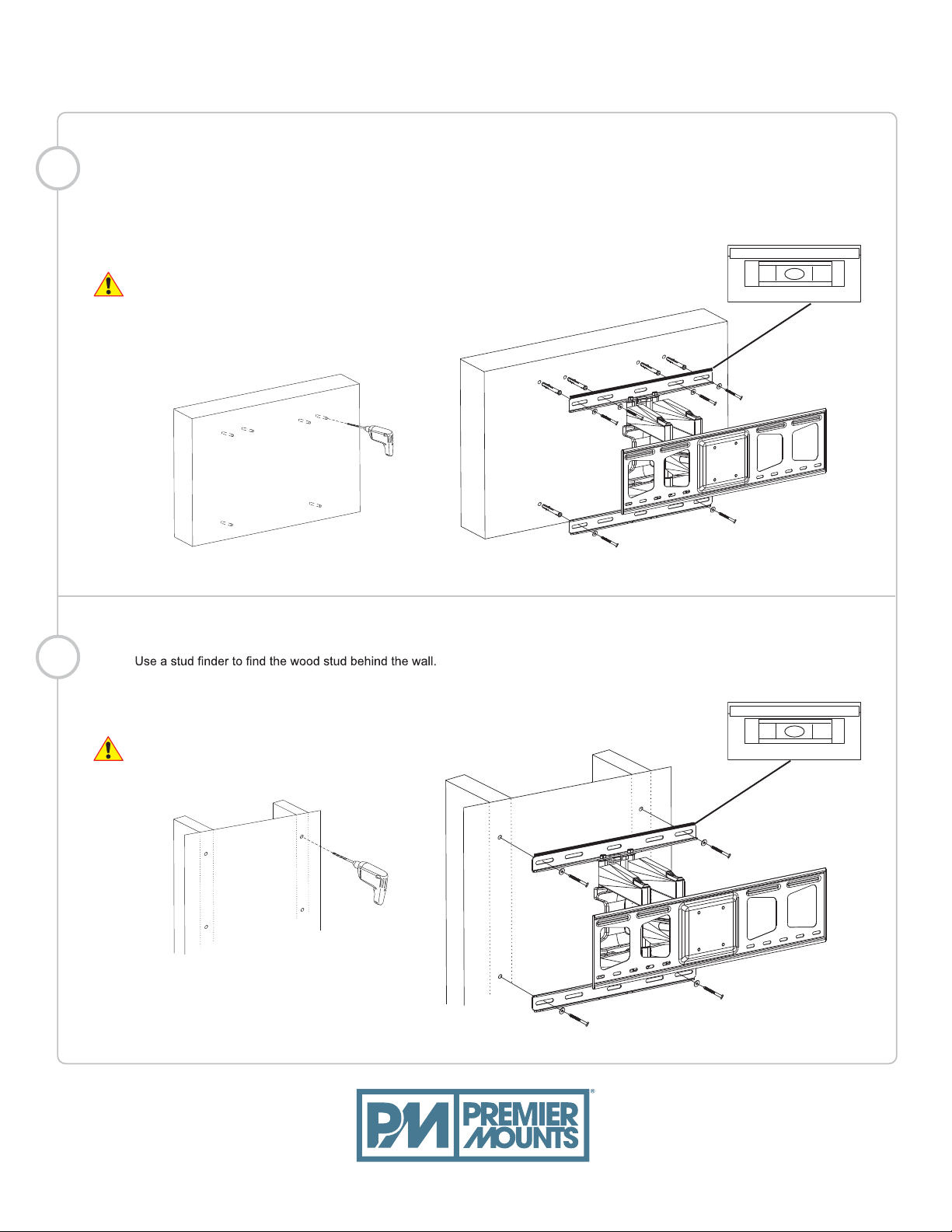

Page 3

Wood Stud Mounting

Solid Concrete Mounting

Do not over tighten the lag bolts.

1. Place the Mount on the wall and level.

2. Mark the six (6) mounting locations using a pencil.

3. Drill six (6) marking locations using the appropriate masonry drill bit and drill gun.

4. Lightly tap the six (6) concrete anchors into the holes.

5. Install the six (6) lag bolts and washers into the anchor to secure the mount to the wall.

2. With a pencil mark the wood stud location.

3. Place the mount over the wood stud location and mark four (4) mounting locations.

4. Drill four (4) holes on the marking locations using a drill bit and a drill gun.

5. Install the mount to the wall using four (4) lag bolts and washers.

Do not over tighten the lag bolts.

LEVEL

Installation Guide

AM95

premiermounts.com | p. 800.368.9700 | e. [email protected]

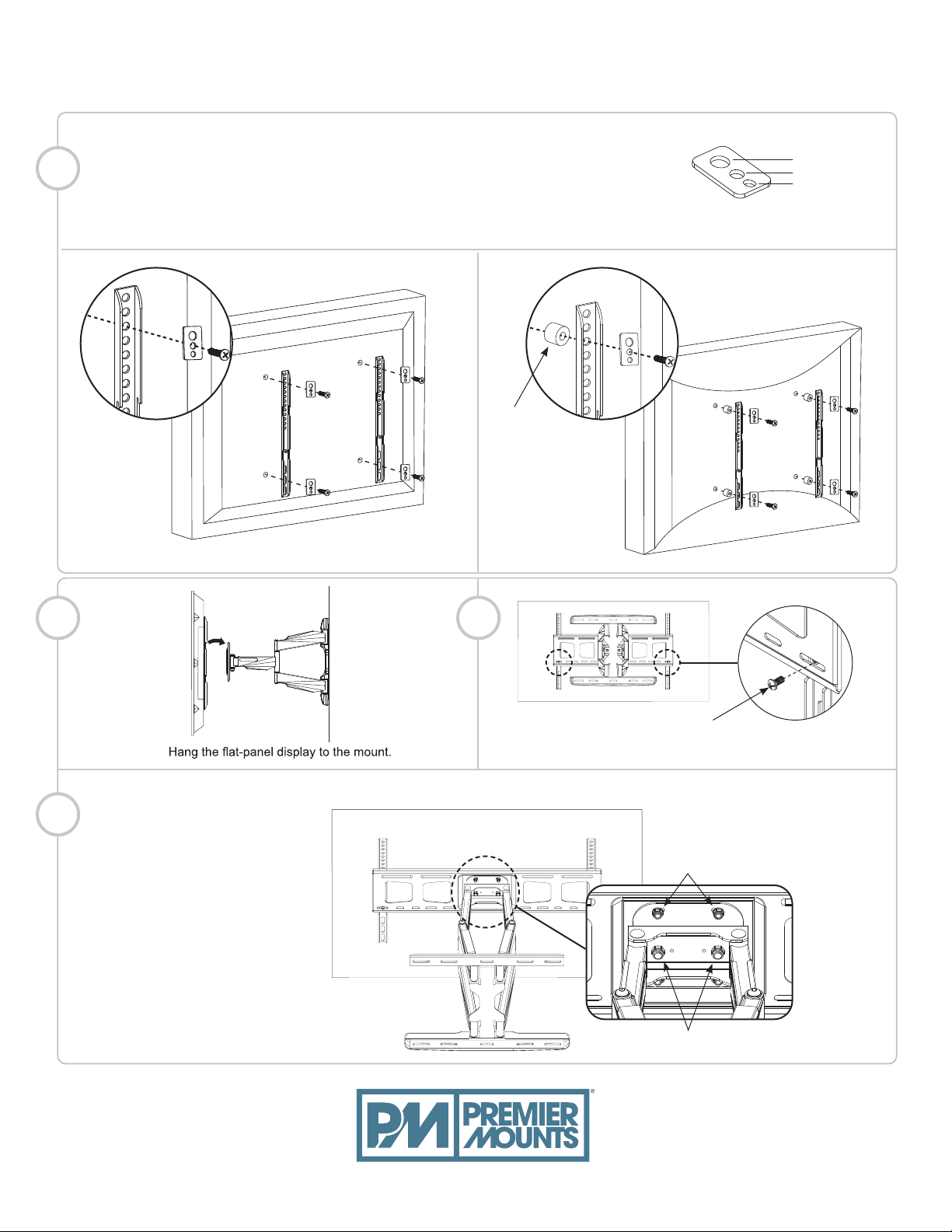

Page 4

Attaching the Display Brackets

Flat Back Curved back

Install the display brackets to the display using four (4) universal washers and four (4) M4, M5, M6

or M8 screws depending on the display.

Use additional spacers for display with curved back or obstruction.

M5, M6

Universal Washers x4

(4) Spacer

Install two (2) M6 x 12mm safety

screws to lock in place.

Post-level

adjustment

Tilt adjustment

TIGHTEN OR LOOSEN THE NUT FOR TILT AND POST-LEVEL ADJUSTMENT

Installation Guide

AM95

premiermounts.com | p. 800.368.9700 | e. [email protected]

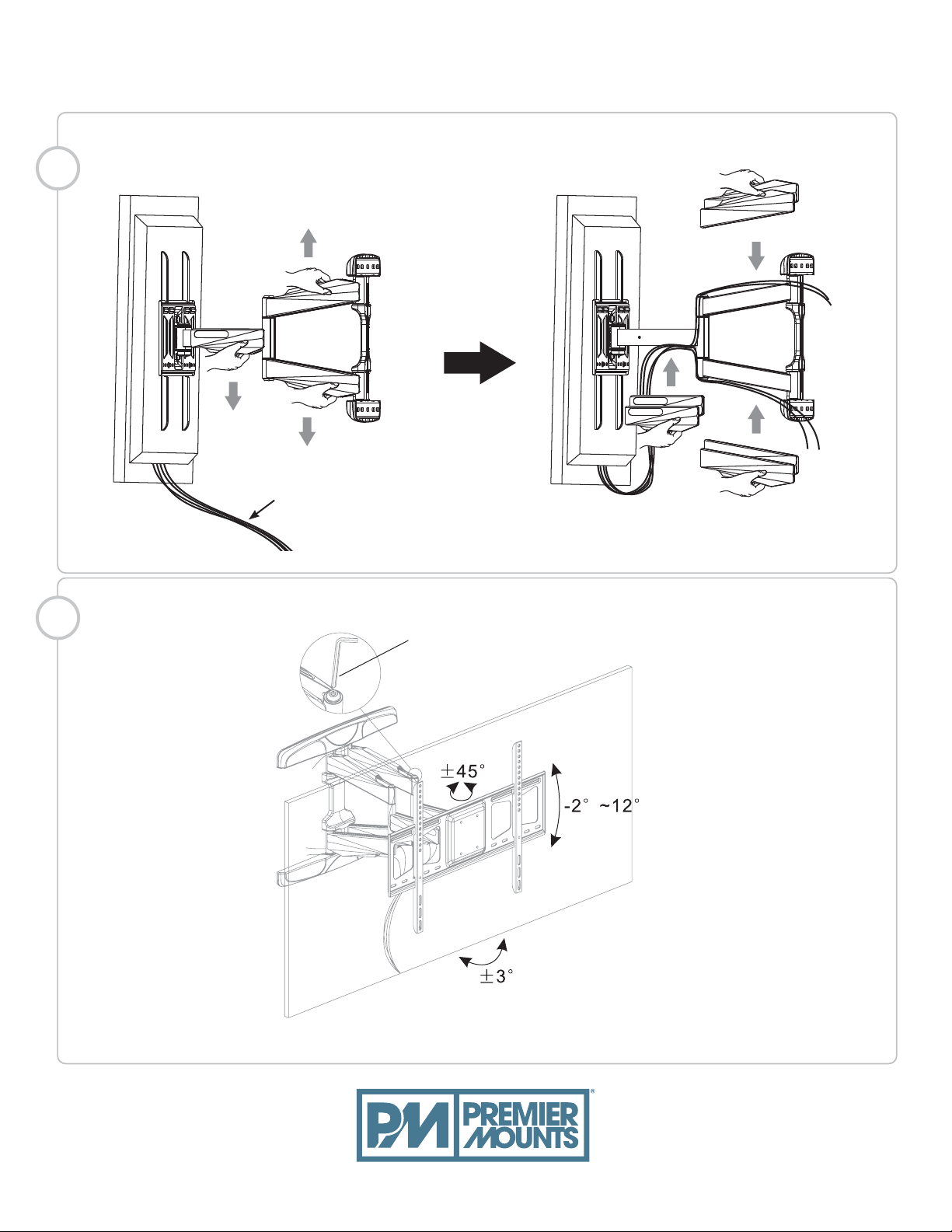

Page 5

Cable Management

Adjustments

Cable management clips

Cable routing access points

Cable

Swivel

Tilt

(Horizontal

leveling)

Use the supplied Allen key to tighten

or loosen the tension screw.

Installation Guide

AM95

premiermounts.com | p. 800.368.9700 | e. [email protected]

Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this

document is subject to change without notice or obligation of any kind. Premier Mounts makes no representation of warranty, expressed or implied, regarding the

information contained herein. Premier Mounts assumes no responsibility for accuracy

PREMIER MOUNTS

LIMITED LIFETIME WARRANTY

What and Who is Covered by this Limited Lifetime Warranty

Premier Mounts warrants all mounting products to be free from defects in material and workmanship for the

lifetime of the original installation of the product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is

defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will

be shipped to you at no charge, but you must pay any related labor costs.

What is Not Covered: Limitations

Premier Mounts disclaims any liability for damage to mounts, adapters, displays, projectors, other property,

products.

NOTWITHSTANDING ANYTHING TO THE CONTRARY IN THIS WARRANTY, THIS WARRANTY IS

LIMITED TO FIVE YEARS FROM THE DATE OF PURCHASE IN THE EVENT THAT THE WARRANT-

ED PRODUCT IS COMMERCIALLY RENTED OUT.

electrical items, are backed by a 3-year warranty.

Premier Mounts disclaims all other warranties, express or implied, including warranties of merchantability and

including but not limited to, inability to use its products or labor costs for removing and replacing defective

products or parts. Some states do not allow the exclusion or limitation of incidental or consequential damages,

so the above limitation or exclusion may not apply to you.

What Customers Must Do for Warranty Service

If you discover a problem that you think may be covered by the warranty, you must report it in writing to the

address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer

purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem,

the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier Mounts

Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.

How State Law Applies

PREMIER MOUNTS

ATTN: Warrenty Claims

500 W Central Ave, Suite A

Brea, CA 92821

PREMIER MOUNTS

500 W Central Ave, Suite A

Brea, CA 92821

USA & CANADA

Phone: 800-368-9700

Fax: 800-832-4888

e. [email protected]
