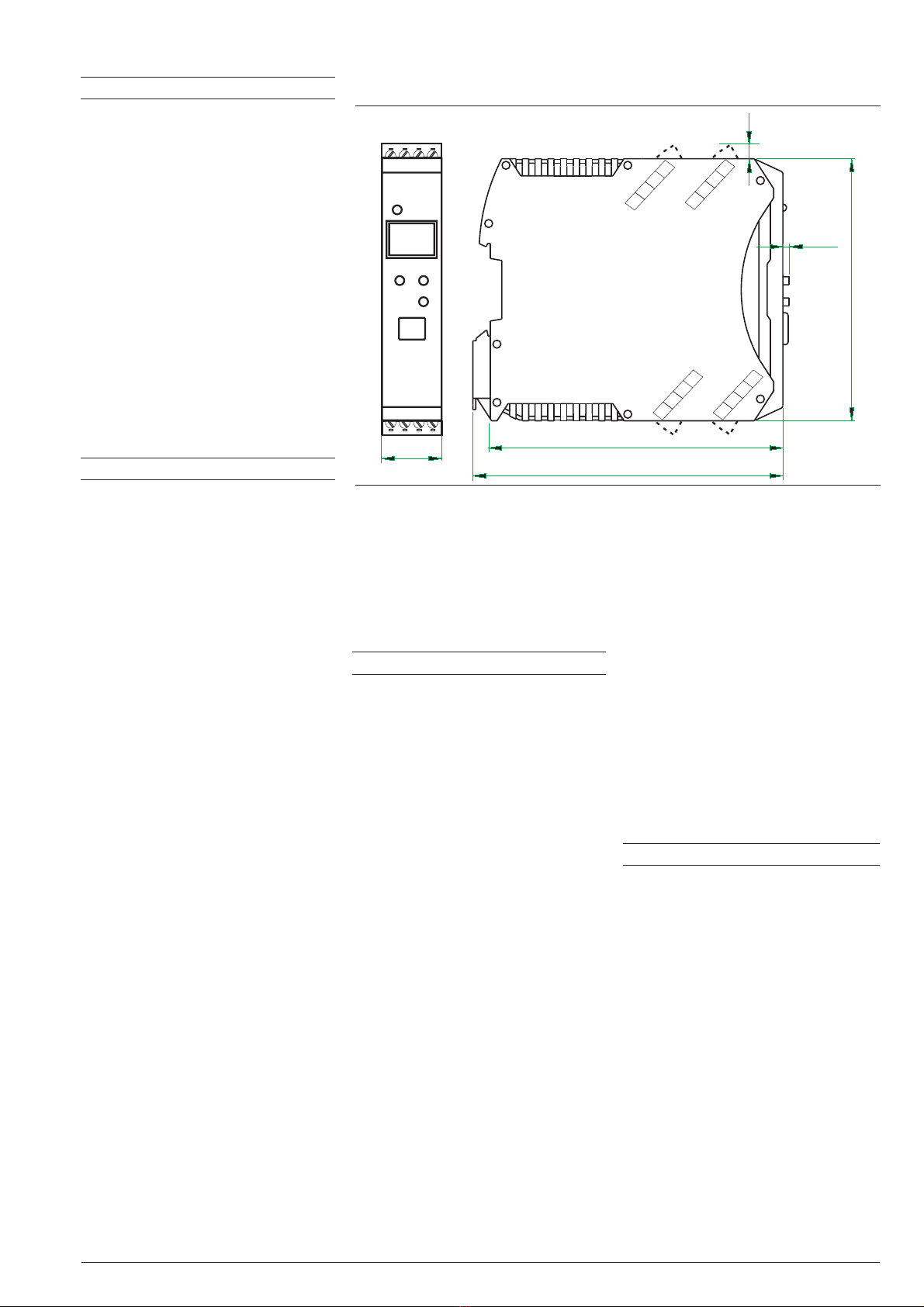

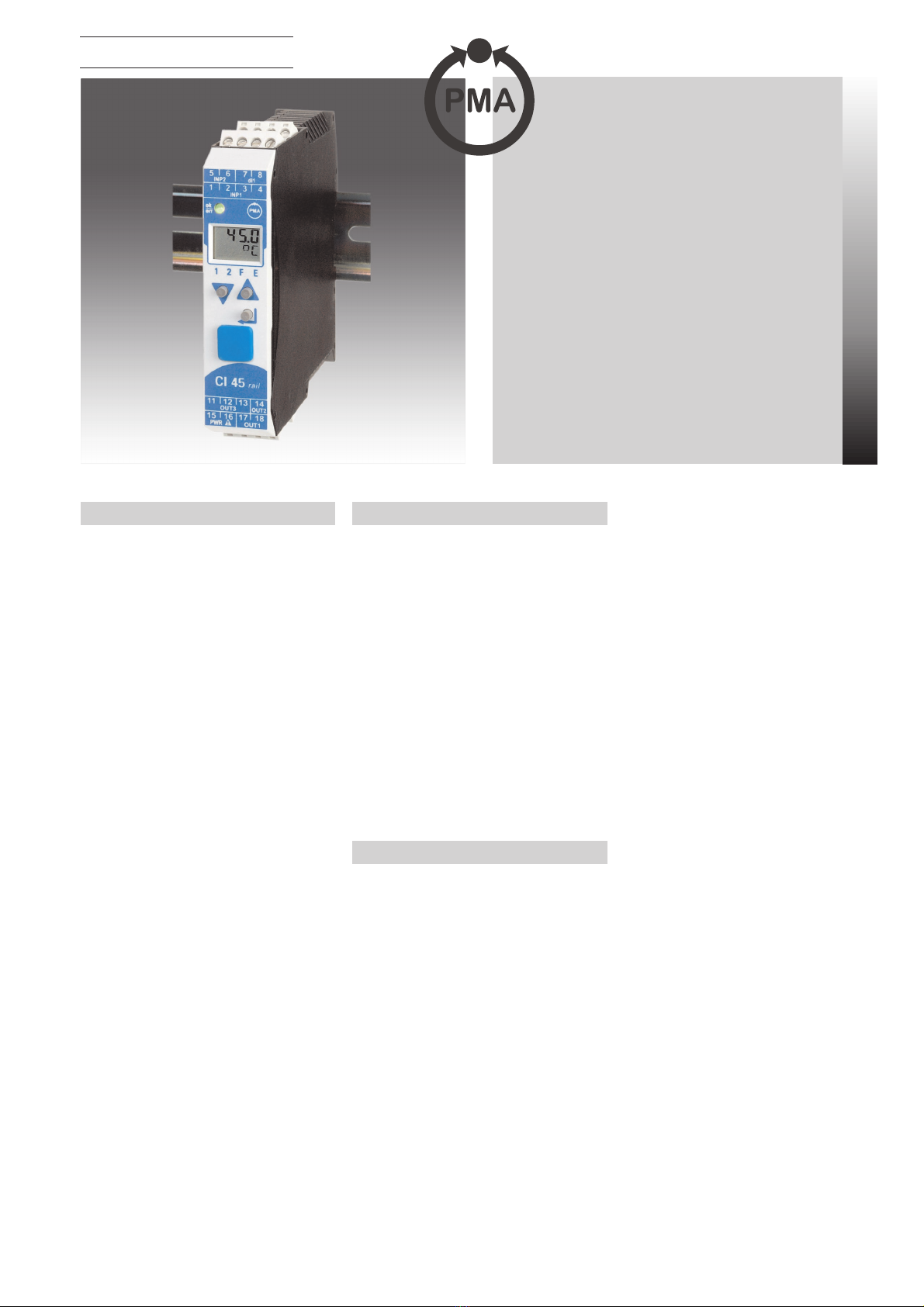

Moreover, the CI 45 can exchange
data with superordinate systems and
PCs via an optional RS 485 interface
with MODBUS RTU protocol that is fit-
ted into the top-hat DIN rail.
Password protection
If required, unauthorized access to the
various Operating Levels can be pre-
vented with a password, or an entire
level can be blocked.
TECHNICAL DATA
INPUTS
Survey of inputs
Input Purpose
INP1 X1 (process value 1), universal
input
di1 Operation disabled; Reset of
stored alarms; Reset of min/max
indicator.
UNIVERSAL INPUT INP1
Resolution: > 15 bits
Decimal point: 0 to 3 decimals
Digital input filter: adjustable
0.0...999.9 s
Scanning cycle: 100 ms
Linearization: 31 segments,
adaptable with
BlueControl®
Measurement
value correction: 2-point or offset
Limiting frequency: 1,7 Hz
Thermocouples (Table 1)
Input resistance: ?1MW
Influence of source
resistance: 1 µV/W
Input circuit monitor: sensor break, polarity
Cold-junction compensation
Internal: for INP1
External: 0 ...100 °C
Additional error:
typ. ß_0,5 K
max. ß+ 2,4 K
Break monitoring
Sensor current: £1µA
Operating sense configurable
Resistance thermometer (Table 2)
Connection technique: 3 or 4-wire
Lead resistance: max. 30 W
(max. at range end)
Input circuit monitoring: break and short circuit
Measurement span
The BlueControl®software enables
the internal characteristic curve for the
KTY 11-6 temperature sensor to be
adapted.
Physical measurement range: 0...4500 W
Current and voltage
measurement (Table 3)
Span start and span: anywhere within the
measurement range
Scaling: freely selectable
–1999...9999
Input circuit monitoring
(current): 12,5% below span start
(2 mA)
2 UNIFLEX CI 45 - Preliminary-
Thermocouple type Measurement range Error Typical resol.
L Fe-CuNi (DIN) -100...900°C -148...1652°F £2K 0,05 K
J Fe-CuNi -100...1200°C -148...2192°F £2K 0,05 K
K NiCr-Ni -100...1350°C -148...2462°F £2K 0,1 K
N Nicrosil/Nisil -100...1300°C -148...2372°F £2K 0,1 K
S PtRh-Pt 10% 0...1760°C 32...3200°F £2K 0,1 K
R PtRh-Pt 13% 0...1760°C 32...3200°F £2K 0,1 K
T Cu-CuNi -200...400°C -328...752°F £2K 0,03 K
C W5%Re-W26%Re 0...2315°C 32...4199°F £3K 0,2 K
D W3%Re-W25%Re 0...2315°C 32...4199°F £3K 0,2 K
E NiCr-CuNi -100...1000°C -148...1832°F £2K 0,05 K
B * PtRh-Pt6% 0(400)...1820°C 32(752)...3308°F £3K 0,2 K
Special -25 … 75 mV £0,1% 0,005%
* Values apply from 400°C upwards.
Table 1: Thermocouple input
Type Sensor current Measurement range Error Typical resol.
Pt100 ***
ß0,25mA
-200...100 (150)°C -328...212 (302)°F £1 K 0,05 K
Pt100 -200...850°C -328...1562°F £1 K 0,05 K
Pt1000 -200...850°C -328...1562°F £2 K 0,05 K
KTY 11-6* -50...150°C -58...302°F £2 K 0,05 K
Special* 0...4500 W** £0,1% 0,005%
Special 0...450 W** £0,1% 0,005%
Potentiom. 0...160 W** £0,1% 0,005%
Potentiom. 0...450 W** £0,1% 0,005%
Potentiom. 0...1600 W** £0,1% 0,005%
Potentiom. 0...4500 W** £0,1% 0,005%
* Default setting is the characteristic for KTY 11-6 (-50...150°C)
** Including lead resistance
*** up to 150 °C at reduced lead resistance (max. 160 W)
Table 2: Resistive inputs
Measurement range Input resistance Error Typical resol.( )
0...10 V 110 kWß0,1 % 0,3 mV
-10...10 V 110 kWß0,1 % 0,6 mV
-5...5 V 110 kWß0,1 % 0,3 mV
-2,5...115 mV* >1MWß0,1 % 4 úV
-25...1150 mV* >1MWß0,1 % 40 úV
-25...90 mV* >1MWß0,1 % 4 úV
-500...500 mV* >1MWß0,1 % 40 úV
-200...200 mV* >1MWß0,1 % 20 úV
0...20 mA 20 Wß0,1 % 0,8 úA
* For INP1: high-impedance, without break monitoring
Table 3: Current and voltage input
