PR Elecronics 5333 Manuel utilisateur
5333
CCOE
2-Wire Programmable
Transmitter
No. 5333V113-UK
From ser. no.:
132094001 - 132094630
141115001
1707
Revision Notes
The following list provides notes concerning revisions of this document.
Rev. ID Date Notes
111 13/45 IECEx and INMETRO approvals added
112 15/14 PESO/CCOE approval added
GOST approval replaced with
EAC approval
113 17/07 FM installation drawing updated
INMETRO installation drawings updated
5333V113-UK 1
2-WIRE
PROGRAMMABLE TRANSMITTER
5333
Contents
Application................................................................................................. 2
Technical characteristics...................................................................... 2
Mounting / installation ......................................................................... 2
Applications............................................................................................... 3
Order: 5333............................................................................................... 4
Electrical specifications........................................................................ 4
Connections .............................................................................................. 7
Block diagram........................................................................................... 8
Programming ............................................................................................ 9
Mechanical specifications ................................................................... 10
Mounting of sensor wires ................................................................... 10
Appendix .................................................................................................... 11
ATEX Installation Drawing - 5333A ............................................ 12
ATEX Installation Drawing - 5333D ............................................ 13
IECEx Installation Drawing - 5333A............................................ 15
IECEx Installation Drawing - 5333D............................................ 16
FM Installation Drawing - 5333D................................................. 18
CSA Installation Drawing - 5333D............................................... 20
INMETRO Instruções de Segurança - 5333A........................... 21
INMETRO Instruções de Segurança - 5333D........................... 22
2 5333V113-UK
2-WIRE PROGRAMMABLE TRANSMITTER
5333
• RTD or Ohm input
• High measurement accuracy
• 3-wire connection
• Programmable sensor error value
• For DIN form B sensor head mounting
Application
• Linearised temperature measurement with Pt100...Pt1000 or Ni100...Ni1000
sensor.
• Conversion of linear resistance variation to a standard analogue current
signal, for instance from valves or Ohmic level sensors.
Technical characteristics
• Within a few seconds the user can program PR5333 to measure temperatures
within all RTD ranges defined by the norms.
• The RTD and resistance inputs have cable compensation for 3-wire
connection.
Mounting / installation
• For DIN form B sensor head mounting. In non-hazardous areas the 5333 can be
mounted on a DIN rail with a special fitting.
5333V113-UK 3

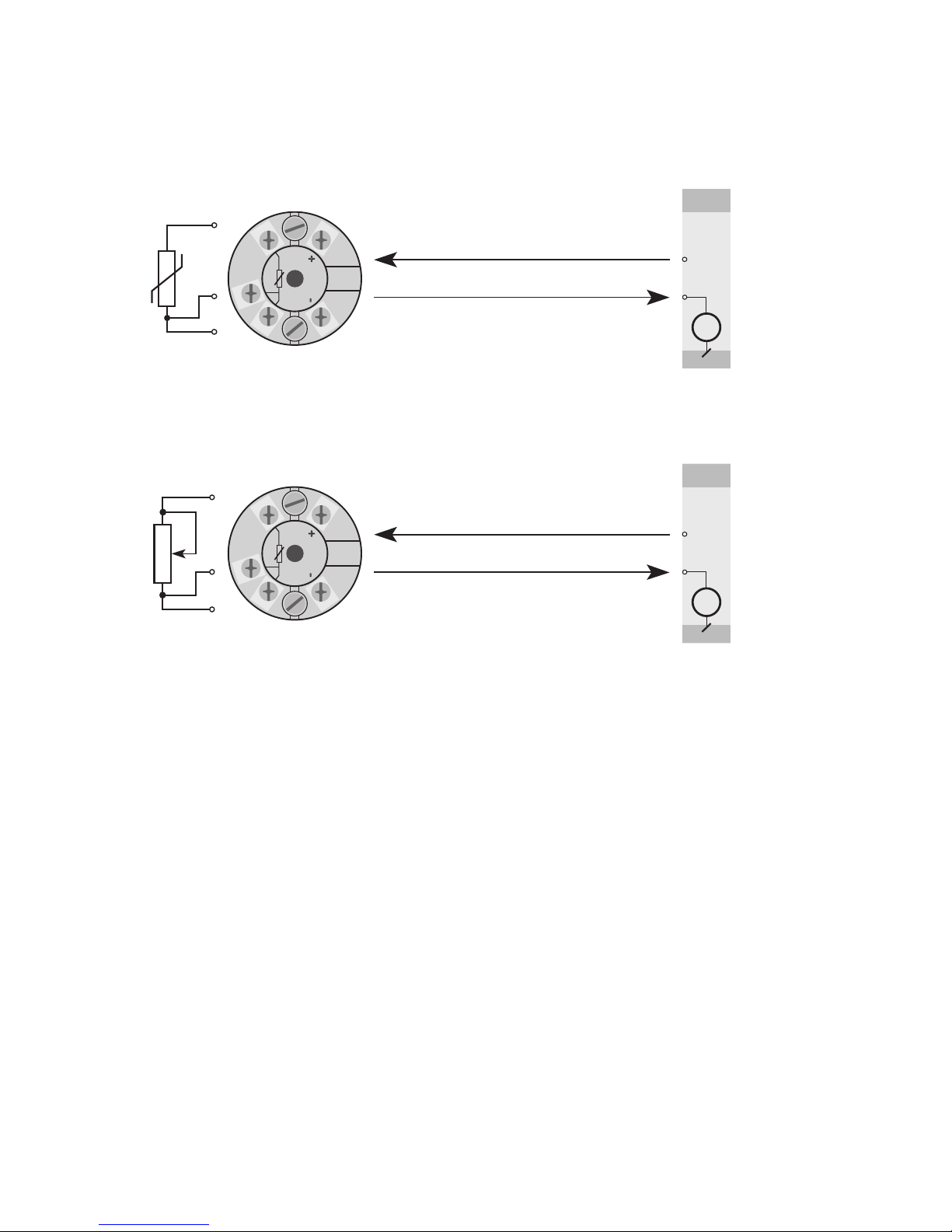

APPLICATIONS
V+
mA
+-
V+
mA
+-
RTD to 4...20 mA
2-wire installation
in control room
Resistance to 4...20 mA
2-wire installation
in control room
4 5333V113-UK
Electrical specifications
Specifications range:
-40°C to +85°C
Common specifications:
Supply voltage, DC
Standard.................................................................. 8...35 V
CSA, FM, ATEX, IECEx & INMETRO................ 8...30 V
Internal power dissipation
Standard.................................................................. 25 mW...0.8 W
CSA, FM, ATEX, IECEx & INMETRO................ 25 mW...0.7 W
Voltage drop .............................................................. 8 VDC
Warm-up time............................................................ 5 min.
Communications interface ................................... Loop Link
Signal / noise ratio .................................................. Min. 60 dB
Response time (programmable)......................... 0.33...60 s
Signal dynamics, input........................................... 19 bit
Signal dynamics, output ....................................... 16 bit
Calibration temperature ........................................ 20...28°C
Order: 5333
Type Version
5333 Standard : A
CSA, FM, ATEX, IECEx & INMETRO : D
5333V113-UK 5
General values
Input type
Absolute
accuracy
Temperature
coefficient
All ≤±0.1% of span ≤ ±0.01% of span / °C
Basic values
Input type
Basic
accuracy
Temperature
coefficient
RTD ≤±0.3°C ≤±0.01°C/°C
Lin. R ≤±0.2 Ω ≤ ±20 mΩ/ °C
EMC immunity influence........................................... < ±0.5% of span
Accuracy, the greater of general and basic values:
Effect of supply voltage variation.................... ≤0,005% of span / VDC
Vibration...................................................................... IEC 60068-2-6 : 2007
2...25 Hz.................................................................. ±1.6 mm
25...100 Hz ...................................................... ±4 g
Max. wire size............................................................ 1 x 1.5 mm2stranded wire
Humidity...................................................................... < 95% RH (non-cond.)
Dimensions................................................................. Ø 44 x 20.2 mm
Protection degree (enclosure / terminal)....... IP68 / IP00
Weight .......................................................................... 50 g
Electrical specifications, input:
RTD and linear resistance input:
Max. offset ................................................................. 50% of selec. max. value
Cable resistance per wire (max.) ....................... 10 Ω
Sensor current........................................................... > 0.2 mA, < 0.4 mA
Effect of sensor cable resistance
(3-wire) ........................................................................ < 0.002 Ω / Ω
Sensor error detection........................................... Yes
RTD
type
Min.
value
Max.
value
Min.
span
Standard
Pt100
Ni100
Lin. R
-200°C
-60°C
0 Ω
+850°C
+250°C
10000 Ω
25°C
25°C
30 Ω
IEC 60751
DIN 43760
-----
6 5333V113-UK
Output:
Current output:
Signal range ............................................................... 4...20 mA
Min. signal range...................................................... 16 mA
Updating time ........................................................... 135 ms
Load resistance......................................................... ≤(Vsupply- 8) / 0.023 [Ω]
Load stability............................................................. < ±0.01% of span / 100 Ω
Sensor error detection:
Programmable ........................................................... 3.5...23 mA
NAMUR NE43 Upscale........................................... 23 mA
NAMUR NE43 Downscale..................................... 3.5 mA
Of span = Of the presently selected range
Approvals:
EMC................................................................................ 2014/30/EU
CCOE .............................................................................. P337392/3
RoHS ............................................................................. 2011/65/EU
EAC................................................................................. TR-CU 020/2011
Marine approval:
DNV-GL, Ships & Offshore.................................... Standard for Certification No. 2.4
Ex / I.S.:
ATEX 2014/34/EU
5333A...................................................................... KEMA 10ATEX0003 X
5333D...................................................................... KEMA 03ATEX1535 X
FM certificate ............................................................ FM17US0013X
CSA certificate .......................................................... 1125003
IECEx............................................................................. DEK 13.0036 X
INMETRO ..................................................................... DEKRA 16.0014 X
CCOE .............................................................................. P337392/4
EAC Ex TR-CU 012/2011 ..................................... RU C-DK.GB08.V.00410
5333V113-UK 7
CONNECTIONS
1 2
mA -
+
3463 46 3 463 46
Output:
2-wire installation
Input:
RTD, 2-wire RTD, 3-wire Resistance, 2-wire Resistance, 3-wire
8 5333V113-UK
BLOCK DIAGRAM
0...16
mA
1
3
6
2mA
M UX
4 mA
5333
PGA
D /A
A /D
C PU
EEPRO M
DC
DC
4
Supply -
4...20 mA
Input +
Input -
Supply +
8...35 VDC
Comp. +
RTD
Lin.R
Comm.
