POSIFLEX TX-5300 Manuel utilisateur

TX-5300/5500

TX-5300E/5500E

Package Contents

TX-5300, TX-5300E,

TX-5500 or TX-5500E POS box………………..……...(x1)

12VDC/84W power adaptor (TX-5300/5500)

or 12VDC/150W power adaptor (TX-5300E/5500E).….(x1)

Power cord………………………………………….…...(x1)

Wall-mount bracket (optional)……………………….….(x1)

User manual……………………………………………..(x1)

14550901020 Ver. B0

http://www.posiflex.com

TX-5300/5300E/5500/5500E

Fanless POS Box

User Manual

SOME IMPORTANT NOTES

FCC NOTES

This system meets industry & government requirements and applicable standards.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions manual, may cause

interference to radio communications. It has been tested and found to comply with

limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules,

which are designed to provide reasonable protection against interference when

operated in a commercial environment. Operation of this equipment in a residential

area is likely to cause interference in which case the user at his own expense will

be required to take whatever measures to correct the interference.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential

environment this equipment may cause radio interference.

AVERTISSEMENT CE CLASSE A

Cet équipement est conforme àla classe A de CISPR 32. Dans un environnement

résidentiel, cet équipement peut provoquer des interférences radio.

WARRANTY LIMITS

Warranty will terminate automatically when the machine is opened by any person

other than the authorized technicians. The user should consult his/her dealer for the

problem happening. Warranty voids if the user does not follow the instructions in

application of this merchandise. The manufacturer is by no means responsible for

any damage or hazard caused by improper application.

LIMITES DE GARANTIE

La garantie prend fin automatiquement lorsque la machine est ouverte par une

personne autre que les techniciens autorisés. L'utilisateur doit consulter son

revendeur pour le problème qui se produit. La garantie s'annule si l'utilisateur ne

suit pas les instructions d'application de cette marchandise. Le fabricant n'est en

aucun cas responsable de tout dommage ou danger causé par une mauvaise

application.

警告使用者

這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這

種情況下，使用者會被要求採取某些適當的對策。

SAFETY INSTRUCTIONS

This equipment is not suitable for use in locations where children are likely to be

present.

CONSIGNES DE SÉCURITÉ

Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir

des enfants.

BATTERY CAUTION NOTES

Dispose of used batteries according to the instructions.

Replacement of a battery with an incorrect type that can defeat a safeguard

(for example, in the case of some lithium battery types)

Disposal of a battery into fire or a hot oven, or mechanically crushing or

cutting of a battery that can result in an explosion.

Leaving a battery in an extremely high temperature surrounding

environment that can result in an explosion or the leakage of flammable

liquid or gas.

A battery subjected to extremely low air pressure that may result in an

explosion or the leakage of flammable liquid or gas.

BATTERIE ATTENTION NOTES

Jetez les piles usagées conformément aux instructions.

Remplacement d'une batterie avec un type incorrect qui peut annuler une

sauvegarde (par exemple, dans le cas de certains types de batterie au lithium)

Mise au rebut d'une batterie dans le feu ou dans un four chaud, ou

écrasement ou coupure mécanique d'une batterie pouvant entraîner une

explosion.

Laisser une batterie dans un environnement environnant à des températures

extrêmement élevées pouvant entraîner une explosion ou la fuite de liquide

ou de gaz inflammable.

Une batterie soumise à une pression atmosphérique extrêmement basse

pouvant provoquer une explosion ou une fuite de liquide ou de gaz

inflammable.

警告

本電池如果更換不正確會有爆炸的危險，請依製造商說明書處理用過之電

池。

Views

Front View of TX-5300/5500

Front View of TX-5300E/5500E

Top View of TX-5300/5300E/5500/5500E

Heat-Dissipation Fins

Power Button

USB 2.0 Port

Power Status LED Indicator

Storage Status LED Indicator

Power Button

Storage Status LED Indicator

Power Status LED Indicator

Powered USB Port

Bottom View of TX-5300/5300E/5500/5500E

Rear I/O Ports

TX-5300/5300E/5500/5500E

USB 3.0 port

RJ45 LAN port

VGA port

RJ11 cash drawer (CR) port

LPT port

HDMI port

COM port

12VDC-IN power jack

Mic-in / line-out combo jack

Rubber Pad

Service Door

Connecting Power Adapter and I/O Cables

To have the terminal ready for operation, please connect the

connector of power adapter and all of the connectors of required

I/O cables respectively to the 12VDC-IN power jack and

appropriate I/O ports. Please make sure that each of the cables is

fully connected to the correct port. Damages due to incorrect

connection or orientation are not covered by product warranty!

Some cable connectors like the connectors of LAN or cash

drawer (CR) cables have to be gently inserted until a click is

heard. It is recommended that the I/O ports, such as COM port,

parallel port, and VGA port, should be screwed after the I/O

cable connectors are completely connected. And please make

sure that each connector has to be connected to the right

peripheral device in the right way.

CAUTION: On doing insertion or extraction of a cable

connector, please always hold the connector head itself

instead of pulling the cable wire. Doing this could damage the

cables and ports, which is considered as an artificial damage

and is not covered by the warranty. The means of power cord

should be connected to a socket-outlet with earthing

connection.

Note: The COM ports of TX-5300/5300E/5500/5500E do not

supply power by default. To make the COM ports supply

power, you can set up the COM ports through the

dedicated settings listed in the table below.

The VGA port of TX-5300/5300E/5500/5500E can supply

+12VDC power through system BIOS setting for Posiflex

LCD monitor. Nevertheless, except Posiflex VGA monitor,

do not connect any other monitor to this port with VGA

power enabled.

TX-5300/5300E/5500/5500E

COM1/2/3/4

COM5/6

VGA

5VDC

12VDC

5VDC

12VDC

BIOS Setting

Jumper Setting

Installing Optional Peripheral Devices

Posiflex TX-5300/5300E/5500/5500E can work with multiple

optional peripheral devices, such as LCD monitor, cash drawer

and the like.

Before installing an optional peripheral device, make sure that the

system is powered off and the external power source is removed

from the POS box to prevent electric hazard! Failure to follow the

warning description will void the product warranty!

For the detailed instruction, refer to each of the user manuals of

the optional peripheral devices.

Installing an Optional Second Storage (SSD)

The TX-series system is provided with a second storage bracket

for you to install an optional second storage. To avoid users from

damaging the main board of the system, it is highly

recommended that the optional second storage installation is

implemented by professional technicians.

Installing a Memory Upgrade Module

The TX-series system is provided with two DRAM slots for you

to expand or replace memory. Before shipping, one memory has

been inserted into one socket of the main board. To expand or

replace memory, follow the two steps below.

1. Loosen and remove the screw from the

service door.

2. Remove the service door.

To avoid users from damaging the main board of the system, it is

highly recommended that the memory expansion and replacement

are implemented by professional technicians.

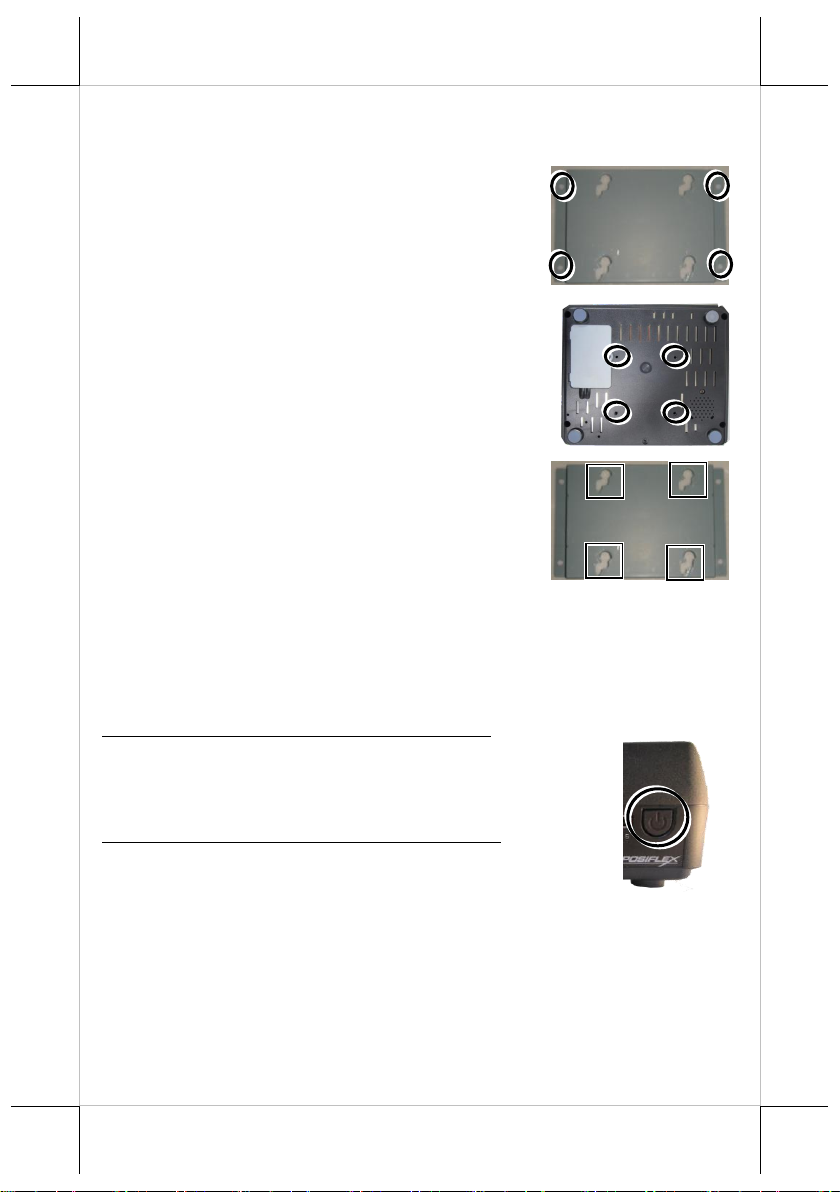

Mounting the TX-5300/5300E/5500/5500E on the

Wall (Optional)

1. Fix the wall mount bracket onto the wall

by using attached plastic anchors and

four M3.5-16L screws.

2. Do spiral insertion of 4 M4-7L screw

bolts into the 4 screw bolt holes.

3. Lineup the 4 screw bolts to be inserted

into the 4 tracks. Then slide downwards

the system along the track until a click

sound is given for completely mounting

the system with the bracket on the wall.

For detailed installation description, please refer to the WB-4200

bracket installation guide.

Powering ON/OFF the POS Box

Power ON TX-5300/5300E/5500/5500E

Press down the power button to power on the TX-

5300/5300E/5500/5500E.

Power OFF TX-5300/5300E/5500/5500E

In most cases, push the power button again to

power the system off. However, if the POS box

halts for unknown reasons, please be advised to

hold the power more than 10 seconds to initiate a

forced shutdown.

Status LED Indicator

There are two status LED indicators, power status LED indicator

and SSD status LED indicator, on the front side of the TX-

5300/5300E/5500/5500E. After powering ON the POS system,

you can read the system operation status from the power and SSD

status LED indicators. The LED status is described below.

LED

Status

Description

POWER

Solid green

System power ON

Solid red

System standby

SSD

Flash green

Data access

Installing an Operating System

This product is highly professional equipment. Therefore, we do

NOT encourage you to install any operating system into this

machine without professional assistance. Posiflex Technology,

Inc. shall not be responsible for any technical support to

questions on this aspect. We suggest that you contact your dealer

for OS installation.

Operating System Recovery

For the TX-5300/5300E/5500/5500E main system preloaded with

an operating system, Posiflex provides a recovery DVD shipped

with the main system for the preloaded operating system. The

system integrator shall take care of software restoration after the

OS is recovered.

If you plan to recover your operating system, we do NOT

encourage you to recover any operating system. Please contact

your service center for operating system recovery.

Operation Environment

This terminal must NOT be operated in an environment with

restricted ventilation. There must be at least 25 mm air clearance

around any top or side ventilation holes with a free flow of air

around the unit at all times for system operation.

Specifications

TX-5300

TX-5300E

TX-5500

TX-5500E

CPU

Intel Coffee Lake-S CPU Core-i3

Intel® Coffee Lake-S CPU Core-i5,

Core-i7

Chipset

H310

Q370

Memory

DDR4 SO-DIMM x2, Max. 32GB

Windows 10 IoT / Linux (by request)

VGA Port

VGA(DB15 pin) x 1 , supporting +12V/2.5A

HDMI Port

HDMI x 1

Serial Port

DB9 pin x 4 for COM1 ~ COM4

COM5 & COM6 pin header through service door

5 x RS-232(COM1, COM3~COM6) + 1 x RS-232/422/485(COM2)

Ethernet Port

10/100/1000 Mb x 2

Wireless Com.

Optional, 802.11 b/g/n with integrated antenna, M.2 module

Power Supply

12VDC power adaptor, 84W

12VDC power adaptor, 150W

Parallel Port

Parallel port(DB26 pin) x 1

CR Port

CR port x 1, controlling 2 cash drawers

USB Port

TX-5300/5500:

USB3.0 x 4 (on the rear I/O side)

USB2.0 x 3 (on the front side)

TX-5300E/5500E:

USB3.0 x 4 (on the rear I/O side)

24V Powered USB port x 1 (on the front side)

12V Powered USB port x 2 (on the front side)

Audio Port

MIC-in / line-out x 1 & 1 internal speaker

Storage

SATA x 2

M.2 2280 x 1 (SATA only)

SATA x 2

M.2 2280 x 1 (PCIe or SATA)

RAID Support

N/A

Yes, supporting for at least two

SSDs (Q370 only)

vPro Support

N/A

Yes (Q370 only)

Extension Slot

M.2 2230, reserved for M.2 WIFI w/external di-pole antenna

Power Switch

Soft switch

Mechanical

Installation

Desktop or wall mount, VESA mount 75 x 75

Wall-Mount

Bracket

Optional, WB-4200

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels POSIFLEX Terminal tactile

POSIFLEX

POSIFLEX RT-5015 Manuel utilisateur

POSIFLEX

POSIFLEX TX-3700 Series Manuel utilisateur

POSIFLEX

POSIFLEX RA-301 Manuel utilisateur

POSIFLEX

POSIFLEX KS-6115 Manuel utilisateur

POSIFLEX

POSIFLEX PD - 2600 Manuel utilisateur

POSIFLEX

POSIFLEX PB-4700DVI Manuel utilisateur

POSIFLEX

POSIFLEX LCD Customer Display PD-7100 Manuel utilisateur

POSIFLEX

POSIFLEX XT-2614E Manuel utilisateur

POSIFLEX

POSIFLEX Cash Drawer CR400X Manuel utilisateur

POSIFLEX

POSIFLEX XT-3815 Manuel utilisateur

POSIFLEX

POSIFLEX HT-4600 Series Manuel utilisateur

POSIFLEX

POSIFLEX KS - 7212/X Manuel utilisateur

POSIFLEX

POSIFLEX XT-2614Q Manuel utilisateur

POSIFLEX

POSIFLEX KS - 6815 Manuel utilisateur

POSIFLEX

POSIFLEX XT-3615 Manuel utilisateur

POSIFLEX

POSIFLEX HC-1521 Series Manuel utilisateur

POSIFLEX

POSIFLEX HS-35 W-G2 Series Manuel utilisateur

POSIFLEX

POSIFLEX PS-3416 Manuel utilisateur

POSIFLEX

POSIFLEX BB-2000 Manuel utilisateur

POSIFLEX

POSIFLEX MT-4310W/R Manuel utilisateur

POSIFLEX

POSIFLEX JIVA HS-2410W Manuel utilisateur

POSIFLEX

POSIFLEX FT-6315 Manuel utilisateur

POSIFLEX

POSIFLEX SA-304 Manuel utilisateur

POSIFLEX

POSIFLEX DT-207 series Manuel utilisateur

Manuels Terminal tactile populaires d'autres marques

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Manuel utilisateur

Ingenico

Ingenico AXIUM EX4000 Manuel utilisateur

Heisei Electronics

Heisei Electronics Q-POS 815 Manuel utilisateur

Amano

Amano MTX-15 Manuel utilisateur

FLOWBIRD

FLOWBIRD CWT Compact Touch Manuel utilisateur

Demco

Demco SP7 Manuel utilisateur

Lathem

Lathem PC600 Series Manuel utilisateur

Partner

Partner MF-2352 Manuel utilisateur

NCR

NCR RealPOS 7460-2 Manuel

Simrad

Simrad MS50 Instructions de montage

Unitech

Unitech MR350 MKII Guide de démarrage rapide

Jungheinrich

Jungheinrich WMT 210 Manuel utilisateur

Motorola

Motorola MTP850 Manuel utilisateur

YASKAWA

YASKAWA 62H-MDC0 Manuel utilisateur

MVG industries

MVG industries NeptuLink Manuel utilisateur

Price Industries Limited

Price Industries Limited FDC Manuel d'instructions

Honeywell

Honeywell TemaKey Manuel utilisateur

EBN

EBN BPC65-B-A16G Manuel utilisateur
