Porter-Cable CPF4515 Manuel utilisateur

Oilfree

Compressors

CPF6020

IMPORTANT

Please make certain that the person who isto use

this equipmer_ earefutty reads and understands

these instructions before starting operations.

The Model and Serial No. p_ateis located on the

frame. Record these numbers in the spaces below

and retain for future r_erence.

Model No,

Type

Serial No.

part No, D20814-004

1iii_!!i%i!!_i!_ii_i_;i_!!i_i_i_i_i;ii_;ii_!_!_!;!!_i_;_!_!_ii_;:_;!;!ii!i!i¸

SAFETY GUIDELINES - DEFINITIONS

This manual contains information that is important for you to know and understand. This infor-

mation relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To

help you recognize this information, we use the symbols below. Please read the manual and

pay attention to these sections.

[FI,_TL_T:XlJ | [o]_

DANGER indicatesan imminently

hazardous situation which, if not

avoided, will result in death or

[*'T_'tlH[a]_

WARNING indicates a potentially

hazardous situation which, if not

avoided, could result in

CAUTION indicates apotentially

hazardous situation which, if not

avoided, may result in minor or

moderate iniurv.

CAUTION used without the safety

alert symbol indicates apotentially

hazardous situation which, if not

avoided, _result in

d_.

Call our Toll Free Number 1-888-559-8550, to obtain the location of the nearest Autho-

rized Service Center for ordering repair parts and for warranty repairs.

When ordering repair parts from your local Authorized Service Center, always give the

following information:

•Model number of your compressor

•Part number and description of the item you wish to purchase

Retain Original Sales Receipt as Proof of Purchase for Warranty Repair Work.

IMPORTANT SAFETY INSTRUCTIONS

When using electric tools, basic safety precautions

should always be followed to reduce the risk of fire, electric shock

and personal injuw, including the following:

READ AND FOLLOW ALL INSTRUCTIONS,

This tool was designed for certain applications. Porter-Cable strongly recommends

that this tool NOT be modified and/or used for any application other than for which

it was designed. If you have any questions relative to its application DO NOT use

the tool until you have written Porter-Cab[e and we have advised you.

Technical Service Manager

Porter-Cable Corporation

4825 Highway 45 North

P.O. Box 2468

Jackson, TN 38302-2468

2*ENG

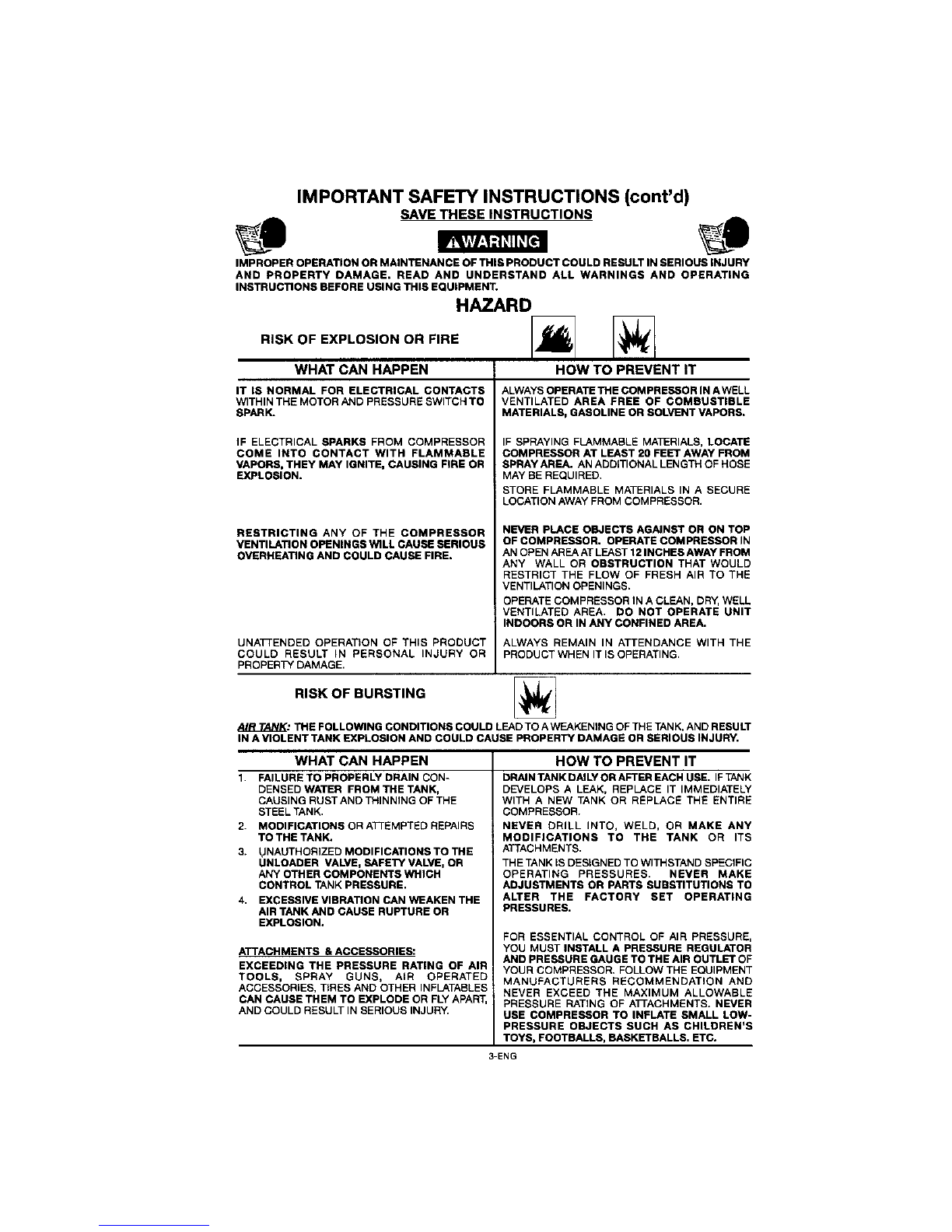

IMPORTANT SAFETY INSTRUCTIONS (cont'd)

SAVE THESE INSTRUCTIONS

IMPROPER OPERATION OR MAINTENANCE OF THiS PRODUCT COULD RESULT IN SERIOUS iNJURY

AND PROPERTY DAMAGE, READ AND UNDERSTAND ALL WARNINGS AND OPERATING

INSTRUCTIONS BEFORE USING THIS EQUIPMENT.

HAZARD

RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOW TO PREVENT IT

IT IS NORMAL FOR ELECTRICAL CONTACTS

WITHIN THE MOTOR AND PRESSURE SWITCH TO

SPARK.

IF ELECTRICAL SPARKS FROM COMPRESSOR

COME INTO CONTACT WITH FLAMMABLE

VAPORS, THEY MAY IGNITE, CAUSING FIRE OR

EXPLOSION.

RESTRICTING ANY OF THE COMPRESSOR

VENTILATION OPENINGS W1LL CAUSE SERIOUS

OVERHEATING AND COULD CAUSE FIRE.

UNATTENDED OPERATION OF THIS PRODUCT

COULD RESULT IN PERSONAL INJURY OR

PROPERTY DAMAGE.

RISK OF BURSTING

ALWAYS OPERATE THE COMPRESSOR IN A WELL

VENTILATED AREA FREE OF COMBUSTIBLE

MATERIALS, GASOLINE OR SOLVENT VAPORS.

IF SPRAYING FLAMMABLE MATERIALS, LOCATE

COMPRESSOR AT LEAST 20 FEET AWAY FROM

SPRAY AREA. AN ADDITIONAL LENGTH OF HOSE

MAY BE REQUIRED,

STORE FLAMMABLE MATERIALS IN A SECURE

LOCATION AWAY FROM COMPRESSOR.

NEVER PLACE OBJECTS AGAINST OR ON TOP

OF COMPRESSOR. OPERATE COMPRESSOR IN

AN OPEN AREA AT LEAST 12 INCHES AWAY FROM

ANY WALL OR OBSTRUCTION THAT WOULD

RESTRICT THE FLOW OF FRESH AIR TO THE

VENTILATION OPENINGS.

OPERATE COMPRESSOR IN A CLEAN, DRY, WELL

VENTILATED AREA, DO NOT OPERATE UNIT

INDOORS OR IN ANY CONFINED AREA.

ALWAYS REMAIN IN ATTENDANCE WITH THE

PRODUCT WHEN IT IS OPERATING.

_BJ_: THE FOLLOWING CONDITIONS COULD LEAD TO AWEAKENING OF THE TANK, AND RESULT

IN A VIOLENT TANK EXPLOSION AND COULD CAUSE PROPERTY DAMAGE OR SERIOUS INJURY.

WHAT CAN HAPPEN

1 FAILURE TO PROPERLY DRAIN CON-

DENSED WATER FROM THE TANK,

CAUSING RUST AND THINNING OF THE

STEEL TANK,

2. MODIFICATIONS OR ATTEMPTED REPAIRS

TO THE TANK.

3. UNAUTHORIZED MODIFICATIONS TO THE

UNLOADER VALVE, SAFETY VALVE, OR

ANY OTHER COMPONENTS WHICH

CONTROL TANK PRESSURE.

4. EXCESSIVE VIBRATION CAN WEAKEN THE

AIR TANK AND CAUSE RUPTURE OR

EXPLOSION.

ATTACHMENTS S ACCESSORIES:

EXCEEDING THE PRESSURE RATING OF AIR

TOOLS, SPRAY GUNS, AIR OPERATED

ACCESSORIES, TIRES AND OTHER INFLATABLES

CAN CAUSE THEM TO EXPLODE OR FLY APART,

AND COULD RESULT IN SERIOUS INJURY.

HOW TO PREVENT IT

DRAIN TANK DAILY OR AFTER EACH USE. IF TANK

DEVELOPS A LEAK, REPLACE IT IMMEDIATELY

WITH A NEW TANK OR REPLACE THE ENTIRE

COMPRESSOR.

NEVER DRILL INTO, WELD, OR MAKE ANY

MODIFICATIONS TO THE TANK OR ITS

ATTACHMENTS,

THE TANK IS DESIGNED TO WITHSTAND SPECIFIC

OPERATING PRESSURES. NEVER MAKE

ADJUSTMENTS OR PARTS SUBSTITUTIONS TO

ALTER THE FACTORY SET OPERATING

PRESSURES.

FOR ESSENTIAL CONTROL OF AIR PRESSURE,

YOU MUST INSTALL A PRESSURE REGULATOR

AND PRESSURE GAUGE TO THE AIR OUTLET OF

YOUR COMPRESSOR. FOLLOW THE EQUIPMENT

MANUFACTURERS RECOMMENDATION AND

NEVER EXCEED THE MAXIMUM ALLOWABLE

PRESSURE RATING OF ATrACHMENTS. NEVER

USE COMPRESSOR TO INFLATE SMALL LOW-

PRESSURE OBJECTS SUCH AS CHILDREN'S

TOYS, FOOTBALLS, BASKETBALLS. ETC.

3-ENG

IMPORTANT SAFETY INSTRUCTIONS (cont'd)

RISK FROM FLYING OBJECTS

WHAT CAN HAPPEN

THE COMPRESSED AIR STREAM CAN CAUSE

SOFT TISSUE DAMAGE TO EXPOSED SKIN AND

CAN PROPEL DIRT, CHIPS, LOOSE PARTICLES

AND SMALL OBJECTS AT HIGH SPEED,

RESULTING IN PROPERTY DAMAGE OR PERSONAL

INJURY.

HOW TO PREVENT IT

ALWAYS WEAR ANSI Z87.1 APPROVED SAFETY

GLASSES WITH SIDE SHIELDS WHEN USING THE

COMPRESSOR,

NEVER POINT ANY NOZZLE OR SPRAYER TOWARD

ANY PART OF THE BODY OR AT OTHER PEOPLE

OR ANIMALS.

ALWAYS TURN THE COMPRESSOR OFF AND

BLEED PRESSURE FROM THE AIR HOSE AND

TANK BEFORE ATTEMPTING MAINTENANCE,

ATTACHING TOOLS OR ACCESSORIES,

RISK TO BREATHING

WHAT CAN HAPPEN

THE COMPRESSED AIR FROM YOUR

COMPRESSOR IS NOT SAFE FOR BREATHINGI

THE AIR STREAM MAY CONTAIN CARBON

MONOXIDE, TOXIC VAPORS OR SOLID PARTICLES

FROM THE TANK.

SPRAYED MATERIALS SUCH AS PAINT, PAINT

SOLVENTS, PAINT REMOVER, INSECTICIDES,

WEED KILLERS, CONTAIN HARMFULVAPORS AND

POISONS.

HOW TO PREVENTIT

ALWAYS OPERATE AIR COMPRESSOR OUTSIDE

IN A CLEAN, WELL VENTILATED AREA, AVOID

ENCLOSED AREAS SUCH AS GARAGES,

BASEMENTS, STORAGE SHEDS, WHICH LACK A

STEADY EXCHANGE OF AIR. KEEP CHILDREN,

PETS AND OTHERS AWAY FROM AREA OF

OPERATION,

NEVER INHALE AIR FROM THE COMPRESSOR

EITHER DIRECTLY OR FROM A BREATHING DEVICE

CONNECTED TO THE COMPRESSOR.

WORK IN AN AREA WITH GOOD CROSS-

VENTILATION, READ AND FOLLOW THE SAFETY

INSTRUCTIONS PROVIDED ON THE LABEL OR

SAFETY DATA SHEETS FOR THE MATERIAL YOU

ARE SPRAYING. USE A NIOSH/MSHA APPROVED

RESPIRATOR DESIGNED FOR USE WITH YOUR

SPECIFIC APPLICATION.

RISK OF ELECTRICAL SHOCK

WHAT CAN HAPPEN

YOUR AIR COMPRESSOR IS POWERED BY

ELECTRICITY. LIKE ANY OTHER ELECTRICALLY

POWERED DEVICE, IF IT IS NOT USED PROPERLY

IT MAY CAUSE ELECTRIC SHOCK.

REPAIRS ATTEMPTED BY UNQUALIFIED

PERSONNEL CAN RESULT IN SERIOUS INJURY OR

DEATH BY ELECTROCUTtON.

ELECTRICAL GROUNDING: FAILURE TO PROVIDE

ADEQUATE GROUNDING TO THIS PRODUCT

COULD RESULT IN SERIOUS INJURY OR DEATH

FROM ELECTROCUTION, SEE GROUNDING

INSTRUCTIONS.

HOW TO PREVENTIT

NEVER OPERATE THE COMPRESSOR OUTDOORS

WHEN IT IS RAINING OR IN WET CONDITIONS.

NEVER OPERATE COMPRESSOR WITH COVER

COMPONENTS REMOVED OR DAMAGED,

ANY ELECTRICAL WIRING OR REPAIRS

REQUIRED ON THIS PRODUCT SHOULD BE

PERFORMED BY AUTHORIZED SERVICE

CENTER PERSONNEL IN ACCORDANCE WITH

NATIONAL AND LOCAL ELECTRICAL CODES.

MAKE CERTAIN THAT THE ELECTRICAL CIRCUIT

TO WHICH THE COMPRESSOR IS CONNECTED

PROVIDES PROPER ELECTRICAL GROUNDINGj

CORRECT VOLTAGE AND ADEQUATE FUSE

PROTECTION.

4-ENG

IMPORTANT SAFETY INSTRUCTIONS (cont'd)

RISK FROM MOVING PARTS _

WHAT CAN HAPPEN

MOVING PARTS SUCH AS THE PULLEY,

FLYWHEEL, AND BELT CAN CAUSE SERIOUS

INJURY IFTHEY COM EINTO CONTACT WITH YOU

OR YOUR CLOTHING.

ATTEMPTING TO OPERATE COMPRESSOR WITH

DAMAGED OR MISSING PARTS OR A3-I-EMPTING

TO REPAIR COMPRESSOR WITH PROTECTIVE

SHROUDS REMOVED CAN EXPOSE YOU TO

MOVING PARTS AND CAN RESULT IN SERIOUS

INJURY,

HOW TO PREVENTIT

NEVER OPERATE THE COMPRESSOR WITH

GUARDSORCOVERSWHICHAREDAMAGEDOR

REMOVED.

ANY REPAIRS REQUIRED ON THIS PRODUCT

SHOULD BE PERFORMED BY AUTHORIZED

SERVICE CENTER PERSONNEL.

RISK OF BURNS I_i

WHAT CAN HAPPEN HOW TO PREVENT IT

TOUCHING EXPOSED METAL SUCH AS THE NEVERTOUCHANYEXPOSEDMETALPARTSON

COMPRESSOR HEAD OR OUTLET TUBES, CAN COMPRESSOR DURING OR IMMEDIATELY AFTER

RESULT IN SERIOUS BURNS. OPERATION. COMPRESSOR WILL REMAIN HOT

FOR SEVERAL MINUTES AFTER OPERATION.

DO NOT REACH AROUND PROTECTIVE SHROUDS

OR ATTEMPT MAINTENANCE UNTIL UNIT HAS

BEEN ALLOWED TO COOL,

RISK OF FALLING

WHAT CAN HAPPEN HOW TO PREVENT IT

A PORTABLE COMPRESSOR CAN FALL FROM A ALWAYS OPERATE COMPRESSOR IN A STABLE

TABLE, WORKBENCH OR ROOF CAUSING SECURE POSITION TO PREVENT ACCIDENTAL

DAMAGE TO THE COMPRESSOR AND COULD MOVEMENT OF THE UNIT. NEVER OPERATE

RESULT IN SERIOUS INJURY OR DEATH TO THE COMPRESSOR ON A ROOF OR OTHER ELEVATED

OPERATOR OR BYSTANDERS. POSITION. USE ADDITIONAL AIR HOSE TO

REACH HIGH LOCATIONS.

RISK OF PROPERTY DAMAGE WHEN

TRANSPORTING COMPRESSOR

(Fire, Inhalation, Damage

to Vehicle Surfaces)

WHAT CAN HAPPEN HOW TO PREVENT IT

OIL CAN LEAK OR SPILL AND COULD RESULT ALWAYS PLACE COMPRESSOR ON A PROTECTIVE

IN FIRE OR BREATHING HAZARD, SERIOUS MAT WHEN TRANSPORTING TO PROTECT

INJURYOR DEATH CAN RESUL_ OILLEAKSWILL AGAINST DAMAGE TO VEHICLE FROM LEAKS.

DAMAGE CARPET, PAINT OR OTHER SURFACES REMOVE COMPRESSOR FROM VEHICLE

INVEHtCLESORTRAILER8. IMMEDIATELY UPON ARRIVAL AT YOUR

DESTINATION.

ESW-gg-- gi2G,_gg

5oENG

GLOSSARY

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per minute; a unitof measure of air delivery.

PSlG: Pounds per square inch gauge; a unit of measure of pressure.

ASME: American Society of Mechanical Engineers; made, tested, inspected, and

registered to meet the standards of ASME.

California Code: Unit may comply with California Code 462 (l) (2)/(M) (2),

Specification/model label ison the side of the tank on units that comply with

California Code.

Cut-In Pressure: While the motor is off, air tank pressure drops as you continue to

use your accessory or air tool. When the tank pressure drops to a certain low level

the motor will restart automatically. The low pressure at which the motor

automatically restarts iscalled "cut-in pressure."

Cut-Out Pressure: When you turn on your air compressor and it begins to run, air

pressure in the air tank begins to build. It builds to a certain high pressure before

the motor automatically shuts off -protecting your air tank from pressure higher

than its capacity. The high pressure at which the motor shuts off is called "cut-out

pressure,"

Code Certification: Productsthat bear one or more of the following marks: UL,

CUL, ETL, CETL, have been evaluated by OSHA certified independent safety

laboratories and meet the applicable Underwriters Laboratories Standards for

Safety. DUTY CYCLE

Porter-Cable air compressors should be operated on not more than a 50% duty

cycle. This means an aLrcompressor that pumps air more than 50% of one hour is

considered misuse, because the aircompressor is undersized for the required air

demand. Maximum compressor pumping time per hour is 30 minutes.

SPECIFICATIONS

Model No. CPF4515 CPF6020

Horsepower Peak 4.5 6

Bore 2.375" 2.375

Stroke 1.35" 1.35"

* Voltage-Single Phase 120 120

**Minimum Branch Circuit Requirement 15 amps 15 amps

* Fuse Type Time Delay Time Delay

Air Tank Capacity (Gallon) 15 ASME 20 ASME

Approximate Cut-in Pressure 110 PSIG 110 PSIG

Approximate Cut-out Pressure 135 PSIG 135 PSIG

SCFM @40 PSIG 8.0 8.3

SCFM @ 90 PSIG 5.7 5.8

* _ This air compressor can be operated on a 15 amp circuit if:

1. Voltage supply to circuit is normal.

2. Circuit is not used to supply any other electrical needs (lights, appliances, etc.)

3. Extension cords comply with specifications in owners manual.

4. Circuit is equipped with 15 amp circuit breaker or 15 amp time delay fuse.

If any of the above conditions cannot be met, or if operation of the air compressor

repeatedly causes interruption of the power it may be necessary to operate it from

a20 amp circuit. It is not necessary to change the cord set.

* *A circuit breaker is preferred, Use only a fuse or circuit breaker that isthe same rating

as the branch circuit on which the air compressor is operated, If the air compressor is

connected to a circuit protected by fuses, use dual element time delay fuses.

6-ENG

DESCRIPTION OF OPERATION

Drain Valve (not shown): The drain valve is located at the base of the air tank and

is used to drain condensation at the end of each use.

Motor Thermal Overload Protector (not shown): The electric motor has an

automatic thermal overload protector. Ifthe motor overheats for any reason, the

thermal overload protector will shut off the motor. The motor must be allowed to

cool before restarting.

ON/AUTO -OFF Switch (A) Fig. 1: Turnthis A_

switch ON to provide automatic power to the

pressure switch and OFF to remove power at

the end of each use.

Air Intake Filter (not shown): Thisfilter is

designed to clean air coming intothe pump.

This filter must always be clean and

ventilation openings free from obstructions.

See "Maintenance".

Air Compressor Pump {not shown): To

compress air,the piston moves up and down

in the cylinder. On the downstroke, air is

drawn in through the air intake valves. The

exhaust valve remains closed. On the Fig. 1

upstroke of the piston, air is compressed.

The intake valves close and compressed air isforced out through the exhaust

valve, into the outlet tube, through the check valve and into the air tank. Working

air is notavailable untilthe compressor has raisedthe air tank pressure above that

required at the air outlet.

Check Valve (not shown): When the air compressor isoperating, the check valve

is"open", allowing compressed air to enter the airtank. When the aircompressor

reaches "cut-out" pressure, the check valve "closes", allowing air pressure to

remain inside the airtank.

Pressure Release Valve (not shown): The pressure release valve located on the

side of the pressure switch, is designed to automatically release compressed air

from the compressor head and the outlet tube when the air compressor reaches

"cut-out" pressure or is shut off. The pressure release valve allows the motor to

restart freely.When the motor stoos runnina, air will be heard escaDino from this

valve for a few seconds. No air should be heard leaking when the motor is runnina.

or continuous leakinq after unit reaches cut-out pressure.

Pressure Switch (B) Fig. 1: The pressure switch automatically starts the motor

when the air tank pressure drops below the factory set "cut-in" pressure. It stops

the motor when the air tank pressure reaches the factory set "cut-out" pressure.

Safety Valve (C) Fig. 1: If the pressure switch does not shut off the air compressor

at its cut-out pressure setting, the safety valve will protect against high pressure by

"popping out" at its factory set pressure (slightly higher than the pressure switch

cut-out setting).

Outlet Pressure Gauge (D) Fig. 1: The outlet pressure gauge indicates the air

pressure available at the outlet side of the regulator.This pressure is controlled by

the regulator and is always less than or equal to the tank pressure.

Tank Pressure Gauge (E) Fig. 1: The tank pressuregauge indicates the reserve air

pressure in the tank,

Regulator (F) Fig. 1: The air pressure coming from the airtank is controlled by the

regulator knob, Turn the knob clockwise to increase pressure and counterclockwise

to decrease pressure. To avoid minor readjustment after making achange in

pressure setting, always approach the desired pressure from a lower pressure.

When reducing from a higher to a lower setting, first reduce to some pressure less

than that desired, then bring up to the desired pressure. Depending onthe air

requirements of each particularaccessory, the outlet regulated air pressure may

have to be adjusted while you are operating the accessory,

7-ENG

INSTALLATION

Installing Handles, Wheel, and Rubber Foot (Fig. 2)

I_ THE WHEELS AND HANDLE DO NOT PROVIDE

ADEQUATE CLEARANCE, STABILITY OR SUPPORT FOR PULLING

THE UNIT UP AND DOWN STAIRS OR STEPS. THE UNIT MUST BE

LIFTED, OR PUSHED UP A RAMR

1. Submerge handle grip (A) intowarm soapy water to make installation easier.

Remove handle grip (A)from soapy water and slide onto handle (B).

2. Position legs of handle (B) inside compressor saddle. Align holes in handle

legs with holes in saddle. Using a 3/8" wrench to secure handle in place, using

the four screws provided (two screws (C), through each side of saddle).

m_"_T_"_ It may be necessary to brace or support one end of the

unit when attaching the wheels and the rubber feet, because the air

compressor will have a tendency to tip.

3, Place shoulder bolt through wheel (D) and position it into the top holeof the

mounting bracket. Thread nut onto shoulder bolt and tighten firmly with a 9/16"

wrench. Repeat to install second wheel.

4. Clean and dry air tank leg (E) opposite wheels. Remove the protective paper

strip from the adhesive backed rubber foot strip. Position rubber foot strip to

the bottom of leg and press firmly into place.

Fig. 2

8-ENG

Location of the Air Compressor

Locate the air compressor in aclean, dry, and well-ventilated area. The air filter

must be kept clear of obstructions which could reduce air flow to the air

compressor. The air compressor should be located at least 12" away from the wall

or other obstructions that will interfere with the flow of air. The air compressor head

and shroud are designed to allow for proper cooling. If humidity is high, an air filter

can be installed on the air outlet adapter to remove excessive moisture. Follow the

instructions packaged with the air filter for proper installation.

Lubrication and Oil

This unit needs no lubrication or oiling.

Extension Cords

Toavoid voltage drop, power loss, and overheating to the motor, use extra air hose

instead of an extension cord. Low voltage can cause damage to the motor.

If an extension cord must be used:

use only a3-wire extension cord that has a 3-blade grounding plug and a 3-slot

receptacle that will accept the plug on the extension cord.

•make sure the extension cord is in good condition.

• the extension cord should be no longer than 50 feet.

• the minimum wire size is 12 gauge (AWG). (Wire size increases as gauge

number decreases. 10 AWG and 8 AWG may also be used. DO NOT USE 14

AWG or 16 AWG.)

Voltage and Circuit Protection

Refer to the specification chart for voltage and circuit protection requirements of

your compressor. Use only a fuse or circuit breaker that isthe same rating as the

branch circuit on which the air compressor isoperated. Ifthe compressor is

connected to acircuit protected by fuses, use only dual element time delay fuses,

Piping

Plastic or PVC pipe is not designed for use with

compressed air, Regardless of its indicated pressure rating, plastic

pipe can burst from air pressure. Use only metal pipe for air

distribution lines.

If a pipe line is necessary, use pipe that isthe same size asthe airtank outlet,

Piping that is too small will restrict the flow of air. If piping is over 100 feet long, use

the next larger size. Bury underground lines below the frost line and avoid pockets

where condensation can gather and freeze. Apply pressure before underground

lines are covered to make sure all pipe joints are free of leaks.

A flexible coupling needs to be installed between the outlet valve and the main air

distribution line to allow for vibration.

9-ENG

GROUNDING INSTRUCTIONS

RISK OF ELECTRICAL SHOCK! In the event of a short

circuit, grounding reduces the risk of shock by providing an escape

wire for the electric current. This air compressor must be properly

grounded.

Ifthese grounding instructions are not completely understood, or if in doubt as to

whether the compressor is propedy grounded, have the installation checked by a

qualified electrician. The air compressor is equipped with a cord having a

grounding wire with an appropriate grounding plug. The plug must be used with an

outlet that has been installedand grounded in

accordance with all localcodes and ordinances. The

outlet must have the same configuration as the plug.

See Fig. 3. DO NOT USE AN ADAPTER.

inspect the plug and cord before each use. Do not

use if there are signs of damage.

II_JT_'_I Improper grounding can result

in electrical ehockl

Do not modify the plug that has been provided. If it

does not fit the available outlet, the correct outlet

should be installed by a qualified electrician.

If repairing or replacing cord or plug, the grounding

wire must be kept separate from the current-carrying

wires. Never connect the grounding wire to a flat

blade plug terminal. The grounding wire has

insulation with an outer surface that is green - with or

without yellow stripes.

120 Volt Models

White

15 Amp Plug Outlet

Grounded_

%El

Ground_l _ _

Fig. 3

Additional Regulators and Controls

Since the airtank pressure is usuallygreater than that which is needed, a separate

regulator is usually employed to contro[the air pressure ahead of any individual air

driven device.

10-ENG

Autres manuels pour CPF4515

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Porter-Cable Compresseur d'air

Porter-Cable

Porter-Cable 1000002853 Manuel utilisateur

Porter-Cable

Porter-Cable C6001 Manuel utilisateur

Porter-Cable

Porter-Cable CLFCP350 Manuel utilisateur

Porter-Cable

Porter-Cable CMB15 Manuel utilisateur

Porter-Cable

Porter-Cable CPF6020 Manuel utilisateur

Porter-Cable

Porter-Cable CPFAC2600P Manuel utilisateur

Porter-Cable

Porter-Cable N003568 Manuel utilisateur

Porter-Cable

Porter-Cable PXCMLC1683066 Manuel utilisateur

Porter-Cable

Porter-Cable CF6131 Manuel utilisateur

Porter-Cable

Porter-Cable CFFC350C Manuel utilisateur

Porter-Cable

Porter-Cable CPL55GH8W Manuel utilisateur

Porter-Cable

Porter-Cable CPFAC2040P Manuel utilisateur

Porter-Cable

Porter-Cable CPLDC2541S Manuel utilisateur

Porter-Cable

Porter-Cable CFFN250N Manuel utilisateur

Porter-Cable

Porter-Cable CPL55GH8W Manuel utilisateur

Porter-Cable

Porter-Cable C2550 Manuel utilisateur

Porter-Cable

Porter-Cable CPF23400S Manuel utilisateur

Porter-Cable

Porter-Cable C7501 Manuel utilisateur

Porter-Cable

Porter-Cable 892551-992 Manuel utilisateur

Porter-Cable

Porter-Cable PXCMF220VW Manuel utilisateur

Porter-Cable

Porter-Cable CPL6025 Manuel utilisateur

Porter-Cable

Porter-Cable 1000003754 Manuel utilisateur

Porter-Cable

Porter-Cable JOB BOSS C3555 Manuel utilisateur

Porter-Cable

Porter-Cable CPFC2TV3520W Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
