Integrating Polycom SoundStructure with the ATX

and ATX SDK Immersive Telepresence Systems

Page 1 of 13

Application Note

Introduction

This application note describes how to integrate a SoundStructure C-series device with an ATX 300 and

the ATX 200, 300, and 400 SDK telepresence systems, collectively referred to as an ‘ATX system’ in this

application note. The SoundStructure Studio configuration required and the physical interconnect for

successful integration is described. The example SoundStructure configuration file is available for

download directly from Polycom’s website [1].

The addition of a SoundStructure system to an ATX system enables an integrator to extend the

capabilities of the ATX system through:

•Adding additional Polycom microphone arrays, analog microphones, presentation microphones,

wireless microphones, push-to-talk microphones, telephony interfaces, overflow room support,

additional loudspeaker zones, logic output applications, and more.

•Adding more in-room audio processing capabilities including equalization, adjustable noise

reduction settings, custom microphone panning, gain sharing automixer, and dynamics

processing to improve the in-room and far-end room audio experience

To add a SoundStructure system to an ATX system, first follow the ATX system Integrator’s guide and

configure the HDX 8000 codecs using the standard configuration tool [2]. Once the ATX system has

been configured, then follow these steps.

1. Unplug the Polycom microphone arrays and the audio amplifier from the primary HDX 8000

codec

2. Connect the SoundStructure device to the primary HDX 8000 codec

3. Connect the audio amplifier to the SoundStructure device

4. Connect the Polycom microphone arrays to the SoundStructure device

5. Modify the example SoundStructure configuration file as necessary

6. Upload the configuration file to the SoundStructure system

These steps are described in detail in the remainder of this application note.

While any SoundStructure C-series device or system of SoundStructure C-series devices may be added

to the ATX system, depending on the number of audio channels required, this application note and the

resulting SoundStructure configuration files are based on a single SoundStructure C16 device. The

solution presented in this application note also includes an optional ceiling-fill loudspeaker zone to

improve the audio experience in larger rooms.

Supported Software Versions

This application note was tested with the HDX video codecs running firmware version 3.0.1 or later. The

SoundStructure device is running firmware v1.3.3 or later and SoundStructure Studio version should be

v1.5.0 or later.

When the SoundStructure system is integrated with the ATX system, video calls connecting with Cisco

Telepresence Interoperability Protocol (TIP) mode is not supported.

Page 2 of 13

All other trademarks are the property of their respective owners. Information is subject to change without notice.

Step 1. Unplug the Polycom microphone arrays and amplifier

If the system is already wired with the Polycom microphone arrays connected to the HDX8000 codec,

unplug the microphones and amplifier from the codec. The microphone arrays will be connected to the

SoundStructure device in a later step.

Step 2. Connect SoundStructure to the HDX 8000 codec

SoundStructure integrates to the primary HDX 8000 codec using the Conference Link digital interface as

described next. Because the Conference Link connection method does not require any of the analog

inputs or outputs on the SoundStructure system, all the SoundStructure system’s analog inputs and

outputs can be used with additional microphones or other audio devices. The block diagram for this

system is shown in Figure 1.

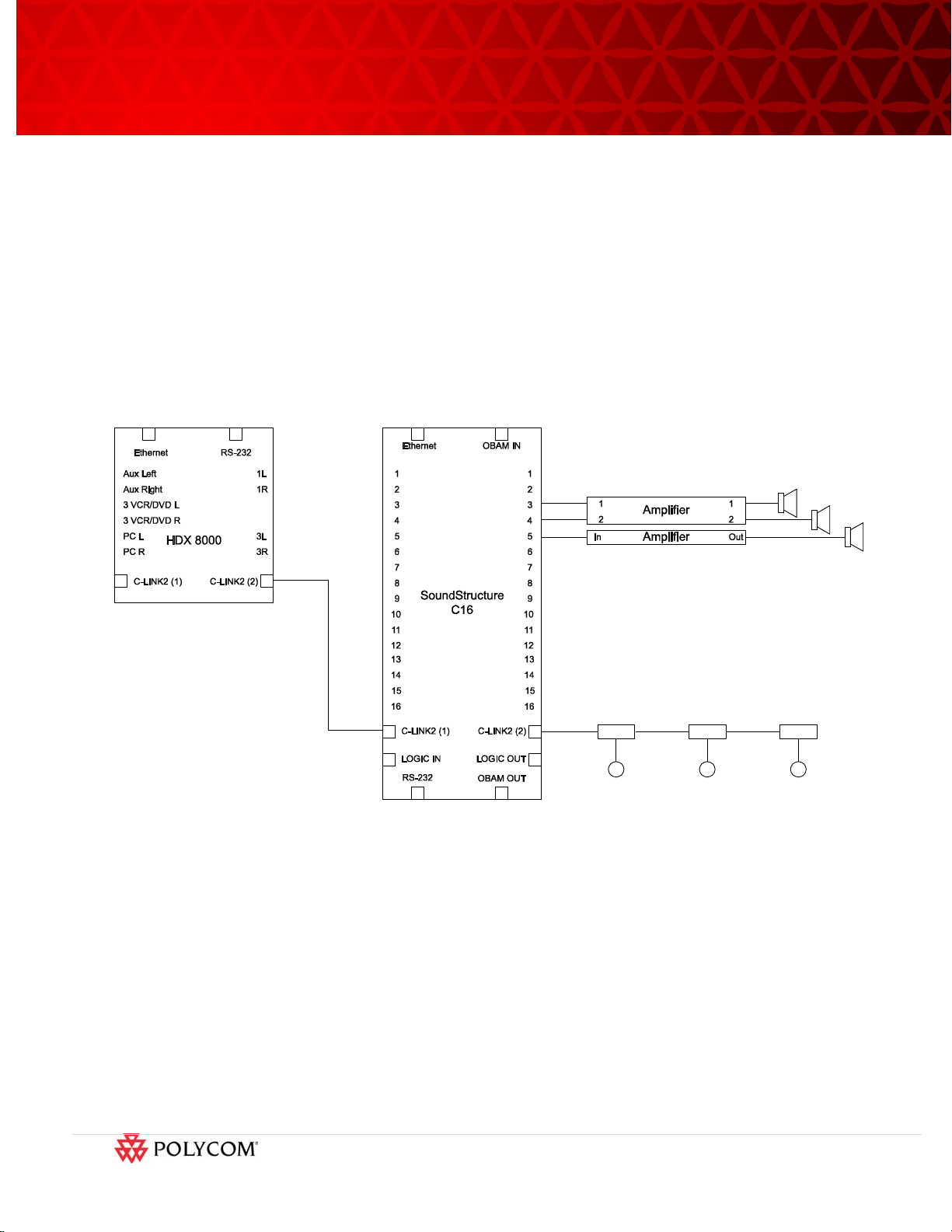

Figure 1. Block diagram for connecting the HDX8000 to the SoundStructure device.

The following steps describe how to connect the HDX 8000 codec to the SoundStructure using the

Conference Link interface:

1. Prior to connecting the HDX to the SoundStructure system use the HDX web interface to navigate

to the Admin Settings ÆAudio Settings ÆAudio page and enable the Live Music Mode option

Page 3 of 13

All other trademarks are the property of their respective owners. Information is subject to change without notice.

as shown in Figure 2.

Figure 2. Enable the Live Music mode option on the primary HDX 8000 codec.

2. As shown in the Figure 3, connect the Walta Male to RJ45 Female connector (ordered

separately, part number 2457-25646-001) to the 18” Clink RJ45 male to RJ45 male cable that is

included with SoundStructure. More information about cables and accessories that may be used

with SoundStructure may be found in the SoundStructure Accessory Guide [3].

Figure 3. SoundStructure and HDX 8000 codec Integration interconnect using Conference Link.

3. Connect the RJ45 end of the resulting cable to the left rear Clink interface port on the

SoundStructure device

4. Connect the Walta Male end of the cable to either Clink connector on the center HDX 8000

codec.

The Conference Link interface is hot-swappable making it unnecessary to power down the devices before

connecting them. Once connected, the HDX 8000 codec will detect the SoundStructure device and the

HDX 8000 codec will turn off its internal acoustic echo cancellation and with Live Music Mode option

enabled, the far-end echo exterminator and keyboard tapping processing will also be disabled.

Page 4 of 13

All other trademarks are the property of their respective owners. Information is subject to change without notice.

Step 3. Connect the Audio Amplifier

Two analog outputs are required to connect the SoundStructure device to the local room amplifier. In

both example SoundStructure configuration files, the SoundStructure line out 3 (left) and line out 4 (right)

connections are configured to connect directly to an external amplifier as shown in Figure 4.

Figure 4. SoundStructure connections to an external stereo amplifier.

Depending on the size of the room a ceiling fill loudspeaker can be used to make it easier for the local

participants to hear the remote participants. The example SoundStructure configuration file supports a

ceiling-fill loudspeaker on output 5 as shown in Figure 5.

Figure 5. SoundStructure integration to an external stereo amplifier and optional ceiling fill amplifier.

Step 4. Connecting Polycom microphone arrays to SoundStructure

devices

Any style of microphone may be used with the SoundStructure when integrating to the ATX system.

Since each analog input of a SoundStructure system supports full microphone processing, up to 16

analog microphones can be used with a SoundStructure C16. Instead of analog microphone inputs, the

Polycom microphone arrays can also be used. Up to four Polycom ceiling microphone arrays can be

connected to each SoundStructure device, subject to the following requirements:

•Each complete Polycom microphone array has three microphone elements and requires three

available inputs on the SoundStructure device (see Figure 6).

•No more than four Polycom microphone arrays may be connected per SoundStructure device

•The Polycom microphone array cable wiring and cable length requirements are met

PIN 2: TXD

PIN 3: RXD

PIN 5: GROUND

PIN 7: CTS

PIN 8: RTS

LAN C-LINK2 OBAM IR

RS-232

REMOTE CONTROL 2

IN OUT

12 3 4 5 6 7 8 9 10 11 12 13 14 15 16

12345678910111213141516

OUTPUTS INPUTS

SoundStructure C16

12V

REMOTE CONTROL 1

To Amplifier

Output 3 (Left)

Output 4 (Right)

Page 5 of 13

All other trademarks are the property of their respective owners. Information is subject to change without notice.

The first two requirements mean that a SoundStructure C8 with two full microphone arrays will be left with

free two analog inputs; a C12 with four microphone arrays and will not have any available analog inputs;

and a C16 with four microphone arrays and will still have four available analog inputs. When the Polycom

microphone arrays are used with SoundStructure devices, the SoundStructure device’s analog inputs

associated with the microphone arrays inputs cannot be used at the same time as the inputs from the

microphone arrays.

Figure 6. Polycom table and ceiling microphone arrays have three microphone elements labeled A, B,

and C.

Please note that while the SoundStructure example configuration file includes Polycom ceiling

microphone arrays, Polycom table microphone arrays could also be used.

When using Polycom microphone arrays, the microphones should be connected to the SoundStructure

device’s right rear Conference link interface port and should be daisy-chained as shown in Figure 7.

When the Polycom microphone arrays are connected to the SoundStructure device’s right rear clink

interface, the particular microphone arrays will be sequentially numbered within the SoundStructure

configuration file with the first microphone array being the one closest to the SoundStructure device as

shown in Figure 7.

For more detailed information on using Polycom microphone arrays with SoundStructure including cabling

requirements and pin-outs, configuration details, and best practices for quickly installing and testing these

microphones, refer to the HDX Microphones and SoundStructure Best Practices Guide [4].

Page 6 of 13

All other trademarks are the property of their respective owners. Information is subject to change without notice.

Figure 7. Connecting Polycom Microphone Arrays to the SoundStructure device.

Step 5. Modify the SoundStructure Configuration File

The example configuration file for integrating the SoundStructure with the ATX system is available online

[1]. To upload the example configuration file to the SoundStructure device, follow the instructions in

Section Step 6 Uploading the configuration file in this application note.

To better understand the configuration file settings, the following sections describe the configuration files

in detail.

5.1 Removing Polycom microphone array elements

As described in the ATX system installation manual [2], the microphone arrays should be positioned with

the orientation dot facing the front of the room. When the microphone arrays are oriented properly

(shown in Figure 8), Mic Array 1 is positioned on the room left (camera right), Mic Array 2 positioned on

the room right (camera left), and Mic Array 3 positioned in the center.

The microphone “A” element from each of microphone array has been removed from the example

configuration files because, with proper orientation of the microphone arrays, the “A” elements are

Page 7 of 13

All other trademarks are the property of their respective owners. Information is subject to change without notice.

pointed directly towards the loudspeakers and displays and are not used in conferencing. To delete

these elements, use the Edit Channels control to delete the “A” element of each of these microphone

arrays from the SoundStructure configuration file. Once the “A” elements have been removed, only two

microphone elements per microphone array remain for a total of six microphones. This means that any

SoundStructure C-series product, including the SoundStructure C8, may be integrated with the ATX

system and still support the three “two-element” microphone arrays.

Figure 8. Microphone array orientation and sequential positioning and element numbering.

Once the microphones are properly positioned and daisy-chained, the microphones will be used in the

matrix as described next.

5.2 SoundStructure Matrix Settings

SoundStructure Studio can be used to view and modify SoundStructure configuration files. This section

describes the matrix settings for the Conference Link method of integration between the SoundStructure

device and the HDX 8000 codec. See the online training streams [5] or the SoundStructure Design Guide

[6] for more information about creating a SoundStructure configuration file.

The matrix settings are shown in the following figure and the highlighted values are described in detail

below.

1. The six microphone array elements (two elements remain per microphone array) belong to the

“Mics” group and have a fader value of 6dB applied to ensure the microphone levels are in the

proper range. While the names of the microphone channels in this example were chosen to help

understand the physical position of the individual microphone elements, any valid name may be

used.

2. The echo cancelled Polycom Microphone Array elements are panned to the left and right to the

“Mics_Stereo_Panned” submix to create an immersive audio experience at the remote site.

Page 8 of 13

All other trademarks are the property of their respective owners. Information is subject to change without notice.

The default stereo mapping shows that the Mic 1 C microphone is mapped completely to the left

channel of the stereo submix. The remaining microphones are panned more to the room

right/camera left because the microphones are positioned across the room from room left to room

right with the final microphone Mic 2 B panned all the way to the room right. Please note that the

Mic 3 elements B and C are shown in the middle of the room corresponding to how the

microphones are installed the room. The details of how each microphone element is mapped into

the stereo image is shown in Figure 10.

3. The “Mics_Stereo_Panned” is routed to the codec stereo signal of the HDX8000 “HDX Stereo

Mics Out”.

4. The audio inputs from the HDX 8000 codec are sent to the stereo “Amplifier” submix. Because

the “Amplifier” submix is a stereo channel, the left/right stereo imaging is preserved.

5. The “Amplifier” stereo submix is routed to the local stereo room amplifier and is also attenuated

by 12dB and sent to an optional ceiling fill loudspeaker system to provide a better audio

experience in the local room.

Figure 9. The SoundStructure matrix page of the example configuration file with Clink microphones.

Page 9 of 13

All other trademarks are the property of their respective owners. Information is subject to change without notice.

Figure 10. Panning position of each microphone element to create the stereo immersive image.

5.3 SoundStructure Channels Settings

The audio settings for the SoundStructure Conference Link connection method example are shown in the

following figure and described in detail below. In this figure the microphone group has been collapsed

and any changes made to the group will change the values for all microphones that are members of the

group.

1. The Acoustic echo Canceller is enabled and the AEC reference for all the microphones is set to

the “Amplifier” submix signal. This ensures that the acoustic echo canceller knows what audio to

remove from the microphones when the remote talkers’ audio is picked up by the local

microphones.

2. The input fader on the HDX ceiling microphones is set to 6dB.

3. The output level to the audio amplifier channels is set to -10dB to be compatible with consumer

level audio amplifiers (RCA connections). If the in-room amplifiers are professional grade

amplifiers and support 0dBu or +4dBu nominal signal levels then these level settings can be set

to 0dB or +4dB respectively. If the amplifiers use RCA signal connections, leave these values at

-10dB to prevent overdriving the audio inputs on the amplifier.

4. The optional in-room ceiling fill loudspeaker output is delayed 10msec to allow the local

participants to ‘hear’ the audio from the front of the room and have the optional ceiling

loudspeakers provide some ‘fill’ without drawing attention away from the front loudspeakers. The

optional ceiling fill is recommended for rooms that are larger than 20ft (6m) in depth from the back

of the room to the front of the room. The delay is added to ensure the focus of the local

participants is on the audio from the front display wall and not from the audio from the ceiling. The

delay may be increased above 10msec if the ceiling loudspeakers are far from the front

loudspeakers.

Page 10 of 13

All other trademarks are the property of their respective owners. Information is subject to change without notice.

5. The user min value for the “Amplifier” submix has been set to -31dB to map the volume range

from the HDX codec 0 to 50 into the range of -31 to +20 on the fader of the “Amplifier” channel.

Figure 11. SoundStructure Channels page of the example configuration file.

5.4 Saving the configuration file settings

Once the audio settings have been adjusted to meet the application requirements, other settings such as

static IP address, system name, RS232 baud rate, etc. may be set for the system by using

SoundStructure Studio.

If there are other changes made to the configuration file, navigate to the preset page, and select the

‘Save Selected’ option to save any changes to the Power-On preset and, if working online, to save

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Polycom Système de conférence

Polycom

Polycom CX5500 Manuel utilisateur

Polycom

Polycom VSX Series Manuel de service

Polycom

Polycom IPOWER 9000 Fiche d'information produit

Polycom

Polycom SoundStructure C16 Manuel

Polycom

Polycom RealPresence Experience Manuel utilisateur

Polycom

Polycom RealPresence Trio 8500 Manuel utilisateur

Polycom

Polycom Vortex EF2280 Guide de l'utilisateur

Polycom

Polycom RealPresence Centro Manuel utilisateur

Polycom

Polycom RMX 1000 Manuel utilisateur

Polycom

Polycom RealPresence Medialign 255 Manuel utilisateur

Polycom

Polycom ATX 200 Instructions de montage

Polycom

Polycom RealPresence Group 300 Instructions d'utilisation

Polycom

Polycom RealPresence Group Series Instructions de montage

Polycom

Polycom RPX HD 400 Series Comment utiliser

Polycom

Polycom SoundStation 7000 Guide de configuration rapide

Polycom

Polycom V500 Mode d’emploi

Polycom

Polycom Price Center 451 Manuel utilisateur

Polycom

Polycom MGC+50 ReadiConvene Manuel utilisateur

Polycom

Polycom SIP 3.0.2 Manuel utilisateur

Polycom

Polycom SoundStructure C16 Manuel

Polycom

Polycom RealPresence Group Series Manuel d'utilisation et d'entretien

Polycom

Polycom QDX 6000 System Manuel de service

Polycom

Polycom RealPresence 4000 Manuel utilisateur

Polycom

Polycom RMX 2000 Manuel utilisateur

Manuels Système de conférence populaires d'autres marques

Kramer

Kramer VIA GO Manuel utilisateur

AVT

AVT MAGIC AC1 Go Manuel utilisateur

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manuel utilisateur

Sony

Sony PCS-I150 Manuel utilisateur

Middle Atlantic Products

Middle Atlantic Products VTC Series Manuel utilisateur

Prentke Romich Company

Prentke Romich Company Vanguard Plus Mode d’emploi

Speakerbus

Speakerbus iD 712 Manuel utilisateur

Trelleborg

Trelleborg SafePilot CAT PRO Manuel utilisateur

Sennheiser

Sennheiser ADN Manuel utilisateur

ADTRAN

ADTRAN NetVanta 7100 Manuel utilisateur

AINA

AINA PTT Voice Responder Manuel utilisateur

Yamaha

Yamaha ProjectPhone PJP-100H Manuel utilisateur

vissonic

vissonic VLI Series Manuel utilisateur

Panasonic

Panasonic KX-VC500 Manuel utilisateur

Poly

Poly Trio 8300 Manuel utilisateur

Crestron

Crestron Mercury CCS-UCA-SMK Dessin dimensionnel

Inmarsat

Inmarsat mini M Manuel utilisateur

Tenveo

Tenveo ALL-IN-ONE Manuel utilisateur
