PNI IP60 Manuel utilisateur

PNI IP60 live

Video surveillance camera/Камера за видеонаблюдение/Videoüberwachungskamera

Cámara de videovigilancia/Caméra de vidéosurveillance

Videó megﬁgyelő kamera/Telecamera di videosorveglianza

Videobewakingscamera/Kamera do nadzoru wideo/Camera supraveghere video

EN User manual ......................................................... 3

BG Ръководство за употреба ............................... 17

DE Benutzerhandbuch .............................................. 32

ES Manual de usuario ............................................... 46

FR Manuel utilisateur ............................................... 60

HU Használati utasítás .............................................. 74

IT Manuale utente .................................................. 88

NL Handleiding ........................................................ 102

PL Instrukcja obsługi ............................................... 116

RO Manual de utilizare ............................................. 129

3User manual

English

Main features

• 4G and LAN connection (RJ45 connector)

• Recording on micro SD card, max. 128 GB (card not included)

• Two-way audio communication (built-in microphone and speaker)

• Outdoor mounting, waterproof class IP66, ABS housing

• 4 IR LEDs for night vision up to 20 m

• 4 white LEDs for additional lighting

• P2P connection for remote monitoring

• Remote control through the CamHi application (Android / iOS) and

through the HiP2P Client application (PC Windows)

Package contents

• Surveillance camera

• Solar panel

• Installation bracket for wall or pole

• 12V 20A rechargeable Li-Ion battery (built into the main support)

• 230V - 12.6V / 5A Power adapter for charging the Li-Ion battery

Connections

1. 12V power connector - insert the power cable from the included battery.

2. RJ45 connector - insert a network cable to connect the camera to the

router (if necessary during the ﬁrst conﬁguration)

3. Reset - long press to reset the camera to default settings.

User manual 4

English

Camera installation and connection details

Warning: the SIM card with 4G mobile data must not have the PIN code

activated. Insert the SIM card with mobile data into a mobile phone, disable

the security PIN and check if mobile data is available by accessing any web

page.

1. Open the cover on the back of the camera. Install the Nano SIM card and

the micro SD card (maximum 128 GB) into the camera.

2. Connect the power adapter from the battery to the camera.

3. Connect the solar panel to the battery.

4. Turn on the battery power using the red round switch:

5User manual

English

5. The camera will start rotating and initializing. When the camera stops

rotating, it is ready for conﬁguration.

Note: Before use, we recommend that you fully charge the battery for about

8 hours using the power supply in the package. Connect the power supply to

the black connector with the rubber cap.

6. Information about the battery is provided by the 3 LEDs located on the

installation support.

Left LED

Charging

Central LED

Battery

Right LED

Output status

On: solar charging

O: not charging (lack of

sun)

Flashing Red: Battery ≤ 25%

Flashing Red and Green: Battery ≤ 50%

Flashing Green: Battery ≤ 75%

Green On: Battery ≤ 100%

On: active output

O: no output

User manual 6

English

Add the camera to the mobile application

Quick setup mode

Download and install the CamHi application by scanning the codes below:

Android iOS

1. Open the application, create an account and connect.

2. Press Add camera.

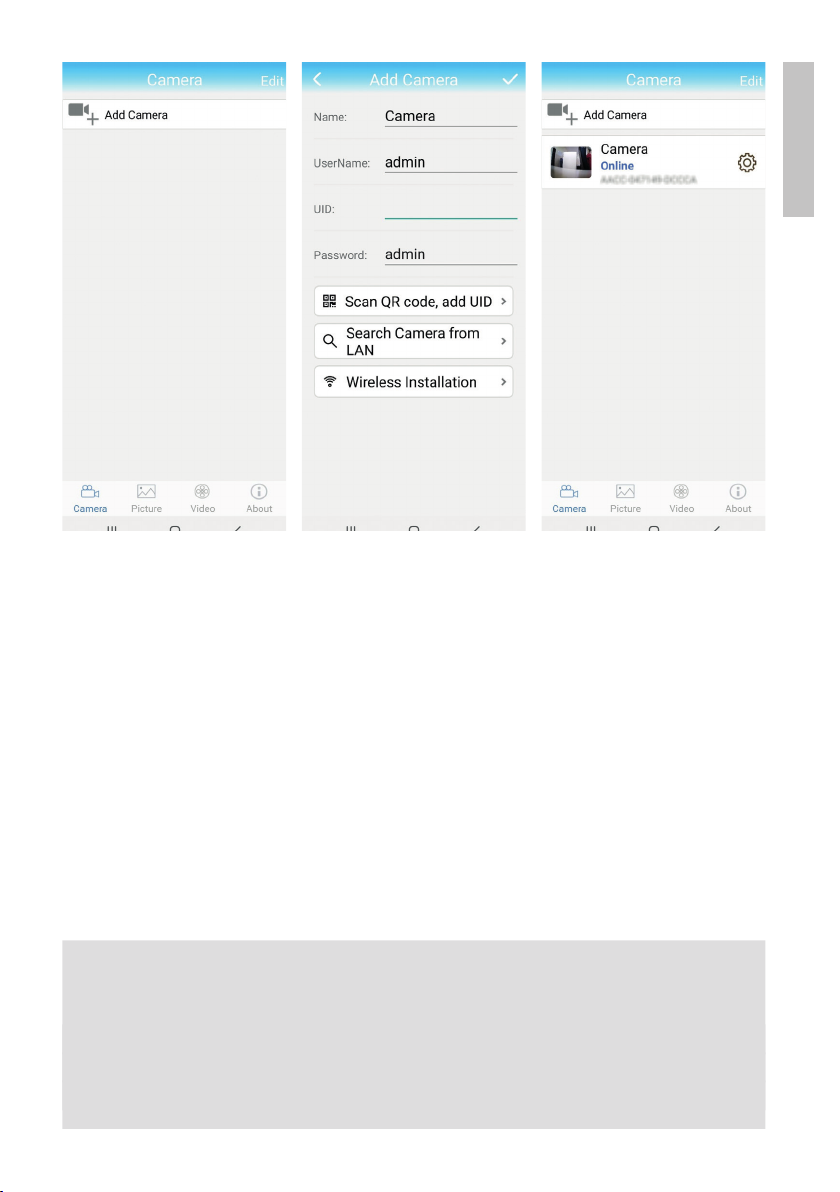

3. In the following interface, you have several options to add the camera:

• Manually enter the UID of the camera, the user and the password

(you can ﬁnd these data on the label stuck on the camera). The default

username and password are admin, admin.

• Scan the QR code on the label stuck on the camera (Scan QR code, add

UID)

4. After you have successfully added the camera, click on the camera in the

list to view the images taken by it in real time.

Note: The camera status must be Online. If the camera is Oine, access the

Advanced conﬁguration mode from the next page.

7User manual

English

Add the camera to the application via the Local Network

Advanced conﬁguration mode

Connect both the phone (via wireless) and the camera (via RJ45

network cable) to the same local network, Port 1 of the routeri.

Warnings:

• Make sure the phone is connected to the same router with the camera.

• CheckiftheLANportinthe routertowhichthecamerawillbeconnected

has access to the network/internet. Use a laptop or computer connected

to this port. The green network indicator means there is a connection.

This procedure allows you to add, check access and conﬁgure the camera

from the “CamHi” smartphone application or the “HiP2P Client” PC /

Laptop (Windows) application from your local network.

This will help you check:

- the status and settings of the camera

- the status and settings of the 4G GSM network

User manual 8

English

Conﬁguration and viewing of the camera on the mobile

phone

1. Press the Add Camera menu in the mobile application

2. Search for the camera in the local network: press Search Camera from

LAN

3. One result: the camera ID will appear on the screen. Click on the result,

rename it, enter the password and complete the procedure.

4. After you have successfully added the camera, press and access the

camera from the list to view the images in real time (for the moment only

from the local network).

5. Continue to check and conﬁgure the GSM 4G connection.

Note: The default camera username is admin and the default password is

admin. For security reasons, the camera will ask you to change the password.

and set the correct time zone.

Note: If the camera search procedure in the network fails, check the LAN

cable and make sure that you have access to the network on the LAN port

to which the camera is connected.

Connect the camera to the 4G mobile data network

1. Press the icon next to the camera that needs to be conﬁgured.Note:

The camera status must be Online.

2. From the settings menu, select 4G Settings.

3. If the name of the network operator is correct, the signal is greater than

60 and the APN is correct, go to step 5 and wait about 5 minutes for

the camera to connect. For Vodafone, we recommend that you ask for

the APN from the operator and ﬁll it in manually. Suggested APN: live.

vodafone.com

4. If the camera status is not Online after 5 minutes, check:

• The name of the network operator of the SIM card in the “4G settings”

menu. If it is not available:

9User manual

English

• check the SIM card and remove the PIN code (in a phone);

• check if the SIM card is 4G compatible and has active mobile data (in a

phone).

• check the signal strength: it must be greater than 60. If not, move the

camera to a place with a better signal.

• check the status with another SIM card from the same operator or

another operator (without active PIN code)

• The status LED next to the SIM card: the LED blinks rarely (once per

second) - connection in progress or connection failed; The LED blinks

often (4 times per second) - successful connection.

• In the “4G settings” “Status Code” menu: “0” sim not connected (check/

reinsert SIM, check signal); “1” successful connection; “2” - failed

connection to the network.

• check the APN in the APN Mode menu. Set to Manual and manually

enter only the correct APN obtained from the SIM card operator and

save the settings.

5. Disconnect the LAN cable between the camera and the local network

router and restart the camera (disconnect the power). Open the

User manual 10

English

application and check the camera status in about 5 minutes. If everything

is OK, the camera will be online and you can remotely access the live

images.

Conﬁguration of recordings on the micro SD card

1. Purchase and install a micro SD card of maximum 128Gb in the camera.

2. Launch the mobile application, click on the icon next to the camera

that needs to be conﬁgured.Note: The camera status must be Online.

3. From the displayed settings menu, select Action with alarm.

4. Activate the Alarm SD REC option.

5. Return to the main menu and select the SD Card setting option to check

the available space on the card.

6. Make sure that the Enable Record option is activated in the Recording

Schedule menu

Note: If the micro SD card installed in the camera has a reduced capacity, we

recommend that you activate the recording only when motion is detected.

For this, access the menu Alarm settings - Motion detection.
