Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub
IPOE-270/IPOE-270-12V
User’s Manual
Table of Contents
1. Package Contents................................................................................. 3
2. ProductSpecications ........................................................................... 4
3. Hardware Introduction .......................................................................... 7
3.1 Device Front Panel......................................................................... 7
3.2 Device Upper Panel........................................................................ 9
3.3 Wiring the Power Inputs................................................................. 9
3.4 Grounding the Device................................................................... 11
4. Installation ........................................................................................ 12
4.1 DIN-rail Mounting Installation ....................................................... 12
4.2 Wall-mount Plate Mounting ........................................................... 12
4.3 Side Wall-mount Plate Mounting.................................................... 13
5. Three-View Diagram ........................................................................... 14
6. Customer Support .............................................................................. 16
3
1. Package Contents
Thank you for purchasing PLANET Industrial 2-port Multi-Gigabit 802.3bt
PoE++ Injector Hub, IPOE-270/IPOE-270-12V. In the following sections, the
term “Industrial PoE++ Injector Hub” means the IPOE-270 or IPOE-270-12V.
Open the box of the Industrial PoE++ Injector Hub and carefully unpack it.
The box should contain the following items:
Industrial PoE++ Injector Hub x 1 QR Code Sheet x 1
Wall-mount Kit x 1 DIN-rail Kit x 1 RJ45 Dust Caps x 4
If any of these are missing or damaged, please contact your dealer
immediately.
4
2.ProductSpecications
Model IPOE-270 IPOE-270-12V
HardwareSpecications
Copper Ports
2-pair 10/100/1G/2.5G/5GBASE-T RJ45:
Data input port 1 and PoE output port 1
Data input port 2 and PoE output port 2
Connector Removable 4-pin terminal block
Pins 1 and 2 for Power 1; Pins 3 and 4 for Power 2
LED Indicator
System:
Power 1 (Green)
Power 2 (Green)
PoE Usage:
60W/120W/180W (Amber)
802.3bt PoE++ Port:
PoE-in-use x 1 (Green: bt, Amber: at)
Network Cable
Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
2.5G/5GBASE-T: 4-pair UTP Cat. 6, 6A, 7
Data Rate 10/100/1000/2500/5000Mbps
Power
Requirements
48~54V DC, redundant power
with reverse polarity protection
12~54V DC, redundant power
with reverse polarity protection
Power
Consumption
(Ethernet Full
Loading)
System ON without loading
48V DC: 1.4 watts/4.7BTU
52V DC: 1.5 watts/5.1BTU
54V DC: 1.6 watts/5.4BTU
Full loading with PoE
48V DC (120W PoE budget):
128 watts/436BTU
52V DC (180W PoE budget):
177 watts/603BTU
54V DC (180W PoE budget):
187 watts/638BTU
System ON without loading
12V DC: 1.8 watts/6.1BTU
24V DC: 2.4 watts/8.1BTU
48V DC: 2.4 watts/8.1BTU
52V DC: 2.6 watts/8.8BTU
54V DC: 2.1 watts/7.1BTU
Full loading with PoE
12V DC (60W PoE budget):
60 watts/204BTU
24V DC (120W PoE budget):
124 watts/423BTU
48V DC (120W PoE budget):
120 watts/409BTU
5
52V DC (180W PoE budget):
188 watts/641BTU
54V DC (180W PoE budget):
188 watts/641BTU
Dimensions 41 x 70 x 115 mm (W x D x H)
Weight 284g 387g
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
ESD Protection 6KV
Surge Protection 6KV
Power over Ethernet
PoE Standard IEEE 802.3bt PoE++, 4-pair PSE
Compatible with IEEE 802.3at PoE+ PSE
PoE Power
Supply Type End-span + Mid-span
Power Pin
Assignment
End-span: 1/2 (-), 3/6 (+);
Mid-span: 4/5 (+), 7/8 (-)
Per PoE Port
Output Power 95 watts
PoE Power
Budget (max.)
120W@48V DC input
180W@52V/54V DC input
60W@12V DC input
120W@24V/48V DC input
180W@52V/54V DC input
PoE DIP Switch
DIP switch for the following operation modes:
BT mode (Default)
Legacy and Force modes
Number of
devices that can
be powered
2
Standards Conformance
Regulatory
Compliance FCC Part 15 Class A, CE
Stability Testing
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
6
Standards
Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
7
3. Hardware Introduction
3.1 Device Front Panel
The front panels of the Industrial PoE++ Injector Hubs consist of Ethernet
interfaces and LED indicators.
Front View
P1 P2
60W 120W 180W
PoE
Usage
Ethernet
Ethernet
IPOE-270
PoE++
PoE++
BT Legacy
P1 P2
60W 120W 180W
PoE
Usage
Ethernet
Ethernet
IPOE-270-12V
PoE++
PoE++
BT Legacy
Figure 1: IPOE-270 Front View Figure 2: IPOE-270-12V Front View
LED Denition
System LEDs
LED Color Function
P1 Green Lights to indicate DC power input 1 has power.
P2 Green Lights to indicate DC power input 2 has power.
PoE Usage Amber
60W, 120W, 180W
Lights to indicate the system consumes over 60-/120-/
180-watt PoE power budget.
Blinks to indicate the system consumes less 60-/120-/
180-watt PoE power budget.
Data port 1
Data port 2
Data port 3
Data port 4
8
802.3bt PoE++ TP Interface LEDs
LED Color Function
802.3bt
PoE++
PoE-in-Use
Green
Lights to indicate that the port is providing 802.3bt
PoE++ power to remote powered device.
OtoindicatethattheportisnotprovidingPoE
power to remote powered device.
Amber
Lights to indicate that the port is providing 802.3at
PoE+ power to remote powered device.
OtoindicatethattheportisnotprovidingPoE
power to remote powered device.
DIP Switch
PoE Mode Description
802.3bt
(Default)
The Standard mode is to provide power to the PD device that
follows the IEEE 802.3af/at/bt standard.
Legacy
The Legacy mode supports Ultra PoE. It is to provide power to
the PD devices that do not fully follow the IEEE 802.3af/at/bt
standard.
The IPOE-270 series also supports Force Power Mode in the
Legacy the output power of IPOE-270 series in the Legacy
Mode is less than 1 watt for 20 seconds, the Force Mode will
be enabled for 2 seconds. If the loading is still less than 1 watt,
the Legacy Mode will be enabled again.
The IPOE-270 series in the Force Mode will also provide a
maximum 95-watt power to the PD. TO PREVENT THE DEVICES
FROM DAMAGE, please make sure the remote devices support
either the Legacy or Force Mode before turning the DIP switch
to the Legacy Mode.
Adjust the DIP switch to the desired mode before powering on
the IPOE-270 series.
9
3.2 Device Upper Panel
The upper panels of the Industrial PoE++ Injector Hubs consist of one terminal
block connector within two power inputs.
V1+ V2+
PWR1 PWR2
DC Input:
48-54V
, 4A max.
1 2 3 4
Figure 3: IPOE-270 Top View
V1+ V2+
PWR1 PWR2
DC Input:
12-54V
, 4A max.
1 2 3 4
Figure 4: IPOE-270-12V Top View
3.3 Wiring the Power Inputs
The terminal block connector on the top panel of Industrial PoE++ Injector
Hub is used for two DC redundant power inputs. Please follow the steps below
to insert the power wire.
When performing any of the procedures like inserting the wires
or tightening the wire-clamp screws, make sure the power is
OFF to prevent from getting an electric shock.
10

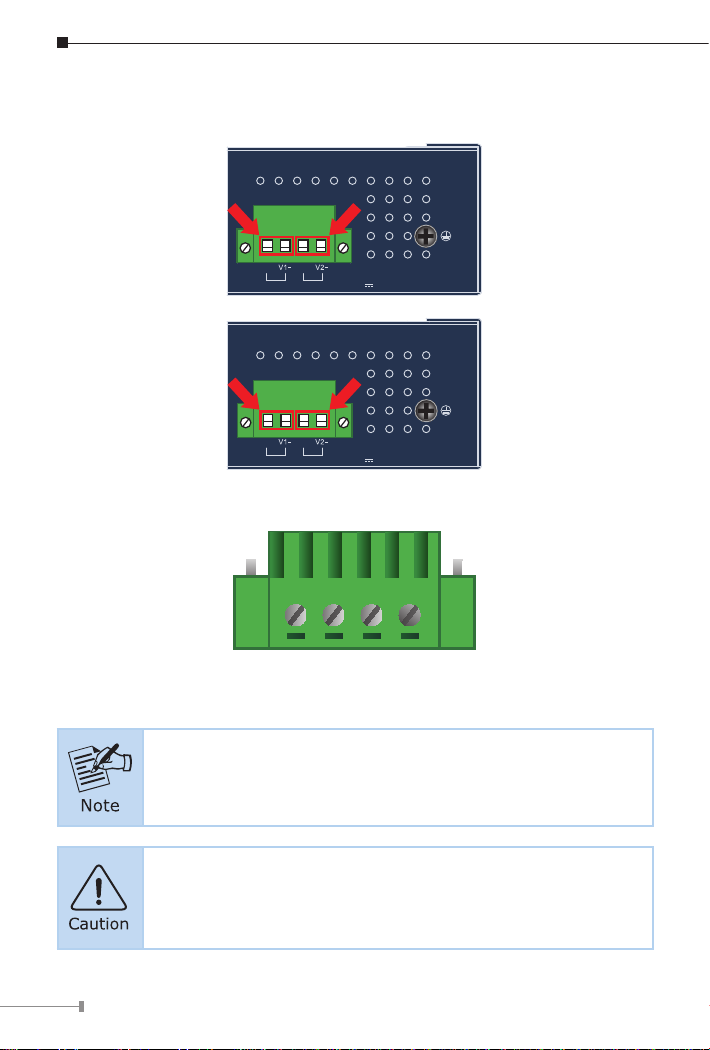

1. Insert positive and negative DC power wires into contacts 1 and 2 for
POWER 1, or contacts 3 and 4 for POWER 2.
V1+ V2+
PWR1 PWR2
DC Input:
48-54V
, 4A max.
1 2 3 4
V1+ V2+
PWR1 PWR2
DC Input:
12-54V
, 4A max.
1 2 3 4
2. Tighten the wire-clamp screws for preventing the wires from loosening.
1234
Power 1 Power 2
+-+-
The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.
PWR1 and PWR2 must provide exactly the same DC voltage for
power load balance while operating with dual power input.
