Planet IGS-5225-4T2S Manuel utilisateur

Industrial L2+ Multi-Port Full Gigabit

Managed Ethernet Switch

IGS-5225-4T2S/IGS-5225-4UP1T2S

IGS-5225-8P2S/IGS-5225-8P4S/IGS-5225-8P2T2S

Quick Installation Guide

Table of Contents

1. Package Contents...................................................................... 3

2. Requirements............................................................................ 5

3. Wiring the Power Inputs ............................................................ 6

4. Terminal Setup.......................................................................... 8

5. Logging on to the Console ......................................................... 9

6. ConguringIPaddress..............................................................11

7. Starting Web Management ........................................................14

8. SavingCongurationvia Web ....................................................17

9. Resetting the Switch to Default .................................................18

10. Customer Support....................................................................20

1. Package Contents

Thank you for purchasing PLANET L2+ Industrial Managed Switch,

IGS-5225Series.Thedescriptionsofthesemodelsareasfollows:

IGS-5225-4T2S: IndustrialL2+4-Port10/100/1000T+2-Port

100/1000XSFPManagedSwitch

IGS-5225-4UP1T2S:

IndustrialL2+4-Port10/100/1000TUltraPoE+

1-Port10/100/1000T+2-Port100/1000XSFP

ManagedSwitch

IGS-5225-8P2S:

IndustrialL2+8-Port10/100/1000T802.3at

PoE+2-Port100/1000XSFPManagedEthernet

Switch

IGS-5225-8P4S:

IndustrialL2+8-Port10/100/1000T802.3at

PoE+4-Port100/1000XSFPManagedEthernet

Switch

IGS-5225-8P2T2S:

IndustrialL2+8-Port10/100/1000T802.3at

PoE+2-Port10/100/1000T+2-Port

100/1000XSFPManagedEthernetSwitch

“Industrial Managed Switch” mentioned in this Quick Installation

Guidereferstotheabovevemodels.

Open the box of the Industrial Managed Switch and carefully

unpackit.Theboxshouldcontainthefollowingitems:

zTheIndustrialManagedSwitchx1

zQuickInstallationGuidex1

zDIN-rail Kit x 1

zWall Mounting Kit x 1

zDB9 to RJ45 Interface RS232 Console Cable x 1

zDust Cap (Please refer to the table below.)

RJ45 Dust Cap SFPDustCap

IGS-5225-4T2S 5 2

IGS-5225-8P2S 9 2

IGS-5225-8P4S 9 4

IGS-5225-8P2T2S 11 2

IGS-5225-4UP1T2S 6 2

If any of these are missing or damaged, please contact your dealer

immediately. If possible, retain the carton includingtheoriginalpacking

materials to enable you to repack the product in case there is a need

to return it to us for repair.

2. Requirements

The Industrial Managed Switch provides remote login interface for

management purposes. The following equipment is necessary for

furthermanagement:

zWorkstations running Windows XP/2003/Vista/7/8/2008/10, MAC

OS X or later, Linux, UNIX, or other platforms are compatible with

TCP/IPProtocols.

zWorkstations are installed with Ethernet NIC (Network Interface

Card)

zSerial Port Connection (Terminal)

The above Workstations come with COM Port (DB9) or USB-to-

RS232 converter.

The above Workstations have been installed with terminal

emulator, such as Hyper Terminal included in Windows XP/2003,

putty or tera term.

Serial cable -- one end is attached to the RS232 serial port,

while the other end to the console port of the Industrial Managed

Switch.

zEthernet Port Connection

Network cables -- Use standard network (UTP) cables with RJ45

connectors.

The above PC is installed with Web browser and JAVA runtime

environment plug-in.

Note

Itis recommended to use InternetExplorer8.0or above

toaccesstheIndustrialManagedSwitch.

3. Wiring the Power Inputs

The Upper Panel of the Industrial Managed Switch comes with a DC

inlet power socket and one 6-contact terminal block. Please follow the

steps below to insert the power wire.

1.Insert positive/negative DC power wires into Contacts 1 and 2 for

Power1,orContacts5and6forPower2.

IGS-5225-8P2S/IGS-5225-8P4S/IGS-5225-8P2T2S/IGS-

5225-4UP1T2S: 48~56VDC

Input DC 48-56V

DI0 DI1 DO0 DO1 GND GND

DC1

DC2Fault

1A@24V

1 2 3 4 5 6

Figure 3-1: IGS-5225-8P2S/IGS-5225-8P4S/IGS-5225-8P2T2S/IGS-5225-

4UP1T2S Upper Panel

IGS-5225-4T2S:12~48VDC,24VAC

Input

DC12~48V

AC 24V

DC1 DC2

Fault

V1-V1+ V2+ V2-1A@24V

1 2 3 4 5 6

Figure 3-2: IGS-5225-4T2S Upper Panel

2. Tighten the wire-clamp screws for preventing the wires from loos-

ening.

123456

V+ V- V+ V-

Power 1 Power 2

Positive (+) Pin Negative (-) Pin

IGS-5225 Series Pin1/5 Pin2/6

Note

The wire gauge for the terminal block should be in the

range from 12 to 24 AWG.

4. Terminal Setup

To congure the system, connect a serial cable to a COM port on a

PC or notebook computer and to RJ45 type serial (console) port of the

Industrial Managed Switch. The console port of the Industrial Managed

Switch is DCE already, so that you can connect the console port

directlythroughPCwithouttheneedofnullmodem.

PC/Workstation

with

Terminal emulation software

RJ45 to DB9 RS232 Cable

Serial Port

IP Address:

192.168.0.100

IGS Industrial Managed Switch

A terminal program is required to make the software connected to the

IGS-5225seriesIndustrialManagedSwitch.

1. Run terminal program on the OS.

2.When the following screen appears, make sure that the COM port

shouldbeconguredas:

zBaud:115200

zParity:None

zDatabits:8

zStopbits:1

zFlowcontrol:None

5. Logging on to the Console

Once the terminal has been connected to the device, power on the

IndustrialManagedSwitchandtheterminalwilldisplay“running testing

procedures”.

Note

The following terminal configuration of IGS-5225-8P4S is

taken for an example.

Then, the following message asks to log in user name and password.

The default user name and password are shown as follows and the

Username:admin

Password: admin

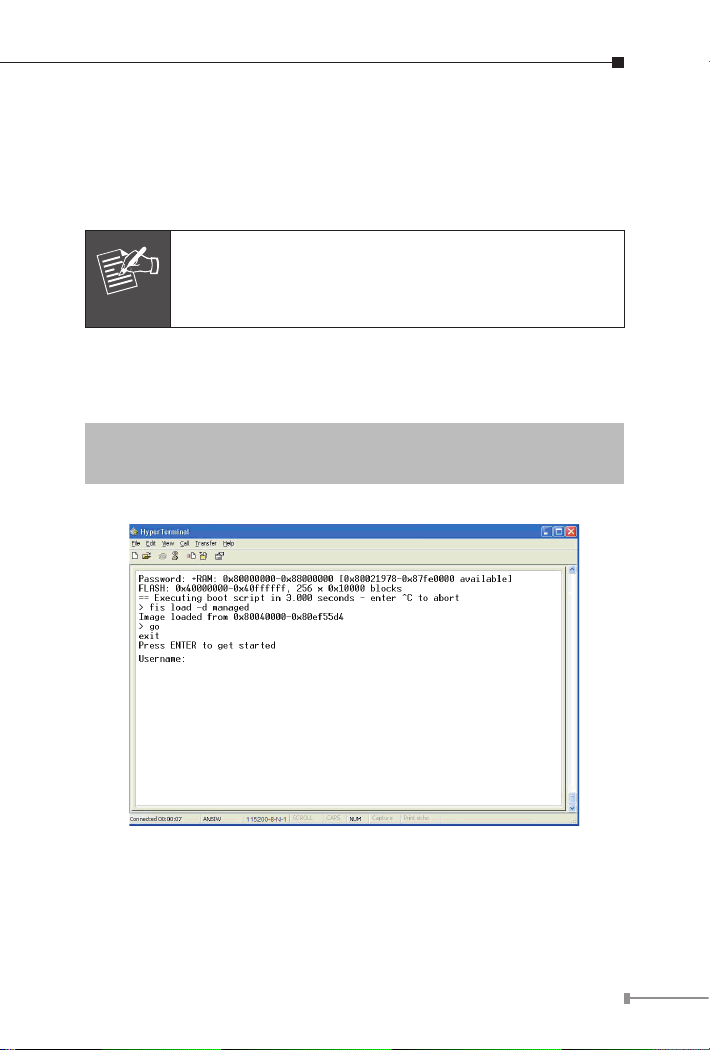

Figure 5-1: Console Login Screen

The user can now enter commands to manage the Industrial Managed

Switch. For a detailed description of the commands, please refer to the

following chapters.

Note

1. For security reason, please change and memorize

the new password after this first setup.

2. Only accept command in lowercase letter under

console interface.
