Planet XGS-6350-48X2Q4C Manuel utilisateur
Layer 3 24-/48-Port 10G SFP+ plus 4-Port 100G
QSFP28 Managed Switch
XGS-6350-24X4C/XGS-6350-48X2Q4C
Quick Installation Guide
Table of Contents
1. Package Contents ....................................................................................... 3
2. Switch Management.................................................................................... 4
3. Requirements ............................................................................................. 5
4. Terminal Setup ........................................................................................... 6
4.1 Logging on to the Console.................................................................... 7
4.2 ConguringIPAddress......................................................................... 8
4.3 Setting1000BASE-Xfor10GSFP+Port................................................. 9
4.4 Setting40GBASE-Xfor100GSFP+Port ...............................................10
4.5 ChangingPassword.............................................................................10
4.6 SavingtheConguration .....................................................................11
5. Starting Web Management .........................................................................12
5.1 LoggingintotheManagedSwitchfromManagementPort .....................13
5.2 SavingCongurationviatheWeb ........................................................14
6. LEDIndicators...........................................................................................15
6.1 XGS-6350-24X4C ...............................................................................15
6.2 XGS-6350-48X2Q4C ...........................................................................16
7. Customer Support .....................................................................................18
3
1. Package Contents
Thank you for purchasing PLANET Layer 3 24-/48-Port 10G SFP+ plus 4-Port 100G
QSFP28ManagedSwitch,XGS-6350-24X4C/XGS-6350-48X2Q4C.
Unless specied, “Managed Switch” mentioned in this Quick Installation Guide
referstotheXGS-6350-24X4C/XGS-6350-48X2Q4C.
Open the box of the Managed Switch and carefully unpack it. The box should
containthefollowingitems:
XGS-6350-24X4C XGS-6350-48X2Q4C
QuickInstallationGuide
DB9toRJ45InterfaceRS232
Console Cable
RackMountAccessoryKit
ACPowerCord
SFPDustCap 28 54
If any item is found missing or damaged, please contact your local reseller for
replacement.
4
2. Switch Management
To set up the Managed Switch, the user needs to congure the Managed Switch
fornetwork management.The ManagedSwitch providestwo managementoptions:
Out-of-Band Management and In-Band Management.
Out-of-Band Management
Out-of-band management is the management through console interface.
Generally, the user will use out-of-band management for the initial switch
conguration,orwhenin-bandmanagementisnotavailable.
In-Band Management
In-band management refers to the management by logging in to the Managed
Switchusing Telnetor HTTP,orusing SNMPmanagement softwaretocongure the
Managed Switch. In-band management enables the management of the Managed
SwitchtoattachsomedevicestotheSwitch.Thefollowingproceduresarerequired
toenablein-bandmanagement:
1. Log on to console
2.Assign/CongureIPaddress
3. Create a remote login account
4.EnableHTTPorTelnetserverontheManagedSwitch
In case in-band management fails due to Managed Switch conguration changes,
out-of-band management can be used for conguring and managing the Managed
Switch.
The Managed Switch is shipped with Management Port IP
address 192.168.1.1/24 assigned and VLAN1 interface IP
address 192.168.0.254/24 assigned by default. User can assign
another IP address to the Managed Switch via the console inter-
face to be able to remotely access the Managed Switch through
Telnet or HTTP.
5
3. Requirements
zWorkstations running Windows XP/2003/Vista/2008/7/8/10, MAC OS X or later,
Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)
zSerial Port Connection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
The above Workstations have been installed with terminal emulator, such as
Tera Term or PuTTY.
Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedSwitch.
zManagement Port Connection
Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.
TheabovePCisinstalledwithWebbrowser.
Note
Itis recommended touse InternetExplorer8.0 orabovetoaccess
the Managed Switch. If the Web interface of the Managed Switch
is not accessible, please turn off the anti-virus software or firewall
andthentryitagain.
6
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebook computer and to serial (console) port of the Managed Switch. The
console port of the Managed Switch is DCE already, so that you can connect the
consoleportdirectlythroughPCwithouttheneedofNullModem.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45

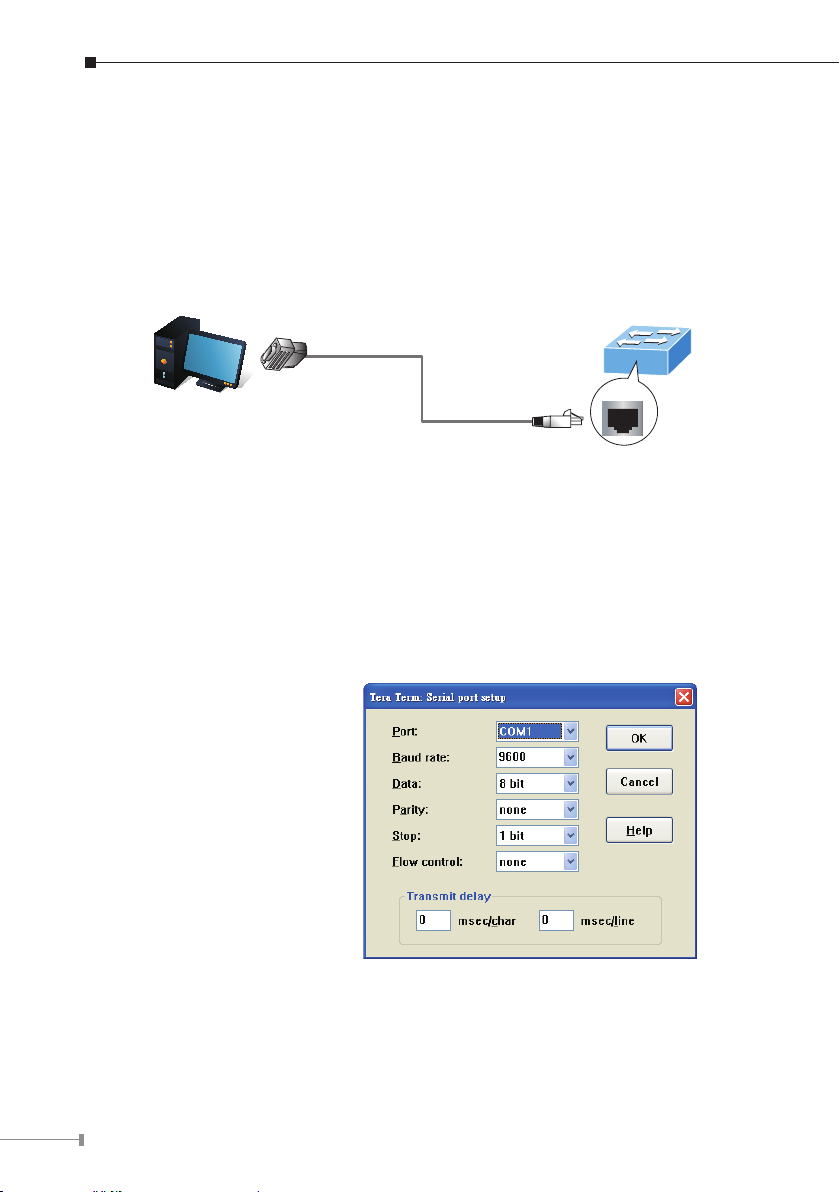

Figure 4-1 Managed Switch Console Connectivity
A terminal program is required to make the software connection to the Managed
Switch. Tera Term program may be a good choice. The Tera Term can be accessed
fromtheStart menu.
1. Click STARTmenu,thenPrograms,andthenTera Term.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud:9600
Parity:None
Databits:8
Stopbits:1
Flowcontrol:None
Figure 4-2 Tera Term COM Port Conguration
7
4.1 Logging on to the Console
Once the terminal is connected to the device, power on the Managed Switch, and
theterminalwilldisplay“running testing procedures”.
Then, the following message asks for the login user name and password. The
factory default user name and password are as follows as the login screen in
Figure4-3appears.
Username:admin
Password:admin

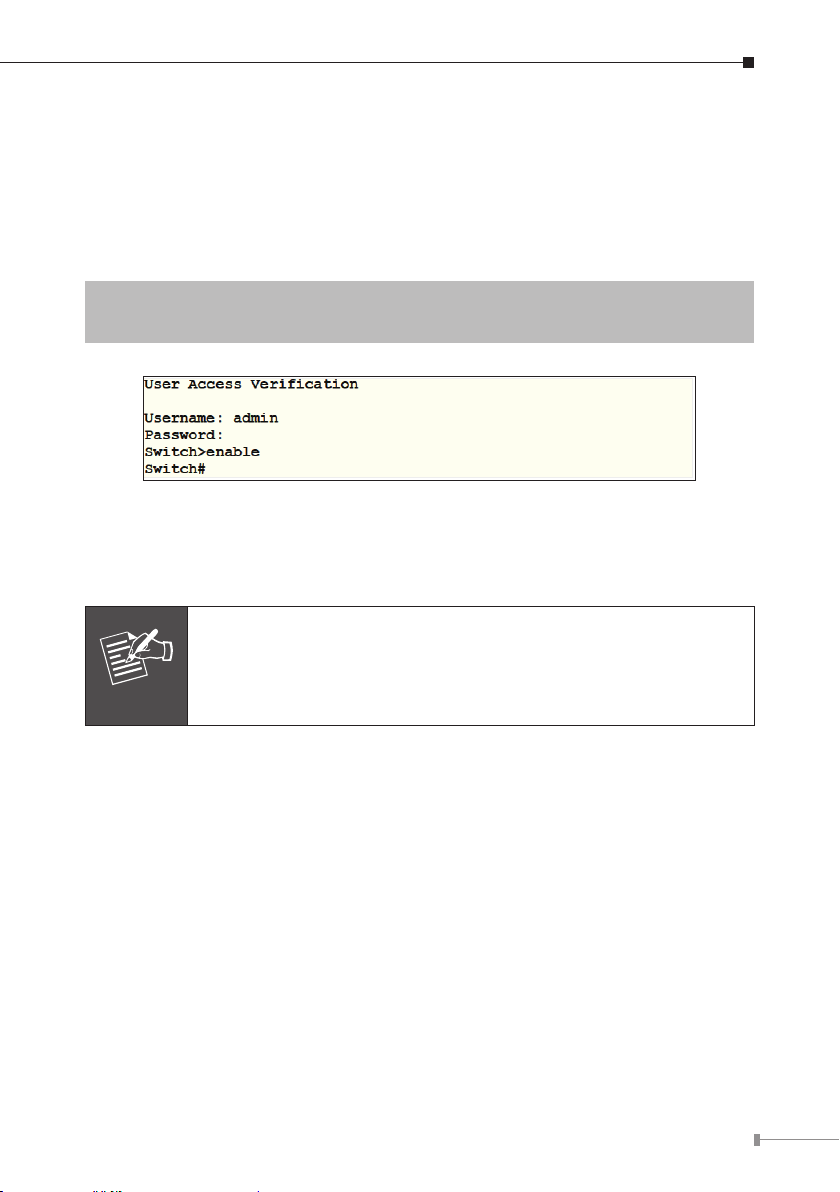

Figure 4-3 Managed Switch Console Login Screen
The user can now enter commands to manage the Switch. For a detailed
descriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.Forsecurity reason,please changeand memorizethenew pass-
wordafterthisfirstsetup.
2.Accept command in lowercase or uppercase letter under console
interface.
8
4.2 ConguringIPAddress
The IP address conguration commands for VLAN1 interface are listed below.
Before using in-band management, the Managed Switch must be congured with
an IP address by out-of-band management (i.e. console mode). The conguration
commandsareasfollows:
Switch#cong
Switch_cong#interface vlan 1
Switch_cong_v1#ip address 192.168.1.254 255.255.255.0
ThepreviouscommandwouldapplythefollowingsettingsfortheManagedSwitch.
IPv4 Address: 192.168.1.254
Subnet Mask: 255.255.255.0

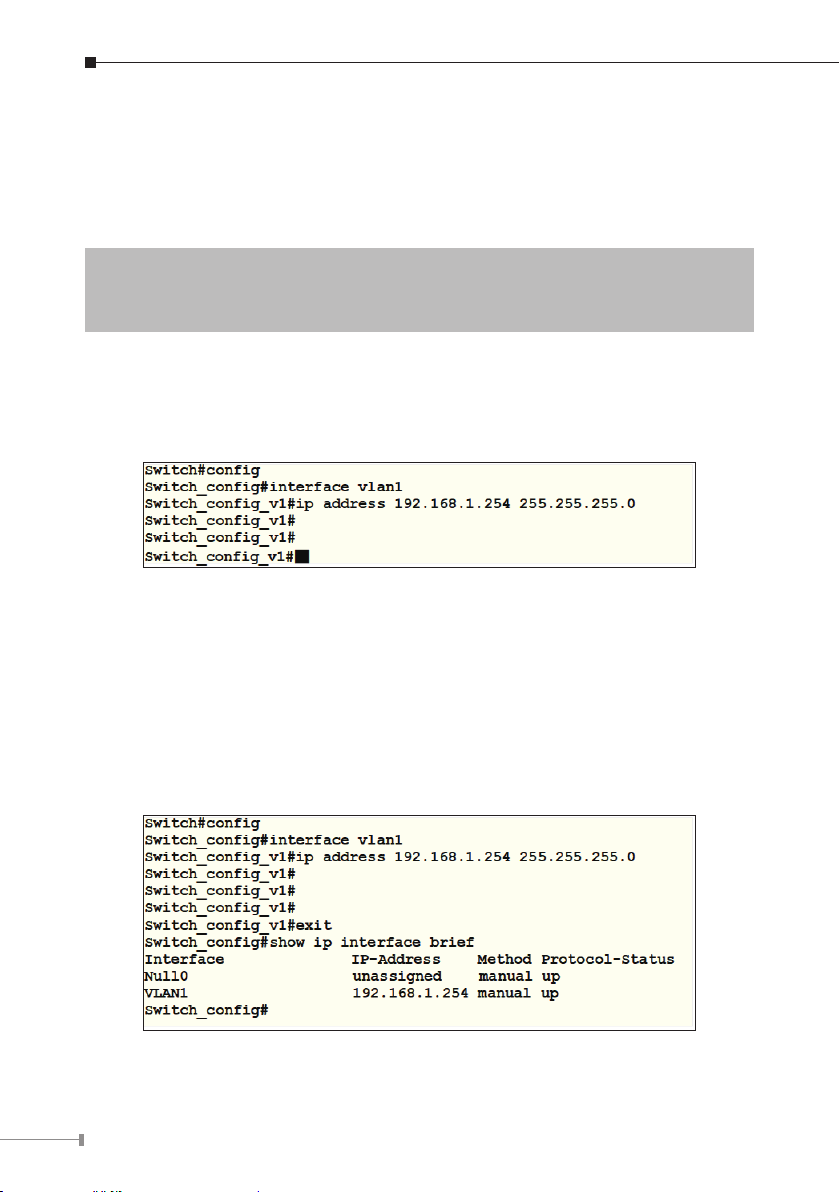

Figure 4-4 Conguring IPv4 Address Screen
To check the current IP address or modify a new IP address for the Managed
Switch,pleaseusetheproceduresasfollows:
Show the current IP address
1. On “Switch#”prompt,enter“show ip interface brief”.
2.The screen displays the current IP address, subnet mask and gateway as shown
inFigure4-5.
Figure 4-5 Showing IP Information Screen
9
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of Managed Switch
throughthenewIPaddress.
Note
Ifyouarenotfamiliarwithconsolecommandortherelatedparam-
eter,enter“help”anytimeinconsoletogetthehelpdescription.
4.3 Setting1000BASE-Xfor10GSFP+Port
The Managed Switch supports both 1000BASE-X and 10GBASE-X SFP
transceivers by manual setting and the default SFP+ port speed is set to 10Gbps.
For example, to establish the ber connection with 1000BASE-X SFP transceiver in
the tgigaethernet 0/1,thefollowingcommandcongurationisrequired:
Switch#cong
Switch_cong#interface tgigaethernet 0/1
Switch_cong_tg1/1#speed 1000
Switch_cong_tg1/1#exit
Switch_cong#interface range tgigaethernet 0/2-24
Switch_cong_if_range#speed 1000
Switch_cong_if_range#

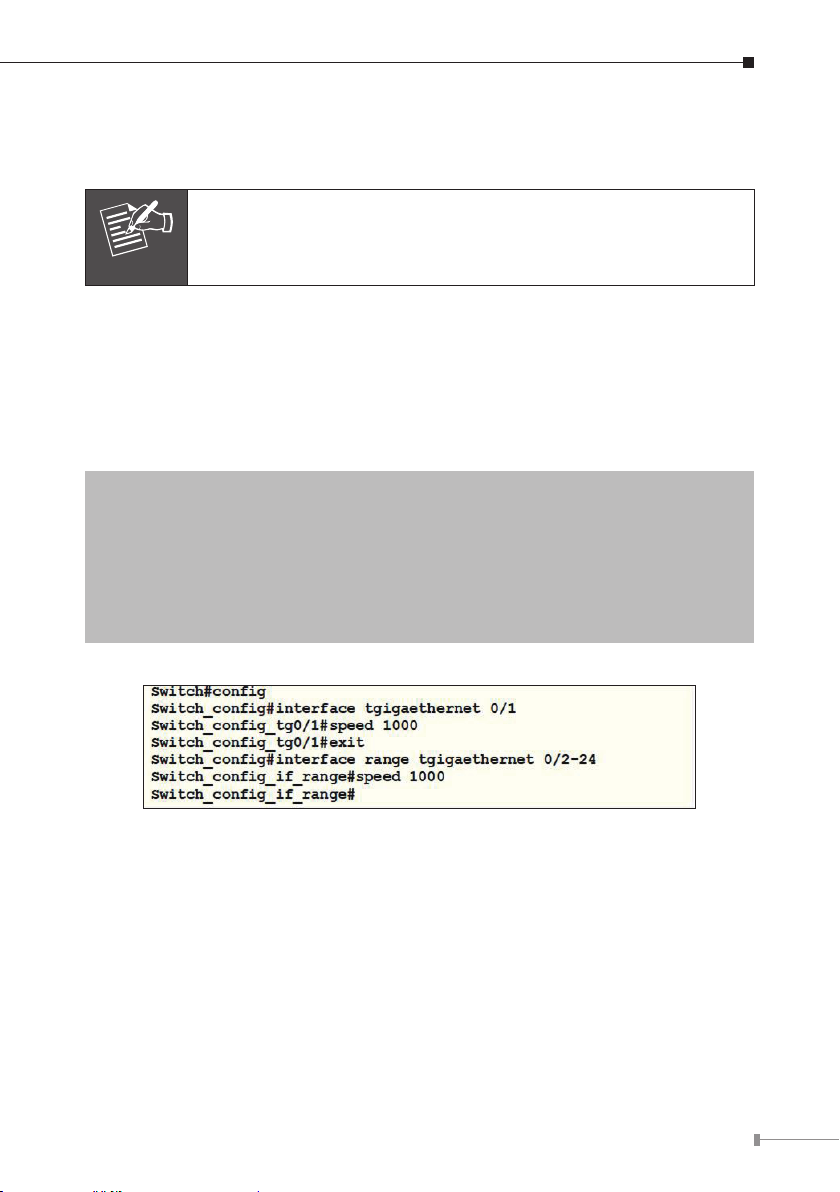

Figure 4-6 Setting 1000BASE-X Screen
10
4.4 Setting40GBASE-Xfor100GSFP+Port
The Managed Switch supports both 40GBASE-X and 100GBASE-X SFP
transceiversbymanual settingand the defaultSFP+ portspeed isset to100Gbps.
For example, to establish the ber connection with 40GBASE-X SFP transceiver in
the cgigaethernet 0/1,thefollowingcommandcongurationisrequired:
Switch#cong
Switch_cong#interface cgigaethernet 0/1
Switch_cong_cg0/1#speed 40000
Switch_cong_cg0/1#exit
Switch_cong#interface range cgigaethernet 0/2-4
Switch_cong_if_range#speed 40000
Switch_cong_if_range#

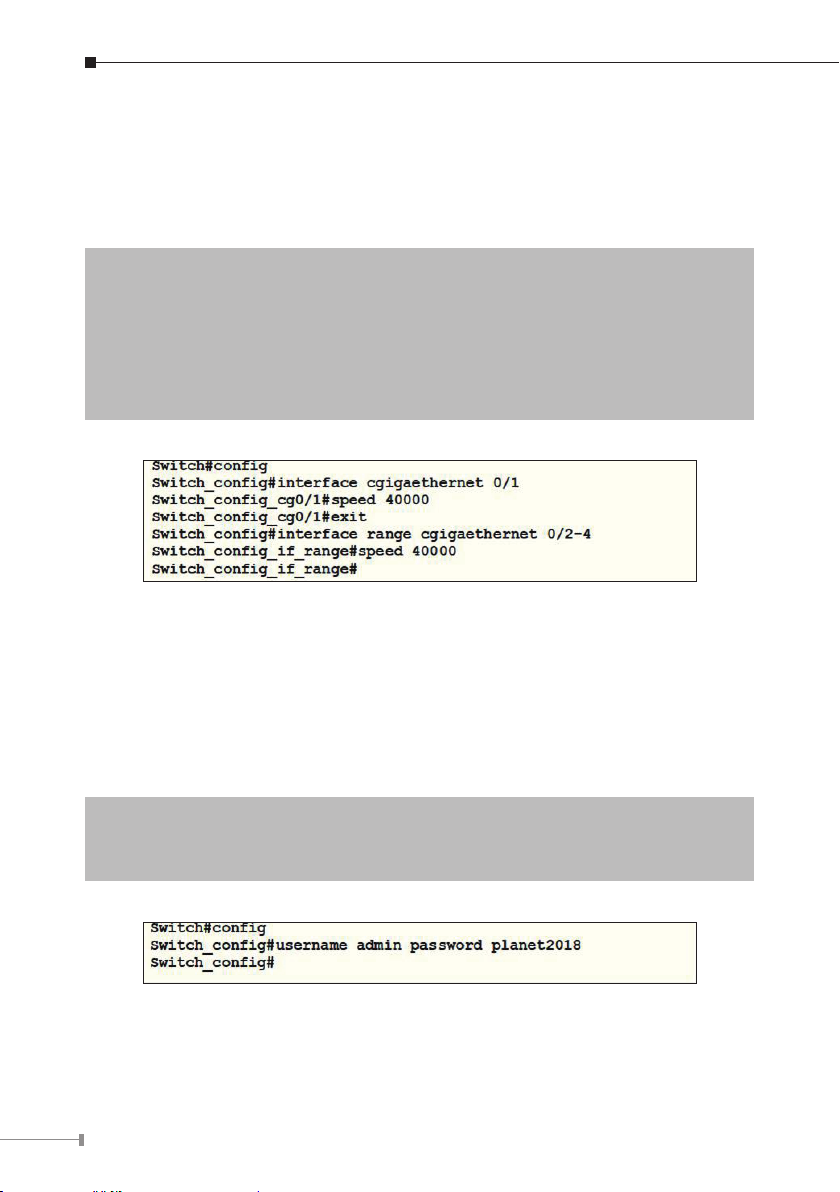

Figure 4-7 Setting 40GBASE-X Screen
4.5 Changing Password
The default password of the switch is “admin”. For security reason, it is
recommended to change password and the following command conguration is
required:
Switch#cong
Switch_cong#username admin password planet2018
Switch_cong#
Figure 4-8 Changing Password Interface Screen
