Planet FNSW-1601 Manuel utilisateur

PLANET NOVASwitch series

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET

Technology Corp. All other trademarks belong to their

respective owners.

FCC Warning

This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference when the equipment is operated in a

commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the

Instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference

in which case the user will be required to correct the

interference at his own expense.

Before Starting

In this User's Manual "NOVASwitch" is used for any/all

of the PLANET NOVASwitch models of Ethernet

Switches listed on the title page. Important differences

between models will be specified.

Reversion

PLANET NOVASwitch User's Manual

FOR MODELS:

FNSW-1601, FNSW-2401

Part No.: 2010- 000007- 001

FNSW-16/24 User's Manual 3

Table of Contents

1UNPACKING INFORMATION.............................................5

2RODUCT INTRODUCTION..................................................7

2.1 KEY FEATURES ...................................................................7

2.2 FRONT PANEL .....................................................................8

2.2.1 Ports Speed .....................................................................8

2.2.2 Cabling............................................................................8

2.2.3 Status LEDs.....................................................................9

2.3 THE REAR PANEL..............................................................10

2.3.1 Power Connector ..........................................................10

3INSTALLATION....................................................................11

3.1 RACK-MOUNT INSTALLATION...........................................11

3.2 DESKTOP INSTALLATION...................................................11

4OPTIMIZING CONFIGURATION .....................................13

4.1 PRIOR TO INSTALLATION...................................................13

4.2 HALF- AND FULL-DUPLEX................................................13

4.3 FAST ETHERNET................................................................14

4.4 AUTO-NEGOTIATION.........................................................14

4.5 MAC ADDRESS TABLE .....................................................15

4.6 SAMPLE APPLICATION.......................................................16

5TROUBLESHOOTING.........................................................17

6PRODUCT SPECIFICATIONS............................................19

7RJ-45 PIN ASSIGNMENT.....................................................21

7.1 STRAIGHT-THROUGH/CROSSOVER CABLE ........................21

PLANET NOVASwitch series

This page intentionally left blank!

FNSW-16/24 User's Manual 5

1 UNPACKING INFORMATION

Thank you for purchasing a PLANET NOVASwitch series

Ethernet Switches. Before continuing, please check the

contents of the product package. This product package should

contain the following items:

● One NOVASwitch Ethernet Switch

● One Power Cord

● Two Rack-Mounting Brackets with Attachment Screws

● This User’s Manual

Please inform your local dealer/supplier immediately if any item

is found to be defective, damaged or missing. Retain the

original packaging (carton), including the packing materials,

and use them to re-pack the product in the unlikely event there

is a need to return it to us for repair.

PLANET NOVASwitch series

This page intentionally left blank!

FNSW-16/24 User's Manual 7

2 RODUCT INTRODUCTION

NOVASwitch Ethernet Switches are multi-speed, versatile

network devices combining both standard and "Big-Pipe" ports

under the same hood.

2.1 Key Features

● Compliant with IEEE802.3 and 802.3u standards for

100Base-TX

● 16/24-port Fast Ethernet Switch, pure 10/100Base-TX

● Wire-speed "Store-and-Forward" filtering/forwarding

eliminates bad data packets with minimal delay

● 100Base-TX ports automatically sense and set optimal

line speed from 10/20, 100/200Mbps, All 100Base-TX

port support Auto-Negotiation function

● Shared buffer memory and up to 8K entry MAC source

address table make for fast handling of data packets

● Flow control to eliminate packets loss

● Internal, full-range power supply suitable for worldwide

use

● Auto MDI-per port for easy hub cascade

PLANET NOVASwitch series

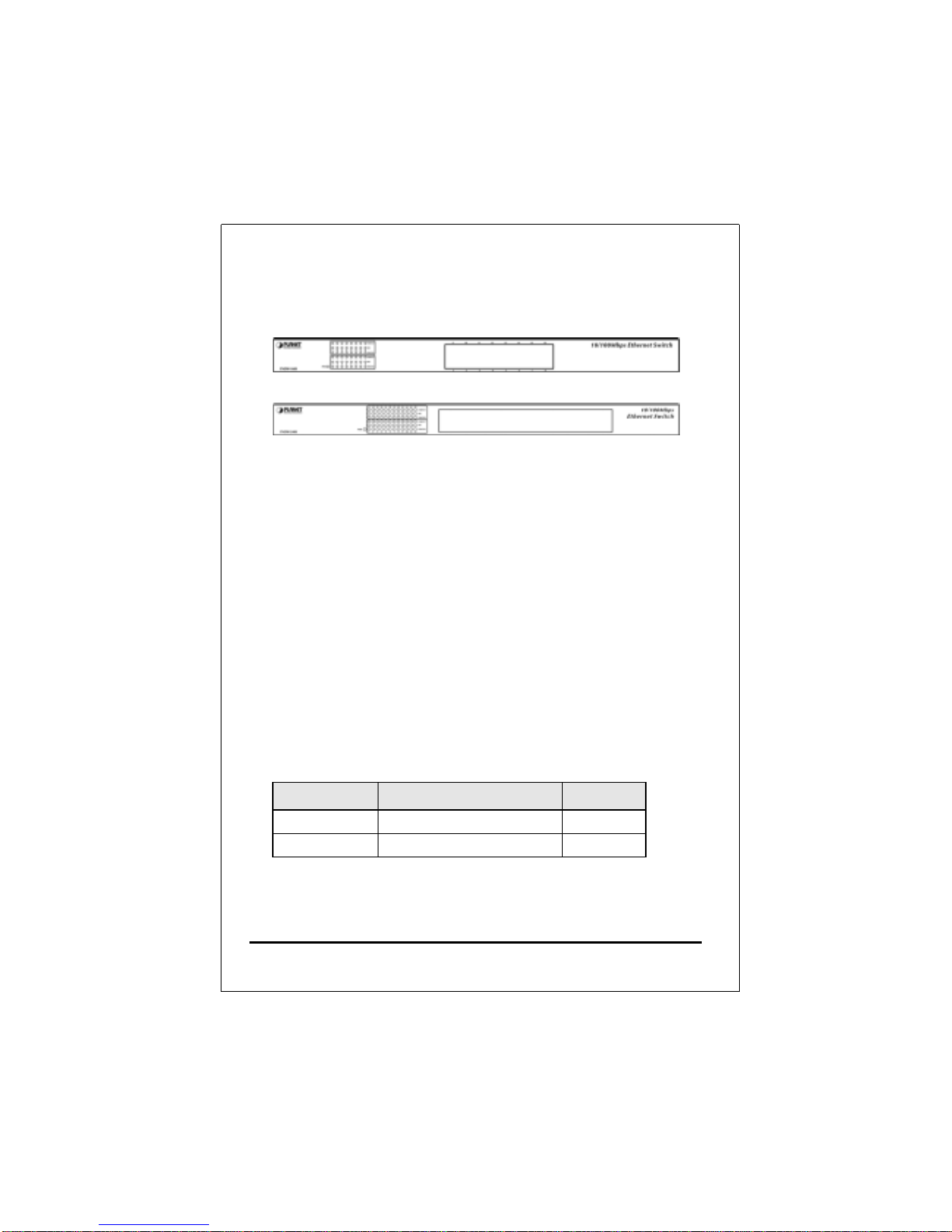

2.2 Front Panel

Figure 1: Front View of the FNSW-1601

Figure 2: Front View of the FNSW-2401

2.2.1 Ports Speed

100Base-TX

All 100Base-TX ports come with auto-negotiation capability.

They automatically support 100Base-TX and 10Base-T

networks. Users only need to plug a working network device

into one of the 100Base-TX ports, then turn on the hub. The

port will automatically runs in 10Mbps, 20Mbps, 100Mbps or

200Mbps after the negotiation with the connected device.

2.2.2 Cabling

NOVASwitch 100Base-TX ports use RJ-45 sockets -- similar to

phone jacks -- for connection of unshielded twisted-pair cable

(UTP). The IEEE 802.3u Fast Ethernet standard requires

Category 5 UTP for 100Mbps 100Base-TX. 10Base-T networks

can use Cat.3, 4, or 5 UTP (see table A)

Port Type Cable Type Connector

10Base-T Cat 3, 4, 5 RJ-45

100Base-TX Cat.5/5e UTP RJ-45

Table A: Supported port list

FNSW-16/24 User's Manual 9

2.2.3 Status LEDs

One green LED to show power On/Off is on the front panel. Also,

each port has three status LED indicators, as shown below.

Label Status /

Color Meaning Description

Steady

Green Link Lit to indicate a valid physical

UTP/STP connection exists

LOWER

ROW Blink

Green Active Blink to indicate the port is

receiving data packets

MIDDLE

ROW Steady

Green 100M Lit to indicate that a valid

physical UTP/STP connection

exists on that port runs in

100Mbps

Steady

Orange Full-Duplex Lit to indicate Full-Duplex

mode detected on that port

UPPER

ROW

Blink

Orange Collision Blinks if a collision is detected

when the port is in Half-Duplex

mode.

Table B: The Switch's Port-LED Functions

PLANET NOVASwitch series

2.3 The Rear Panel

AC inlet

Figure 4: Rear View for the Switch

2.3.1 Power Connector

The Power Connector is designed to be used with the power

cord included in the product package. Attach the female end of

the cord to the power connector and the male end of the cord to

a grounded power outlet. The accepted power range is from

100VAC to 240VAC, 50/60Hz.

Note:

The Switch is a power-required device, it means, the

Switch will not work until it is powered. If your networked

PCs will need to transmit data all the time, please

consider use an UPS (Uninterrupted Power Supply) for

your Switch. It will prevent you from network data loss.

In some area, installing a surge suppression device may

also help to protect your Switch from being damaged by

unregulated surge or current to the Switch or the power

adapter
