WPG-120 User Manual
Wireless Presentation Gateway
WPG-120
User’s Manual
WPG-120 User Manual
Copyright
Copyright ©2009 by PLANET Technology Corp. All rights reserved. No part of this publication may
be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular
purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes
the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting
from any defect in the software. Further, PLANET reserves the right to revise this publication and to
make changes from time to time in the contents hereof without obligation to notify any person of such
revision or changes.
All brand and product names mentioned in this manual are trademarks
and/or registered trademarks of their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio technician for help.
WPG-120 User Manual
FCC Caution
To assure continued compliance. (example-use only shielded interface cables when connecting to
computer or peripheral devices). Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two
conditions: ( 1 ) This device may not cause harmful interference, and ( 2 ) this Device must accept any
interference received, including interference that may cause undesired operation.
Federal Communication Commission (FCC) Radiation Exposure
Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In
order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human
proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN
PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication
terminal Equipment and the mutual recognition of their conformity (R&TTE)
The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal
Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity when
working with electrical equipment. All guidelines of this and of the computer manufacture must
therefore be allowed at all times to ensure the safe use of the equipment.
WEEE regulation
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users of
electrical and electronic equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to
collect such WEEE separately.
Revision
User’s Manual for PLANET Wireless Presentation Gateway
Model: WPG-120
Rev: 1.0 (October. 2009)
Part No. EM-WPG120
WPG-120 User Manual
4
Table of Contents
1.
Overview
.....................................................................................................5
2.
Quick Start
.................................................................................................6
3.
Windows Client Utility
...........................................................................9
3.1
Starting Program
.................................................................................9
3.2
Login
......................................................................................................10
3.3
Main User Interface
..........................................................................10
3.4
Screen Projection
..............................................................................10
3.5
Menu Description
.............................................................................. 11
3.5.1
Show Login Code
........................................................................... 11
3.5.2
Open Admin Web Page
................................................................12
3.5.3
Searching Server
...........................................................................13
3.5.4
Projection Quality
.........................................................................13
3.5.5
Projection Source
..........................................................................14
3.5.6
Connection Profile
.........................................................................15
3.5.7
Auto WiFi Connect
........................................................................16
3.5.8
Auto Power Manager
...................................................................16
3.5.9
Hide UI
..............................................................................................17
3.5.10
Advanced Screen Capture
......................................................17
3.5.11
Make PnS Token
........................................................................18
3.5.12
Copy Application to desktop
.................................................19
3.5.13
About
..............................................................................................20
3.5.14
Exit
..................................................................................................20
4.
Web Management
.................................................................................21
4.1
Home Page
...........................................................................................21
4.2
Download Software
..........................................................................22
4.3
Login Web Admin
..............................................................................23
4.3.1
System Status
.................................................................................23
4.3.2
Network Setup
...............................................................................24
4.3.3
Projection Setup
............................................................................25
4.3.4
Change Passwords
........................................................................25
4.3.5
Reset to Default
.............................................................................26
4.3.6
Firmware Upgrade
........................................................................27
4.3.7
Reboot System
...............................................................................28
4.3.8
Logout
................................................................................................29
- 4 -
WPG-120 User Manual
1.Overview
PLANET WPG-120 is a portable wireless presentation gateway based on 802.11g technology.
The size is only 8*3.5*2 cm and the weight is 53g. You cloud take WPG-120 to anywhere you
want present at anytime. It cloud provide four wireless users to easily display their
presentations without swapping cables at the same time.
The output resolution of WPG-120 supports up to 1024x768 with 16-bit color, which gives the
high quality displaying in both presentation. To ensure the session security, every user is
required to key in a valid password prior than using WPG-120. Also, the built-in wireless AP
supports 64/128-bit WEP and WPA-PSK/WPA2-PSK encryption to secure its communication.
The WPG-120 is compatible with VGA-equipped devices; you can connect this gadget to any
projector, LCD TV or large screen display. The embedded windows-based utility enables
connected users directly download the utility from the WPG-120 web screen, CD or USB
adapter, that offers the most convenient way for the new user access to presentation in
seconds.
Plug & Show
With Plug & Show USB Token, wireless presentation becomes easy! Just link your
PC/Laptop to WPG-120, plug the token into a USB port, and in seconds, your screen will be
wirelessly projected to the connected projector!
High performance screen projection
WPG-120 provides the latest generation screen projection technology.
The smoothest screen works by the projection wirelessly, no matter what screen shows on
your PC.
4-to-1 Split Screen Projection
With this 4-to-1 split screen feature, up to four PC screens can be projected to one projector at
the same time. Thus you can easily do side-by-side comparison from four PC / PDAs to
increase meeting productivity!
¾Features
■Web-based GUI for and Control Panel for easily configuration
■Projection Quality Option
■Support Windows Vista, XP, 2000.
■Auto Power Manager
■Hide Utility Panel
■Supports 64/128-bit WEP, WPA –TKIP(PSK), WPA2-AES(PSK),
contents and keep good security to office networks.
■Supports Win-XP Virtual Desktop
5
WPG-120 User Manual
2.Quick Start

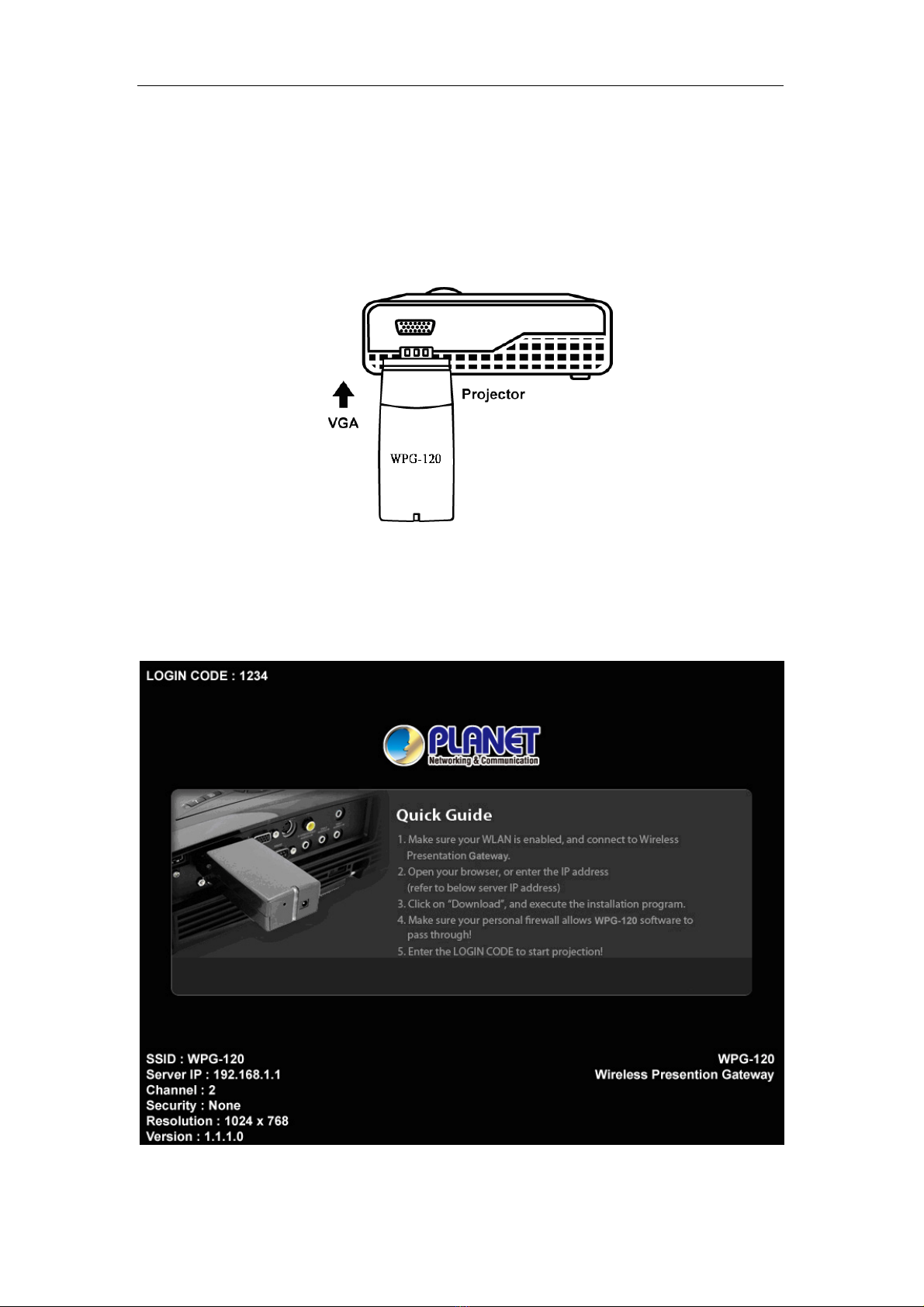

1) Plug the WPG-120 into the projector VGA input or connect a VGA cable to
the WPG-120 VGA connector and turn on projector power.
2) Turn on WPG-120.
♦When projector shows the default menu on the screen as below, it
indicates the WPG-120 is ready.
3) Make sure your PC WLAN is enabled then connect to your PC with the
6
WPG-120 User Manual
WPG-120.
4) Open your browser and it will redirect to the WPG-120 main page
automatically, or you can enter the IP address to access the WPG-120 web
home page.
♦The default IP address of WPG-120 is 192.168.1.1 or refers to the IP
address shown on the bottom left corner of projector screen.
5) Download the client software, select “ Windows Vista / XP / 2000” and
execute the installation program.
♦After installing the program, you will see the WPG-120 shortcut on the PC
screen.
7
WPG-120 User Manual
6) Make sure your personal firewall allows WPG-120 software to pass through.
7) Enter the LOGIN CODE and
♦You can see the login code is the top left of the projector screen.
8) Click the “Play” button to start projection!
8
WPG-120 User Manual
3.Windows Client Utility

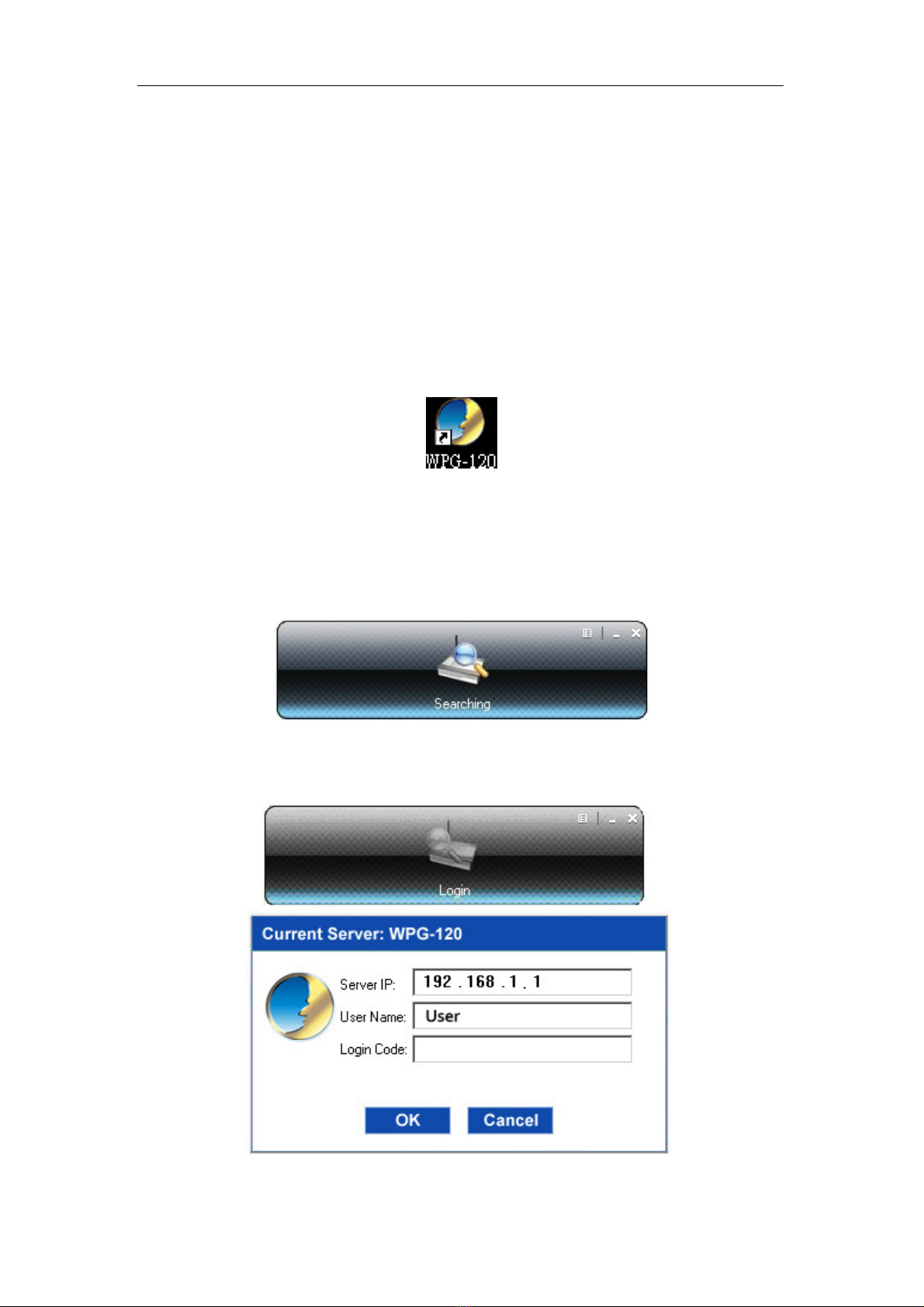

3.1 Starting Program
After you download the WPG-120 windows program via web page successfully
follow the steps below to start.
1) Click WPG-120 icon to execute the program.
2) Program will start to search for WPG-120 automatically,
3) If WPG-120 is found the “Login Code” dialog box will pop up on the PC
screen.
z
Searching for WPG-120.
z
When WPG-120 is found, enter login code to start.
9
WPG-120 User Manual
3.2 Login
1) After “Login Code” dialog box shown, enter login code to start presentation.
2) You can see the login code shown in the top left of the projector screen.
3.3 Main User Interface
Menu Area
Login Coded
3.4 Screen Projection
Status Indicator
Control Area for Screen
Projection Feature
Click the “Play” button for full or split screen, you can project the main screen
on to the display immediately, click the “Pause” button, to freeze the image,
and click the “Stop” button to end the presentation.
10
Autres manuels pour WPG-120
2
Table des matières
Autres manuels Planet Porte
Planet
Planet VIP-000 Manuel utilisateur
Planet
Planet VIP-110 Manuel utilisateur
Planet
Planet UMG-2000 Manuel utilisateur
Planet
Planet WPG-210N Manuel utilisateur
Planet
Planet WPG-120 Manuel utilisateur
Planet
Planet MH-5000 Manuel utilisateur
Planet
Planet Network Device MAP-2105 Manuel utilisateur
Planet
Planet VIP-281 SW Manuel utilisateur
Planet
Planet MH-1000 Manuel utilisateur
Planet
Planet CS-2000 Manuel utilisateur
Planet
Planet VCG-1500WG-LTE Manuel utilisateur
Planet
Planet MH-5000 Manuel utilisateur
Planet
Planet LCG-300 Series Manuel utilisateur
Planet
Planet CS-2001 Manuel utilisateur
Planet
Planet VIP-281 Series Manuel utilisateur
Planet
Planet ICG-2515 Series Manuel utilisateur
Planet
Planet MH-1000 Manuel utilisateur
Planet
Planet ICG-2420-LTE Manuel utilisateur
Planet
Planet IMG-2100T Manuel utilisateur
Planet
Planet MH-2001 Manuel utilisateur
Manuels Porte populaires d'autres marques
LST
LST M500RFE-AS Manuel utilisateur
Kinnex
Kinnex Media Gateway Manuel utilisateur
2N Telekomunikace
2N Telekomunikace 2N StarGate Manuel utilisateur
Mitsubishi Heavy Industries
Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur
ZyXEL Communications
ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur
Telsey
Telsey CPVA 500 - SIP Manuel utilisateur
