Planet WTB-1000 Manuel utilisateur

2.4 / 5 GHz 1000mW WLAN Booster

WBT-1000/1000A

Quick Installation Guide

Table of Contents

WBT-1000 ....................................................................................................... 4

Package Contents ....................................................................................... 4

Specications ............................................................................................. 4

Features .................................................................................................... 5

Hardware Installation .................................................................................. 5

WBT-1000A ..................................................................................................... 7

Package Contents ....................................................................................... 7

Specications ............................................................................................. 7

Features .................................................................................................... 8

Hardware Installation .................................................................................. 8

Preparations ...................................................................................................10

Troubleshooting ..............................................................................................11

this publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language, in any form or

by any means, electronic, mechanical, magnetic, optical, chemical, manual or

otherwise, without the prior written permission of PLANET.

PLANET makes no representations or warranties, either expressed or implied,

with respect to the contents hereof and specically disclaims any warranties,

merchantability or tness for any particular purpose. Any software described in this

manual is sold or licensed "as is". Should the programs prove defective following

their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes

the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software. Further, PLANET reserves the

right to revise this publication and to make changes from time to time in the

contents hereof without obligation to notify any person of such revision or changes.

All brand and product names mentioned in this manual are trademarks and/or

registered trademarks of their respective holders.

FCC Regulation

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Revision

Quick Installation Guide for PLANET 2.4 / 5 GHz WLAN Booster

Model: WBT-1000/1000A

Rev: 2.0 (June, 2009)

Part No. EMQ-WBT1000v2

WBT-1000

Package Contents

The following items should be included:

Outdoor Wireless Amplier Unit x 1

DC Injector Unit x 1

Mounting Kit x 1

30 cm male RP-SMA to male N type cable x 1

Quick Installation Guide x 1

Power Adapter x 1

If any of the above items are damaged or missing, please contact your dealer

immediately.

Specications

Operating Range 2400~2500 MHz

Operating Mode Bi-directional, half-duplex, auto-switching via carrier

sensing

Connector Type N-type, female (50 ohm)

RF Input power

0~15dbm

Warning: Input power more than 15 dBm may

breakdown the power amplier.

Transmit Gain 18dB

Output Power 1W (30 dBm)

Receiver Gain 15 dB

Noise Figure 3.5dB

Frequency Response ± 1 dB over operating range

DC Power Input 9V DC, 2.0 A

Operating Temp. -20 to +70˚C

Operating Humidity Up to 95% relative humidity

Material Cast Aluminum

Lightning Protection Direct DC ground at antenna connector

DC Surge Protection At DC input from transmission cable

LED DC Power (Yellow), Transmit Active (Green)

Outdoor Unit (cm) 10.8 cm (L) x 6.8 cm (W) x 3.0 cm (H)

DC Injector (cm) 10.2cm (L) x 3.6cm (W) x 2.6cm (H)

Weight 345g (Booster) / 96g (DC Injector)

Features

High Gain, High Value and High Performance/ Auto Gain Signal Booster

Amplify and AP’s radio signal to 30dBm

Make broadband wireless application in possible coverage

Increase AP’s receiving sensitivity up to -100dB

Increasing radio communication range by providing transmit gain as well as low-

noise receive gain.

Aluminum case construction/weather-proof/ Lightning protection

Strength radio signal to increase the effective range and coverage area for Wi-Fi

communication.

Simply attach the DC Injector with 2.4GHz radio signal input plus the DC power

feed to the outdoor unit and N type antenna.

The outdoor booster increase range by providing transmit gain as well as low

noise receive gain.

The benet for signal booster can save lots of wiring costs and easy to build

wireless infrastructure for home or business use

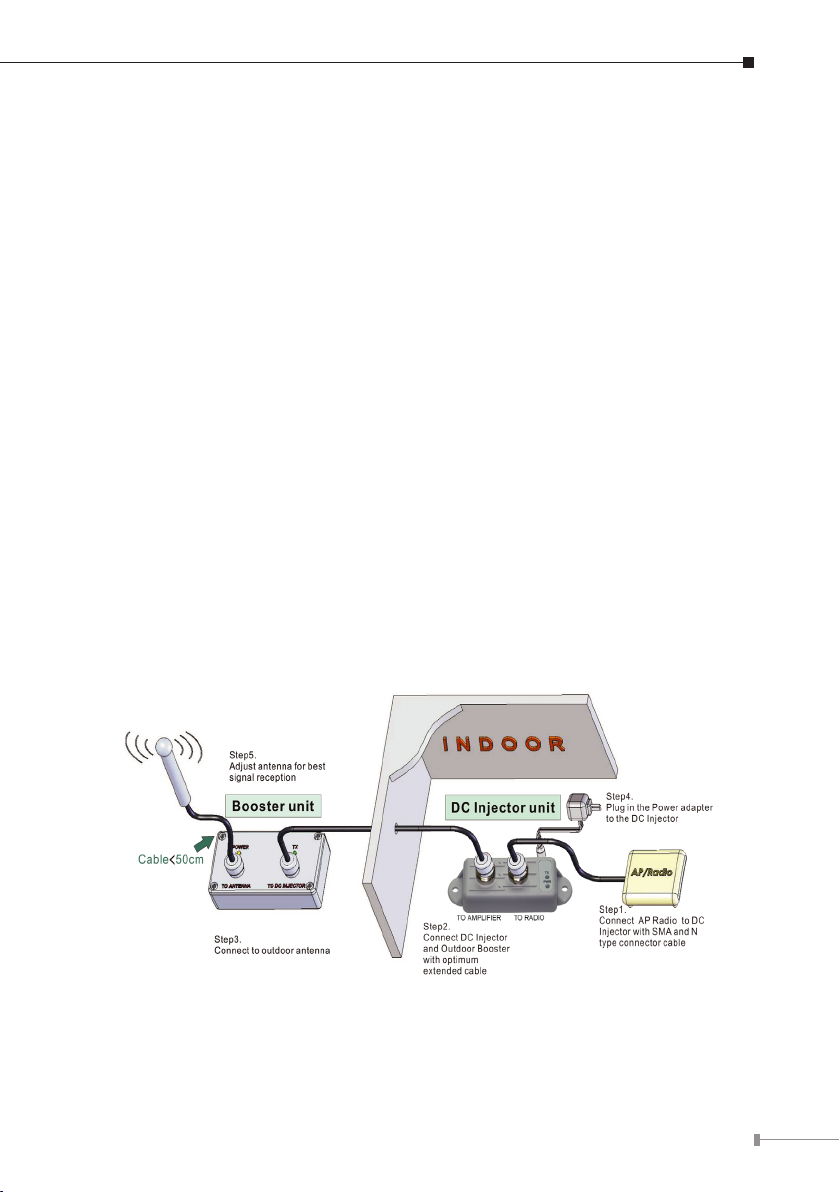

Hardware Installation

Step 1: Connect AP Radio to DC injector with 30 cm male RP-SAM to male N type

cable.

Step 2: Connect DC Injector and Outdoor Booster Unit with optimum length

extend cable (<50 meters).

Step 3: Connect the Outdoor Booster Unit and the Antenna with RF cable (<50

cm).

Step 4: Plug in the power adapter to the DC Injector Unit.

Step 5: Adjust antenna for best signal reception.

Note

1. Make sure the TX power of the AP Radio follow the required RF

power input.

2. Please connect antenna before power on, also do not disas-

semble antenna while operating, otherwise, it will cause the

device damage.

WBT-1000A

Package Contents

The following items should be included:

Outdoor Wireless Amplier Unit x 1

DC Injector Unit x 1

Mounting Kit x 1

30 cm male RP-SMA to male N type cable x 1

Quick Installation Guide x 1

Power Adapter x 1

If any of the above items are damaged or missing, please contact your dealer

immediately.

Specications

Operating Range 5150 ~ 5850 MHz

Operating Mode Bi-directional, half-duplex, auto-switching via carrier

sensing

Connector Type N-type, female (50 ohm)

Input power

0~15dbm

Warning: Input power more than 15 dBm may

breakdown the power amplier.

Output Power 1W (30 dBm)

Receiver Gain 15 dB typical

Noise Figure 5 dB typical

Frequency Response ± 1 dB over operating range

DC Power input 9V DC, 2.0 A

Operating Temp. -20 to +70°C

Operating Humidity Up to 95% relative humidity

Material Cast Aluminum

Lightning Protection Direct DC ground at antenna connector

DC Surge Protection At DC input from transmission cable

LED Transmit Active (Green)

Outdoor Unit (cm) 11.5cm (L) x 6.5cm (W) x 4.8cm (H)

DC Injector (cm) 10.2cm (L) x 3.6cm (W) x 2.6cm (H)

Weight 345g (Booster) / 96g (DC Injector)

Features

High Gain, High Value and High Performance/Auto Gain Signal Booster

Amplify and AP’s radio signal to 30dBm or more

Make broadband wireless application in possible coverage

Increase AP’s receiving sensitivity up to -100dB

Increasing radio communication range by providing transmit gain as well as low-

noise receive gain.

Aluminum case construction/weather-proof/Lightning protection

Strength radio signal to increase the effective range and coverage area for Wi-Fi

communication.

Simply attach the DC Injector with 5GHz radio signal input plus the DC power

feed to the outdoor unit and N type antenna.

The outdoor booster increase range by providing transmit gain as well as low

noise receive gain.

The benet for signal booster can save lots of wiring costs and easy to build

wireless infrastructure for home or business use

Hardware Installation

Note

For WBT-1000A Booster Unit, Please face the LED Indicator down

when installation.

Step 1: Connect AP Radio to DC injector with 30 cm male RP-SAM to male N type

cable.

Step 2: Connect DC Injector and Outdoor Booster Unit with optimum length

extend cable (<50 meters).

Step 3: Connect the Outdoor Booster Unit and the Antenna with RF cable (<50

cm).

Step 4: Plug in the power adapter to the DC Injector Unit.

Step 5: Adjust antenna for best signal reception.

Note

1. Make sure the TX power of the AP Radio follow the required RF

power input.

2. Please connect antenna before power on, also do not disas-

semble antenna while operating, otherwise, it will cause the

device damage.

Preparations

In order to obtain the best performance of booster and system, user must

calculate the transmission power to meet the booster technical requirement and

FCC regulations. Please follow the calculation below:

1. Convert power of the radio device from milliwatt to dBm.

Note

10 * Log (milliwatt)

2. Estimate the attenuation of cable (please refer to manufacturer’s specications)

Note

It is suggested that the cable loss between booster and DC injector

should not exceed 10 dBm.

General Cable Attenuation List

LMR400 LMR600 LMR900

dB loss per meter 0.221 0.144 0.098

Suggested max. cable length (m) 45.24 69.44 102.04

3. Calculate the actual power of booster in the pole as follow:

Radio Device Power (dBm) – Cable Loss (dBm) – Misc. Loss = Input Signal Level

(dBm)

Note

Misc. Loss means loss of connector, adapter and DC injector and

estimates to be around 2 dB.

4. When the input signal level exceeds the Receiver Input Power of booster, the

booster can’t identify the input signal. Under this circumstance, user should

lower the input signal level to t the requirement such as using an attenuation

pad or a higher loss cable and vice versa.
