Planet IPOE-E172 Manuel utilisateur
Industrial 1-port Ultra PoE to 2-port 802.3bt/at
Gigabit PoE Extender
IPOE-E172
User’s Manual
Trademarks
Copyright © PLANET Technology Corp. 2017.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other
trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work
properly in all environments and applications, and makes no warranty
and representation, either implied or expressed, with respect to
the quality, performance, merchantability, or tness for a particular
purpose.
PLANET has made every effort to ensure that this User’s Manual is
accurate; PLANET disclaims liability for any inaccuracies or omissions
that may have occurred.
Information in this User’s Manual is subject to change without notice
and does not represent a commitment on the part of PLANET. PLANET
assumes no responsibility for any inaccuracies that may be contained in
this User’s Manual. PLANET makes no commitment to update or keep
current the information in this User’s Manual, and reserves the right
to make improvements to this User’s Manual and/or to the products
described in this User’s Manual, at any time without notice.
If you nd information in this manual that is incorrect, misleading, or
incomplete, we would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the Instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to
take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human
health as a result of the presence of hazardous substances in
electrical and electronic equipment, end users of electrical
and electronic equipment should understand the meaning of
the crossed-out wheeled bin symbol. Do not dispose of WEEE as
unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET Industrial 1-Port Ultra PoE to 2-Port 802.3bt/at Gigabit PoE
Extender User's Manual
FOR MODEL: IPOE-E172
REVISION: 1.0 (SEPTEMBER, 2017)
Part No: EM-IPOE-E172_v1.0 (2350-AF0590-000)
Table of Contents
1. Introduction ............................................................................... 5
1.1 Package Contents ................................................................ 5
1.2 Product Features ................................................................. 5
1.3 Product Specications .......................................................... 7
1.4 Power over Ethernet Budget ................................................. 9
1.5 Power over Ethernet Capability ............................................10
1.5.1 When PSE/PoE Switch Output is DC 52V ....................10
1.5.2 When PSE/PoE Switch Output is DC 56V ....................11
2. Installation ..............................................................................12
2.1 Physical Dimensions............................................................12
2.2 Front Panel ........................................................................13
2.3 Rear Panel .........................................................................14
2.4 Mounting Installation...........................................................14
2.4.1 Making Waterproof RJ45 Cable ..................................15
2.4.2 Wall Mounting ..........................................................16
2.4.3 Connecting Waterproof RJ45 Connector
to the IPOE-E172 .....................................................17
2.5 Connecting IPOE-E172 to Power Source Equipment (PSE) ......19
2.6 Connecting IPOE-E172 to Powered Device (PD).....................20
3. Customer Support .....................................................................22
APPENDIX A: Networking Connection...............................................23
A.1 Switch’s RJ45 Pin Assignments..............................................23
A.2 RJ45 Cable Pin Assignments .................................................24
5
1. Introduction
1.1 Package Contents
Check your package for the following parts:
Industrial PoE Extender User’s Manual Waterproof RJ45
Connector
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them again to repack the product in case there is a
need to return it to us for repair.
1.2 Product Features
Physical Port
3 10/100/1000BASE-T Gigabit RJ45 interface
1-port data + power input
2-port data + power output
Power over Ethernet
1-port data + power input
Complies with IEEE 802.3bt/at Power over Ethernet end-span/
mid-span PD
Supports PoE input power up to 95 watts
6
2-port data + power output
Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet/
end-span PSE
Up to 1 IEEE 802.3bt device powered
Up to 2 IEEE 802.3af/802.3at devices powered
Supports total PoE budget of up to 60 watts for 2 PoE output
ports
Auto detects powered device (PD)
Extends the range of PoE to an additional 100 meters (328ft.)
Forwards both Ethernet data and PoE power to remote device
Layer 2 Features
Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full
duplex mode, ow control, auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed ltering and
forwarding rates
IEEE 802.3x ow control for full duplex operation and back pres-
sure for half duplex operation
Integrates address look-up engine, supporting 2K absolute MAC
addresses
9K jumbo frame support in 1000Mbps duplex mode
Automatic address learning and address aging
Industrial Case and Installation
IP63 aluminum case
Wall-mount design
Waterproof and dustproof
Supports EFT protection of 2000 VDC for power line
Supports 2000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
7
No external power cable required for installation
Plug and Play installation
Note
PSE (Power Sourcing Equipment) is a device (switch
or injector for instance) that provides power in a PoE
setup. Maximum allowed continuous output power per
such device in IEEE 802.3af is 15.4W, in IEEE 802.3at is
30W, and in IEEE 802.3bt is 60W.
PDs (Powered Devices) like PoE IP phones, PoE IP
cameras, PoE wireless access points, etc. are PoE-enabled
terminals that consume energy via PSE.
1.3 ProductSpecications
Model IPOE-E172
Hardware Specications
Network Connector
PoE In Port
1 x 10/100/1000BASE-T Ethernet with
802.3bt/at PoE “Data + Power” in, auto
MDI/MDI-X, auto-negotiation RJ45 connector
PoE Out Port
2 x 10/100/1000BASE-T Ethernet with IEEE
802.3af/at/bt PoE “Data + Power” out,
auto MDI/MDI-X, auto-negotiation RJ45
connector
Switch Architecture Store-and-Forward switch architecture
MAC Address Table 2K MAC address table with auto learning
function
Data Buffer 1Mbit
Switch Fabric 6Gbps
Switch Throughput 4.46Mpps @ 64 bytes
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 9KB
ESD Protection 2KV DC
8
Enclosure IP63 aluminum case
Installation Wall-mount kit
LED Display
System: PWR (Green)
Budget Alert (Orange)
PoE Input Port: LNK/ACT (Orange)
1000 (Green)
Per PoE Output Port: LNK/ACT (Green)
PoE-in-Use (Orange)
Cable
Twisted-pair cable:
10BASE-T: 2-pair UTP Cat. 3, 4, 5 up to 100
meters
100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100
meters
1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100
meters
Dimensions (W x D x H) 199.6 x 81 x 40 mm
Weight 373g
Power Consumption 60 watts/204BTU (Full loading with PoE
function)
Power over Ethernet
PoE Standard
PoE In Port
IEEE 802.3bt/at Power over Ethernet
end-span/mid-span PD class 4 PD
Per PoE Out Port
IEEE 802.3bt 4-pair Power over Ethernet
end-span + mid-span PSE
IEEE 802.3at Power over Ethernet Plus
end-span + mid-span PSE
IEEE 802.3af Power over Ethernet end-span
+ mid-span PSE
PoE Power
PoE In Port
44~57V DC, max. 95 watts
Per PoE Out Port
44~55V DC, max. 60 watts
Power Pin Assignment
PoE In Port
1/2(+), 3/6(-); 4/5(+), 7/8(-)
Per PoE Out Port
1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
9
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing
IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration)
Standards Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Accessory
Standard Accessories
User’s Manual x 1
Waterproof RJ45 Connector x 3
Wall-mount Kit x 1
1.4 Power over Ethernet Budget
The following table lists how many PoE devices can be powered by
IPOE-E172 under 1m distance:
Power
Source
PoE Output
Budget* Max. Number of PDs supported
IEEE 802.3bt
PoE PSE 60 watts max.
Class 6 PD@51 watts 1 unit
Class 5 PD@40 watts 1 unit
10
IEEE 802.3at
PoE+ PSE 30 watts max.
Remarks
1. The PoE output budget means the 2-port PD aggre-
gated power output.
2. The aggregated power consumption will be below 60
watts if with PoE+ PSE.

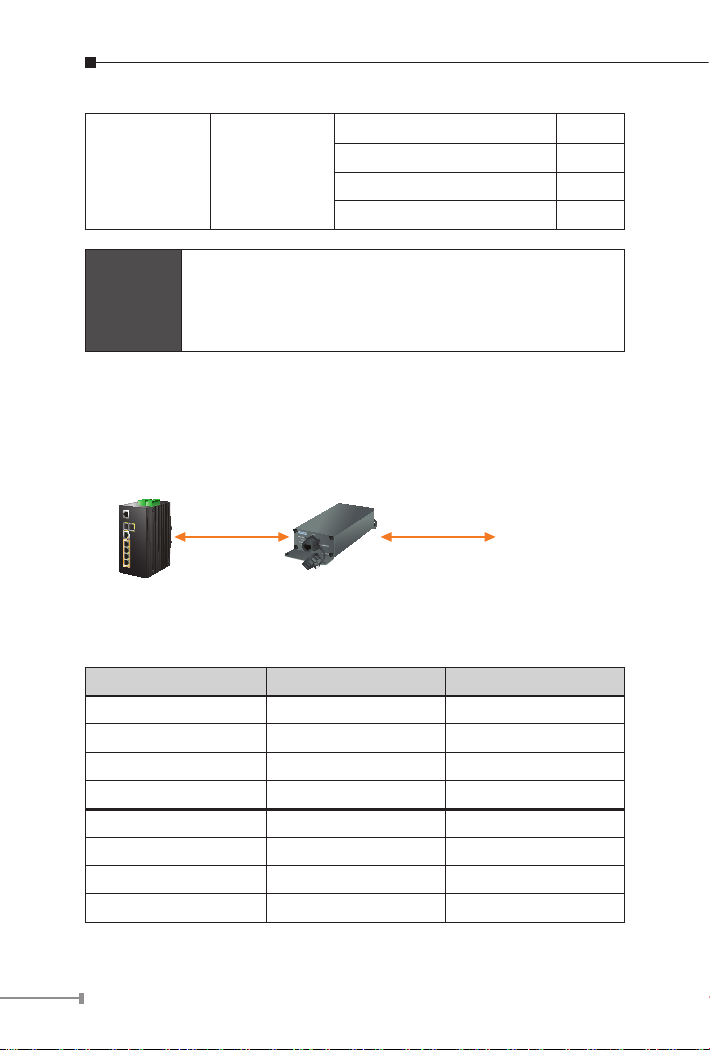

1.5 Power over Ethernet Capability
With different distance and different PoE input source, it will inect the
PoE output capability. Please refer to the table below.
(A) (B) PoE Output Capacity
(C)
(A): Distance
(B): Distance
(C): Watts
IPOE-E172
802.3bt PSE/PoE Switch
1.5.1 When PSE/PoE Switch Output is DC 52V
A (Distance) B (Distance) C (Watts)
60M 2M 33
60M 20M 30
60M 60M 25
60M 100M 21
100M 2M 28
100M 20M 26
100M 60M 21
100M 100M 19
Table des matières
Autres manuels Planet Extenseur
Planet
Planet WNAP-1110 Manuel de l'opérateur
Planet
Planet VC-203PT Manuel utilisateur
Planet
Planet IPOE-E202 Manuel utilisateur
Planet
Planet VC-205PT Manuel utilisateur
Planet
Planet IPOE-E174 Manuel utilisateur
Planet
Planet IHD-410PT Manuel utilisateur
Planet
Planet WNAP-C3220 Manuel utilisateur
Planet
Planet POE-E304 Manuel utilisateur
Planet
Planet IPOE-E174 Manuel utilisateur
Planet
Planet IPOE-E174 Manuel utilisateur
Planet
Planet LRE-104 Manuel utilisateur
Planet
Planet WNAP-C3220 Manuel utilisateur
Planet
Planet LRP-104CET Manuel utilisateur
Planet
Planet IVC-4011-T-V2 Manuel utilisateur
Planet
Planet LRE-101 Manuel utilisateur
Planet
Planet IHD-200PT Manuel utilisateur
Planet
Planet POE-E301 Manuel utilisateur
Planet
Planet PL-510W Manuel utilisateur
Planet
Planet LRP-101CE Manuel utilisateur
Planet
Planet WGS-E304PT Manuel utilisateur
