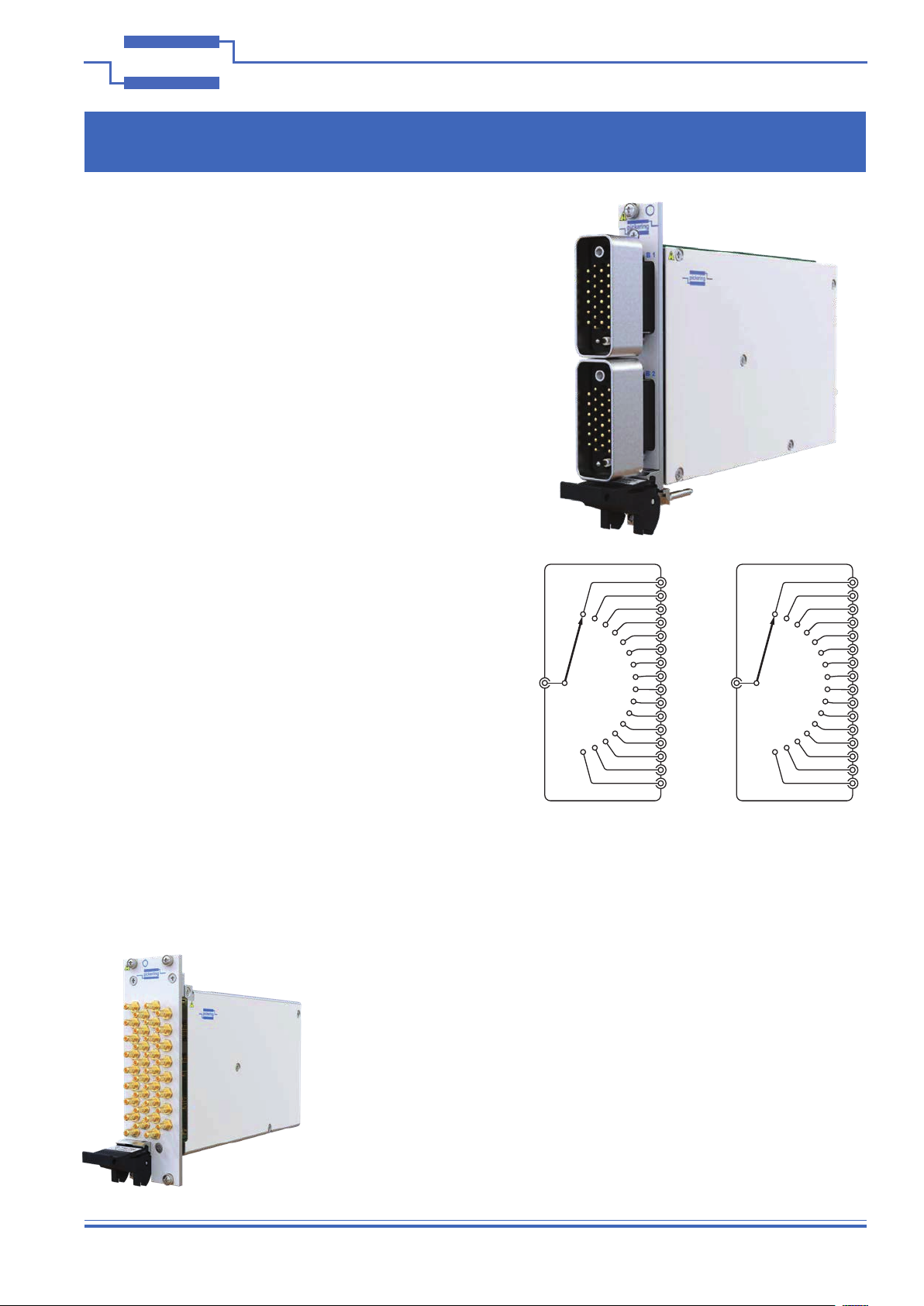

Page 1.1

SP8T & SP16T RF Multiplexer Modules 40-756

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

Dual SP16T RF Multiplexer (Part No. 40-756-x2x)

Supported by

eBIRST

SMB builds of this product are supported by eBIRST test tools

which simplify fault-ﬁnding by quickly testing the system and

graphically identifying the faulty relay. For more information

go to: pickeringtest.com/ebirst

ySingle, Dual, Triple SP8T or Single, Dual SP16T

Multiplexers in a Single Module

y1.8 GHz Switching (50 Ω SMB or SMA Versions)

y1.3 GHz Switching (75 Ω SMB Versions)

y1.3 GHz Switching (50 Ω Multiway Versions)

y1.3 GHz Switching (75 Ω Multiway Versions)

ySMB, SMA and Multiway Connector Versions

yLow Cost, High Performance

yDrivers Supplied for Windows & Linux,

Plus Support for Real-time Systems

ySupported by PXI or LXI Chassis

ySMB Versions Supported by

eBIRST

™

y3 Year Warranty

The 40-756 is a high density RF multiplexer available in 50 Ω

and 75 Ω variants with up to 3xSP8T or 2xSP16T switches in a

single PXI module. It is available with three connector options;

SMB or SMA that provide a frequency range of 1.8 GHz (50 Ω)

/ 1.3 GHz (75 Ω), or multiway which limits the bandwidth to

1.3 GHz but offers a high density solution occupying one PXI

slot. The connectors used are fully supported by the range of

Pickering Interfaces connection solutions.

These modules offer low insertion loss and low VSWR

through the usable frequency range and each multiplexer has

been designed to have path independent loss.

The 40-756 is supplied with drivers that allow the user to

support the module in all popular PXI software environments.

In addition, the module can be supported in all Pickering’s LXI

Modular Chassis, allowing the use of a PXI or LAN controlled

switching solution with the same high levels of performance.

CH1

CH2

CH5

CH6

CH7

CH8

CH3

CH4

CH11

CH12

CH13

CH14

CH9

CH10

CH15

CH16

COM1

Bank1

ch1

ch2

ch5

ch6

ch7

ch8

ch3

ch4

ch11

ch12

ch13

ch14

ch9

ch10

ch15

ch16

COM2

Bank2

The 40-756 Range is as follows:

• Single, Dual or Triple SP8T, 50 Ω or 75 Ω, SMB Connectors

• Single, Dual or Triple SP8T, 50 Ω or 75 Ω, Multiway Connectors

• Single, Dual or Triple SP8T, 50 Ω, SMA Connectors

• Single or Dual SP16T, 50 Ω or 75 Ω, SMB Connectors

• Single or Dual SP16T, 50 Ω or 75 Ω, Multiway Connectors

• Single or Dual SP16T, 50 Ω, SMA Connectors

Dual SP16T 50 Ω

RF Multiplexer

with SMB

Connectors

(Part No.

40-756-120)

pickeringtest.com

40-756

PXI SP8T & SP16T RF Multiplexers

Issue 1.0 December 2022

Page 1.2 SP8T & SP16T RF Multiplexer Modules 40-756

pickering

SECTION 1 - TECHNICAL SPECIFICATION

RF Speciﬁcation

Impedance: 50 Ω

RF Frequency Range: DC to 1.3 GHz

Insertion Loss: <1 dB to 500 MHz (typically 0.7 dB)

2.5 dB to 1.3 GHz (typically 2.0 dB)

VSWR: <1.8:1 to 500 MHz (typically 1.7:1)

3.2:1 to 1.3 GHz (typically 2.8:1)

Isolation: >50 dB to 1.3 GHz

(typically >55 dB)

Crosstalk: <-50 dB to 1.3 GHz

(typically <-55 dB)

Maximum RF Power: 10 W at 1.3 GHz

Other Switching Speciﬁcation

Maximum Hot Switch Voltage: 200 VDC or AC peak

Maximum Hot Switch Current: 1 A

Maximum Cold Switch Current: 1 A

Maximum Hot Switch Power: 10 W

Operating Time: 3 ms typical

Life Expectancy: 10 million operations

at <100 mW

Speciﬁcation - SP8T & SP16T 50 Ω Versions with Multiway Connectors

Typical insertion loss plot - 50 Ω multiway

Typical VSWR plot - 50 Ω multiway

Typical bank to bank crosstalk plot - 50 Ω multiway

Typical channel to common isolation plot - 50 Ω multiway

40-756

pickeringtest.com Page 2

Speciﬁcations

Table des matières

Autres manuels Pickering Multiplexeur

Pickering

Pickering 60-721A Manuel utilisateur

Pickering

Pickering LXI 65-231-9 Series Manuel utilisateur

Pickering

Pickering LXI 50 Manuel utilisateur

Pickering

Pickering PXI 40-882B Manuel utilisateur

Pickering

Pickering PXI 40-661A Manuel utilisateur

Pickering

Pickering PCI 50-670 Manuel utilisateur

Pickering

Pickering 40-658A Manuel utilisateur

Pickering

Pickering PXI Power MUX BRIC 40-571 Manuel utilisateur

Pickering

Pickering 40-683A Manuel utilisateur

Pickering

Pickering 50-670C Manuel utilisateur

Pickering

Pickering PXI 40-850A Manuel utilisateur

Pickering

Pickering 40-611A Manuel utilisateur

Pickering

Pickering 50-670A Manuel utilisateur

Pickering

Pickering 40-614B Manuel utilisateur

Pickering

Pickering 40-657 Manuel utilisateur

Pickering

Pickering 4-788 Series Manuel utilisateur

Pickering

Pickering 40-675A Manuel utilisateur

Pickering

Pickering LXI 60-890-053 Manuel utilisateur

Pickering

Pickering 40-657 Manuel utilisateur

Pickering

Pickering 20-610 Manuel utilisateur

Pickering

Pickering PXI 40-660 Manuel utilisateur

Pickering

Pickering 40-761 Series Manuel utilisateur

Pickering

Pickering 40-310 Manuel utilisateur

Pickering

Pickering 40-640 Manuel utilisateur

Manuels Multiplexeur populaires d'autres marques

Campbell

Campbell AM416 Manuel utilisateur

Paradyne

Paradyne SIM2000 Manuel utilisateur

Panasonic

Panasonic WJFS616 - SWITCHER Manuel utilisateur

Lanex

Lanex TM-77 Manuel utilisateur

Bosch

Bosch VSS8394/01T Manuel utilisateur

Quark-Elec

Quark-Elec QK-A035 Manuel utilisateur

ADTRAN

ADTRAN Frameport 768 Manuel utilisateur

Elo TouchSystems

Elo TouchSystems E247 Manuel utilisateur

Paradyne

Paradyne Hotwire 8786 Manuel utilisateur

RFL Electronics

RFL Electronics 9508D UCC Manuel utilisateur

Miranda

Miranda AMX-101i Mode d’emploi

ShipModul

ShipModul MiniPlex-AIX NMEA-0183 Manuel utilisateur

GE StoreSafe SDVR-10 Manuel utilisateur

American Fibertek

American Fibertek MTX-8410C Manuel utilisateur

ADC

ADC HiGain ELU-319 5E Manuel utilisateur

Paradyne

Paradyne Hotwire 8774 Manuel utilisateur

American Fibertek

American Fibertek MTX-8810C-SL Manuel utilisateur

Viessmann

Viessmann 5229 Manuel utilisateur
