HIGH DENSITY 10A POWER MUX MODULE 40-661

pickering

Issue 3.0 February 2019

User Manual

High Density 10 Amp Power

Multiplexer Module

(Model No. 40-661)

pickeringtest.com pickering

Page (II) HIGH DENSITY 10A POWER MUX MODULE 40-661

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

HIGH DENSITY 10A POWER MUX MODULE 40-661

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) HIGH DENSITY 10A POWER MUX MODULE 40-661

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

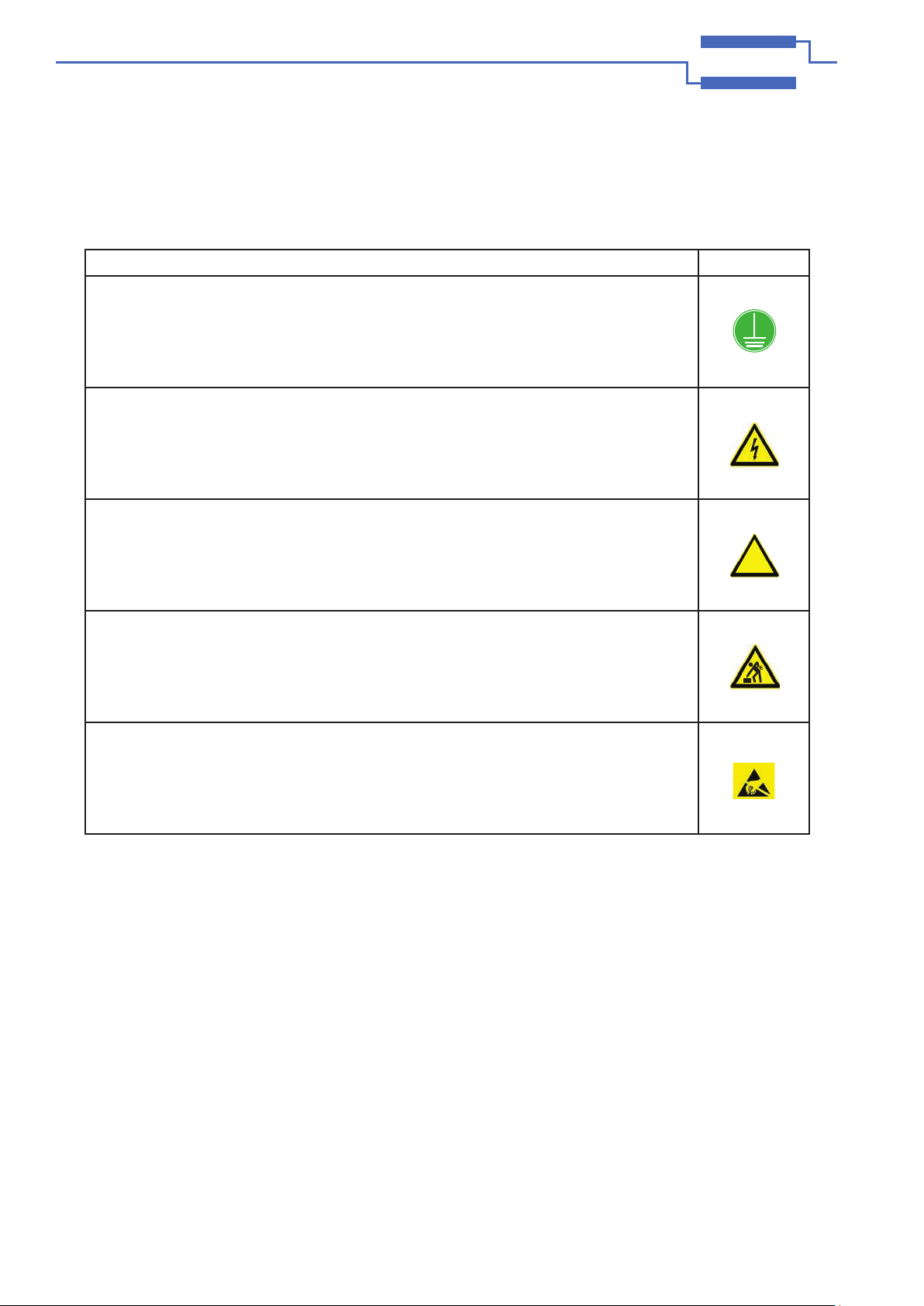

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

HIGH DENSITY 10A POWER MUX MODULE 40-661

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Maximum Frequency of Operations at Full Load ...............2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Modules ............4.1

Module Architecture..............................................................4.2

Programming The Module ....................................................4.10

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting .........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Relay Lookup Tables.............................................................7.2

Component Layout................................................................7.6

CONTENTS

Page (VI) HIGH DENSITY 10A POWER MUX MODULE 40-661

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

HIGH DENSITY 10A POWER MUX MODULE 40-661

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) HIGH DENSITY 10A POWER MUX MODULE 40-661

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

HIGH DENSITY 10A POWER MUX MODULE 40-661

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI High Density 10A Power Multiplexer 40-661

ISSUE 3.0 NOV 2018

• High Density, High Current Switching

• 1-Pole Power Multiplexer Available as

8-Bank 4-Channel, 5-Bank 6-Channel,

4-Bank 8-Channel, 2-Bank 16-Channel or

1-Bank 32-Channel

• 3 Half Density Options

• 10A Current Rating With 300W/2500VA

Maximum Power

• Hot Switch to 125VDC/250VAC, Cold Switch to

400VDC/250VAC

• High Quality Electro-mechanical Relays

• VISA, IVI & Kernel Drivers Supplied for Windows

• Supported by PXI or LXI Chassis

• 3 Year Warranty

40-661-001

8-Bank 4-Channel,

1-Pole MUX

40-661-002

4-Bank 8-Channel,

1-Pole MUX

40-661-003

2-Bank 16-Channel,

1-Pole MUX

40-661-004

1-Bank 32-Channel,

1-Pole MUX

Com

BANK 1

Com

BANK 2

Com

BANK 3

Com

BANK 4

Com

BANK 5

Com

BANK 6

Com

BANK 7

Com

BANK 8

Com

BANK 1

Com

BANK 2

Com

BANK 3

Com

BANK 4

Com

BANK 1

Com

BANK 2

Com

BANK 1

Com

BANK 1

Com

BANK 2

Com

BANK 3

Com

BANK 4

Com

BANK 5

40-661-005

5-Bank 6-Channel,

1-Pole MUX

The 40-661 is a single pole power multiplexer module,

suitable for switching inductive/capacitive loads up to 10A with

125VDC/250VAC hot switching and 400VDC/250VAC cold

switching. The multiplexer is available in 5 standard formats as

shown below. Also, 4-bank 4-channel, 2-bank 8-channel and

1-bank 16-channel half density congurations are available.Signal

connections are via front panel mounted 20-pin GMCT plugs.

The 40-661 allows multiple channels to be simultaneously selected.

Alternatively, product variants can be supplied that operate as a

conventional multiplexer with break-before-make action when a new

channel is selected.

Applications for power multiplexers are switching heavy AC or DC

loads or slave switching large external relays, contactors or solenoids.

The module is suitable for switching mains voltage or direct current.

Page 1.2 HIGH DENSITY 10A POWER MUX MODULE 40-661

pickering

SECTION 1 - TECHNICAL SPECIFICATION

High Density 10A Power MUX – 40-661

pickeringtest.com

Speciﬁcations

Switching Speciﬁcation

Contact Type: Gold ash over silver alloy

Cold Switching Capacity

Maximum Current:

Maximum Voltage:

10A

400VDC/250VAC*

Hot Switching Capacity

Maximum Current:

Maximum Voltage:

Maximum Power: †

Min. Switching Capacity:

10A

125VDC/250VAC*

300W/2500VA

10mA, 5VDC

Typical Pulse Capability:

Max Continuous Total Switch

Path Loading:

Cold Switch 20A for 100ms

under low duty cycle conditions

(please contact sales ofce for

further advice)

All multiplexer banks capable of

carrying 10A at the same time.

Initial Path Resistance, On:

Path Resistance, Off:

<50mΩ at 10A

>109Ω

Bandwidth: 10MHz

Operate Time: 21ms typical,

10.5ms for multichannel mode

Expected Life - resistive load ‡

Mechanical Life:

At Max. Switch Capacity:

>5x107operations

>1x105operations

* For full voltage rating, signal sources to be switched must be fully

isolated from mains supply and safety earth.

† For variation of maximum hot switching capacity of voltage with

current refer to plot.

‡ As switch life deteriorates rapidly when hot switching signals

above 30VDC, it is advisable to only cold switch above this level.

Power Requirements

+3.3V +5V +12V -12V

0.17A 0 0.15A 0

Relay Type

The 40-661 is tted with high quality electro-mechanical power

relays, gold-ash over silver alloy.

40-661-101 Half Density

4-Bank 4-Channel, 1-Pole MUX

40-661-102 Half Density

2-Bank 8-Channel, 1-Pole MUX

40-661-103 Half Density

1-Bank 16-Channel, 1-Pole MUX

Com

BANK 1

Com

BANK 2

Com

BANK 3

Com

BANK 4

Com

BANK 1

Com

BANK 2

Com

BANK 1

AC Resisve

AC Inducve

DC Resisve

DC Inducve

40-661 Maximum Hot Switch Voltage Versus Current

30VDC / 250VAC Resisve

30VDC / 250VAC

Inducve

40-661 Current/Operating Life Curve for Hot Switching

Table des matières

Autres manuels Pickering Multiplexeur

Pickering

Pickering PXi 40-660A Manuel utilisateur

Pickering

Pickering 4 878 Series Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering 40-659A Manuel utilisateur

Pickering

Pickering 20-745 Manuel utilisateur

Pickering

Pickering 60-721A Manuel utilisateur

Pickering

Pickering 40-619 Manuel utilisateur

Pickering

Pickering LXI 60-890-053 Manuel utilisateur

Pickering

Pickering 40-657 Manuel utilisateur

Pickering

Pickering LXI 60-802 Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering 40-617A Manuel utilisateur

Pickering

Pickering 40-615A Manuel utilisateur

Pickering

Pickering 40-660A-001 Manuel utilisateur

Pickering

Pickering 40-616 Manuel utilisateur

Pickering

Pickering 40-320A Manuel utilisateur

Pickering

Pickering 40-670 Manuel utilisateur

Pickering

Pickering 40-680 Manuel utilisateur

Pickering

Pickering 40-659A Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering 40-737 Manuel utilisateur

Pickering

Pickering 40-614C Manuel utilisateur

Pickering

Pickering PXI 40-635A Manuel utilisateur

Pickering

Pickering PXI 40-740 Manuel utilisateur

Manuels Multiplexeur populaires d'autres marques

Campbell

Campbell AM416 Manuel utilisateur

Paradyne

Paradyne SIM2000 Manuel utilisateur

Panasonic

Panasonic WJFS616 - SWITCHER Manuel utilisateur

Lanex

Lanex TM-77 Manuel utilisateur

Bosch

Bosch VSS8394/01T Manuel utilisateur

Quark-Elec

Quark-Elec QK-A035 Manuel utilisateur

ADTRAN

ADTRAN Frameport 768 Manuel utilisateur

Elo TouchSystems

Elo TouchSystems E247 Manuel utilisateur

Paradyne

Paradyne Hotwire 8786 Manuel utilisateur

RFL Electronics

RFL Electronics 9508D UCC Manuel utilisateur

Miranda

Miranda AMX-101i Mode d’emploi

ShipModul

ShipModul MiniPlex-AIX NMEA-0183 Manuel utilisateur

GE StoreSafe SDVR-10 Manuel utilisateur

American Fibertek

American Fibertek MTX-8410C Manuel utilisateur

ADC

ADC HiGain ELU-319 5E Manuel utilisateur

Paradyne

Paradyne Hotwire 8774 Manuel utilisateur

American Fibertek

American Fibertek MTX-8810C-SL Manuel utilisateur

Viessmann

Viessmann 5229 Manuel utilisateur
