Phrozen SONIC MINI 8K Manuel d'utilisation et d'entretien
Z- axis Calibration
Z-axis calibration is essential for every 3D printer. Run this test to make sure that the
building plate is leveled to the LCD screen. This is to ensure that models and prints
will adhere to the building plate.
SONIC MINI 8K
Step 1: Remove the Resin Vat
Make sure to remove any objects present on the machine's platform.
Step 2: Install the Building Plate
Attach the building plate knob to the printer and align it with the pins. Screw and tighten the
building plate.
*Note: Please ensure that the building plate does not shift during tightening.
Step 3: Loosen the Screws
Use the Allen wrench to loosen all 4 screws on the sides of the building plate in a
counterclockwise direction. After loosening it, double-check to see if the plate is loose and
movable.
Step 4: Place a piece of paper on the LCD
Prepare a piece of A4 paper (roughly 0.07-0.10 mm thick) and lay it flat on the LCD screen.
This piece of paper will be used for leveling the building plate.

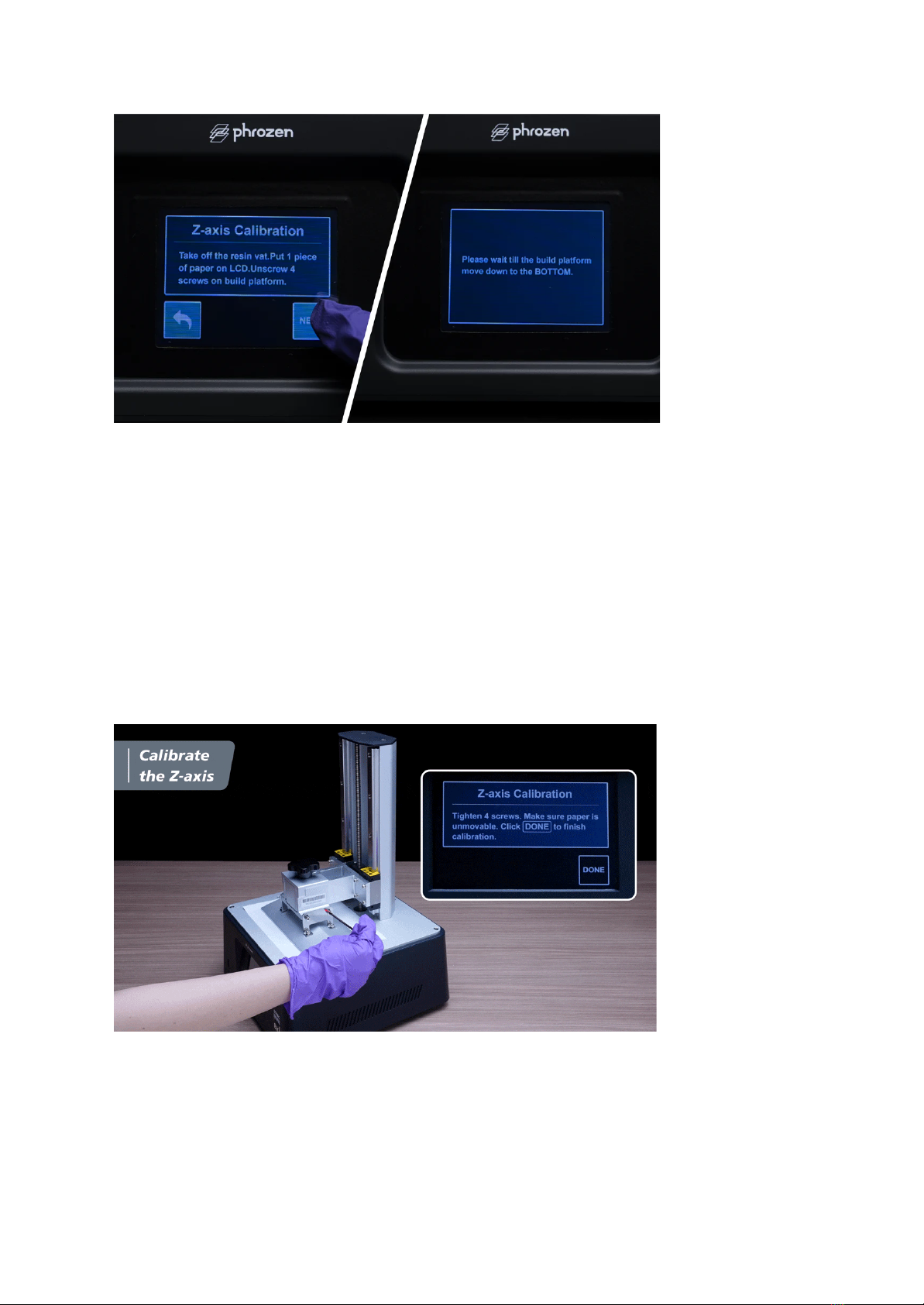

Step 5: Settings
On the touch panel, click TOOLS, then click Z CALIB on your touch panel to begin the
calibration process. Click NEXT and wait for 1-2 minutes as the building plate extends to the
LCD screen.
Step 6: Apply Pressure on the Building Plate
Once the building plate has touched down, apply pressure and press down firmly on the
sides of the building plate. Pull on the piece of paper to make sure the building plate is laying
tight against it.
Step 7: Tighten the Screws in a Cross Pattern Order
Once you have successfully adjusted the building plate, tighten all four screws on the sides
of the building plate in a clockwise direction while pressing down on the building plate with
the other hand, in a cross pattern order, e.g., top-right, lower-left, top-left, and lower-right.
Step 8: Double-Check Z-axis Calibration
Tug on all four corners of the A4 paper to check for pressure intensity. If it is tight, please
proceed onto the next step. If it isn’t, please perform the Z-axis calibration test again.
Step 9: Done
Click DONE on the touch panel and wait for the building plate to retract.
Once the plate has retracted, remove the A4 paper.
You are now ready to begin your 3D printing journey!
