Phottix Laso Manuel utilisateur
1
INSTRUCTION MANUAL
En
CH ID GR REL
Phottix Laso TTL Flash Trigger
Receiver for Canon
INSTRUCTION MANUAL 2
说明书 24
說明書 43
En
CnSimp
CnTrad
2
Thank you for purchasing a Phottix
product.
Note: Before using the Phottix Laso TTL Flash
Trigger for Canon, please read this instruction
manual carefully, while also referring to the
instruction manuals of your camera, ash and
other relevant devices.
Phottix Laso TTL FLash Trigger For
Canon Receiver
The Phottix Laso Receiver is used with
non-wireless Canon ETTL Speedlites to perform
wireless radio control and triggering functions.
The Receiver is compatible with multiple
wireless radio transmitting devices, including
the Phottix Laso Transmitter, Canon ST-E3-
RT Speedlite Transmitter, and radio-enabled
Canon Speedlites.
Warnings
1. This product is a precise electronic
instrument. Do not expose to damp
environments or dust.
2. Please shut down the power of all devices
when installing the wireless trigger.
3. Do not drop or crush.
4. Do not use the wireless trigger in ammable,
explosive or high temperature environments.
5. Do not use harsh chemicals or solvents to
3
INSTRUCTION MANUAL
En
clean the body. Use a soft cloth or lens paper.
6. Remove batteries from the wireless trigger if
not being used for an extended period.
7. Interference: The Phottix Laso wireless
trigger transmits radio signals at 2.4GHz. Its
performance can be aected by electrical
current, magnetic elds, radio signals, wireless
routers, cellular phones, and other electronic
devices. Environmental objects, such as large
buildings or walls, trees, fences, or cars can
also aect transmission performance. If your
wireless trigger can’t be triggered, move its
location slightly.
FCC Interference Statement:
This device complies with part 15 of the FCC
Rules. Operation is subject to the followingtwo
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment. This device and its antenna must
not be co-located or operating in conjunction
with any other antenna or Transmitter.
4
NOTE:
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment o and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the
equipment and Receiver.
-- Connect the equipment into an outlet
on a circuit dierent from that to which the
Receiver is connected.
-- Consult the dealer or an experienced radio/
TV technician for help.
5
INSTRUCTION MANUAL
En
Table of Contents
I. Parts -------------------------------------------------------------------------------------------------------------------6
II. Preparation Before Use ----------------------------------------------------------------------------------------8
III. The LCD Display-------------------------------------------------------------------------------------------------13
IV. Wireless Flash Shooting: Radio Transmission---------------------------------------------------------15
V. Trouble Shooting Guide---------------------------------------------------------------------------------------21
6
I.Parts
1. Radio transmission
conrmation lamp
2. LCD panel
3. Power button
4. Function button 1
5. Function button 2
6. Function button 3
7. Function button 4
8. Test ash button
9. Hot shoe mount
7
INSTRUCTION MANUAL
En
10. Battery compartment
11. Cold shoe/Tripod lug
12. Locking ring
13. 5V DC power port
14. 3.5mm output port
15. USB port
11
10
12
13
14
15
8
II.
Preparation Before Use
Installing the Batteries
1. Press the battery compartment cover and
slide it up as shown to open the battery
cover.
2. Insert the batteries. Make sure the“+” and
“-” battery contacts are correctly oriented as
shown. (Note: Please use AA alkaline batteries
or NI-MH batteries. )
3. Replace the battery cover and push back
into the locked position.
4. When the power icon on the LCD screen
displays insucient power, replace the
batteries with new ones.
_
+
9
INSTRUCTION MANUAL
En
Attaching and Removing the
Phottix Laso Receiver
Attaching the ash to the Phottix Laso
Receiver
1. Turn o the ash and Laso recevier as
shown.
2. Align the ash’s hot shoe and the Phottix
Laso Receiver’s hot shoe mount.
3. Slide the ash all the way into the Phottix
Laso Receiver’s hot shoe mount
4. Lock the ash with the ash’s locking
mechanism.
10

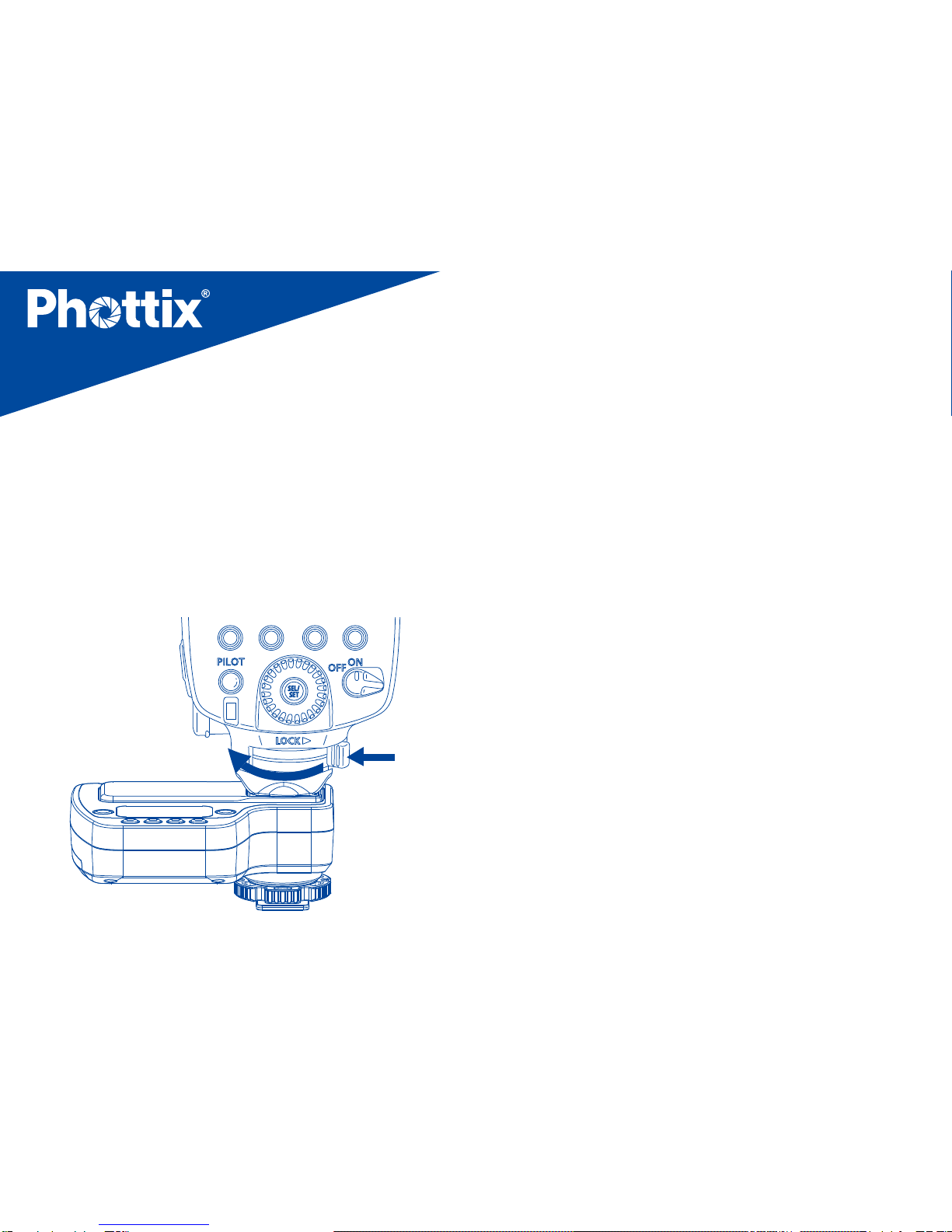

Removing the ash
1. Release the locking mechanism of the ash.
(see picture)
2. Slide the ash out of the Phottix Laso
Receiver’s hot shoe mount.
12
Turn On/O the Phottix Laso
Receiver
1. Turn On: Press and hold the power button
until MENU interface is displayed on LCD
screen.
2. Turn o: Press and hold the power button
until the LCD screen goes blank.
Checking Version Info on the
Phottix Laso Receiver
You can check the present rmware version
information on the Phottix Laso Receiver:
While pressing power button to turn on the
Phottix Laso Receiver, press function button 1,
