Philips SWW1890/27 Manuel utilisateur

www.philips.com/welcome

Quick Start Guide

SWW1890

Install

Enjoy

SWW1890_27_EN_QSG_V2.1

WK11474

The laptop screen image is not full screen on my TV.

1 Right-click on an open space on your desktop.

2 Select Graphics Options > Output to > Digital Television (Now the laptop image will only

appear on your TV).

3 Once again, right-click on an open space on your desktop.

4 Select Screen Resolution.

5 On the pop-up box increase the resolution settings till the laptop image better ts your TV

screen.

6 Select OK and KEEP CHANGES when you are satised with your image size.

There is no video displayed on my TV screen.

•Make sure that the appropriate cables are selected and inserted to the transmitter, receiver,

and HDTV.

•Make sure that you select HDMI as the input source on your HDTV.

•Check the power LED and status LED on the receiver.

I cannot hear any sound or the sound is poor, what do I do?

•Make sure that the TV volume is adjusted correctly.

•Make sure that the TV volume is not set to minimum or the sound is not muted.

•Make sure that the audio volume of your computer is turned up.

•Make sure that the audio bit rate is supported.

•Make sure that the audio output of your computer is set to HDMI output.

Troubleshooting

Reproduction in whole or in part is prohibited without the

written consent of the copyright owner.

Trademarks are the property of Koninklijke Philips

Electronics N.V. or their respective owners.

Welcome to Philips

Need help?

Refer to the User Manual that came with your SWW1890.

www.philips.com/support

User manual

Online help

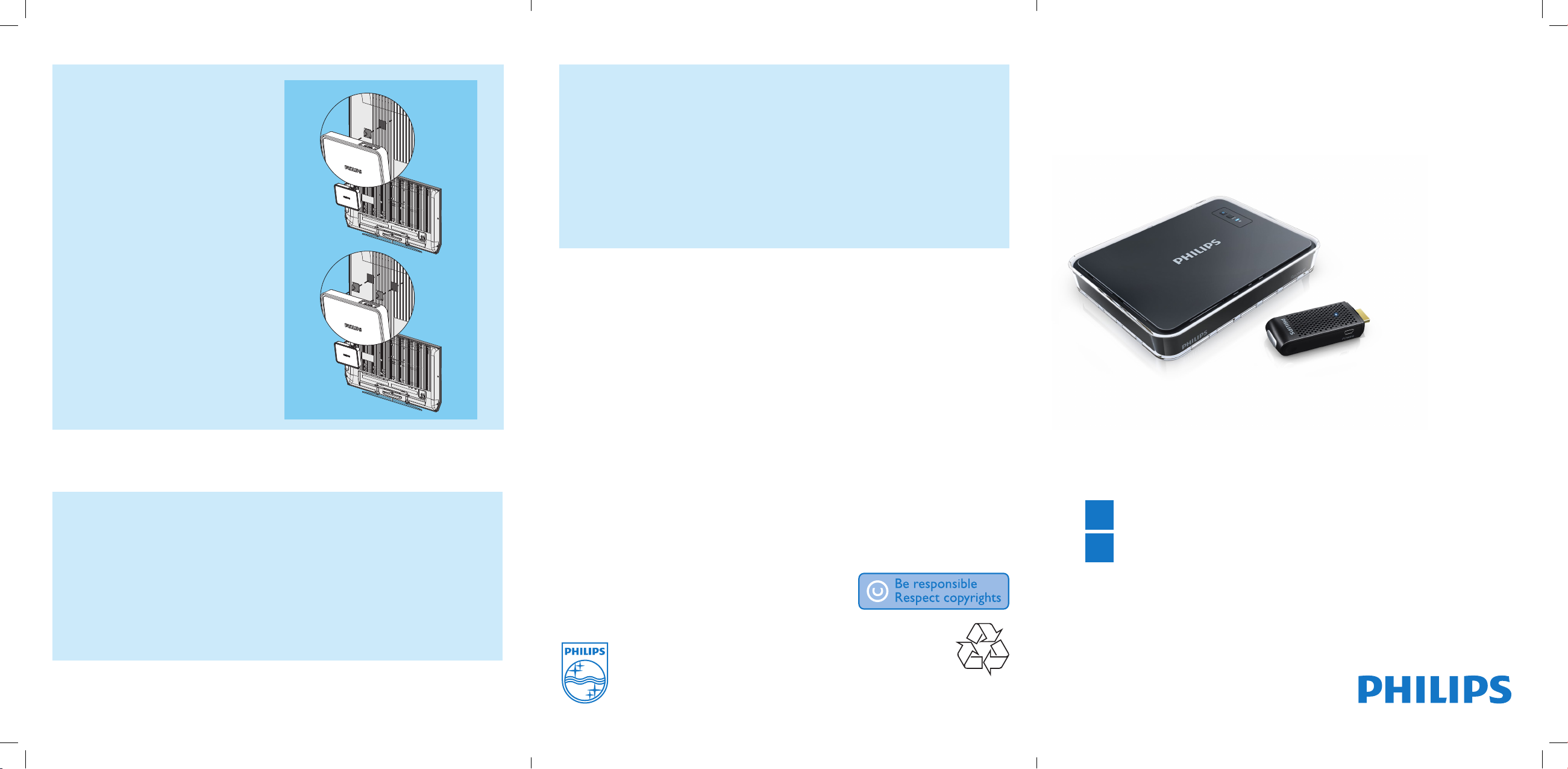

Mount your receiver on the back of

the HDTV

1 Remove the white protective lm from

one of the supplied adhesive tapes.

2 Secure the glued side of the adhesive tape

and attach it to the central bottom area of

the receiver.

3 Select a at location on the rear side of

the HDTV.

4 Remove the white protective lm from

the other adhesive tape.

5 Secure the glued side of the adhesive tape

and attach it to the selected rear side of

the HDTV.

6 Align the adhesive tape on the receiver

with the one on the HDTV until both the

receiver and HDTV are mounted together

rmly.

sww1890_QSG_27_en.indd 5-1 24/11/2011 17:52:27

What’s in the box

Connect the transmitter to your

computer

1 Connect the transmitter to the HDMI

port of the computer.

2 Connect the small end of the USB cable

to the POWER jack of the transmitter;

3 Connect the other end of the USB cable

to your the USB port of your computer.

»The power LED indicator of the

transmitter ashes in blue, then turns

into solid blue when the connection is

established.

Note

•For some computers, the HDMI and USB

ports are located in different sides of the

computer. It is not recommended to use the

USB port that sits right next to the HDMI

port. There may not be enough space for

both connectors.

Connect the receiver to the HDTV set

1 Connect the transmitter to the HDMI

port of the computer:

•Connect one end of the HDMI cable

to HDMI OUT connector of the

receiver.

•Connect the other end of the HDMI

cable to the HDMI in connector of

your HDTV.

2 Connect the supplied power adapter to

the receiver:

•Connect one end of the power

adapter to the DC IN connector of

the receiver.

•Connect the other end of the power

adapter to a power socket.

HDMI

Turn on the power of your HDTV

1 Go to the source menu under the settings

menu of your HDTV.

2 Select the HDMI input to which the

receiver is connected.

Activate the wireless link

Switch on the transmitter and receiver.

When there is power supply for the transmitter

and receiver, they are on automatically.

»The link between the transmitter and

receiver is established (within 15-20

seconds).

HDMI

Mount your receiver

You can either mount the receiver on the wall

or on the back of the HDTV.

Mount your receiver on the wall

1 Select a spot near the HDTV.

2 Drill two holes in the wall. Make sure that

the distance between the two holes is

125/32” (45mm) and the diameter of the

hole is 3/16” (5mm).

3 Punch the supplied two anchors into the

two holes on the wall.

4 Put the two screws into the anchors and

leave 1/8” (3mm) to mount the receiver on.

5 Hook the key holes at the back of the

receiver on the screws.

Note

•Make sure you have all these items in the box. Contact your dealer for

any missing or damaged items.

1Install 2Enjoy

Receiver Transmitter User manual

Quick Installation Guide

Power adapter x 1 USB cable for the power supply

of the transmitter x 1

Quick Start Guide

HDMI cable Adhesive tape x 2 Anchors x 2

Screws x 2

sww1890_QSG_27_en.indd 2-4 24/11/2011 17:52:31
