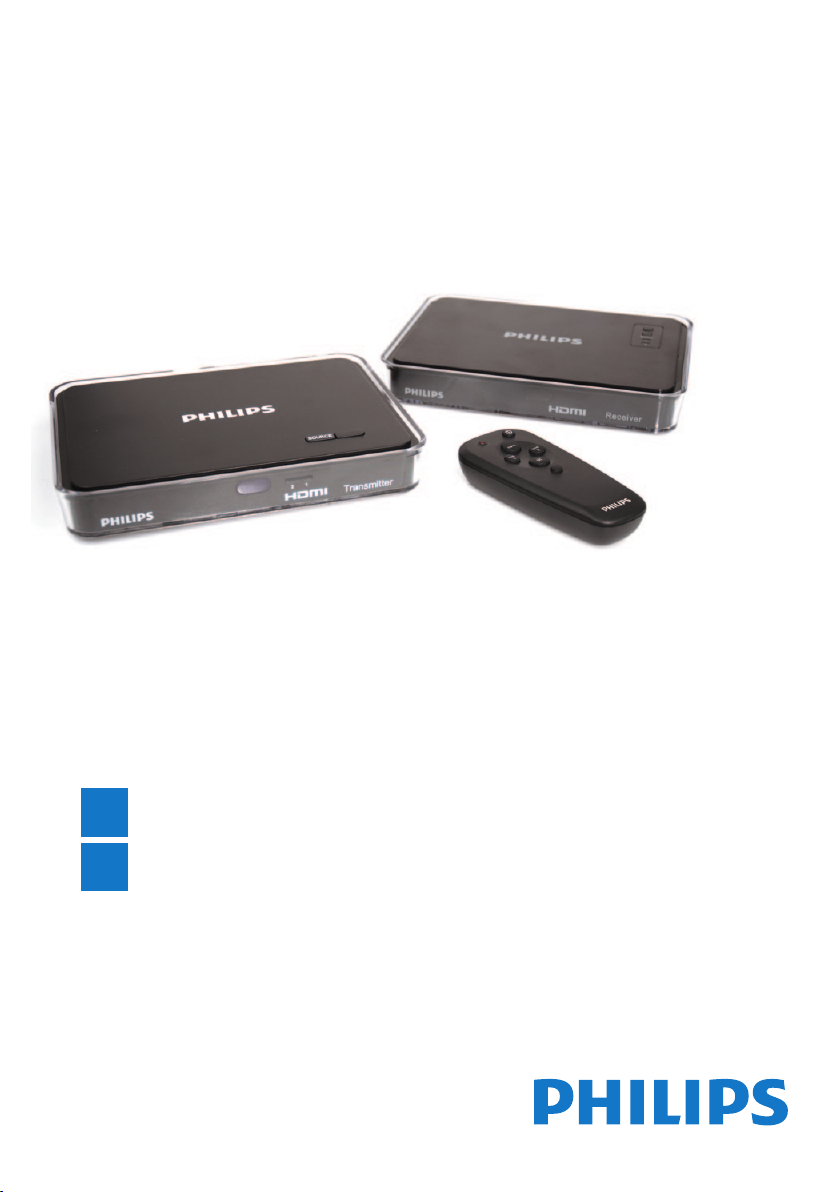

Quick Start Guide

SWW1810

Connect

Enjoy

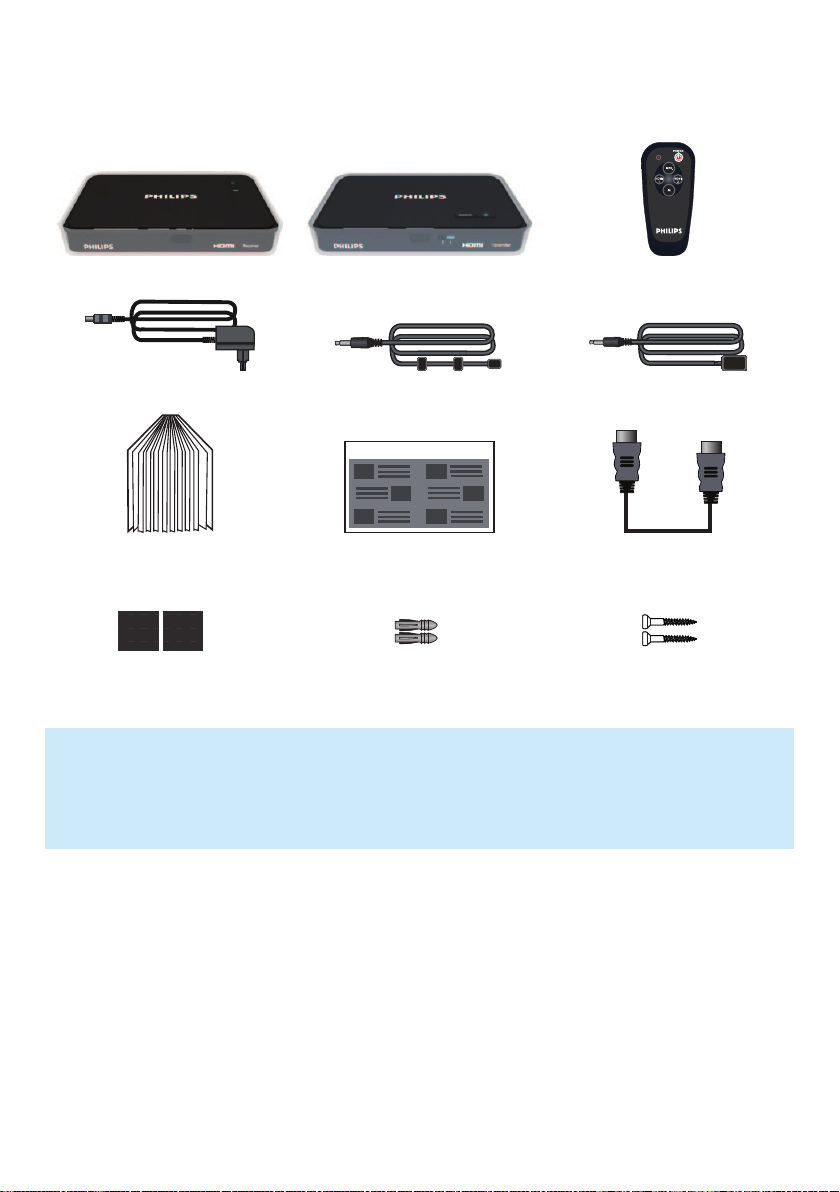

What’s in the box

Receiver Transmitter Remote control

Power adapter x 2 IR blaster extender cable IR sensor extender cable

Quick Installation Guide

User manual Quick start guide HDMI cable

Adhesive tape x 2 Anchors x 2 Screws x 2

Note

•Make sure you have all these items in the box. Contact your dealer for any missing or

damaged items.

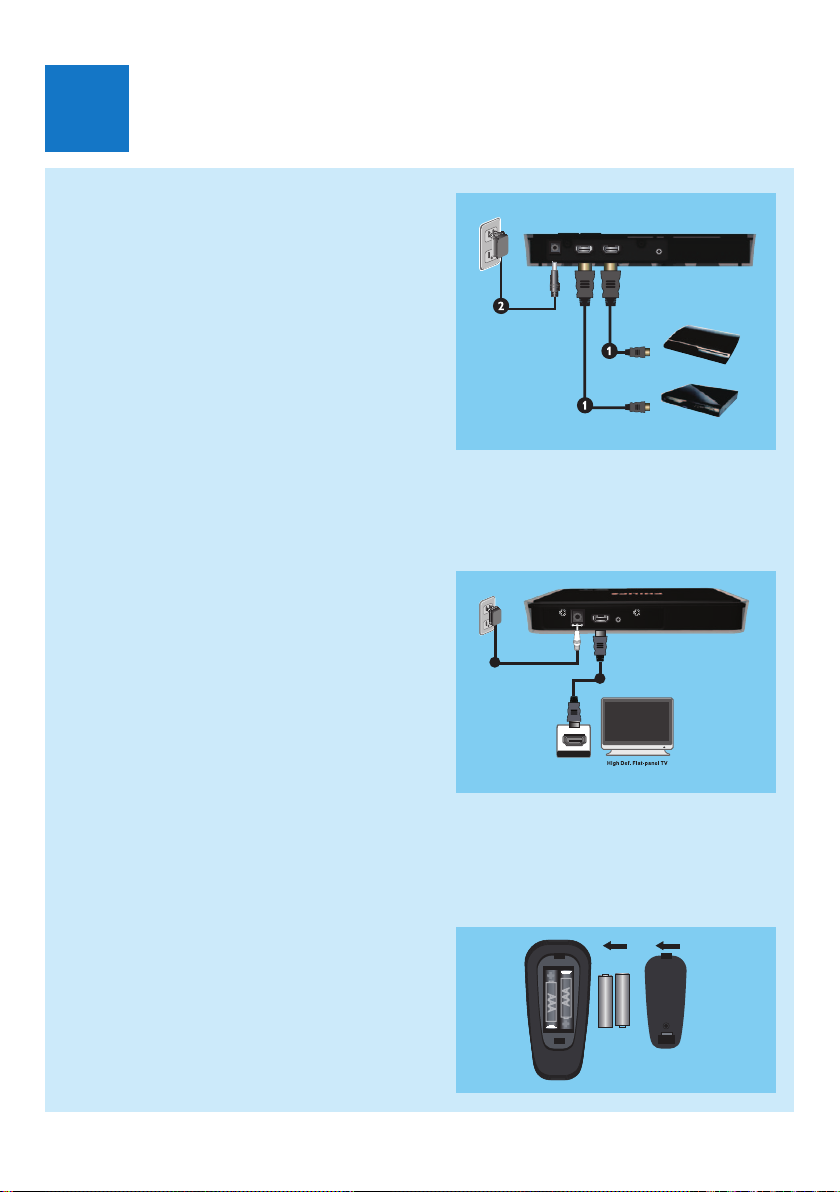

Connect the transmitter to your HD devices

1 Connect the audio/video source to the

transmitter using the supplied HDMI cable.

•Connect one end of the HDMI cable to the

HDMI IN connector of the transmitter.

•Connect the other end of the HDMI cable

to the HDMI OUT connector of the video

source.

2 Connect the supplied power adapter to the

transmitter.

•Connect one end of the power adapter to the

DC IN jack of the transmitter.

•Connect the other end of the power adapter

to a power outlet.

•The power button of the transmitter is lit in

solid blue and turns red in standby mode.

HDMI IN

DC IN HDMI IN IR OUT

Game console

Blu-ray Player

Connect the receiver to the HDTV set

1 Connect the receiver with an additional HDMI

cable (not supplied):

•Connect one end of the HDMI cable to the

receiver.

•Connect the other end to the HDMI IN

connector of your HDTV.

2 Connect the supplied power adapter to the

receiver:

•Connect one end of the power adapter to the

DC IN jack of the receiver.

•Connect the other end of the power adapter

to a power outlet.

•The power button of the receiver is lit in solid

blue and turns red in standby mode.

DC 5V

HDMI OUT IR IN

HDMI IN

Install remote control batteries

1 Open the battery compartment.

2 Insert two AAA batteries with correct polarity

(+/-) as indicated.

3 Close the battery compartment.

AAA

1Connect

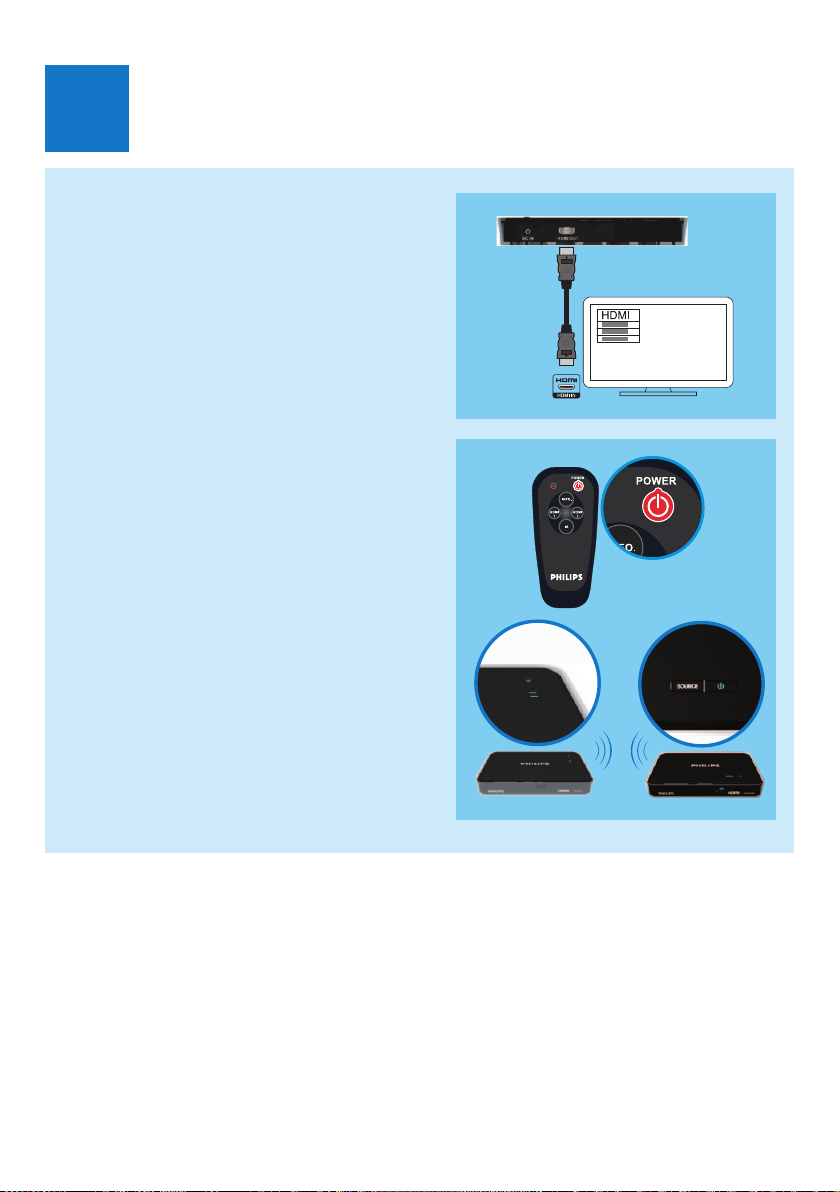

Turn on the power of your HDTV

1 Go to the source menu under the settings

menu of your HDTV.

2 Select the HDMI input to which the receiver is

connected.

HDMI

Activate the wireless link

Switch on the transmitter and receiver.

Press yon the remote control or the transmitter

and receiver in standby mode to turn it on.

Select the source on the transmitter

Press the source buttons on the remote control,

transmitter or receiver until you see the available

video from your device.

2Enjoy

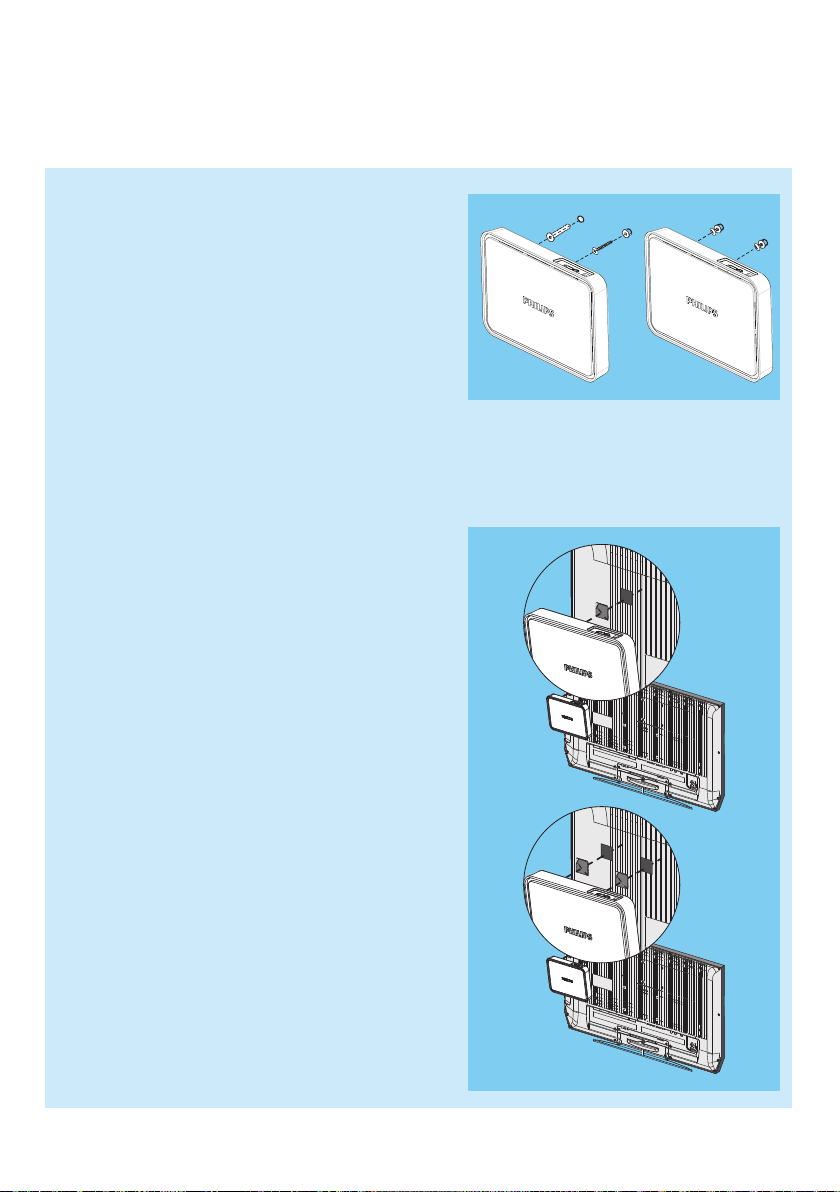

Mount your receiver

You can either mount the receiver on the wall or

on the back of the HDTV.

Mount your receiver on the wall

1 Select a spot near the HDTV.

2 Drill two holes in the wall. Make sure that the

distance between the two holes is 125/32” (45mm)

and the diameter of the hole is 5/16” (5mm).

3 Punch the supplied two anchors into the two

holes on the wall.

4 Put the two screws into the anchors and leave

1/8” (3mm) to mount the receiver on.

5 Hook the key holes at the back of the receiver

on the screws.

Mount your receiver on the back of the

HDTV

1 Remove the white protective lm from one of

the supplied adhesive tapes.

2 Secure the glued side of the adhesive tape

and attach it to the central bottom area of the

receiver.

3 Select a at location on the rear side of the

HDT V.

4 Remove the white protective lm from the

other adhesive tape.

5 Secure the glued side of the adhesive tape and

attach it to the selected rear side of the HDTV.

6 Align the adhesive tape on the receiver with

the one on the HDTV until both the receiver

and HDTV are mounted together rmly.

SWW1810_27_EN_QSG_V2.0

WK11485

There is no video displayed on my TV screen.

•Make sure that the appropriate cables are selected and inserted to the transmitter, receiver, and

HDT V.

•Make sure that you select HDMI as the input source on your HDTV.

•Check the power LED and status LED on the receiver.

I cannot hear any sound or the sound is poor, what do I do?

•Make sure that the TV volume is adjusted correctly.

•Make sure that the TV volume is not set to minimum or the sound is not muted.

•Make sure that the audio bit rate is supported.

•Make sure the HDMI cable of the transmitter is connected correctly.

The laptop screen image is not full screen on my TV.

1 Right-click on an open space on your desktop.

2 Select Graphics Options > Output to > Digital Television (Now the laptop image will only

appear on your TV).

3 Once again, right-click on an open space on your desktop.

4 Select Screen Resolution.

5 On the pop-up box increase the resolution settings till the laptop image better ts your TV

screen.

6 Select OK and KEEP CHANGES when you are satised with your image size.

Troubleshooting

Welcome to Philips

Need help?

User manual

Refer to the user manual that came with your SWW1810.

Online help

www.philips.com/support

Reproduction in whole or in part is prohibited without the

written consent of the copyright owner.

Trademarks are the property of Koninklijke Philips

Electronics N.V. or their respective owners.
