Philips TAS1505 Manuel utilisateur

User manual

TAS1505

www.philips.com/support

EN 1

Contents

1 Important 2

Safety 2

2 Your wireless speaker 3

Introduction 3

What's in the box 3

Overview of the speaker 3

3 Get started 4

Charge the built-in battery 4

4 Play from Bluetooth devices 5

Play from Bluetooth devices 5

Control playback 5

5 Product information 6

6 Troubleshooting 7

General 7

Bluetooth 7

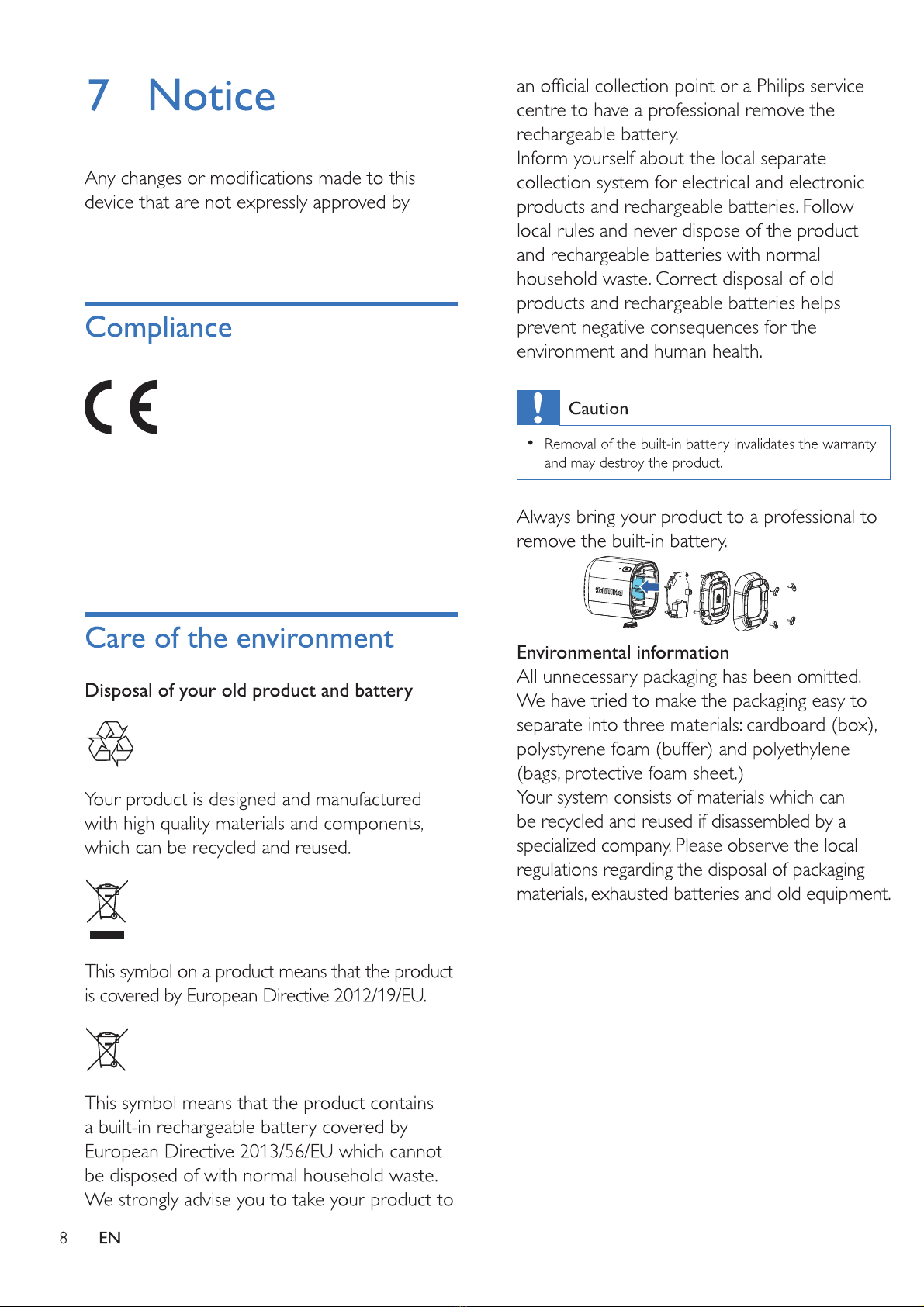

7 Notice 8

Compliance 8

Care of the environment 8

FCC Statement 8

Trademark notice 9

2EN

1 Important

Safety

Important safety instructions

• Make sure that the power supply voltage

corresponds to the voltage on the back or

the underside of the unit.

• The speaker shall not be exposed to

dripping or splashing.

• Do not place any source of danger on the

speaker (e.g. liquid ﬁlled objects, lit candles).

• Make sure that there is enough free space

around the speaker for ventilation.

• Please use the speaker safely in an

environment with temperature between

• Only use attachments and accessories

speciﬁed by the manufacturer.

Battery safety precautions

• Danger of explosion if a battery is

incorrectly replaced. Replace only with the

same or equivalent type.

• A battery (battery pack or battery installed)

shall not be exposed to excessive heat such

as sunshine, ﬁre or the like.

• A battery in extreme high or low

temperatures during use, storage or

transportation, and low air pressure at high

altitude can pose safety hazards.

• Do not replace a battery with an incorrect

type that can defeat a safeguard (for

example, some lithium battery types).

• Disposing a battery into ﬁre or a hot oven,

mechanically crushing or cutting a battery

can result in an explosion.

• Leaving a battery in an extremely high

temperature surrounding, or an extremely

low air pressure environment may result in

an explosion or leakage of ﬂammable liquid

or gas.

Warning

• Never remove the casing of this speaker.

• Never lubricate any part of this speaker.

• Place this speaker on a ﬂat, hard and stable

surface.

• Never place this speaker on other electrical

equipment.

• Only use this speaker indoors. Keep this speaker

away from water, moisture and liquid-ﬁlled

objects.

• Keep this speaker away from direct sunlight,

naked ﬂames or heat.

• Risk of explosion if a battery is replaced by an

incorrect type.

3EN

2 Your portable

speaker

Congratulations on your purchase, and

welcome to Philips! To fully benefit from the

support that Philips offers, register your product

at www.philips.com/welcome.

What's in the box

Check and identify the contents of your

package:

Overview of the speaker

Indicate battery or Bluetooth

connection status.

Speaker

USB cable

Quick start guide

Safety sheet

Worldwide warranty

Lanyard

LED indicator

DC IN

•

• Charge the built-in battery.

Turn the speaker on or o.

4EN

3 Get started

Always follow the instructions in this chapter in

sequence.

Charge the built-in battery

Turn on/off

To turn the speaker on, press and hold

" " for two seconds. You will hear the

prompt sound and Blue LED indicator

blinks.

Auto off in 15 minutes if no Bluetooth

connection.

5V 0.5 A

To turn the speaker off, press and hold

" " for two seconds. You will hear the

prompt sound and Blue LED indicator

turn off.

Charge the built-in battery

The speaker is powered by a built-in

rechargeable battery.

Connect the USB-C socket on the speaker to

an outlet (5V 0.5A) by using the provided USB

cable.

When the speaker is being charged,

Power on

LED is solid Red.

When the speaker is fully charged,

LED is solid Blue.

When the speaker is being charged,

Power o

LED is solid Red.

When the speaker is fully charged,

LED is o.

Note

·Before use, fully charge the built-in battery.

·The USB Type C socket is for charging only.

·It takes you approximately two hours to fully charge

the battery.

·Rechargeable battery has a limited number of charge

cycles. Battery life and number of charge cycles vary by

use and settings.

5EN

4 Play from

Bluetooth

devices

With this speaker, you can listen to audio from

Bluetooth-enabled devices.

Note

The speaker can memorize a maximum of eight paired

devices. The ninth paired device will replace the first one.

Any obstacle between this speaker and a Bluetooth

device can reduce the operational range.

Keep away from any other electronic device that may

cause interference.

The operational range between this speaker and a

Bluetooth device is approximately 20 meters (66 feet).

Connect a device

The LED indicator blinks blue.

On your Bluetooth device, enable

Bluetooth and search for Bluetooth devices

that can be paired.

3 Select [Philips S1505] displayed on your

device for pairing and connection. If

necessary, input “0000” as the pairing

password.

» After successful pairing and connection,

you'll hear the prompt sound, and the

LED indicator turns solid blue.

If you cannot find

[Philips S1505] on

your device, hold down the Power

button for 2 seconds to power off

before rebooting, and long press it for

2 seconds to enter into pairing mode.

Play audio on your Bluetooth device to start

streaming music.

Tip

· You can use your Bluetooth device to control play.

LED indicator (blue)

Indicator Bluetooth connection status

Fast blinking (2Hz) Pairing

Slow blinking (1Hz) Connecting

Solid blue Connected

Disconnect a device

Disable Bluetooth on your device; or

Move the device beyond the

communication range.

» The speaker beeps twice, and the LED

indicator blinks blue.

Note

Before connecting another Bluetooth device, disconnect

the

current device first.

Reconnect a device

When you turn on the speaker, it will reconnect

the last connected device automatically; If not,

select [Philips S1505] on your Bluetooth device

to start connection.

• To clear the pairing information, press and hold for

5 seconds until you hear the prompt sound, and the

LED indicator blinks blue.

Press for 2 seconds to turn the speaker

on.

2.5W RMS

6EN

0.14

150Hz-18kHz

1.5"

64 x 64 x 78mm

3.7 V,480 mAh

V5.0

A2DP V1.3,

AVRCP V1.6

Bluetooth Profile

Operation Ambient

IP protection class

0~40

IPX7*

*The IPX7 rating means the speaker driver can

be submerged for up to 30 minutes at a depth

of up to 1 m.

Philips S1505

If you cannot find [Philips S1505] on your

device, hold the for 2 seconds to power

off, and then long press the button for 6

seconds to clear the pairing information /

enter pairing mode.

Hereby, TP Vision Europe B.V. declares that

this product is in compliance with the

essential requirements and other relevant

provisions of Directive 1999/5/EC. You can find

the Declaration of Conformity on

www.philips.com/support.

Disposal of a battery into ﬁre or a hot oven, or

mechanically crushing or cutting of a battery, that

can result in an explosion.

MMD Hong Kong Holding Limited may void

theuser's authority to operate the equipment.

FCC Statement

This device complies with Part 15 of the FCC

Rules. Operation is subject to the following

two conditions: (1) This device may not cause

harmful interference, and (2) This device must

accept any interference received, including

interference that may cause undesired

operation.

Warning: Changes or modiﬁcations not

expressly approved by the party responsible for

compliance could void the user’s authority to

operate the equipment.

Note: This equipment has been tested and

found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC

Rules.

These limits are designed to provide reasonable

protection against harmful interference in a

residential installation.

This equipment generates, uses and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference

to radio communications. However, there is

no guarantee that interference will not occur

in a particular installation. If this equipment

does cause harmful interference to radio or

television reception, which can be determined

encouraged to try to correct the interference

by one or more of the following measures: (1)

Reorient or relocate the receiving antenna. (2)

Increase the separation between the equipment

and receiver. (3) Connect the equipment into an

the receiver is connected. (4) Consult the dealer

or an experienced radio/TV technician for help.

RF Warning Statement

The device has been evaluated to meet general

RF exposure requirements. The device can be

used in portable exposure conditions without

restriction.

Trademark notice

MMD

Hong Kong Holding Limited is under license.

Other trademarks and trade names are those

of their respective owners.

The Bluetooth ® word mark and logos are

registered trademarks owned by the Bluetooth

SIG, Inc. and any use of such marks by

EN9
