Philips AD7050W/10 Manuel utilisateur

www.philips.com/welcome

AD7050W/10

User manual

All manuals and user guides at all-guides.com

all-guides.com

English

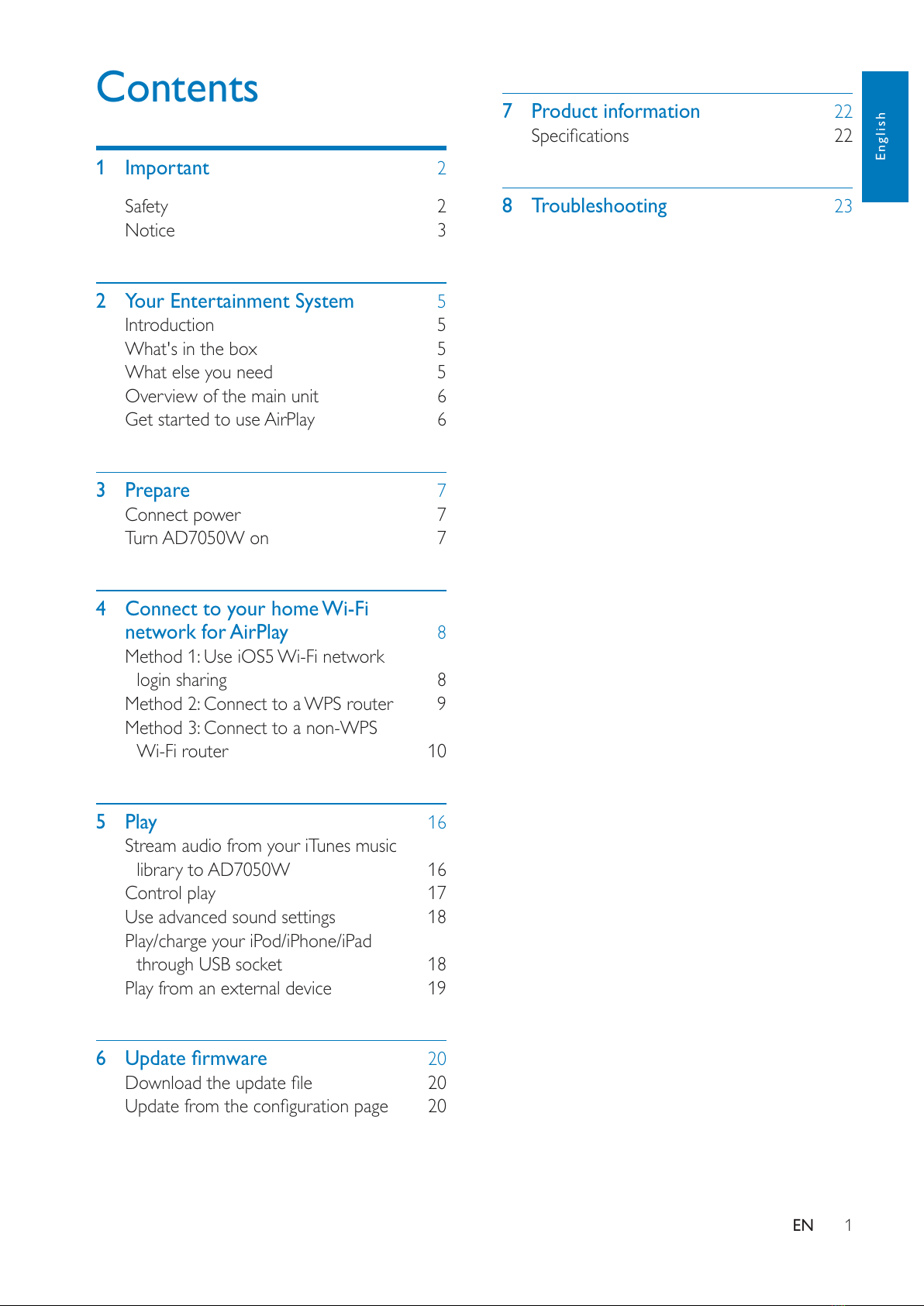

Contents

1 Important 2

Safety 2

Notice 3

2 Your Entertainment System 5

Introduction 5

What's in the box 5

What else you need 5

Overview of the main unit 6

Get started to use AirPlay 6

3 Prepare 7

Connect power 7

Turn AD7050W on 7

4 Connect to your home Wi-Fi

network for AirPlay 8

Method 1: Use iOS5 Wi-Fi network

Method 2: Connect to a WPS router 9

Method 3: Connect to a non-WPS

Wi-Fi router 10

5 Play 16

Stream audio from your iTunes music

library to AD7050W 16

Control play 17

Use advanced sound settings 18

Play/charge your iPod/iPhone/iPad

through USB socket 18

Play from an external device 19

  20

 

 

7 Product information 22

 

8 Troubleshooting 23

All manuals and user guides at all-guides.com

2EN

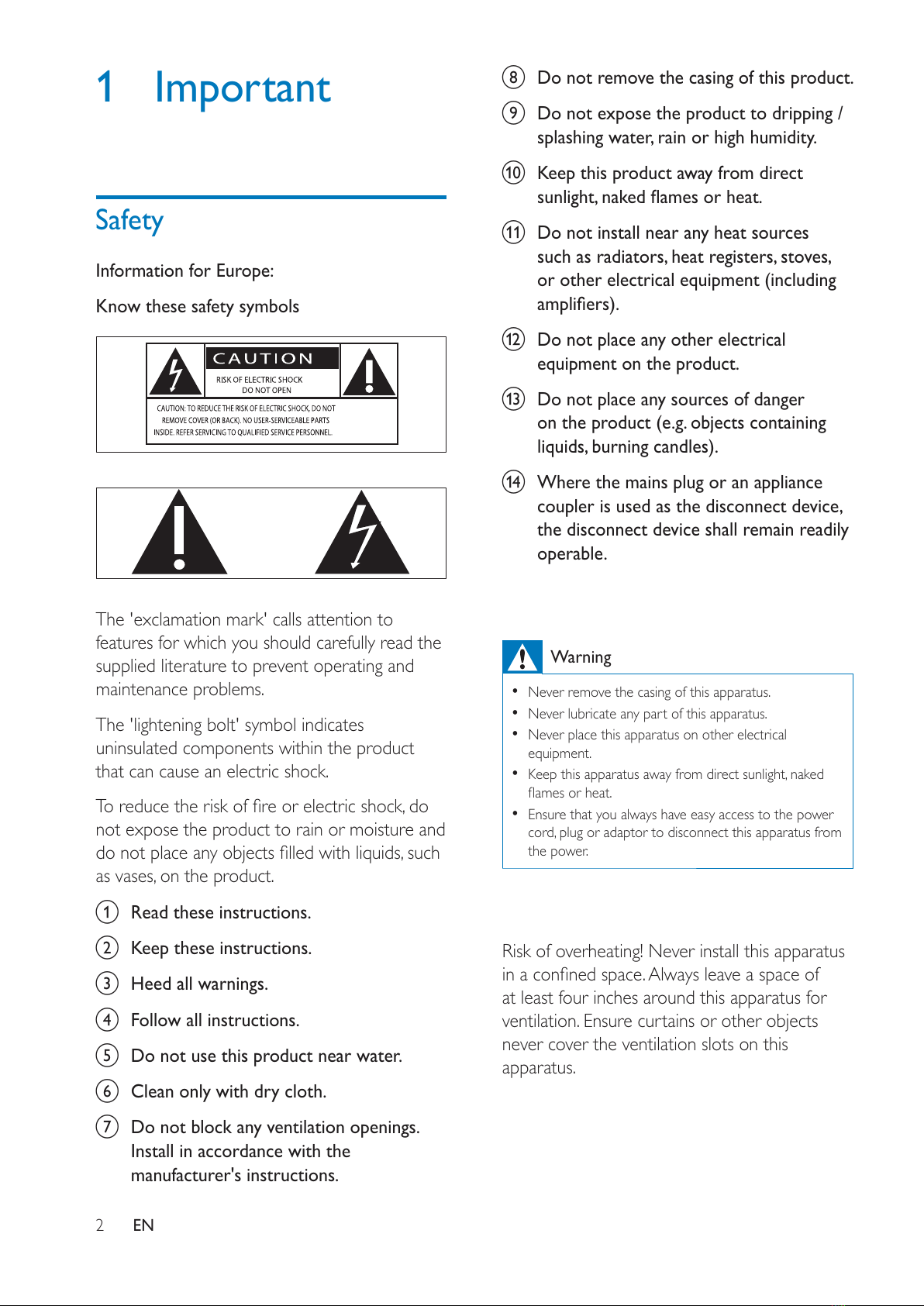

1 Important

Safety

Information for Europe:

Know these safety symbols

The 'exclamation mark' calls attention to

features for which you should carefully read the

supplied literature to prevent operating and

maintenance problems.

The 'lightening bolt' symbol indicates

uninsulated components within the product

that can cause an electric shock.



not expose the product to rain or moisture and





a Read these instructions.

b Keep these instructions.

c Heed all warnings.

d Follow all instructions.

e Do not use this product near water.

f Clean only with dry cloth.

g Do not block any ventilation openings.

Install in accordance with the

manufacturer's instructions.

h Do not remove the casing of this product.

i Do not expose the product to dripping /

splashing water, rain or high humidity.

j Keep this product away from direct



k Do not install near any heat sources

such as radiators, heat registers, stoves,

or other electrical equipment (including



l Do not place any other electrical

equipment on the product.

m Do not place any sources of danger

on the product (e.g. objects containing



n Where the mains plug or an appliance

coupler is used as the disconnect device,

the disconnect device shall remain readily

operable.

Warning

 Never remove the casing of this apparatus.

 Never lubricate any part of this apparatus.

 Never place this apparatus on other electrical



 



 Ensure that you always have easy access to the power



the power.

Risk of overheating! Never install this apparatus



at least four inches around this apparatus for

ventilation. Ensure curtains or other objects

never cover the ventilation slots on this

apparatus.

All manuals and user guides at all-guides.com

English

Notice

This product complies with the radio



Community.

The device can be operated in the EU without



outdoors in France in the whole of the band

until further notice.



the 1999/5/EC directive.





manufacturer may void user's authority to

operate this product.

Your product is designed and manufactured



which can be recycled and reused.

When this crossed-out wheeled bin symbol is

attached to a product it means that the product

is covered by the European Directive 2002/96/

EC.

Please inform yourself about the local separate

collection system for electrical and electronic

products.

Please act according to your local rules and

do not dispose of your old products with your

normal household waste. Correct disposal of

your old product helps to prevent potential



human health.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to



polystyrene foam (buffer) and polyethylene



Your system consists of materials which can

be recycled and reused if disassembled by



local regulations regarding the disposal of















Apple performance standards. Apple is not

responsible for the operation of this device

or its compliance with safety and regulatory

standards. Please note that the use of this



wireless performance.

All manuals and user guides at all-guides.com

4EN





countries. iPad is a trademark of Apple Inc.

Class II equipment symbol:



no protective earth provided.

Note

 The type plate is located on the bottom of the

apparatus.

All manuals and user guides at all-guides.com

English

2 Your

Entertainment

System







at www.philips.com/welcome.



model and serial number of this apparatus.The

model number and serial number are on the

bottom of the apparatus.Write the numbers

here:

Model No. __________________________

Serial No. ___________________________

Introduction

Apple AirPlay technology enables you to play







connected to the Wi-Fi network.





 stream audio from your iTunes music

library to any room in your house

 choose which AirPlay-enabled devices

you want to play music on (if you have

more than one such devices in your

house)

 stream audio to multiple AirPlay-

enabled devices at the same time

(from the iTunes music library on your

PC/Mac only)

Tip

 Please visit www.philips.com/welcome for information

about more Philips AirPlay-enabled devices.



 charge your iPod/iPhone/iPad through

the USB socket with an Apple USB

cable (not supplied).

 play your iTunes music library on your

iPod/iPhone/iPad through the USB

socket directly while charging.

 play music from other audio devices

through the MP3-LINK socket.

What's in the box

Check and identify the contents of your

package:

 Main unit (with a built-in Wi-Fi

module)

 1 x AC power adapter

 1 x MP3 link cable

 User manual (in CD-ROM)

 Quick start guide

What else you need



 

 



iPad installed with iOS 4.3 (or later) or

a Wi-Fi enabled PC/Mac installed with

iTunes 10 (or later)

Your AD7050W should be connected to the

same local network as your iTunes host device

through the Wi-Fi router.

All manuals and user guides at all-guides.com

all-guides.com

6EN

List of compatible iTunes host devices

for AirPlay



with:

 a Wi-Fi enabled PC/Mac installed with

iTunes 10 (or later); and

 the following iPod/iPhone/iPad models

installed with iOS 4.3 (or later):

 iPad 2

 iPad

 iPhone 4S

 iPhone 4

 iPhone 3GS

 iPhone 3G

 

generation)

Overview of the main unit

a +/-

 Adjust volume.

 Press and hold both buttons to reset

the unit.

 Press and hold to turn the unit on/off.

 Press to turn the bottom light on/off.

c WI-FI SETUP button/indicator

 Connect the unit to a Wi-Fi network.

 Show the Wi-Fi connection status of

the unit.

d MP3-LINK

 Connect an external audio player

through the supplied MP3 link cable.

e USB

 Connect an iPod/iPhone/iPad through

an Apple USB cable (not supplied).

f DC IN

 Connect the power adaptor.

g Bottom light

Get started to use AirPlay



1 Upgrade your iPod touch/iPhone/iPad to

the latest iOS version (iOS 4.3 or later).

 Or install the latest version of iTunes

(iTunes 10 or later) on your PC/Mac.

2 

on (see 'Prepare' on page 7).

3 Connect AD7050W to your existing home

Wi-Fi network (see 'Connect to your

home Wi-Fi network for AirPlay' on page

8).

4 Make sure that your iPod touch/iPhone/

iPad or PC/Mac are also connected to the

same Wi-Fi network.

All manuals and user guides at all-guides.com

English

3 Prepare

Always follow the instructions in this chapter in



Connect power

Caution

 Risk of product damage! Make sure that the power

supply voltage matches the voltage printed on the

bottom of the unit.

 Risk of electric shock! When you unplug the AC



pull the cord.

 

have completed all the other connections.

 Connect the AC power cord to

 the DC IN socket on the back of the

unit.

 the wall power socket.

Turn AD7050W on

1 Press and hold on the back to turn the

unit on.

2 Wait for successful boot-up of the unit.

» The boot-up takes up to 35 seconds.

» Wi-Fi SETUP

indicator on the back of the unit blinks

yellow.

» 

Wi-Fi SETUP indicator turns solid



Fi Setup mode automatically.

  again.

 

once more.

Tip

 

off automatically.

All manuals and user guides at all-guides.com

8EN

4 Connect to

your home Wi-

Fi network for

AirPlay

To connect AD7050W to your existing home



Wi-Fi settings to AD7050W.

Choose your best setup method based on the

preconditions listed below.

Precondition Setup method

You have an iPod

touch/iPhone/iPad

upgraded to iOS 5.0

or later.

Choose method 1

(recommended) (see

'Method 1: Use iOS5

Wi-Fi network login

sharing' on page 8).

Your Wi-Fi router is

enabled with WPS

(Wi-Fi Protected

Setup) and supports

PBC (Push Button

Connection).

Choose method

2 (see 'Method 2:

Connect to a WPS

router' on page 9).

You have a Wi-Fi

enabled device with



such as an iPod touch/

iPhone/iPad or a Wi-Fi

enabled PC/Mac.

Choose method

3 (see 'Method 3:

Connect to a non-

WPS Wi-Fi router' on

page 10).

Before connection of AD7050W to you home



a your Wi-Fi router is powered on and

working properly.

b AD7050W has been powered on

and booted up successfully (see 'Turn

!"#$#%&"



remember your home Wi-Fi settings.Then

you can enjoy AirPlay whenever AD7050W is

powered on and connected to your home Wi-

Fi network automatically.

Method 1: Use iOS5 Wi-Fi

network login sharing

1 Connect your iPod touch/iPhone/iPad to

your home Wi-Fi network.

2 Connect an Apple USB cable (not

supplied) to:

 the USB socket on the back of

AD7050W.

 the dock connector on your iPod/

iPhone/iPad.

All manuals and user guides at all-guides.com

English

3 Press WIFI SETUP on the back of

AD7050W.

» The following dialog box is displayed.

4 Tap ALLOW (allow) to share your Wi-Fi

settings with AD7050W.

» 



the unit beeps.

» AD7050W is connected to your

existing home Wi-Fi network

successfully.

Method 2: Connect to a WPS

router

Note

 

that AD7050W has been booted up successfully (see

'Turn AD7050W on' on page 7).

1 Press the WPS button on your home Wi-Fi

router.

2 Wi-Fi SETUP on

the back of AD7050W.

» The Wi-Fi SETUP indicator blinks

yellow and green alternately.

» WI-FI SETUP



beeps.

» AD7050W is connected to your home

Wi-Fi network successfully.

WPS

All manuals and user guides at all-guides.com

Autres manuels pour AD7050W/10

Table des matières

Autres manuels Philips Intervenants

Philips

Philips BT6000 Manuel utilisateur

Philips

Philips SPA1302/05 Manuel utilisateur

Philips

Philips TAX5206/37 Manuel utilisateur

Philips

Philips AW5000 Manuel utilisateur

Philips

Philips FM CORDLESS SPEAKER BC8210 Manuel utilisateur

Philips

Philips Fidelio DS3800W Manuel utilisateur

Philips

Philips SBC BC 8310 Manuel utilisateur

Philips

Philips SPA1260/37 Manuel utilisateur

Philips

Philips EverPlay BT3900 Manuel utilisateur

Philips

Philips SBCBC730/00 Manuel utilisateur

Philips

Philips AD7000W/37 Manuel utilisateur

Philips

Philips 70DSS930 Manuel utilisateur

Philips

Philips BM90 Manuel utilisateur

Philips

Philips SPA2210W/10 Manuel utilisateur

Philips

Philips HTL4111B/12 Manuel utilisateur

Philips

Philips BT5580 Manuel utilisateur

Philips

Philips FB695 Manuel utilisateur

Philips

Philips TAS1505 Manuel utilisateur

Philips

Philips SPA3300 Manuel utilisateur

Philips

Philips SPA5200 Manuel utilisateur

Philips

Philips Fidelio HTL7180 Manuel utilisateur

Philips

Philips Fidelio HTL9100 Manuel utilisateur

Philips

Philips FB 698 Manuel utilisateur

Philips

Philips AD7000W/10 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
