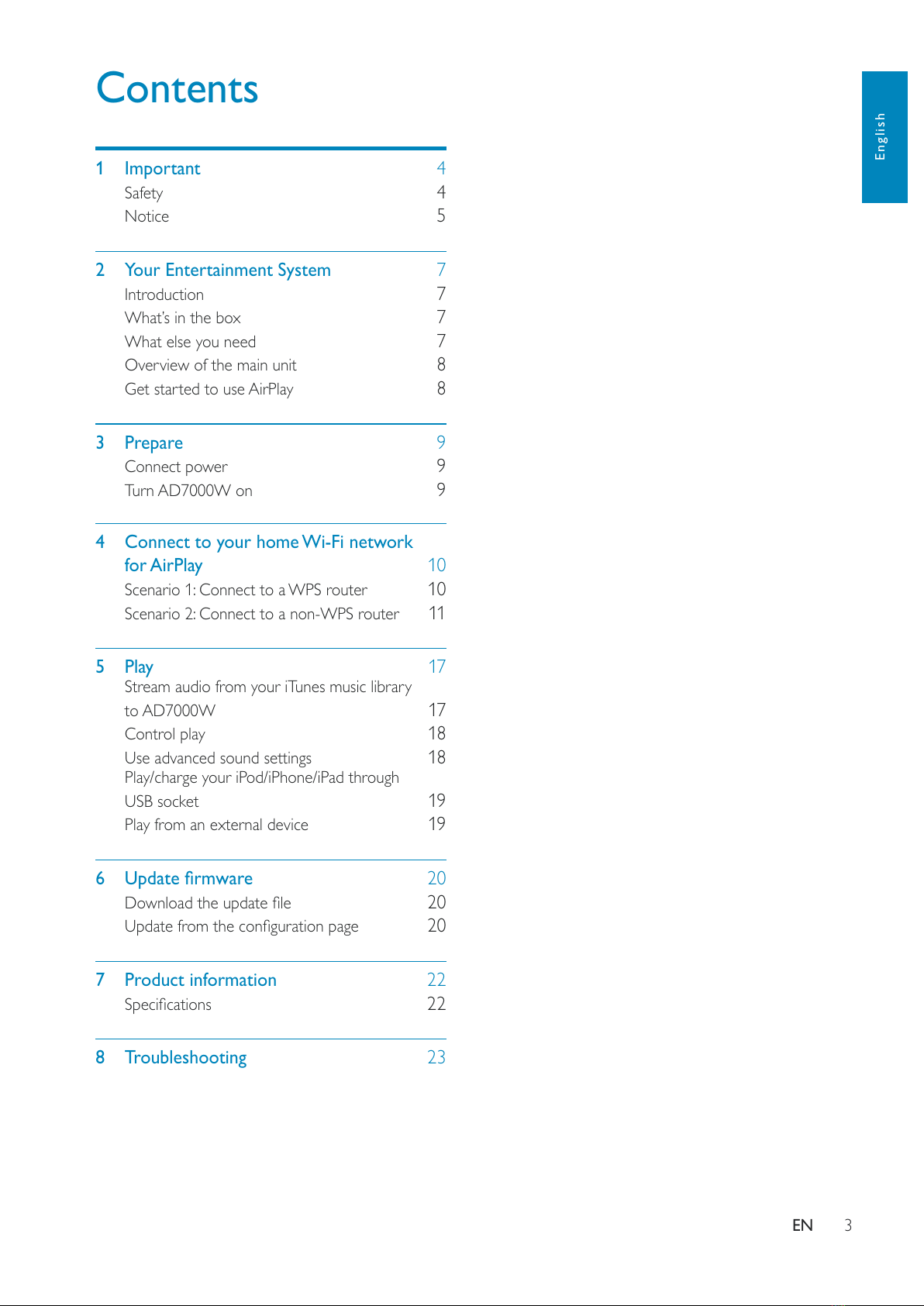

Contents

1 Important 4

Safety 4

Notice 5

2 Your Entertainment System 7

Introduction 7

What’s in the box 7

What else you need 7

Overview of the main unit 8

Get started to use AirPlay 8

3 Prepare 9

Connect power 9

Turn AD7000W on 9

4 Connect to your home Wi-Fi network

for AirPlay 10

Scenario 1: Connect to a WPS router 10

Scenario 2: Connect to a non-WPS router 11

5 Play 17

Stream audio from your iTunes music library

to AD7000W 17

Control play 18

Use advanced sound settings 18

Play/charge your iPod/iPhone/iPad through

USB socket 19

Play from an external device 19

  20

 20

 20

7 Product information 22

 22

8 Troubleshooting 23

All manuals and user guides at all-guides.com

hDo not remove the casing of this product.

iDo not expose the product to dripping /

splashing water, rain or high humidity.

jKeep this product away from direct



kDo not install near any heat sources

such as radiators, heat registers, stoves,

or other electrical equipment (including



lDo not place any other electrical

equipment on the product.

mDo not place any sources of danger

on the product (e.g. objects containing



nThis product may include batteries. Please

refer to safety and disposal instructions

for batteries in this user manual.

oWhere the mains plug or an appliance

coupler is used as the disconnect device,

the disconnect device shall remain readily

operable.

Warning

 Never remove the casing of this apparatus.

 Never lubricate any part of this apparatus.

 Never place this apparatus on other electrical

equipment.

 Keep this apparatus away from direct sunlight, naked



 Ensure that you always have easy access to the power

cord, plug or adaptor to disconnect this apparatus from

the power.

Risk of overheating! Never install this apparatus



at least four inches around this apparatus for

ventilation. Ensure curtains or other objects

never cover the ventilation slots on this

apparatus.

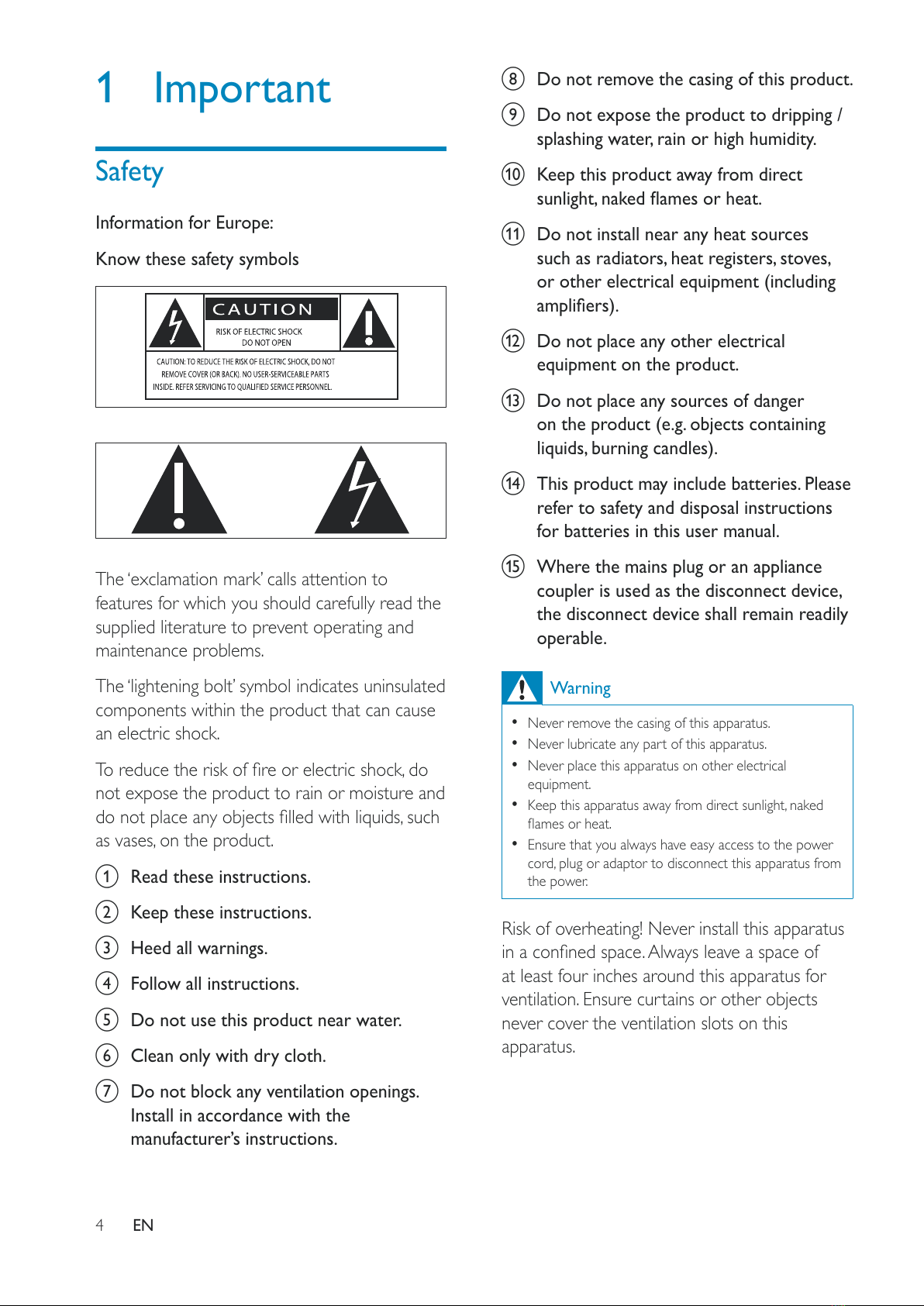

1 Important

Safety

Information for Europe:

Know these safety symbols

The ‘exclamation mark’ calls attention to

features for which you should carefully read the

supplied literature to prevent operating and

maintenance problems.

The ‘lightening bolt’ symbol indicates uninsulated

components within the product that can cause

an electric shock.



not expose the product to rain or moisture and



as vases, on the product.

aRead these instructions.

bKeep these instructions.

cHeed all warnings.

dFollow all instructions.

eDo not use this product near water.

fClean only with dry cloth.

gDo not block any ventilation openings.

Install in accordance with the

manufacturer’s instructions.

All manuals and user guides at all-guides.com

English





manufacturer may void user’s authority to

operate this product.

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When this crossed-out wheeled bin symbol is

attached to a product it means that the product

is covered by the European Directive 2002/96/

EC.

Please inform yourself about the local separate

collection system for electrical and electronic

products.

Please act according to your local rules and

do not dispose of your old products with your

normal household waste. Correct disposal of

your old product helps to prevent potential

negative consequences for the environment and

human health.

Your product contains batteries covered by

the European Directive 2006/66/EC, which

cannot be disposed with normal household

waste.Please inform yourself about the local

rules on separate collection of batteries

because correct disposal helps to prevent

negative consequences for the environmental

and human health.

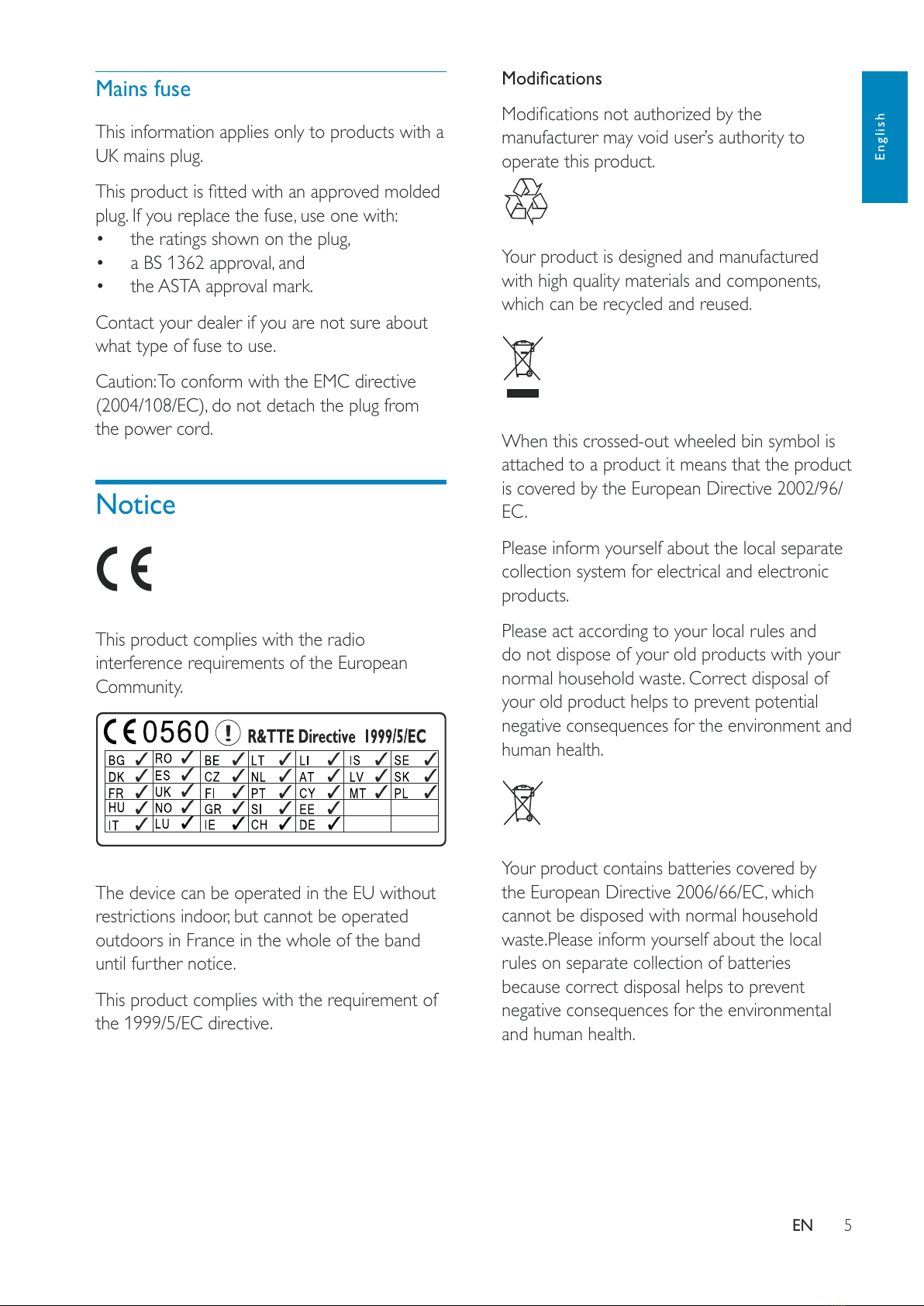

Mains fuse

This information applies only to products with a

UK mains plug.



plug. If you replace the fuse, use one with:

 the ratings shown on the plug,

 a BS 1362 approval, and

 the ASTA approval mark.

Contact your dealer if you are not sure about

what type of fuse to use.

Caution:To conform with the EMC directive

(2004/108/EC), do not detach the plug from

the power cord.

Notice

This product complies with the radio

interference requirements of the European

Community.

The device can be operated in the EU without

restrictions indoor, but cannot be operated

outdoors in France in the whole of the band

until further notice.

This product complies with the requirement of

the 1999/5/EC directive.

All manuals and user guides at all-guides.com

AirPlay, iPod, and iPhone are trademarks of

Apple Inc., registered in the U.S. and other

countries. iPad is a trademark of Apple Inc.

Class II equipment symbol:

CLASS II apparatus with double insulation, and

no protective earth provided.

Note

 The type plate is located on the bottom of the

apparatus.

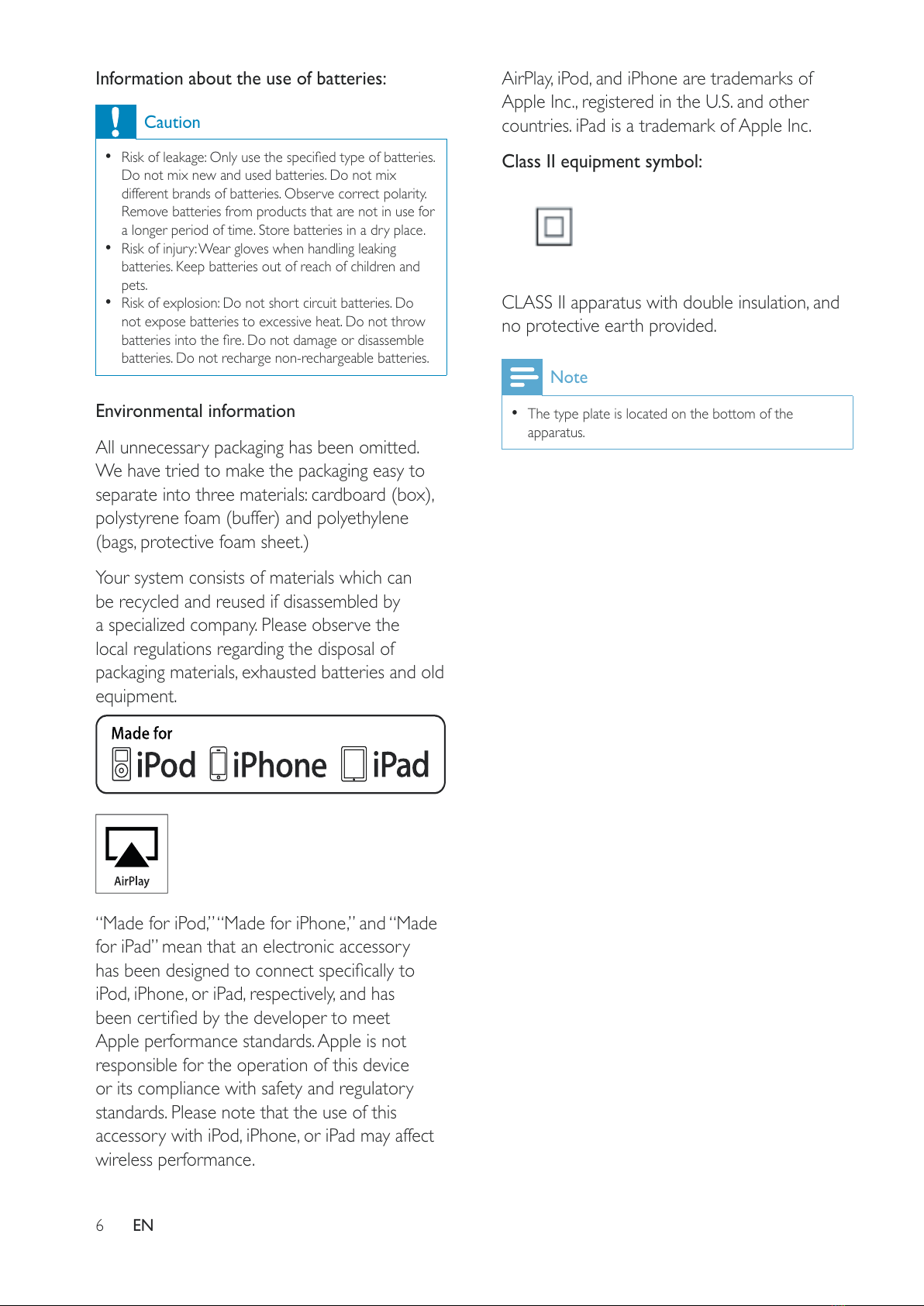

Information about the use of batteries:

Caution

 

Do not mix new and used batteries. Do not mix

different brands of batteries. Observe correct polarity.

Remove batteries from products that are not in use for

a longer period of time. Store batteries in a dry place.

 Risk of injury:Wear gloves when handling leaking

batteries. Keep batteries out of reach of children and

pets.

 Risk of explosion: Do not short circuit batteries. Do

not expose batteries to excessive heat. Do not throw



batteries. Do not recharge non-rechargeable batteries.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to

separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can

be recycled and reused if disassembled by



local regulations regarding the disposal of

packaging materials, exhausted batteries and old

equipment.

“Made for iPod,”“Made for iPhone,” and “Made

for iPad” mean that an electronic accessory



iPod, iPhone, or iPad, respectively, and has



Apple performance standards. Apple is not

responsible for the operation of this device

or its compliance with safety and regulatory

standards. Please note that the use of this

accessory with iPod, iPhone, or iPad may affect

wireless performance.

All manuals and user guides at all-guides.com

English

Tip

 Please visit www.philips.com/welcome for information

about more Philips AirPlay-enabled devices.

With AD7000W, you can also:

 charge your iPod/iPhone/iPad through

the USB socket with an Apple USB

cable (not supplied).

 play your iTunes music library on your

iPod/iPhone/iPad through the USB

socket directly while charging.

 play music from other audio devices

through the MP3-LINK socket.

What’s in the box

Check and identify the contents of your

package:

 Main unit (with a built-in Wi-Fi

module)

 1 x AC power adapter

 1 x MP3 link cable

 User manual (in CD-ROM)

 Quick start guide

What else you need

To stream audio wirelessly by AirPlay, you need:

 

 A host for your iTunes music library,

for example, an iPod touch/iPhone/

iPad installed with iOS 4.3 (or later)

or a Wi-Fi enabled PC/Mac installed

with iTunes 10 (or later)

Your AD7000W should be connected to the

same local network as your iTunes host device

through the Wi-Fi router.

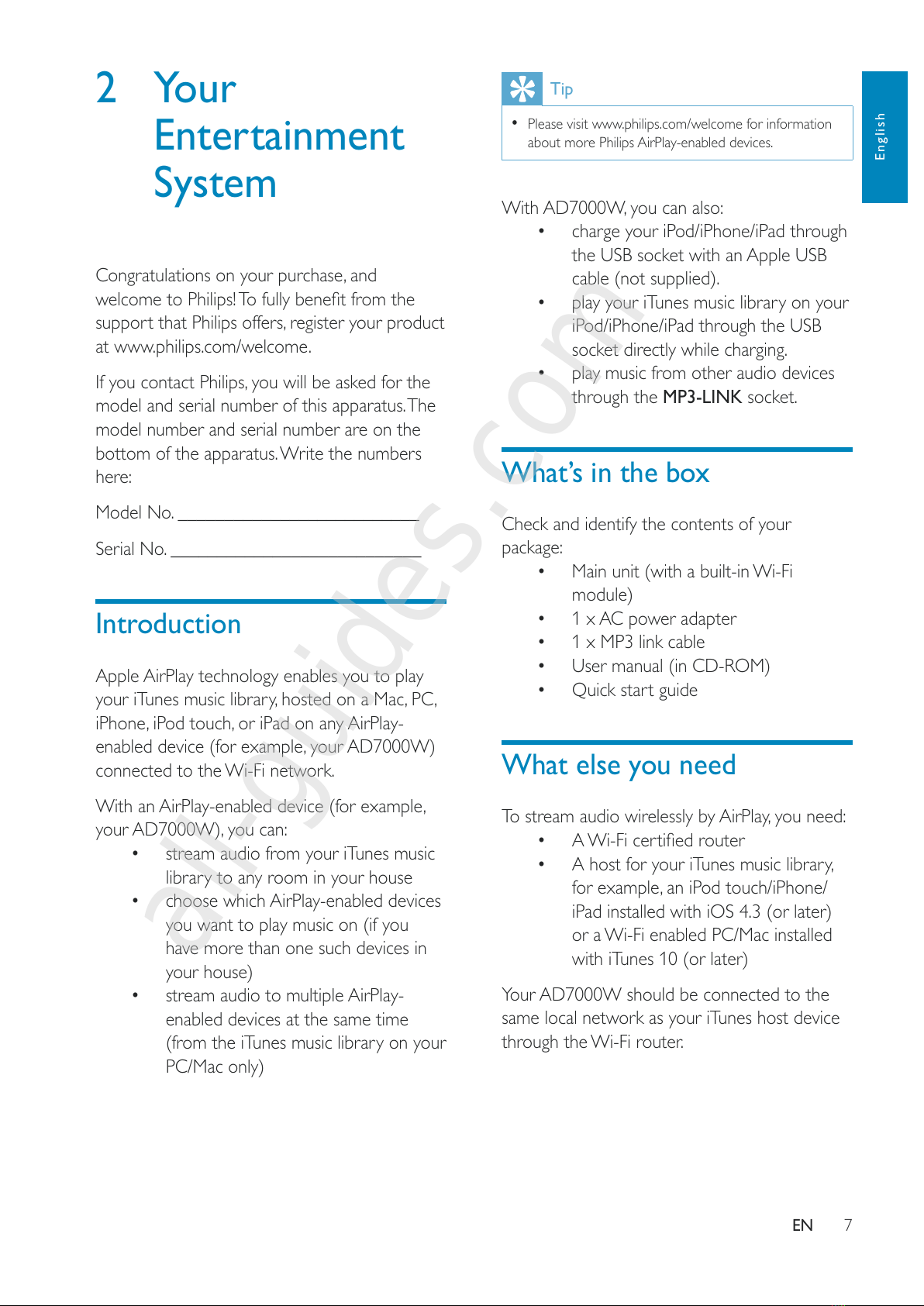

2 Your

Entertainment

System

Congratulations on your purchase, and



support that Philips offers, register your product

at www.philips.com/welcome.

If you contact Philips, you will be asked for the

model and serial number of this apparatus.The

model number and serial number are on the

bottom of the apparatus.Write the numbers

here:

Model No. __________________________

Serial No. ___________________________

Introduction

Apple AirPlay technology enables you to play

your iTunes music library, hosted on a Mac, PC,

iPhone, iPod touch, or iPad on any AirPlay-

enabled device (for example, your AD7000W)

connected to the Wi-Fi network.

With an AirPlay-enabled device (for example,

your AD7000W), you can:

 stream audio from your iTunes music

library to any room in your house

 choose which AirPlay-enabled devices

you want to play music on (if you

have more than one such devices in

your house)

 stream audio to multiple AirPlay-

enabled devices at the same time

(from the iTunes music library on your

PC/Mac only)

All manuals and user guides at all-guides.com

all-guides.com

eMP3-LINK

 Connect an external audio player

through the supplied MP3 link cable.

fDC IN

 Connect the power adaptor.

gUSB

 Connect an iPod/iPhone/iPad through

an Apple USB cable (not supplied).

Get started to use AirPlay

To get started with AirPlay, you need to:

1Upgrade your iPod touch/iPhone/iPad to

the latest iOS version (iOS 4.3 or later).

 Or install the latest version of iTunes

(iTunes 10 or later) on your PC/Mac.

2Connect power to AD7000W, then turn it

on (see ‘Prepare’ on page 9).

3Connect AD7000W to your existing home

Wi-Fi network (see ‘Connect to your

home Wi-Fi network for AirPlay’ on page

10).

4Make sure that your iPod touch/iPhone/

iPad or PC/Mac are also connected to the

same Wi-Fi network.

List of compatible iTunes host devices

for AirPlay

In terms of AirPlay, AD7000W is compatible

with:

 a Wi-Fi enabled PC/Mac installed with

iTunes 10 (or later); and

 the following iPod/iPhone/iPad models

installed with iOS 4.3 (or later):

 iPad 2

 iPad

 iPhone 4

 iPhone 3GS

 iPod touch (2nd, 3rd, and 4th

generation)

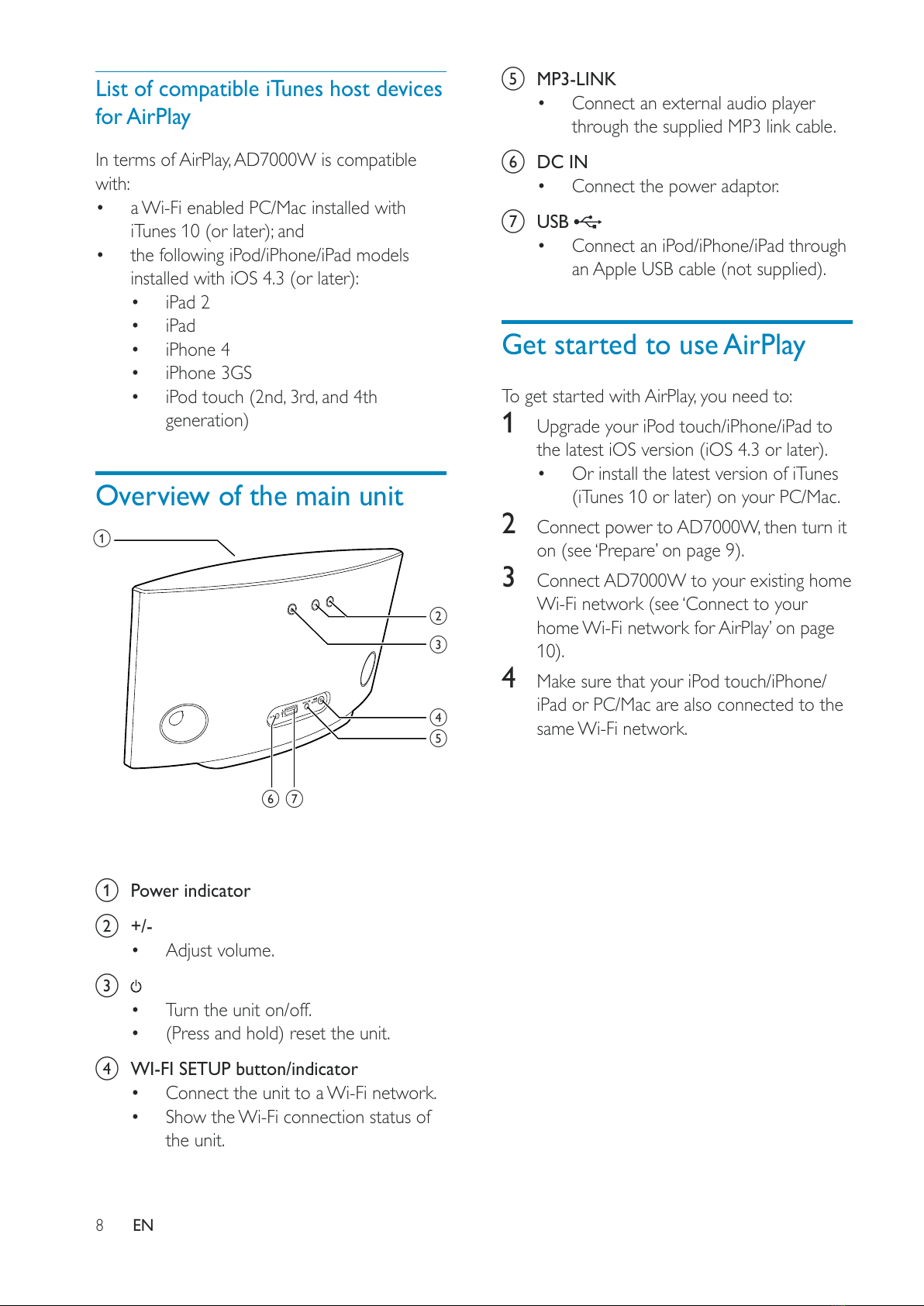

Overview of the main unit

aPower indicator

b+/-

 Adjust volume.

 Turn the unit on/off.

 (Press and hold) reset the unit.

dWI-FI SETUP button/indicator

 Connect the unit to a Wi-Fi network.

 Show the Wi-Fi connection status of

the unit.

All manuals and user guides at all-guides.com

English

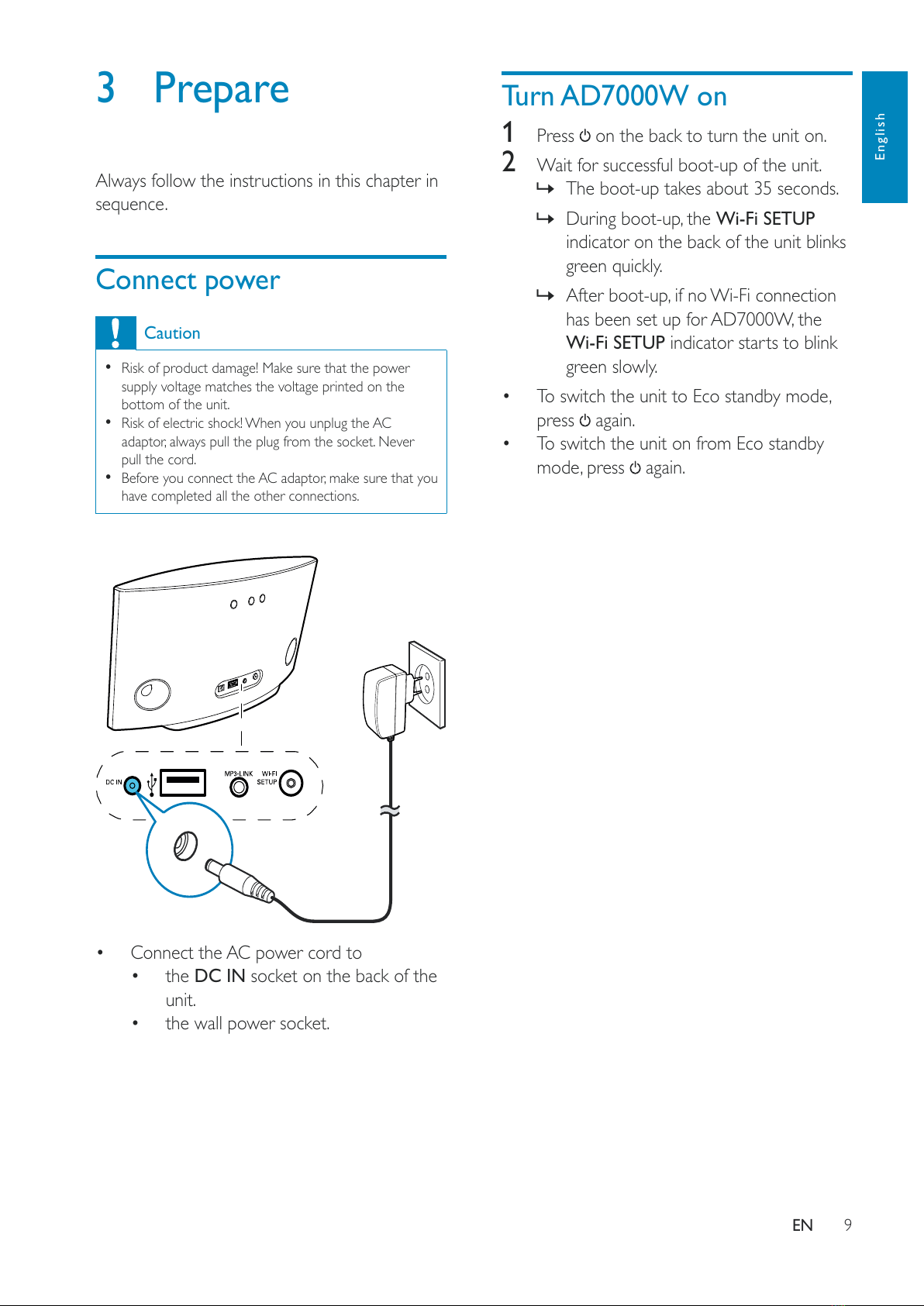

Turn AD7000W on

1Press on the back to turn the unit on.

2Wait for successful boot-up of the unit.

»The boot-up takes about 35 seconds.

»During boot-up, the Wi-Fi SETUP

indicator on the back of the unit blinks

green quickly.

»After boot-up, if no Wi-Fi connection

has been set up for AD7000W, the

Wi-Fi SETUP indicator starts to blink

green slowly.

 To switch the unit to Eco standby mode,

press again.

 To switch the unit on from Eco standby

mode, press again.

3 Prepare

Always follow the instructions in this chapter in

sequence.

Connect power

Caution

 Risk of product damage! Make sure that the power

supply voltage matches the voltage printed on the

bottom of the unit.

 Risk of electric shock! When you unplug the AC

adaptor, always pull the plug from the socket. Never

pull the cord.

 Before you connect the AC adaptor, make sure that you

have completed all the other connections.

 Connect the AC power cord to

 the DC IN socket on the back of the

unit.

 the wall power socket.

All manuals and user guides at all-guides.com

Before connection of AD7000W to you home

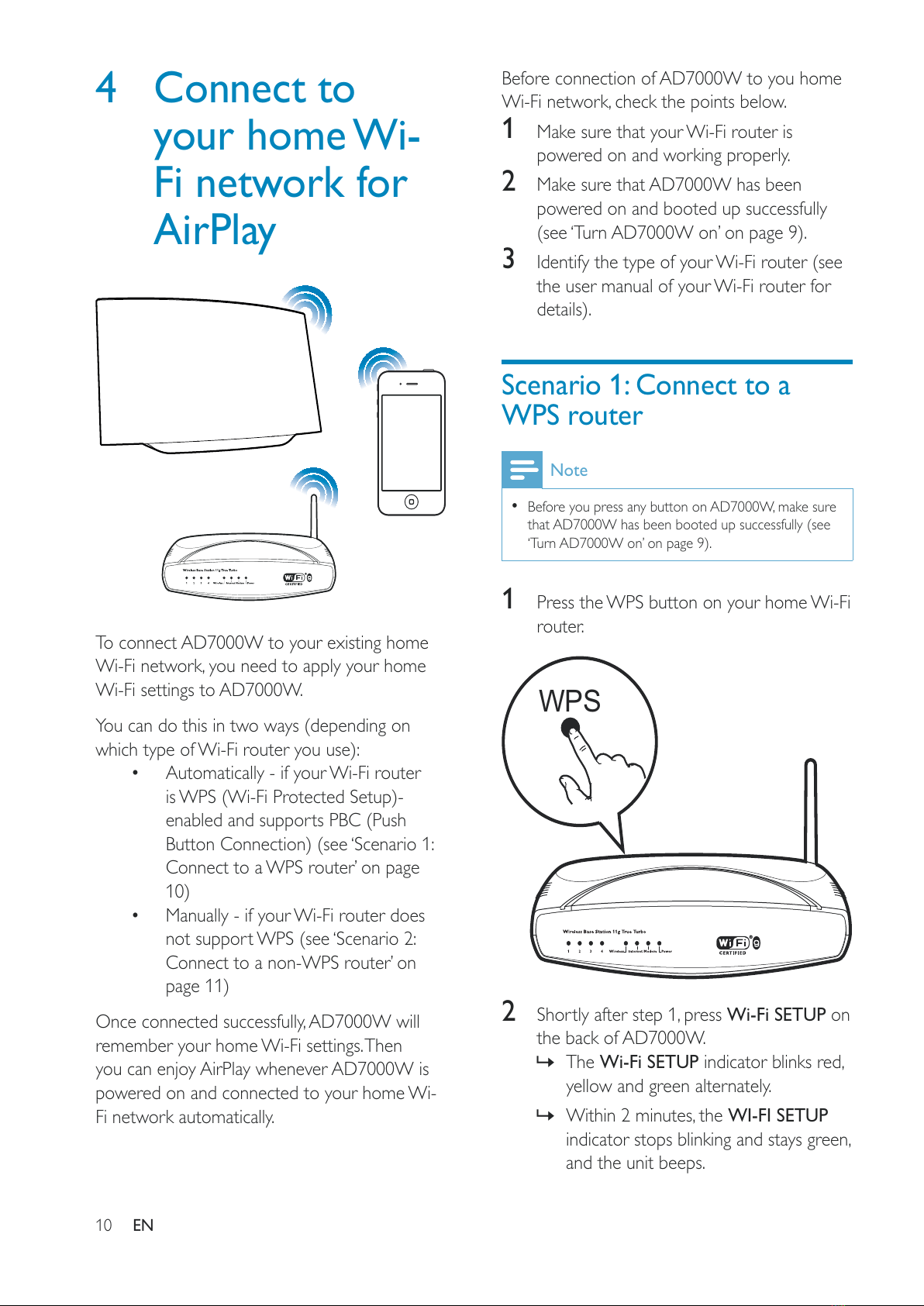

Wi-Fi network, check the points below.

1Make sure that your Wi-Fi router is

powered on and working properly.

2Make sure that AD7000W has been

powered on and booted up successfully

(see ‘Turn AD7000W on’ on page 9).

3Identify the type of your Wi-Fi router (see

the user manual of your Wi-Fi router for

details).

Scenario 1: Connect to a

WPS router

Note

 Before you press any button on AD7000W, make sure

that AD7000W has been booted up successfully (see

‘Turn AD7000W on’ on page 9).

1Press the WPS button on your home Wi-Fi

router.

2Shortly after step 1, press Wi-Fi SETUP on

the back of AD7000W.

»The Wi-Fi SETUP indicator blinks red,

yellow and green alternately.

»Within 2 minutes, the WI-FI SETUP

indicator stops blinking and stays green,

and the unit beeps.

WPS

4 Connect to

your home Wi-

Fi network for

AirPlay

To connect AD7000W to your existing home

Wi-Fi network, you need to apply your home

Wi-Fi settings to AD7000W.

You can do this in two ways (depending on

which type of Wi-Fi router you use):

 Automatically - if your Wi-Fi router

is WPS (Wi-Fi Protected Setup)-

enabled and supports PBC (Push

Button Connection) (see ‘Scenario 1:

Connect to a WPS router’ on page

10)

 Manually - if your Wi-Fi router does

not support WPS (see ‘Scenario 2:

Connect to a non-WPS router’ on

page 11)

Once connected successfully, AD7000W will

remember your home Wi-Fi settings.Then

you can enjoy AirPlay whenever AD7000W is

powered on and connected to your home Wi-

Fi network automatically.

All manuals and user guides at all-guides.com

English

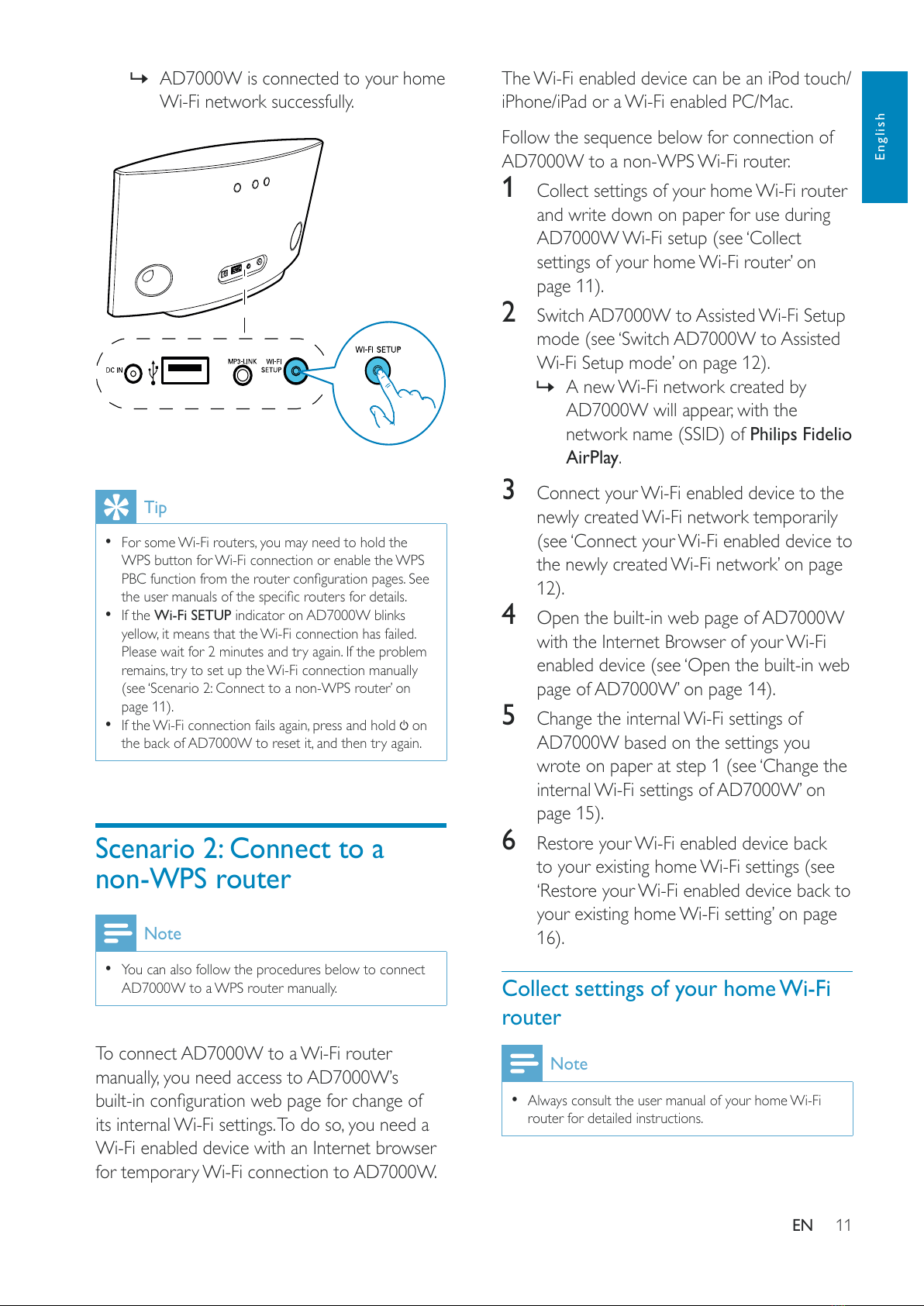

The Wi-Fi enabled device can be an iPod touch/

iPhone/iPad or a Wi-Fi enabled PC/Mac.

Follow the sequence below for connection of

AD7000W to a non-WPS Wi-Fi router.

1Collect settings of your home Wi-Fi router

and write down on paper for use during

AD7000W Wi-Fi setup (see ‘Collect

settings of your home Wi-Fi router’ on

page 11).

2Switch AD7000W to Assisted Wi-Fi Setup

mode (see ‘Switch AD7000W to Assisted

Wi-Fi Setup mode’ on page 12).

»A new Wi-Fi network created by

AD7000W will appear, with the

network name (SSID) of Philips Fidelio

AirPlay.

3Connect your Wi-Fi enabled device to the

newly created Wi-Fi network temporarily

(see ‘Connect your Wi-Fi enabled device to

the newly created Wi-Fi network’ on page

12).

4Open the built-in web page of AD7000W

with the Internet Browser of your Wi-Fi

enabled device (see ‘Open the built-in web

page of AD7000W’ on page 14).

5Change the internal Wi-Fi settings of

AD7000W based on the settings you

wrote on paper at step 1 (see ‘Change the

internal Wi-Fi settings of AD7000W’ on

page 15).

6Restore your Wi-Fi enabled device back

to your existing home Wi-Fi settings (see

‘Restore your Wi-Fi enabled device back to

your existing home Wi-Fi setting’ on page

16).

Collect settings of your home Wi-Fi

router

Note

 Always consult the user manual of your home Wi-Fi

router for detailed instructions.

»AD7000W is connected to your home

Wi-Fi network successfully.

Tip

 For some Wi-Fi routers, you may need to hold the

WPS button for Wi-Fi connection or enable the WPS





 If the Wi-Fi SETUP indicator on AD7000W blinks

yellow, it means that the Wi-Fi connection has failed.

Please wait for 2 minutes and try again. If the problem

remains, try to set up the Wi-Fi connection manually

(see ‘Scenario 2: Connect to a non-WPS router’ on

page 11).

 If the Wi-Fi connection fails again, press and hold on

the back of AD7000W to reset it, and then try again.

Scenario 2: Connect to a

non-WPS router

Note

 You can also follow the procedures below to connect

AD7000W to a WPS router manually.

To connect AD7000W to a Wi-Fi router

manually, you need access to AD7000W’s



its internal Wi-Fi settings.To do so, you need a

Wi-Fi enabled device with an Internet browser

for temporary Wi-Fi connection to AD7000W.

All manuals and user guides at all-guides.com

Table des matières

Autres manuels Philips Intervenants

Philips

Philips CSS2133B/F7 Manuel utilisateur

Philips

Philips AD7000W/10 Manuel utilisateur

Philips

Philips SPA2200 Manuel utilisateur

Philips

Philips DS3880W/93 Manuel utilisateur

Philips

Philips HTL5160B Manuel utilisateur

Philips

Philips SPA5160B Manuel utilisateur

Philips

Philips HSB3280 Manuel utilisateur

Philips

Philips SBT75RED/37 Manuel utilisateur

Philips

Philips MMS2143B Manuel utilisateur

Philips

Philips SPA1300/05 Manuel utilisateur

Philips

Philips TAW6205 Manuel utilisateur

Philips

Philips Fidelio SoundRing DS3801W/37 Manuel utilisateur

Philips

Philips CSP410 Manuel utilisateur

Philips

Philips SD7220 Manuel utilisateur

Philips

Philips SPA7355/77 Manuel utilisateur

Philips

Philips SW750M/05 Manuel utilisateur

Philips

Philips HTL2160 Manuel utilisateur

Philips

Philips SPA9060B Manuel utilisateur

Philips

Philips SPA2380/93 Manuel utilisateur

Philips

Philips BT4100 Manuel utilisateur

Philips

Philips SBCBM100/00 Manuel utilisateur

Philips

Philips SPA1302/05 Manuel utilisateur

Philips

Philips FX20 Manuel utilisateur

Philips

Philips BM5B Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
