Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

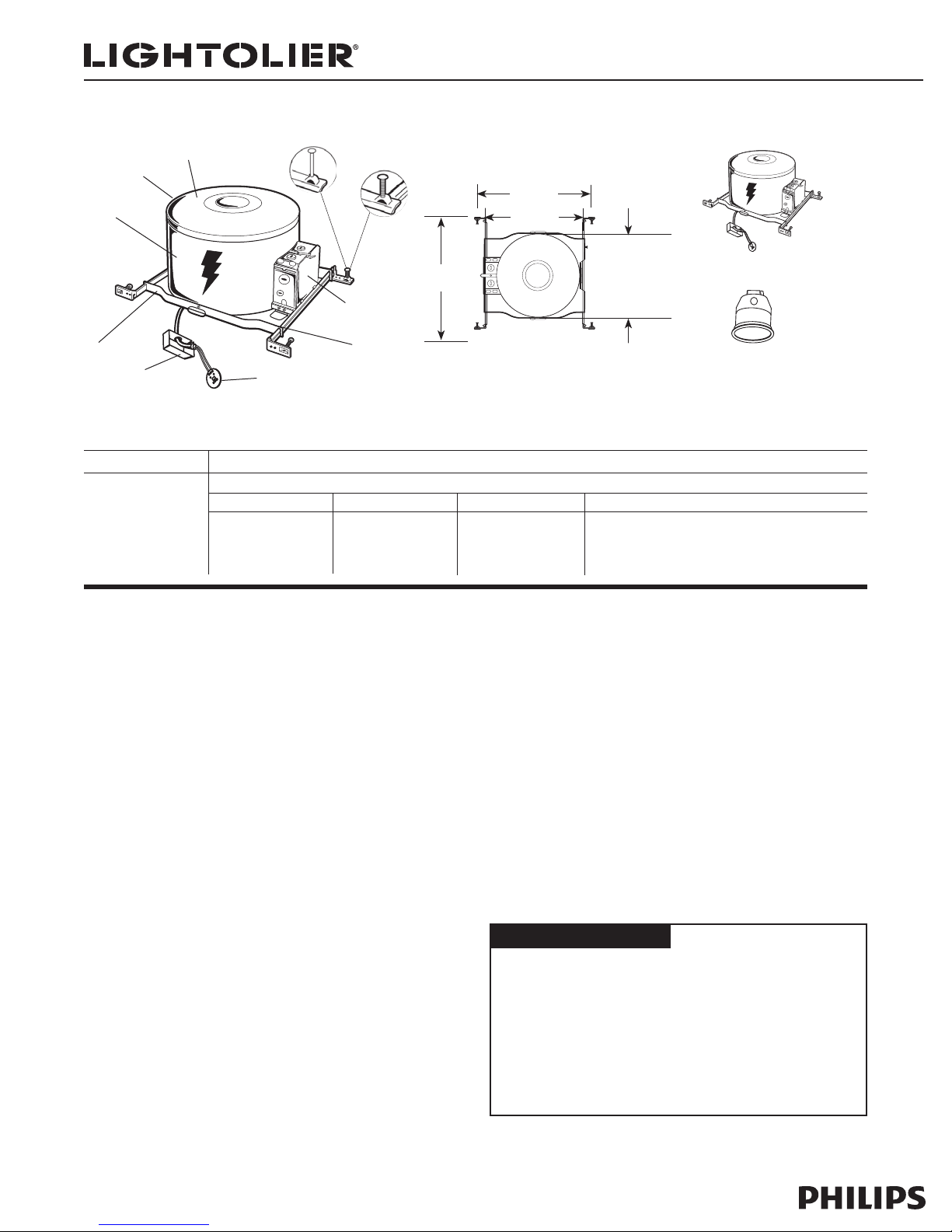

Lytecaster®Recessed Downlighting 1004ICV

Page 1 of 1 5” Aperture 0®Low Voltage AirSeal® Insulated Ceiling Frame-In Kit

Features

1. Housing: .032” (#20 ga.) aluminum. UL listed for direct contact with thermal

insulation. AirSeal® housing minimizes air leak-age to less than 2 CFM at

1.57 PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3)

and Washington State Energy Code (Section 502.4) and reduces heat loss and

condensation in ceiling. Access door for inspection of junction box.

2. Mounting Frame: .032 (#20 ga.) aluminum. Accommodates ceilings up to 1”

thick. 3/8” deep integral lip. Locks into position along length of mounting bars

with locking screws and bendable slot. Four slots are positioned 90° apart to

simplify alignment. Push-in/twist-out roto-clips hold reflector flush to ceiling.

3. Junction Box: 2” X 4” X 3 1/2” (22 cu. in.) .032” (#22 ga.) galvanized steel.

U.L. listed for maximum of 90°C through branch circuit conductors. Integral

cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex®

cable without tools or additional connectors.

4. Mounting Bars: .059” (#16 ga.) galvanized steel. Bars pivot for easy

attachment and wire-in below ceiling line. Bars extend to accommodate

16” to 24“ O.C. joist spacing. Bars can accommodate 12” O.C. joist spacing

after a slight field modification (see Instruction Sheet). 1004ICV features

integral self tapping phillips screws for secure attachment to wood or metal

construction. 1004ICVN features integral nails for secure attachment to

wood. Both ends attach to T-bar ceilings without the need of accessories.

5. Socket Housing: .036” (#20 ga.) galvanized steel.

6. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to

junction box.

7. Thermal Protector: Meets NEC and UL requirements (integral to

transformer). Located inside housing.

8. Transformer: Mounted inside housing, magnetic. 120V primary, nominal 12V

secondary. Removable from below.

Dimming UL

Dimming Controls: Use only dimmers specifically designed for use with mag-

netic transformers, like Lightolier Onset®Sunrise®series LV or VA, dimmers,

or any Lightolier Controls dimming systems. Low voltage fixtures may produce

audible sound which may be objectionable in acoustically critical areas.

5” Aperture: Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Adjustable

Baffles Aperture Cone Pinhole Elbow

1004ICV 1055LV 1056LV 1064WDLV 1052LV 1062LV

1004ICVN 1055WHLV 1063LV 1064WDPLV

1064LV

1064CDLV

AirSeal® is a registered trademark of ALCOA.

Romex®is a registered trademark of General Cable Industries Inc.

Frame-In Kit

Reflector Trim

Overall Length

1004ICV:

13 3/4” MIN.

24” MAX. Overall Width

1004ICV: 10 3/8”

15 5/16”

12 1/4”

1004ICVN

(Integral Nail)

1004ICV

(Integral Screw)

2Height: 7 1/4”

Ceiling Opening: 5 1/4”

Top View

Options & Accessories

Extra-Thick Ceiling

Mounting Ring: 1967B - 1 1/4” to 2” thick ceilings.

MR 16 Socket Replacement: 1975A

Socket for General Electric Turn

and Lock (TAL) MR16 Lamp: 1975TAL

Labels

UL (Type I.C., Suitable for Damp Location), I.B.E.W.

Complies with Air Leakage Requirements stated in the Model Energy Code and

the Washington State Energy Code.
