Philips QG3371/16 Manuel utilisateur

User manual

QG3371

ENGLISH 6

 19

 33

 46

 58

 70

 83

 97

 110

 122

 136

 150

 164

 177

 190

 202

Introduction

Congratulations on your purchase and welcome to

Philips! To fully benet from the support that Philips

offers, register your product at

www.philips.com/welcome.

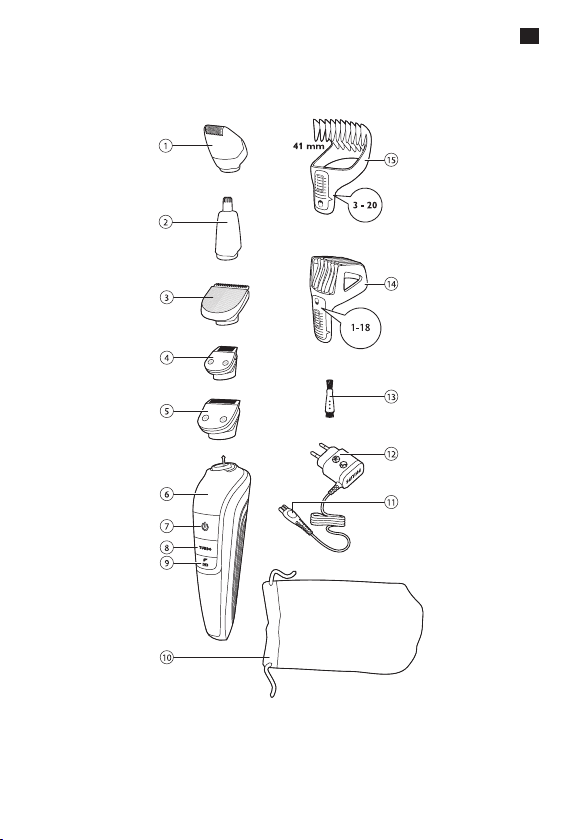

General description (Fig. 1)

1 Mini foil shaver

2 Nose/ear hair trimmer

3 Hair clipper

4 Full metal precision trimmer

5 Full metal beard trimmer

6 Handle

7 On/off button

8 TURBO button

9 Battery status indicator/Turbo LED

10 Storage pouch

11 Small plug

12 Adapter

13 Cleaning brush

14 Beard and moustache comb (1-18mm)

15 Hair clipping comb (3-20mm)

Important

Read this user manual carefully before you use the

appliance and save it for future reference.

Danger

- Keep the adapter dry.

Warning

- Check if the voltage indicated on the adapter

corresponds to the local mains voltage before you

connect the appliance.

ENGLISH

- The adapter contains a transformer. Do not cut

off the adapter to replace it with another plug,

as this causes a hazardous situation.

- This appliance is not intended for use by persons

(including children) with reduced physical,

sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

- Keep the appliance and its cord out of the reach

of children.

Caution

- Use, charge and store the appliance at a

temperature between 5°C and 35°C.

- Only use the adapter supplied to charge the

appliance.

- If the appliance is subjected to a major change in

temperature, pressure or humidity, let the appliance

acclimatise for 30 minutes before you use it.

- If the adapter is damaged, always have it replaced

with one of the original type in order to avoid a

hazard.

- Always check the appliance before you use it.

Do not use the appliance if any of its parts is

damaged or broken, as this may cause injury.

Compliance with standards

- This appliance complies with the internationally

approved IEC Safety regulations and can be safely

cleaned under the tap.

- This Philips appliance complies with all standards

regarding electromagnetic elds (EMF). If handled

properly and according to the instructions in this

user manual, the appliance is safe to use based on

scientic evidence available today.

ENGLISH 5

Charging

Charging takes approximately 1 hour.When the

appliance is fully charged, it has an operating time of

up to 50 minutes.When the battery status indicator

lights up orange, the battery is running low

(approx. 10 minutes of operating time left) indicating

you need to recharge the appliance soon.

Note:You can also quick charge the appliance, a 5 minute

charge equals approx. 5 minutes of operating time.

1 Switch off the appliance before you charge it.

2 Insert the small plug into the appliance.

3 Put the adapter in the wall socket.



The appliance is equipped with a turbo power

boost for fast results and a memory function that

remembers the last used speed setting.

Hair clipping

Preparing for hair clipping

1 Make sure that the head of the person whose

hair you intend to cut is at the same level as

your chest.This ensures that all parts of the

head are clearly visible and within easy reach.

2 Comb the hair in the growth direction.

ENGLISH6

Hair clipping with hair clipping comb

1 Place the hair clipper on the handle (1)

and turn it clockwise to x it (2).

2 Slide the hair clipping comb into the guiding

grooves on both sides of the handle.

3 Press the setting selector (1) and slide the

comb to the desired hair length setting (2).

You can choose any setting between 3 and 20mm

in steps of 1mm.

Tip:Write down the hair length settings you selected

to create a certain hairstyle as a reminder for future

clipping sessions.

4 Switch on the appliance.

5 Move the appliance slowly and against the

direction of hair growth. Press lightly.

Note: Since hair grows in different directions,

you need to move the appliance in different directions

as well (upward, downward or across).

ENGLISH 7

6 Always make sure that the at part of the

comb is in full contact with the scalp to obtain

an even result.

Make overlapping passes over the head to ensure

that you cut all the hair that needs to be cut.

Note: When you trim for the rst time, start at the highest

setting (20mm) to familiarise yourself with the appliance.

Hair clipping without hair clipping comb

You can use the trimmer without comb to clip hair

very close to the skin (to a length of 1mm) or to

create contours.

Caution: Be careful when you clip without the

comb because the trimmer removes every hair it

comes in contact with.

1 Press the setting selector (1) and slide the

comb upwards (2).Then pull the comb off the

appliance (3).

2 Before you start to contour the hairline

around the ears, comb the hair ends over the

ears.

3 Tilt the appliance in such a way that only one

edge of the trimmer touches the hair.

Only cut the hair ends.The hairline should be close

to the ear.

4 To contour the neckline and sideburns, turn

the appliance and make downward strokes.

5 Move the appliance slowly and smoothly.

Follow the natural hairline.

ENGLISH8

Beard trimming

When you trim your beard for the rst time,

be careful. Do not move the trimmer too fast.

Make smooth and gentle movements.

Beard trimming with the beard and

moustache comb

1 Place the beard trimmer on the handle (1)

and turn it clockwise to x it (2).

2 Slide the beard and moustache comb or

stubble comb into the guiding grooves on both

sides of the handle.

3 Press the setting selector (1) and slide the

comb to the desired hair length setting (2).

You can choose any setting between 1 and 18mm in

steps of 1mm.

4 Switch on the appliance.

5 Slowly move the trimmer against the hair

growth direction. Press lightly and always make

sure the surface of the comb is in full contact

with the skin.

Note: When you trim for the rst time, start at the

highest setting (18mm) to familiarise yourself with the

appliance.

Styling/contouring your beard

You can use the precision trimmer to cut shapes in

beard hair or scalp hair. It cuts hair very close to the

skin (to a length of 1mm).

ENGLISH 9

Caution: Be careful when you use the precision

trimmer because it removes every hair it comes in

contact with.

1 Place the precision trimmer on the handle (1)

and turn it clockwise to x it (2).

2 To achieve a good cutting result, move the

precision trimmer against the direction of

hair growth.Always make sure the precision

trimmer is in full contact with the skin.

3 Make careful and controlled movements with

the precision trimmer.

Tip: For the perfect nish, you can use the mini foil

shaver to make the edges and lines of your beard style

even smoother.

Grooming facial hair (nose and ear hair)



1 Place the nose/ear hair trimmer on the handle

(1) and turn it clockwise to x it (2).

2 Make sure your nostrils are clean.

3 Switch on the appliance and insert the tip of

the trimmer into one of your nostrils.

Do not insert the tip more than 0.5cm into your

nostril.

ENGLISH10
