English

Contents

1 Important 4

Safety 4

Notice 4

2 Your car power ampliﬁer 5

Introduction 5

What’s in the box 5

Overview of the main unit 5

3 Installation 6

Mount the ampliﬁer in car 6

Connect speakers 7

Connect car audio 7

Connect power 7

4 Use your power ampliﬁer 9

Select HPF/LPF mode 9

Adjust input level 9

Adjust bass boost 9

About the protector indicator 9

Replace fuse 10

5 Product information 10

6 Troubleshooting 11

All manuals and user guides at all-guides.com

Notice

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to

separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can

be recycled and reused if disassembled by

a specialized company. Please observe the

local regulations regarding the disposal of

packaging materials, exhausted batteries and

old equipment.

Any changes or modiﬁcations made to this

device that are not expressly approved by

Philips Consumer Lifestyle may void the user’s

authority to operate the equipment.

2010 © Koninklijke Philips Electronics N.V.

Speciﬁcations are subject to change without

notice. Trademarks are the property of

Koninklijke Philips Electronics N.V. or their

respective owners. Philips reserves the right

to change products at any time without being

obliged to adjust earlier supplies accordingly.

1 Important

Safety

Read and understand all instructions•

before you use the apparatus. If damage

is caused by failure to follow instructions,

the warranty does not apply.

This unit is designed for negative ground•

(earth) 12 V DC operation only.

Use only the supplied mounting hardware•

for a safe and secure installation.

Do not connect any active speakers (with•

built-in ampliﬁer) to the speaker terminals

of the unit. Doing so may damage the

active speakers.

To ensure safe driving, adjust the volume•

to a safe and comfortable level.

To avoid short circuit, do not expose the•

apparatus, remote control or remote

control batteries to rain or water.

Never expose the apparatus to direct•

sunlight, naked ﬂames or heat.

Clean the apparatus with soft, damp•

cloth. Never use substances such as

alcohol, chemicals or household cleaners

on the apparatus.

All manuals and user guides at all-guides.com

Overview of the main unit

aFRONT INPUT L/R

Connect car audio with RCA cable.•

bFRONT INPUT LEVEL

Adjust input level (0.3V to 6V).•

cFRONT CHANNEL

When switch to 2CH, front channel•

input.

When switch to 4CH, each input•

from front and rear channel.

dFRONT HPF

Adjust frequency of HPF to 80Hz or•

OFF (FLAT) mode.

eREAR BASS BOOST

Boost frequency for around 50Hz,•

12dB.

fREAR LPF

Adjust frequency of LPF to 180Hz or•

OFF(FLAT) mode.

gREAR INPUT LEVEL

Adjust input level (0.3V to 6V).•

hREAR INPUT L/R

Connect car audio with RCA cable.•

2 Your car power

amplifier

Congratulations on your purchase, and

welcome to Philips!To fully beneﬁt from the

support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With the ampliﬁer, you can enjoy high quality

sound performance with powerful bass and

beats.

What’s in the box

Check and identify the contents of your package:

aAmpliﬁer

bScrew (25mm) x 4

cFuse x 2

English

All manuals and user guides at all-guides.com

3 Installation

Note

Follow all mounting and wiring instructions.•

Mount the ampliﬁer in car

You can mount the ampliﬁer either under a seat

or on the rear tray.

Note

To avoid interference, do not place the•

ampliﬁer too close to the car audio or antenna.

The supplied mounting screws are 25mm long.

•

Make sure that the mounting board is thicker

than 25mm.

1Place the unit on the location for

installation.

2Mark the positions of the four screw

holes.

3Drill the holes with driller of

approximately 4mm in diameter.

4Mount the unit with the supplied screws.

iPOWER/PROTECTED

Light in green when the ampliﬁer is•

switched on.

Light in red when the ampliﬁer is•

abnormal and protected.

jSPEAKER OUTPUT

Connect to speakers or subwoofers.•

kFuse: 25A x 2

lPOWER (GND/REM/+12V)

To connect +12V-DC power wire,•

ground wire, and remote control wire.

All manuals and user guides at all-guides.com

Connect car audio

Connect the ampliﬁer to the car audio with an

RCA cable.

Car audio unit Car audio unit

LINE OUT LINE OUT

Connect power

1Make the power connection as illustrated

below:

Connect the ground wire from the•

car to the GND socket.

Connect the remote wire from the•

car audio to the REM socket.

With this connection, you can turn•

on/off the ampliﬁer with the car

audio.

Connect the power wire from the•

car battery to the +12V socket.

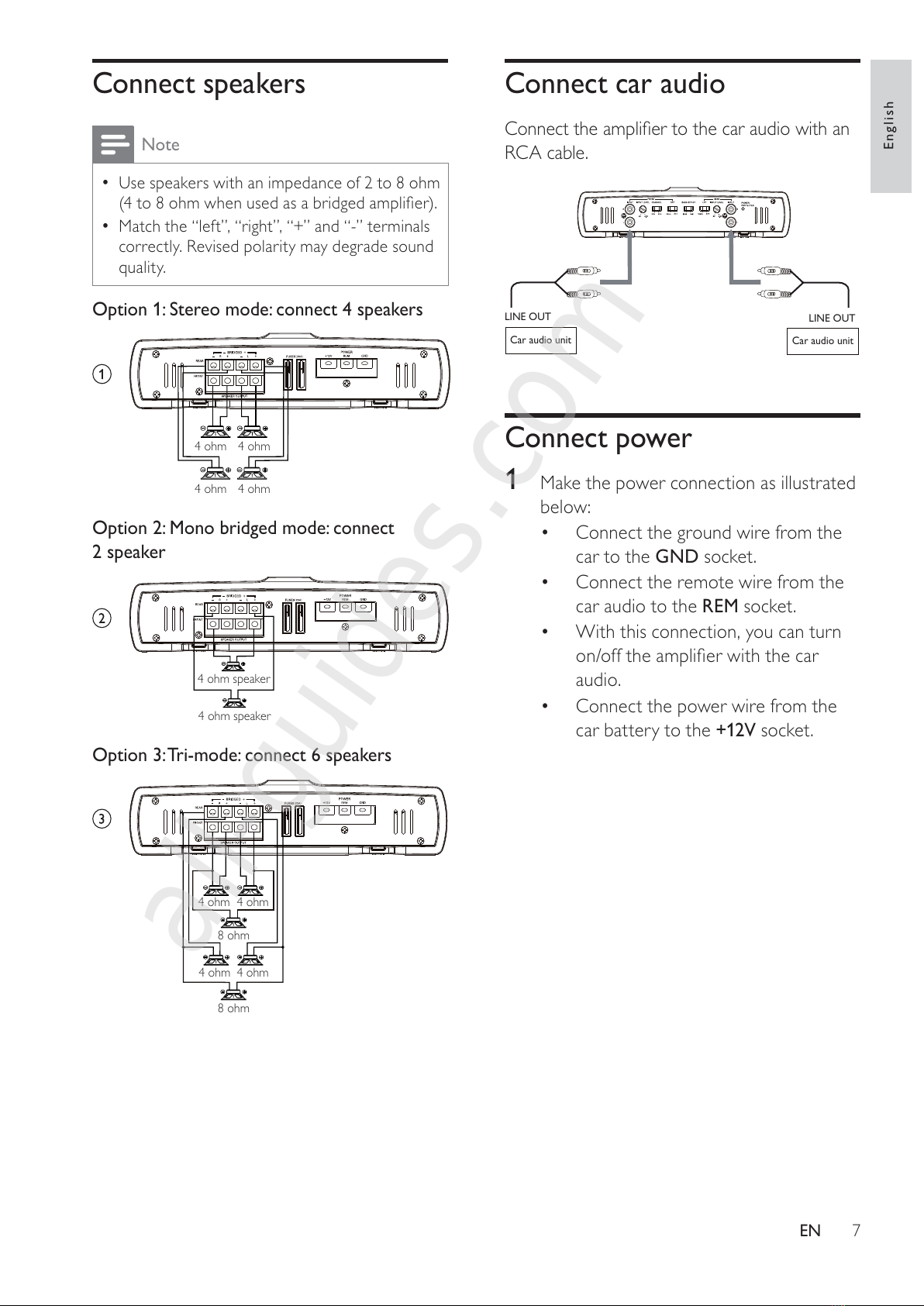

Connect speakers

Note

Use speakers with an impedance of 2 to 8 ohm•

(4 to 8 ohm when used as a bridged ampliﬁer).

Match the “left”, “right”, “+” and “-” terminals

•

correctly. Revised polarity may degrade sound

quality.

Option 1: Stereo mode: connect 4 speakers

4 ohm 4 ohm

Option 2: Mono bridged mode: connect

2 speaker

4 ohm speaker

Option 3:Tri-mode: connect 6 speakers

4 ohm 4 ohm

8 ohm

English

All manuals and user guides at all-guides.com

all-guides.com

Less than 450mm (18 in)

Fuse (40A)

+12V car battery

Car audio unit

Remote output

To a metal point of the car

Tip

If your car audio does not have remote output,•

connect the remote input terminal (REM) to

the accessory power supply.

All manuals and user guides at all-guides.com

Adjust bass boost

To enjoy more bass sound:

1Set HPF at OFF mode.

2Slide BASS BOOST to 12dB position.

Tip

If• BASS BOOST is set at 0dB position, no

extra bass will be boosted.

Note

If• HPF is set at 180Hz mode, the bass frequency

will be ﬁltered.

About the protector

indicator

The ampliﬁer has a built-in protection circuit to

protect the transistors and speakers in following

conditions:

The ampliﬁer is overheated.•

A DC current is generated in•

speakers.

The battery voltage is too low or too•

high. Or

The speaker terminals are short•

circuited.

When the PROTECTED indicator

lights up in red, the ampliﬁer shuts

down automatically. In this case

please:

1Take out the disc or tape and turn off the

car audio.

2Check the cause of the malfunction.

3If the ampliﬁer is overheated, let it cool

down.

4 Use your power

amplifier

Select HPF/LPF mode

1Slide LPF or HPF to the selected mode.

HPF (high-

pass-ﬁlter)

180Hz More low frequency

signal is ﬁltered. Select

this if you prefer less

bass effect.

OFF

LPF (low-

pass-ﬁlter)

80Hz More high frequency

signal is ﬁltered. Select

this if you prefer

stronger bass effect.

OFF

Adjust input level

To ensure sound quality, adjust input level to

match it with the car audio’s output voltage.

1Check the line output voltage of the

connected car audio.

2Rotate INPUT LEVEL to select a

matched voltage: 0.3V to 6V.

English

All manuals and user guides at all-guides.com

5 Product

information

Note

Product information is subject to change•

without prior notice.

Power output

(RMS)

- 4 ohm

- 2 ohm

- 4 ohm

(bridged)

75W x 4

110W x 4

220W x 2

Total harmonic

distortion

0.09%

Signal to noise

ratio

100dB

Channel

separation

50dB

Frequency

response

5-50kHz

Input sensitivity 300mV - 6V

Input impedance 22k ohm

Fuse rating 25A x 2

Dimensions (D x

W x H)

390 x 240 x

54mm

Weight 3.02kg

Replace fuse

If there is no power, the fuses might be

damaged and need to be replaced.

1Pull out the damaged fuses.

2Replace the fuses with the supplied

fuses or to buy two fuses that match the

current rating of the damaged fuses

(25A x 2).

If the fuse gets damaged immediately after they

are replaced, the ampliﬁer might have internal

malfunction. In such case, consult qualiﬁed

personal for repair.

All manuals and user guides at all-guides.com

The unit becomes abnormally hot.

Place the ampliﬁer in a well ventilated•

location.

Use speakers with suitable impedance:•

2-8 ohm (stereo), 4-8 ohm (bridged).

6 Troubleshooting

To keep the warranty valid, never try to repair

the system yourself.

If you encounter problems when using this

apparatus, check the following points before

requesting service. If the problem remains

unsolved, go to the Philips web site

(www.philips.com/welcome).When you

contact Philips, ensure that the apparatus

is nearby and the model number and serial

number are available.

Power indicator does not light up

The connected car audio is not turned on.•

The fuse is blown. Replace the fuse with•

a new one.

The input level is not set correctly(see•

“Adjust input level”).

The protector indicator lights up in red.

The speaker terminals are short circuited.•

Check the speaker connections.

The ampliﬁer is overheated. Cool down•

the ampliﬁer before use.

The ampliﬁer is overloaded.•

The sound is too low.

The input level is not set correctly (see•

“Adjust input level”).

The sound is interrupted or stopped suddenly.

The thermal protector is activated.•

Reduce the volume.

The ventilation outlet is blocked. Remove•

any obstructions from the outlet.

Alternate noise is heard.

The power connecting wires are installed•

too close to the RCA pin cords.

The ground wire is not securely•

connected to a metal point of the car.

Negative speaker wires touch the car•

chassis.

English

All manuals and user guides at all-guides.com

Autres manuels pour CMQ405

Table des matières

Autres manuels Philips Amplificateur

Philips

Philips BGY280 Manuel utilisateur

Philips

Philips TDA8943SF Manuel utilisateur

Philips

Philips BGY86 Manuel utilisateur

Philips

Philips TDA8561Q Manuel utilisateur

Philips

Philips SA5205A Manuel utilisateur

Philips

Philips CGY887 Manuel utilisateur

Philips

Philips CMP100/55 Guide de l'utilisateur

Philips

Philips 22-RH-752 Manuel utilisateur

Philips

Philips Diamond Line 2 Manuel utilisateur

Philips

Philips BGD602 Manuel utilisateur

Philips

Philips TDA1596T Manuel utilisateur

Philips

Philips TDA2611A Manuel utilisateur

Philips

Philips SA5211 Manuel du propriétaire

Philips

Philips TDA1562Q Instructions d'installation et d'utilisation

Philips

Philips TDA8542 Manuel utilisateur

Philips

Philips TDA7052A Manuel utilisateur

Philips

Philips CMP400/55 Manuel utilisateur

Philips

Philips NE5205A Manuel utilisateur

Philips

Philips SDW5005O Manuel utilisateur

Philips

Philips Fidelio DS6600 Manuel utilisateur

Philips

Philips CMP200/93 Manuel utilisateur

Philips

Philips TDA6101Q Manuel utilisateur

Philips

Philips CMQ405/00 Manuel utilisateur

Philips

Philips CMP400/93 Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
