Philips CMP200/93 Manuel utilisateur

www.philips.com/welcome

CMP200

EN User manual

1. Important

Safety

•

Read and understand all instructions before you use the apparatus.

If damage is caused by failure to follow instructions, the warranty does

not apply.

This unit is designed for negative ground (earth) 12 V DC operation only.•

Use only the supplied mounting hardware for a safe and secure•

installation.

Do not connect any active speakers (with built-in amplier) to the •

speaker terminals of the unit. Doing so may damage the active speakers.

To ensure safe driving, adjust the volume to a safe and comfortable level.•

To avoid short circuit, do not expose the apparatus to rain or water.•Never expose the apparatus to direct sunlight, naked ames or heat.•

Clean the apparatus with soft, damp cloth. Never use substances such as•

alcohol, chemicals or household cleaners on the apparatus.

Notice

Environmental information

All unnecessary packaging has been omitted. We have tried to make

the packaging easy to separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if

disassembled by a specialized company. Please observe the local regulations

regarding the disposal of packaging materials, exhausted batteries and old

equipment.

Any changes or modications made to this device that are not expressly

approved by Philips Consumer Lifestyle may void the user’s authority to

operate the equipment.

Specications are subject to change without notice. Trademarks are the property of Koninklijke

Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at

any time without being obliged to adjust earlier supplies accordingly.

Your car power amplier

Congratulations on your purchase, and welcome to Philips!To fully

benet from the support that Philips offers, register your product at

www.philips.com/welcome.

Introduction

With the amplier, you can enjoy high quality sound performance with

powerful bass and beats.

What’s in the box

Check and identify the contents of your package:

a Amplier

bScrew_4x14mm (x4)

cFuse (x2)

dHi input connector (x1)

Overview of the main unit

dfeghi

aOUTPUT L/R

Connect additional amplier for additional speakers.

•

bINPUT L/R

• Connect car audio with RCA cable.

cHI INPUT

Connect car audio with the supplied high input connector.

•

dINPUT LEVEL

Adjust input level (0.3V to 6V).

•

ePROTECT

Light in red when the PROTECTOR is activated.

•

fPOWER

Light in blue when power is turned on.

•

gFREQ

Adjust frequency of HPF or LPF from 30Hz to 400Hz.

•

hHPF/OFF/LPF

Select High-pass-lter (HPF), Low-pass-lter(LPF) or

• OFF (at) mode.

iBASS BOOST

Boost the frequencies at around 40Hz to a maximum of

•

12dB.

jPOWER (GND/REM/+12V)

Connect +12V DC power cable, ground wire and remote

•

wire.

kFuse

lSPEAKER OUTPUT

Connect to speakers or subwoofers.

•

2. Installation

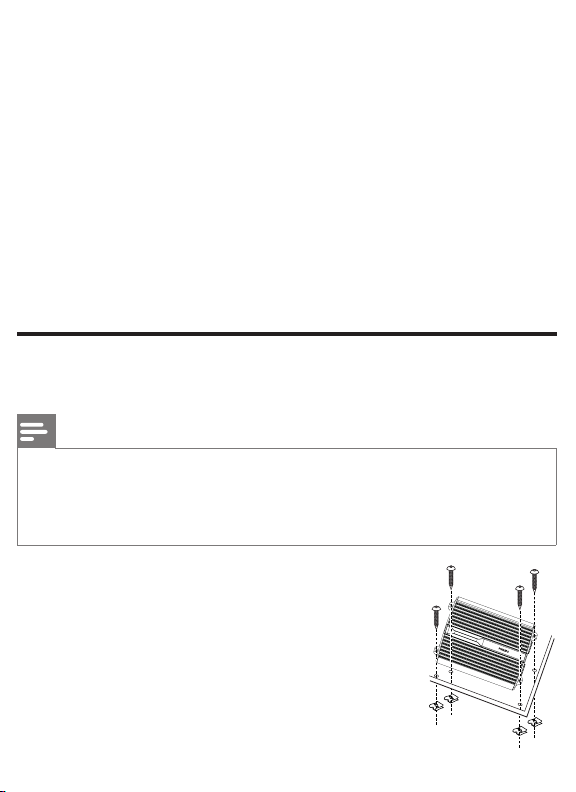

Installation

You can mount the amplier either under a seat or on the rear tray.

Note

To avoid interference, do not place the amplier too close to the car audio or

•

antenna.

The supplied mounting screws are 14mm long. Make sure that the mounting

•

board is thicker than 14mm.

1Place the unit on the location for installation.

2Mark the positions of the four screw holes.

3Drill the holes with driller of approximately

3mm in diameter.

4Mount the unit with the supplied screws.

Connect speakers

Note

Use speakers with an impedance of 2 to 8 ohm (4 to 8 ohm when used as a

•

bridged amplier).

Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may

•

degrade sound quality.

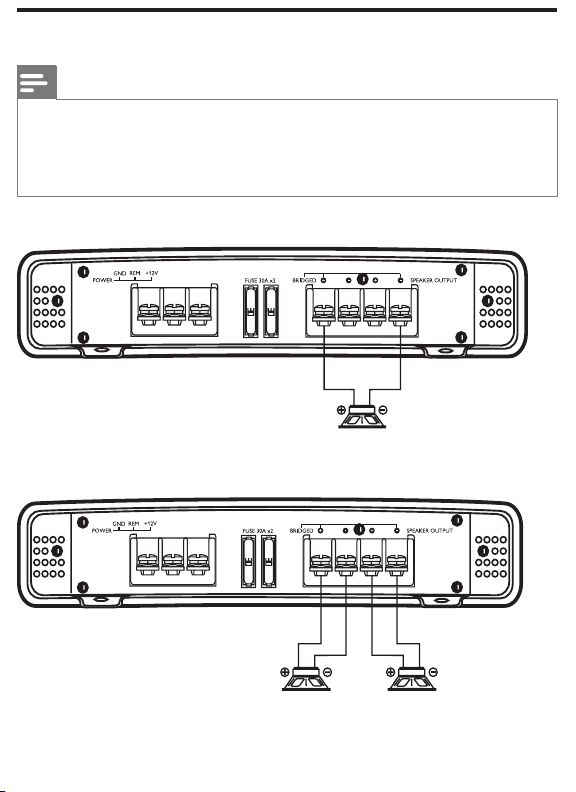

Option 1: Mono bridged mode: connect 1 speaker

4 ohm speaker

Option 2: Stereo mode: connect 2 speakers

4 ohm speaker 4ohm speaker

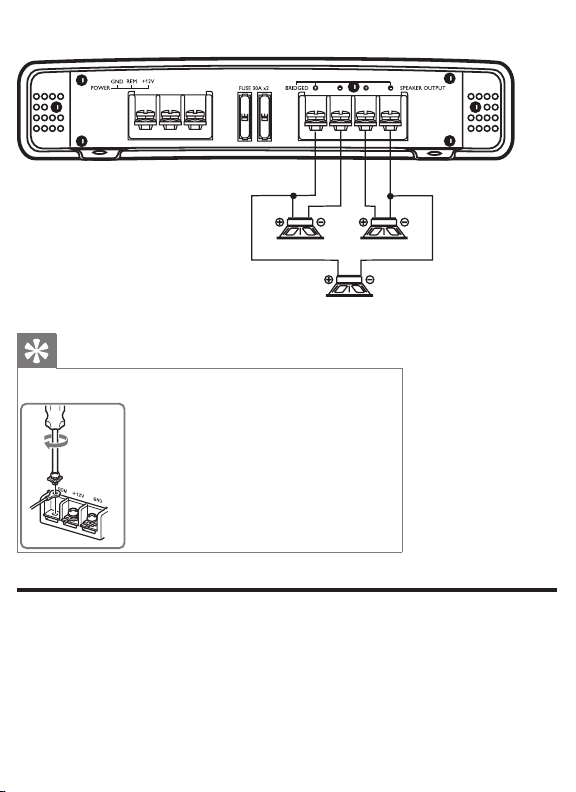

Option 3: Tri-mode: connect 3 speakers

4 ohm speaker

8 ohm speaker

4 ohm speaker

Tip

Make the terminal connection as illustrated below:•

Connect car audio

Option 1: High level input connection

Connect the amplier to your car audio with the supplied High level

input connector.

Left speaker

Right speaker

RedWhite

Car audio unit

Option 2: Line input connection

Connect the amplier to the car audio with a RCA cable (not supplied).

LINE OUT

Car audio unit

Option 3: Line output connection

Connect the amplier to another amplier.

Connect power

1Make the power connection as illustrated below:

Connect the ground wire from the car to the• GND socket.

Connect the remote wire from the car audio to the

• REM

socket.

√ With this connection, you can turn on/off the amplier

with the car audio.

Connect the power wire from the car battery to the

• +12V

socket.

to a metal point of the car

Car audio unit

Remote output

Fuse (60 A)

+12 V car battery

less than 450 mm (18 in)

Tip

If your car audio does not have remote output, connect the remote input•

terminal (REM) to the accessory power supply.

3. Use your power amplier

Select crossover frequency

You can select crossover frequency mode as below:

HPF (high-pass-lter) mode Select this mode when mid-range speakers

and tweeters are connected for high frequency

output.

LPF (Low-pass-lter) mode Select this mode when woofer and subwoofer

is connected for low frequency output.

OFF (at) mode Select this mode when tri-mode speaker

connection is used.

1Slide HPF/OFF/LPF to the selected positon.

Adjust frequency

You can adjust frequency of HPF or LPF from 30HZ to

400Hz.

Note

When the

•HPF/OFF/LPF switch is set at OFF position, the frequency adjustment

does not work.

1Rotate FREQ to select frequency.

Adjust input level

You can adjust the input voltage from 0.3V to 6V.

1Rotate INPUT LEVEL to adjust input voltage.

Adjust bass boost

You can punch extra bass for 0 to 12dB.

1Rotate BASS BOOST to punch for extra bass.

Left speaker

Right speaker

RedWhite

Car audio unit

Left speaker

Right speaker

RedWhite

Car audio unit

Left speaker

Right speaker

RedWhite

Car audio unit

Left speaker

Right speaker

RedWhite

Car audio unit
