IRG5540 Series Routers Quick Start Guide 5500451-10 (Rev A)

Version #A11.08.2019

1

IRG5540 Series Router

Quick Start Guide

_____________________________________

This guide covers basic installation and configuration and is

intended for first time setup or product evaluation. The

models covered by this guide are the IRG5540, IRG5540+,

IRG5541, IRG5541+ and the IRG5541+ FN.

Complete details can be found in the following guides at

www.perle.com/downloads.

•IRG5540 Series Routers Hardware Installation Guide

•IRG5000 Series Routers User’s Guide

•IRG5000 Series Routers Command Line Reference

Guide.

What’s in the box?

•IRG5540/5540+/5541/5541+ /5541+ FN Router

•4 LTE/Wireless antennas (depending on model)

•DC Power cable –pigtail (depending on model)

•12VDC/2A power supply (depending on model)

•Enclosure mounting screws

•IRG5540 Series Routers Quick Start Guide (this guide)

•Optional –GPS passive or active antenna (order-able

from Perle)

•Optional –DIN Rail mounting kit (order-able from

Perle)

IRG5540 Series Routers Quick Start Guide 5500451-10 (Rev A)

Version #A11.08.2019

2

Getting Started

The steps for a typical installation are:

1. Inserting the SIM card/s.

2. Connecting antenna/s.

3. Connecting the Power.

4. Connecting to the Cellular Network.

5. Fast Setup Mode.

Inserting the SIM cards

Use only mini-SIM (2FF) cards.

Ensure the power is disconnected before you insert the SIM

card/s.

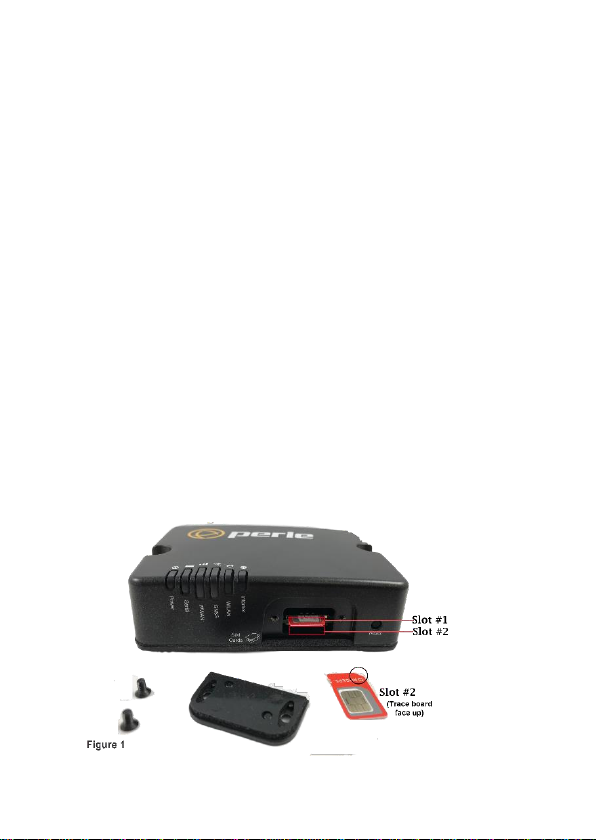

1. Unscrew the screws and gently pry the SIM cover loose

from the opening (see below).

2. Align the SIM card so that the SIM card will slide into

the top slot (slot#1) ensuring that the SIM card

connectors will be facing the router’s printed circuit

board. Always populate slot#1 first

3. Align the SIM cover plate and secure the plate with the

screws.

IRG5540 Series Routers Quick Start Guide 5500451-10 (Rev A)

Version #A11.08.2019

3

Connecting the Antennas

1. Connect your cellular antenna to connector Main.

2. Connect the diversity antenna to connector Diversity.

3. Connect a WLAN antenna to connector WLAN-1.

4. Connect a WLAN antenna to connector WLAN-2.

5. Connect your GPS antenna to connector GNSS.

See Figure 2

Connecting the Power

See Figure 2 for wiring requirements. Colors indicated are

for the Perle supplied DC cable.

Connecting to the Cellular Network

When the router is powered on, it begins the process of

activation and attempts to connect to the cellular network.

This process typically takes a few minutes. A successful

connection is indicated by a solid green Internet LED, if not,

see the IRG5540 Series Routers Hardware Installation Guide

for details.

IRG5540 Series Routers Quick Start Guide 5500451-10 (Rev A)

Version #A11.08.2019

4

Fast Setup Mode

Fast Setup provides a simple method of doing an initial setup

from a PC. Your router is shipped in factory default mode.

1. Your PC must be set to obtain an IP address

automatically using DHCP.

2. Plug the PC into your router’s Ethernet interface or

connect to the wireless LAN (WIFI) using the

credentials printed on your router’s label.

3. When the Power LED is flashing green, use a web

browser, enter http://192.168.0.1 to access your router.

On the setup screen, select, Getting Started.

4. Once connected, fill in the required fields, apply changes

to save and exit. The configuration changes will be

immediately applied to the router

5. The router’s web configuration sign on screen will be

displayed. Using the credentials, you previously defined

in Step 4, you can now access your router’s full

configuration.

For alternative methods of performing and initial setup see

the IRG5540 Series Routers Hardware Installation Guide.

© 2019 Perle Systems Limited. All rights reserved.
