Peopoly Phenom Noir Manuel utilisateur
Phenom Noir
Quickstart Guide
Revision 1.0.1
Published May 15th 2020
Step 1
Remove Packaging
Phenom Noir is heavy and it is recommended that you
have at least one more person to help.
The simplest way to remove.
Find the top side of the external box like below
Step 1
Remove Packaging
Turn the box over so the bottom of the box face up.
And cut open the plastic tapes like this
The turn it over again so the top of box facing up with
bottom opened. You can pull the box up to find
internal box
Step 1
Remove Packaging
Open the internal with top of box facing up, open the
box
When moving the Phenom Noir, it is recommended for
a 2 person lift. If you try and move it by yourself,
please make sure the door is facing away from you as
the UV acrylic shield could break with the weight if it
the door is pressed against your chest while moving
the printer.
Step 2
When moving the Phenom Noir, it is recommended for
a 2 person lift. If you try and move it by yourself,
please make sure the door is facing away from you as
the UV acrylic shield could break with the weight if it
the door is pressed against your chest while moving
the printer.
Place the Phenom Noir on a level and sturdy surface.
If you have a level, you can place it on the top of the
printer to ensure the printer is sitting level.
Keep in mind that the printer is large, (46.5 X 37 X
78cm / 18.3 x 14.5 x 30.7 inches) and is heavy (45kg /
99.2 pounds). Please make sure the area you put the
printer on can support the weight and provide enough
space for proper ventilation for the printer.
Also consider that you will need a washing and curing
station near the printer when planning out your set up.
Remove Packaging
Remove the Phenom Noir from the double shipping
box.
Keep in mind again that the unit is heavy and it is
recommended for a 2 person lift to get the printer out
of the packaging and set up.
Step 3
Open The front door of Phenom Noir and remove the
foam inserts in the printer. There are accessories in
the foam protectors.
The items from top to bottom are:
LCD Panel (if purchased additionally)
Vat
Accessories
Build Plate
Step 4

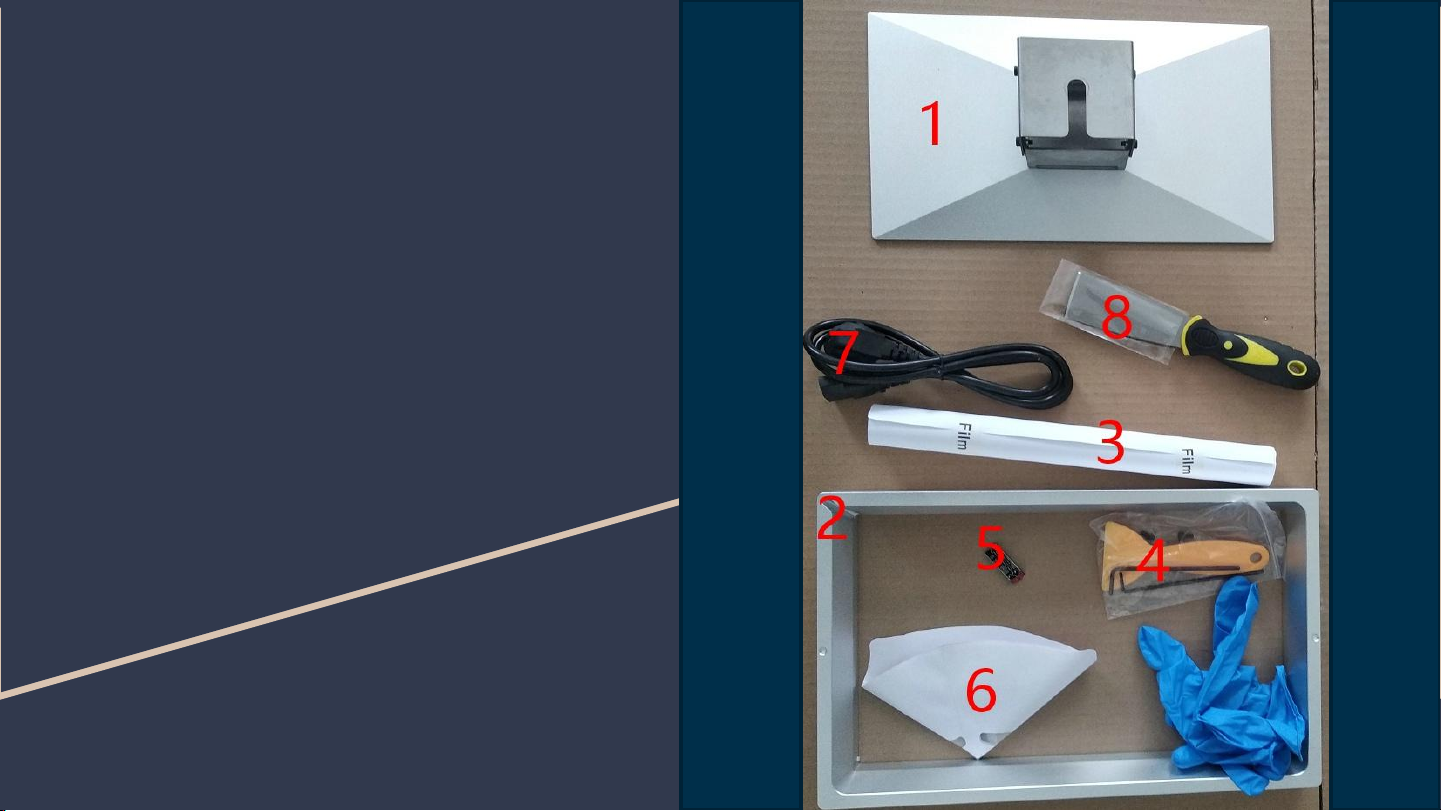

Identify the following items and place them off to the
side:
1).Build Plate
2).Vat
3).Extra FEP film
4).Tools
5). USB stick
6). Funnels
7). Power Cable
8). Spatula
Step 5
Make sure the power cord is a 3 prong / grounded
power cord.
Make sure the wall outlet is grounded.
Connect the power pack to the Phenom Noir and to a
outlet
Step 6

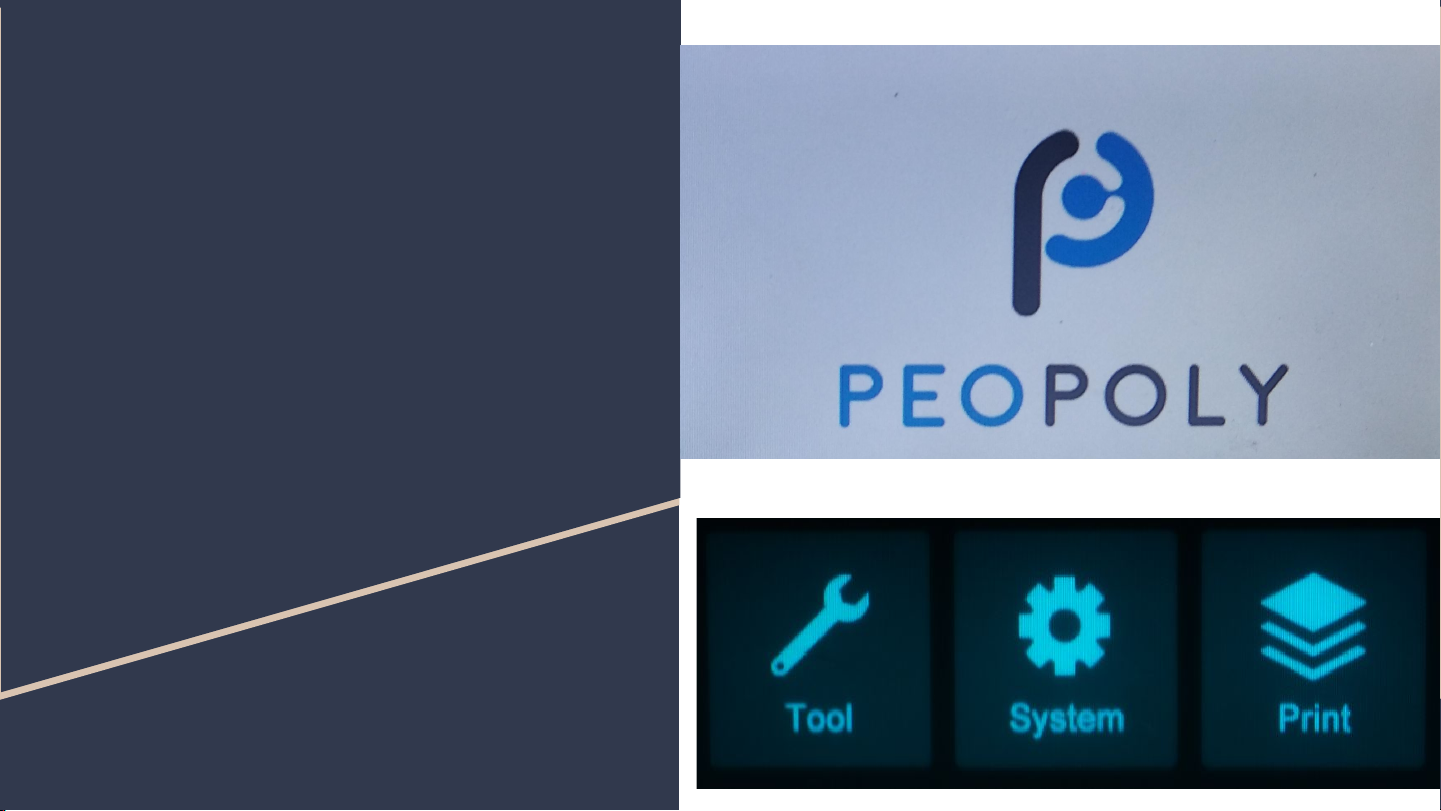

Power on the Phenom Noir and boot up the printer.
You should see the Peopoly logo and then the main
control screen.
