Peerless-AV DST995 Manuel d'instructions

12013-09-16 #:145-9028-4 (2013-10-31)

DST995

COMPATIBILITY

MOD POLES COLUMNS ACCESSORIES

MOD-P100(-B), MOD-P150(-B), MOD-P200(-B),

MOD-P300(-B)

*MOD COLUMNS REQUIRE MOD-ATA

ADAPTER

EXT006 through EXT110,

AEC012018 through AEC1012,

ALU0090012 through ALU1012,

ADD series

ACC-V800X

95"

(241 cm)

225 lb

(102 kg)

MAX

22013-09-16 #:145-9028-4 (2013-10-31)

This page intentionally left blank.

32013-09-16 #:145-9028-4 (2013-10-31)

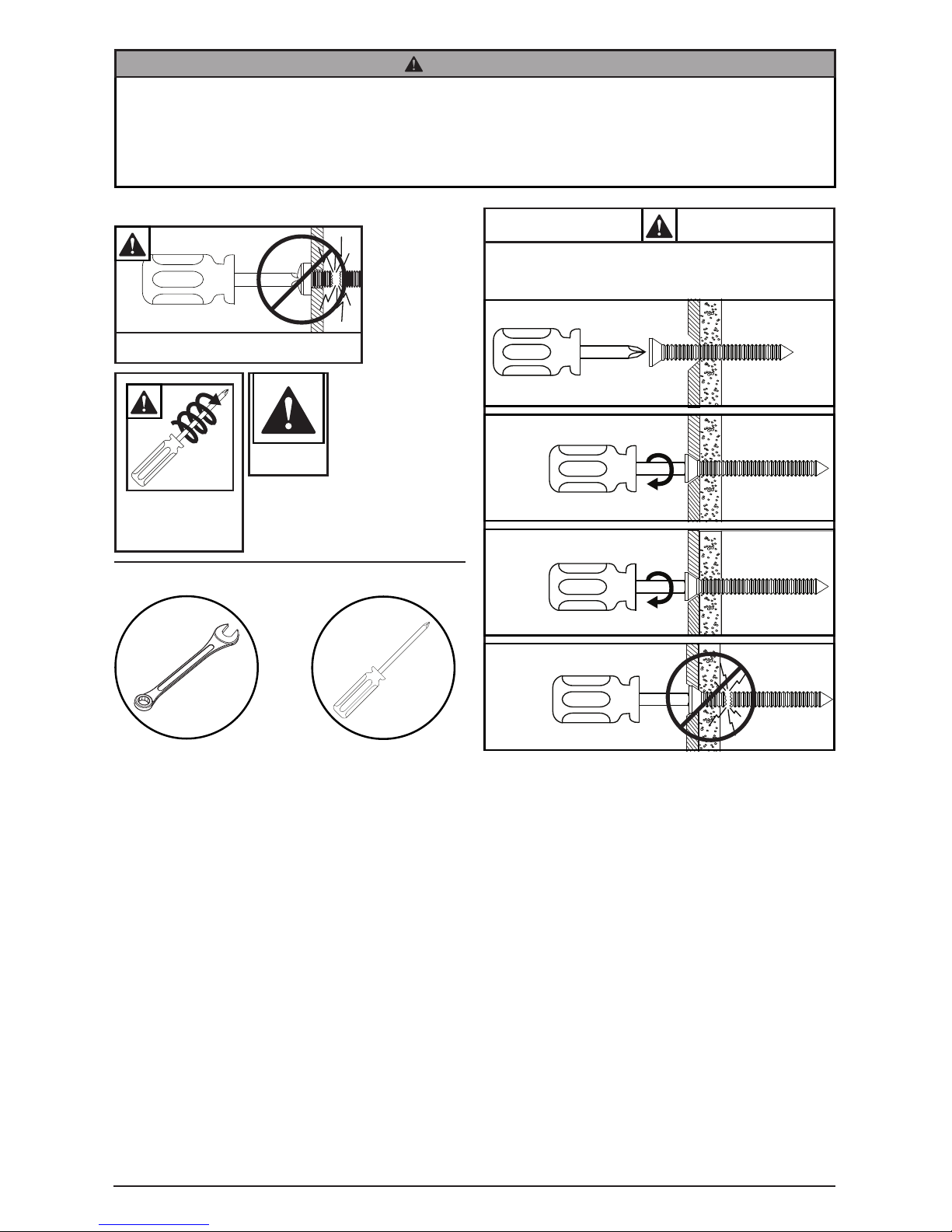

Symbols

WARNING

Screws must get

at least three full

turns and t snug.

Do not overtighten screws.

To properly tighten screws: Tighten until screw head

makes contact, then tighten another 1/2 turn. Do not

overtighten screws.

+1/2

Tools Needed for Assembly.

5/16"

(8mm)

Before installing make sure the supporting surface will support the combined load of the equipment and

hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.

Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift

and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to

product failure or personal injury. Be careful not to pinch ngers when operating the mount. For support please

call customer care at 1-800-865-2112.

WARNING

42013-09-16 #:145-9028-4 (2013-10-31)

A (1)

B (1)

D (1)

component

box

rear cover

E (1)

adapter bracket

C (1)

pinch bracket yaw bracket

Parts List

Description Qty Part #

Acomponent box 1145-1782

Brear cover 1145-1534

Cpinch bracket 1130-1073

Dyaw bracket 1130-1500

Eadapter bracket 1145-1780

Fsnap bushing 25 90 -114 9

Gber washer 1540-9432

Hretaining collar 11800-375

I1/4" SAE at washer 8540-9440

JM5 x 55mm socket pin screw 2 520 -1193

KM5x 10mm socket pin screw 9 520 -1164

LM8 x 15mm socket pin screw 8 520-1068

MM6 x 16mm socket pin screw 4 520 -1132

NM5 nylock nut 2 530-1019

O5/32" (4mm) security wrench 1 560-9646

52013-09-16 #:145-9028-4 (2013-10-31)

F (2)G (1)

H (1)

snap

bushing ber washer

I (8)

1/4" washer

J (2)

M5 x 55mm

K (9)

M5 x 10mm

L (8)

M8 x 15mm

M (4)

M6 x 16mm

N (2)

M5 nylock

nut

O (1)

security wrench

retaining

collar

62013-09-16 #:145-9028-4 (2013-10-31)

Install EXT, ADD, AEC, or ALU series extension column

(sold separately). See accompanying instruction.

Install MOD-ATA threaded

adapteradapter.

F (2)

72013-09-16 #:145-9028-4 (2013-10-31)

MOD-ATA

82013-09-16 #:145-9028-4 (2013-10-31)

K (2)

N (2)

J (2)

⅛"

92013-09-16 #:145-9028-4 (2013-10-31)

15.75"

(400mm)

15.75"

(400mm)

3.94"

(100mm)

7.87"

(200mm)

11.81"

(300mm)

7.87"

(200mm)

31.5"

(800mm)

23.62"

(600mm)

11.81"

(300mm)

PORTRAIT LANDSCAPE

ACC-V800X ACCESSORY SOLD SEPARATELY

10 2013-09-16 #:145-9028-4 (2013-10-31)

L, M

If screw (M) bottoms out,

use one or two washers

(I) in each mounting hole

position.

5º10º

15º

Tighten
