Peerless-AV PLA50 Mode d’emploi

Maximum Load Capacity: 150 lb (68 kg)

ISSUED: 05-03-06 SHEET #: 202-9127-5 06-29-11

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

Installation and Assembly:

Universal Articulating Swivel Arm for 32" - 50" Flat Panel

Displays

Models: PLA50, PLA50-S

2 of 10 ISSUED: 05-03-06 SHEET #: 202-9127-4 06-29-11

Tools Needed for Assembly

•stud ﬁnder ("edge to edge" stud ﬁnder is

recommended)

•drill

•3/16" drill bit for wood studs

•3/8" masonry drill bit for concrete

•7/16" socket wrench with extension (recommended)

for wood screws

•10 mm socket wrench for concrete anchors

•level

•phillips screwdriver

Accessories

•External Wall Plate (WSP716, WSP716-S, WSP724,

WSP724-S) (Metal Stud not evaluated by UL)

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Wood Stud Wall................................................................................................................................................4

Installation to Solid Concrete or Cinder Block ........................................................................................................................5

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum Load Capacity. See page one.

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of

an "edge to edge" stud ﬁnder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁrmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal

injury.

• This product was designed to be installed on the following wall construction only;

WALL CONSTRUCTION HARDWARE REQUIRED

• Wood Stud Included

•Wood Beam Included

•Solid Concrete Included

•Cinder Block Included

•Brick Contact Qualiﬁed Professional

•Other or unsure? Contact Qualiﬁed Professional

WARNING

NOTE: Read entire instruction sheet before you start installation and assembly.

3 of 10 ISSUED: 05-03-06 SHEET #: 202-9127-4 06-29-11

Before you start make sure all parts listed are included with your product. A

Some parts may appear slightly different than illustrated.

DEFH

IJ K LMN

PLA50 PLA50-S

Description Qty Part # Part #

wall plate 1 201-1095 201-4095

tilt ll bl

201 1093

201 4093

Parts List

Btilt-roll assembly 1 201-1093 201-4093

Carm assembly 1 201-1094 201-4094

Dwall support arm axle 1 201-1041 201-1041

Evinyl trim 3 600-1012 600-1012

FM10 x 15 mm screw bolt 8 520-9262 520-9262

G.505 x .75 x .062" nylon washer 1 540-1074 540-1074

Htilt adjustment knob 1 560-0108 560-0108

Icarriage bolt 3/8"-16 x 3-1/4" 1 520-1315 520-1315

J1.525 x 2 x .062" delrin washer 2 540-1070 540-1070

K#8-32 x .375" socket head cap screw 1 520-1210 520-1210

Lplastic finishing cap 8 590-1123 590-1123

Mholding pin 1 580-1166 580-1166

retainer plug

590

1007

590

1007

retainer plug

590

1007

590

1007

O5/16 x 3" wood screw 6 520-1243 520-1243

P.250 x 1 x .068" washer 6 540-1063 540-1063

Q9/64" allen wrench 1 560-9728 560-9728

Rcable management clips 4 590-1166 590-1166

Scable tie 4 590-1168 590-1168

36" polyester mesh sleeve 1 600-1015 600-1015

U6 mm allen wrench 1 560-9716 560-9716

anchor 6 590-0321 590-0321

4 of 10 ISSUED: 05-03-06 SHEET #: 202-9127-4 06-29-11

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all

attached hardware and components.

• Tighten wood screws so that wall plate is ﬁrmly attached, but do not overtighten. Overtightening can damage the

screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Do not attach directly to a metal stud wall. Use of a triple stud WSP wall plate is required for attachment to metal

studs (contact customer care). Metal stud installation is not UL evaluated.

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud ﬁnder

is highly recommended.

• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-

ers are responsible to provide hardware for other types of mounting situations.

• Never exceed the Maximum Load Capacity of 150 lb (68 kg).

WARNING

Installation to Wood Stud Wall

Wall plate (A) can be mounted to two studs that are 16" apart. Use a stud ﬁnder to locate the edges of the studs.

Use of an edge-to-edge stud ﬁnder is highly recommended. Based on their edges, draw a vertical line down each

stud’s center. Place wall plate on wall as a template. The top mounting slots should be located 3.9" below the

desired display center. Level plate, and mark the center of the four mounting holes. Make sure that the mounting

holes are on the stud centerlines. Drill six 3/16" (5 mm) dia. holes 3" (76 mm) deep. Make sure that the wall plate is

level, secure it using six 5/16 x 3" wood screws (O) and washers (P).

Skip to step 2 on page 6.

• Never mount this product to metal studs without the

required accessory.

WARNING

5 of 10 ISSUED: 05-03-06 SHEET #: 202-9127-4 06-29-11

Use wall plate (A), making sure that it is level, as

a template to mark holes. The top mounting slots

should be located at your desired display center. Use

the masonry bit to drill 3/8" (10mm) dia. holes to a

minimum depth of 3" (76mm). Insert anchors (W) in

holes ﬂush with wall as shown (right). Place wall plate

(A) over anchors (W) and secure with 5/16 x 3" wood

screws (O) and washers (P).

WARNING

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

• Never exceed the Maximum Load Capacity of 150 lb (68 kg).

Installation to Concrete Wall

Drill holes and insert anchors (W).

Place plate (A) over anchors (W) and secure with screws (O).

Tighten all fasteners.

concrete

surface

CUTAWAY VIEW

INCORRECT CORRECT

wall

plate

wall

plate

plaster/

drywall

plaster/

drywall

concrete concrete

• Tighten screws so that wall plate is ﬁrmly attached,

but do not overtighten. Overtightening can damage

screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Always attach concrete expansion anchors directly

to load-bearing concrete.

• Never attach concrete expansion anchors to

concrete covered with plaster, drywall, or other

ﬁnishing material. If mounting to concrete surfaces

covered with a ﬁnishing surface is unavoidable (Not

evaluated by UL), the ﬁnishing surface must be

counterbored as shown below. Be sure concrete

anchors do not pull away from concrete when

tightening screws. If plaster/drywall is thicker than

5/8" (16mm), custom fasteners must be supplied by

installer (Not evaluated by UL).

WARNING

6 of 10 ISSUED: 05-03-06 SHEET #: 202-9127-4 06-29-11

Snap four cable management clips (R) into top or bottom of arm assembly (C) as shown.Cable ties (S) are used

with clips for cord management.

Slide one mesh sleeve (T) over each cable. Use cable ties (S) to tighten mesh sleeves to cables.

Note: There are ﬁve mounting positions. The

center position is shown (right). Slide washer

(J) over wall support arm axle (D). Next, insert

plastic cap (N) into axle. Then, insert holding pin

(M) into axle. See detail 1.

Note: Fit of axle (D) into wall plate (A) and arm

assembly (C) will be tight. Gently tap into place

with a hammer if necessary.

2-1

3-1

Insert socket cap screw (K) into hole at bottom

of wall support arm axle (D) as shown in detail 3.

Tighten screw using 9/64" allen wrench (Q).

Place arm assembly (C) with washer (J) into wall

plate (A). Insert axle assembly shown in detail

1 through wall plate (A), arm assembly (C), and

washer (J). Lock axle in place by aligning holding

pin (M) with notches shown in detail 2.

2-2

• If you are uncertain that product is properly installed, call customer care.

WARNING

DETAIL 1

NOTCH

DETAIL 2

DETAIL 3

7 of 10 ISSUED: 05-03-06 SHEET #: 202-9127-4 06-29-11

GENERIC ADAPTER BRACKET

Insert and tape carriage bolt (I) into top hole of tilt-roll assembly (B). Attach tilt-roll assembly to adapter

bracket with four M10 socket screws (F). Tighten screws using 6 mm allen wrench (U).

Note: Adapter bracket (sold separately) will vary in size and style.

Note: Refer to adapter bracket instruction sheet for attachment of adapter bracket to plasma before proceeding

with step 5. If your adapter bracket has an aluminum race attached to it, remove before proceeding and discard race. It

is not used with this product.

• Do not overtighten screws! Overtightening may hin-

der roll option.

CAUTION

Attach two pieces of vinyl trim (E) to wall plate (A). Next, attach one piece of vinyl trim to bottom of swivel box on

arm assembly (C).

4-1 Insert one ﬁnishing cap (L) into each unused hole of wall plate (A).

SWIVEL BOX

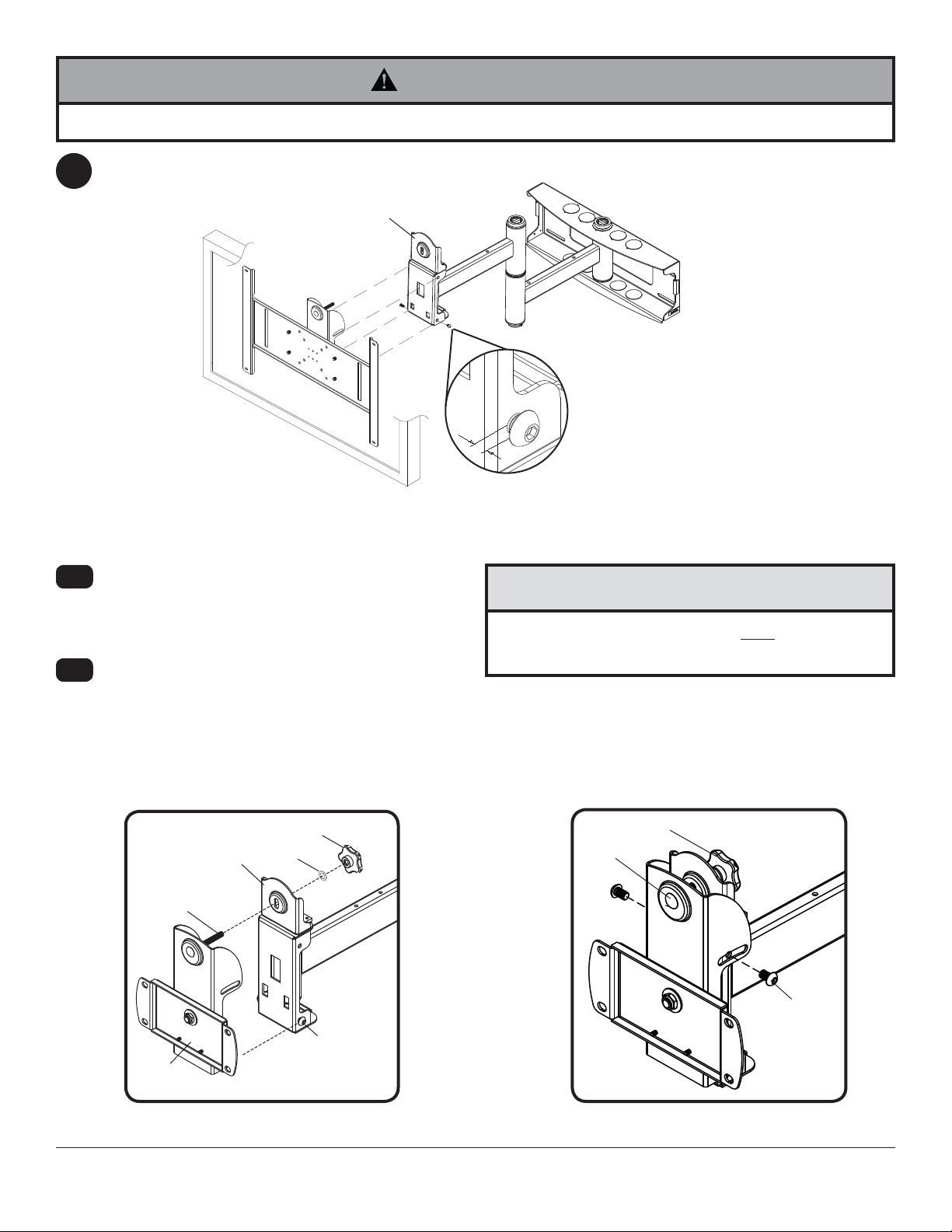

8 of 10 ISSUED: 05-03-06 SHEET #: 202-9127-4 06-29-11

Insert two M10 screws (F) into swivel box on arm assembly (C) as shown. Leave approx. 1/4" of exposed thread.

Hook tilt-roll assembly (B) onto M10 screws (F).

Insert carriage bolt (I) into slot of swivel box as

shown in ﬁgure 6.1. Install nylon washer (G) and tilt

adjustment knob (H).

Install remaining two M10 screws (F) as shown in

ﬁgure 6.2. HAND TIGHTEN all four M10 screws to

allow for tilt adjustment. Remove tape from carriage

bolt (I). For tilt adjustment, push back on the top of

plasma to relieve pressure on knob. Adjust tilt to de-

sired position and tighten tilt adjustment knob (H),

then securely tighten all four M10 screws (F) using

6 mm allen wrench (U).

• Use an assistant or mechanical lifting equipment to safely lift and position the plasma TV.

WARNING

• After tilt is adjusted, all fasteners must be tightened.

Failure to do so will result in damage to the mount.

CAUTION

6-1

6-2

ﬁg 6.1 ﬁg 6.2

SWIVEL BOX

SWIVEL BOX C

.25"

9 of 10 ISSUED: 05-03-06 SHEET #: 202-9127-4 06-29-11

7-1

Depending on the speciﬁc size & weight of the plasma, articulating swing arm may be angled at different positions,

causing plasma to appear to lean sideways at different articulating positions. Tilt-roll assembly (B) allows plasma

to be manually adjusted, so plasma can be horizontal at all positions. To adjust, gently rotate plasma by hand to

desired position.

If it is too difﬁcult to adjust roll of plasma, loosen screws shown in ﬁgure 7.1 using a phillips screwdriver.

IMPORTANT! Do not loosen or tighten screws more than 1/8 turn.

All other brand and product names are trademarks or registered trademarks of their respective owners.

ARTICULATING

ARM

PLASMA

ﬁg. 7.1

ROLL

ADJUSTMENT

SCREWS

10 of 10 ISSUED: 05-03-06 SHEET #: 202-9127-4 06-29-11

Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless® products will be free from defects in material and workmanship, under normal

use, for a period of ﬁve years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product’s manufacture).

At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or ﬁtness for a particular purpose be longer than the period of the applicable

express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless,

(b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless’ instructions or warnings when installing,

using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.

In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured

by a security device which may be included with the Peerless® product. Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other

person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless® product.

This warranty gives speciﬁc legal rights, and you may also have other rights which vary from state to state.

LIMITED FIVE-YEAR WARRANTY

www.peerlessmounts.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels peerless-AV Support et étagère

peerless-AV

peerless-AV PLAV 70-UNL Mode d’emploi

peerless-AV

peerless-AV SA752PU Mode d’emploi

peerless-AV

peerless-AV DS-LEDA27 Series Manuel utilisateur

peerless-AV

peerless-AV SP740P Manuel utilisateur

peerless-AV

peerless-AV MOD-PRGSKIT100 Manuel utilisateur

peerless-AV

peerless-AV DS-S555-3X3 Manuel utilisateur

peerless-AV

peerless-AV DS-LED27BDL-6X6 Manuel utilisateur

peerless-AV

peerless-AV LCT620A Manuel utilisateur

peerless-AV

peerless-AV LCT620A Mode d’emploi

peerless-AV

peerless-AV MOD-CPI Manuel utilisateur

peerless-AV

peerless-AV LCC 18-C Mode d’emploi

peerless-AV

peerless-AV DS-C560-2X2 Manuel utilisateur

peerless-AV

peerless-AV Smart-Mount SP850-UNL Manuel utilisateur

peerless-AV

peerless-AV PJR125-POR Manuel utilisateur

peerless-AV

peerless-AV DS-S555-4X2 Manuel utilisateur

peerless-AV

peerless-AV HF642-003 Mode d’emploi

peerless-AV

peerless-AV DS-LEDF Series Manuel utilisateur

peerless-AV

peerless-AV SUT670P Manuel utilisateur

peerless-AV

peerless-AV ST940-EXA Manuel utilisateur

peerless-AV

peerless-AV SMARTMOUNT LT SAL724 Manuel utilisateur

peerless-AV

peerless-AV SmartMount SA761PU Manuel utilisateur

peerless-AV

peerless-AV MOD-WP2 Manuel utilisateur

peerless-AV

peerless-AV Mobile Videowall Trolley PDVWM 3x3 46 55 L Mode d’emploi

peerless-AV

peerless-AV MOD-UNL2 Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur

peerless-AV PLA50 Mode d’emploi

Manuels Support et étagère populaires d'autres marques
