Peerless-AV LCV-100 Mode d’emploi

ISSUED:11-7-02 SHEET #: 090-9066-8 12-17-13

Visit the Peerless Web Site at www.peerless-av.com For customer service call 1-800-865-2112.

1 of 4

Installation and Assembly - Monitor Desktop Stand Models: LCV-100

LCV-100

IMPORTANT! Read entire instruction sheet before you start installation and assembly.

NOTE: You may not use all hardware provided.

NOTE: Some parts may not appear exactly as illustrated.

IMPORTANT! The product is made to support screens with a VESA compliant hole pattern.

For safe mounting, mounting screws must turn at least three times in the screen inserts.

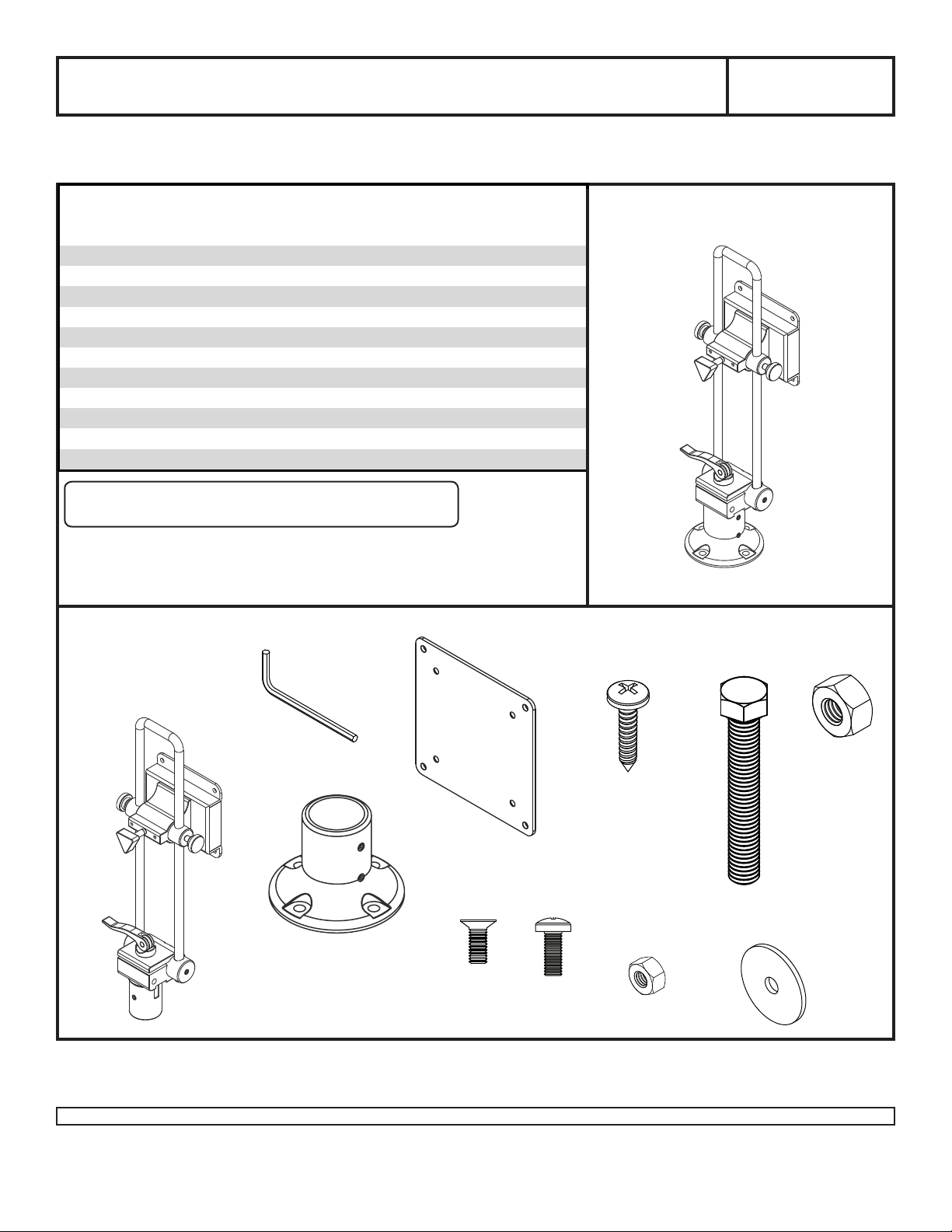

LCV-100

Description Qty. Part #

mount assembly 1 091-1091

B3mm allen wrench 1 560-0073

Cmounting base 1 091-1089

Dadapter plate 1 095-4354

EM4 x 8mm countersink screw 4520-1795

FM4 x 10mm phillips screw 4520-1796

Gwood screw #14 x 1 4510-9159

Hhex bolt 1 -

Ihex nut 1 -

JM4 x 0.7mm nut 4 530-1082

Kpressure plate 1 -

Parts List

MAX Load Capacity:

25 lb (11.4KG)

ISSUED:11-7-02 SHEET #: 090-9066-8 12-17-13

Visit the Peerless Web Site at www.peerless-av.com For customer service call 1-800-865-2112.

2 of 4

DESKTOP

Mark hole on desktop for positioning mount.

Drill one 1/2" dia. hole through desktop. Attach

mounting base (C) to desktop using hex bolt (H),

pressure plate (K), and hex nut (I). Tighten nut

using proper sized wrench.

Important! Mount is to be installed onto desktops

3/4" to 1-5/8" thick only! For thicker mounting

surfaces, you may have to provide your own

hardware.

There are two methods of installation. Follow step 2-1 for installation using hex bolt and pressure plate

or step 2-2 using four wood screws.

Use four holes on mounting base (C) to mark holes

on desktop for positioning mount. Drill four 3/16"

dia. holes through desktop. Attach mounting base

• Mount must be installed on wood and/or wood composition surfaces of at least 3/4" thick. However, the installer

must ensure that the mounting surface will safely hold the combined weight of the mount and the screen. See other

mounting requirements below.

CAUTION

Remove telescopic pedestal (A) from

mounting base (C) by loosening set screws

where shown with 3 mm allen wrench (B).

SET SCREWS

2-22-1

ISSUED:11-7-02 SHEET #: 090-9066-8 12-17-13

Visit the Peerless Web Site at www.peerless-av.com For customer service call 1-800-865-2112.

3 of 4

To install to a VESA 75 mm standard LCD

monitor, attach mount assembly (A) to

back of LCD monitor using four M4 x 10 mm

phillips screws (F) as shown.

Skip to step 6.

GENERIC LCD SCREEN

To install to a VESA 100 mm standard LCD monitor, attach adapter plate (D) to mount assembly (A) using four

M4 x 8 mm phillips screws (E) and four M4 x 0.7mm nuts (J) as shown in detail 1. Attach mount assembly (A) to

back of LCD monitor using four M4 x 10 mm phillips screws (F) as shown in detail 2.

DETAIL 1 DETAIL 2

Insert telescopic pedestal (A) into mounting

base (C). Tighten set screws where shown

with 3 mm allen wrench (B).

SET SCREWS

ISSUED:11-7-02 SHEET #: 090-9066-8 12-17-13

Visit the Peerless Web Site at www.peerless-av.com For customer service call 1-800-865-2112.

4 of 4

To adjust tilt position, hold the screen with one

hand and loosen the handle as shown in detail 3.

Adjust the screen then tighten handle.

To adjust tilt position of display, turn the triangular shaped knob, adjust display to the desired angle shown in

detail 5 then tighten knob. For screens 15 lbs and over, it may be necessary to tighten set screws with the

3mm Allen wrench (B).

To adjust height position, hold the screen with one

hand and turn the circular knobs counterclockwise

as shown in detail 4. Adjust the screen then tighten

knobs.

DETAIL 4

DETAIL 5

SET SCREWS

DETAIL 3
