Directional Control Valve

Series D1VW Explosion Proof

Operating Instructions

Parker Hannin Corporation

FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DE-

SCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND

PROPERTY DAMAGE.

This document and other information from Parker-Hannin Corporation, its subsidiaries and

authorized distributors provide product or system options for further investigation by users having

technical expertise.

The user, through its own analysis and testing, is solely responsible for making the nal selection

of the system and components and assuring that all performance, endurance, maintenance,

safety and warning requirements of the application are met. The user must analyze all aspects

of the application, follow applicable industry standards, and follow the information concerning

the product in the current product catalog and in any other materials provided from Parker or its

subsidiaries or authorized distributors.

To the extent that Parker or its subsidiaries or authorized distributors provide component or

system options based upon data or specications provided by the user, the user is responsible for

determining that such data and specications are suitable and su󰀩cient for all applications and

reasonably foreseeable uses of the components or systems.

WARNING — USER RESPONSIBILITY

D1VW_EE 5715-690 UK.indd 11.07.22

Directional Control Valve

Series D1VW Explosion Proof

Operating Instructions

3Parker Hannin Corporation

0. EC declaration of conformity 4

1. Introduction 6

Technical data 6

Ordering code 7

Characteristic curves 8

Dimensions 10

Name plate 11

2. Safety instructions 11

Symbols 11

Marking, name plates 11

Work on the valve 11

3. Important information 12

Correct use 12

Common instructions 12

Liability 12

Storage 12

4. Installation 12

Scope of delivery 12

Installation 12

Electrical connection 13

Operation limits 13

Pressure uids 13

5. Operating instructions 14

Air bleeding of hydraulic system 14

Filter 14

Flushing 14

6. Maintenance 14

Replacement of a coil 14

7. Troubleshooting 16

A1 Extract from standards/directives 17

A2 User guide – solenoid 18

A3 Type-examination certicate – solenoid 22

A4 Declaration of conformity - solenoid 36

A5 Mounting instruction cable gland 37

Contents Page

D1VW_EE 5715-690 UK.indd 11.07.22

Directional Control Valve

Series D1VW Explosion Proof

Operating Instructions

Parker Hannin Corporation

0. EC declaration of conformity

D1VW_EE 5715-690 UK.indd 11.07.22

Directional Control Valve

Series D1VW Explosion Proof

Operating Instructions

5Parker Hannin Corporation

D1VW_EE 5715-690 UK.indd 11.07.22

Directional Control Valve

Series D1VW Explosion Proof

Operating Instructions

Parker Hannin Corporation

1. Introduction

The D1VW with explosion proof solenoids is ba-

sed on the standard D1VW series. The specic

solenoid design allows the usage in hazardous

environments.

The explosion proof class is

Ex e mb IIC T4 Gb

for use in zone 1 and 2 (according to ATEX).

Additionally the solenoids are IECEx compliant.

All explosion proof solenoids are DC design. The

valves for AC operate with integrated rectier.

Technical data

General

Design Directional spool valve

Actuation Solenoid

Size DIN NG06 / CETOP 03 / NFPA D03

Mounting interface DIN 24340 A6 / ISO 4401 / CETOP RP 121-H / NFPA D03

Mounting position unrestricted, preferably horizontal

Ambient temperature [°C] -20...+60

MTTFD[years] 150

Weight [kg] 1.8 (1 solenoid), 2.7 (2 solenoids)

Hydraulic

Max. operating pressure [bar] P, A B: 350; T: 210

Fluid Hydraulic oil according to DIN 51524

Fluid temperature [°C] -20 ... +60

Viscosity permitted [cSt] / [mm²/s] 2.8...400

Viscosity recommended [cSt] / [mm²/s] 30...80

Filtration ISO 4406 (1999); 18/16/13

Flow max. [l/min] 60 (see shift limits)

Leakage at 50 bar [ml/min] Up to 10 per ow path, depending on spool

Static / Dynamic

Step response at 95 % [ms] Energized: 32 (DC), 40 (AC)

De-energized: 40 (DC), 75 (AC)

Electrical characteristics

Duty ratio 100 % ED; CAUTION: coil temperature up to 135 °C possible

Max. switching frequency [1/h] 15000 (DC), 7200 (AC)

Protection class , Ex e mb IIC T4 Gb, IP66 (plugged and mounted correctly)

Code J N P

24 V = 230/50 Hz 110/50 Hz

±10 ±10 ±10

1.0 0.12 0.25

24 24 24

Supply voltage / ripple [V]

Tolerance supply voltage [%]

Current consumption [A]

Power consumption [W]

Solenoid connection

Box with M20x1.5 entry for cable glands. Solenoid identication as per ISO 9461.

Wiring min. [mm²] 3 x 1.5 recommended

Wiring length max. [m] 50 recommended

With electrical connections the protective conductor (PE W) must be connected according to the relevant regulations.

D1VW_EE 5715-690 UK.indd 11.07.22

Directional Control Valve

Series D1VW Explosion Proof

Operating Instructions

7Parker Hannin Corporation

Code Voltage

J 24 V=

P 110 V/50 Hz

N 230 V/50 Hz

Solenoid options:

Explosion proof

Ex e mb IIC +

IECEx conformity

Connection:

Explosion

proof

with cable

glands

Design

series

(not required

for ordering)

Solenoid

voltage

Further spool types, styles and combinations on request.

Directional

control

valve

Wet pin

solenoid

3-chamber

valve

Seal

Spool

position

Spool

type

Size

DIN NG06

CETOP 03

NFPA D03

3 position spools

Code Spool type

a 0 b

001

002

003

004

005

006

007

008 1)

009 1)

010

011

014

015

016

021

022

081

082

102

2 position spools

Code Spool type

a b

020

026

030

101

3 position spools

Code all 3 position spools

3 positions.

Spring o󰀨set in position “0“.

Operated in position “a“ or “b“.

Standard Spool type 008,

009

Operated in

position “a“.

Operated in

position “b“.

2 positions.

Spring o󰀨set in position “0“.

Operated in

position “b“.

Operated in

position “a“.

2 positions.

Spring o󰀨set in position “0“.

2 position spools

Code Spool position

2 positions.

Spring o󰀨set in position “b“.

Operated in position “a“.

2 positions.

Operated in position “a“ or “b“.

No center or o󰀨set position.

2 positions.

Spring o󰀨set in position “a“.

Operated in position “b“.

1) Consider specic spool position

Ordering code

Code Seal

N NBR

V FPM

1 V W E ED

D1VW_EE 5715-690 UK.indd 11.07.22

Directional Control Valve

Series D1VW Explosion Proof

Operating Instructions

Parker Hannin Corporation

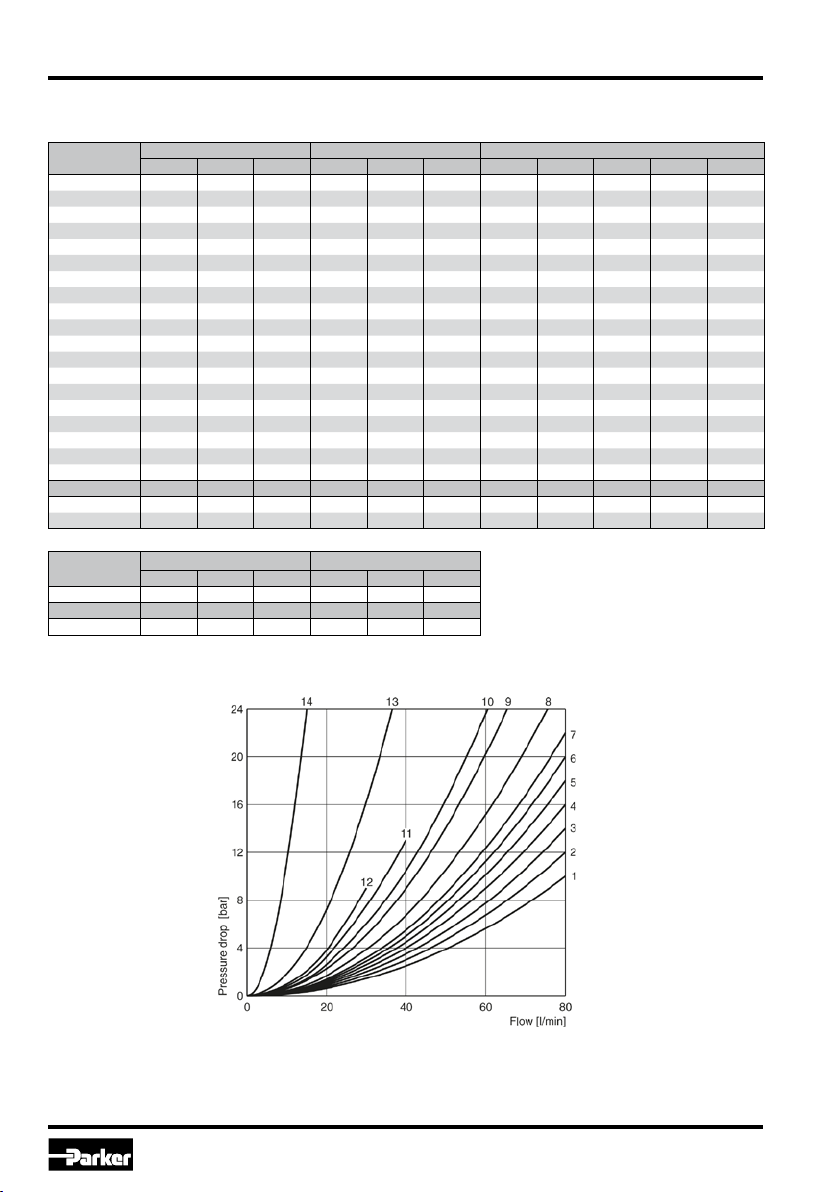

Flow curve diagram

The ow curve diagram shows the ow versus pressure drop curves for all spool types. The relevant

curve number for each spool type, operating position and ow direction is given in the table below.

Spool Position “b” Position “a” Position “0”

P-A B-T P-B P-B A-T P-A P-A P-B A-T B-T P-T

001 2 2 2 2

002 1 4 1 4 1 1 5 5 2

003 3 4 3 6 7

004 2 3 2 3 7 7

005 2 2 2 2 12

006 1 4 1 4 7 7

007 3 2 2 2 3 2 7

010 3 3

011 2 2 2 2 14 14

014 3 2 2 2 3 2 7

015 3 6 3 4 7

016 2 2 2 2 12

020B 4 4 2 3

026B 4 4

030B 2 3 1 2

081 13 13 13 13

082 13 13 13 13 1) 1)

101B 11 10 10 9

102 1 4 1 4 5 5 8 8 6

P-B A-T P-A B-T P-A P-B A-T B-T P-T

008 4 5 4 5 9

009 5 5 6 7 7

Spool Position “b” Position “a”

P-A P-B A-B P-B A-T

021 2 4 4 2

P-A B-T P-A P-B A-B

022 6 2 5 2

All characteristic curves measured with HLP46 at 50 °C.

1) Only for pressure compensation, no high ow possible.

D1VW_EE 5715-690 UK.indd 11.07.22

Directional Control Valve

Series D1VW Explosion Proof

Operating Instructions

9Parker Hannin Corporation

Shift limits

The diagram below species the shift limits for valves with AC and DC solenoids. The specications

apply to a viscosity of 40 mm²/s and balanced ow conditions. The shift limits can be considerably

lower at unbalanced ow conditions. To avoid ow rates beyond the shift limits, a plug-in orice can

be inserted in the P-port.

Shift limit diagram with DC solenoid

Shift limit diagram with AC solenoid

Measured with HLP46 at 50 °C, 90 % Unom and warm solenoids

Measured with HLP46 at 50 °C, 95 % Unom and warm solenoids

D1VW_EE 5715-690 UK.indd 11.07.22

Directional Control Valve

Series D1VW Explosion Proof

Operating Instructions

Parker Hannin Corporation

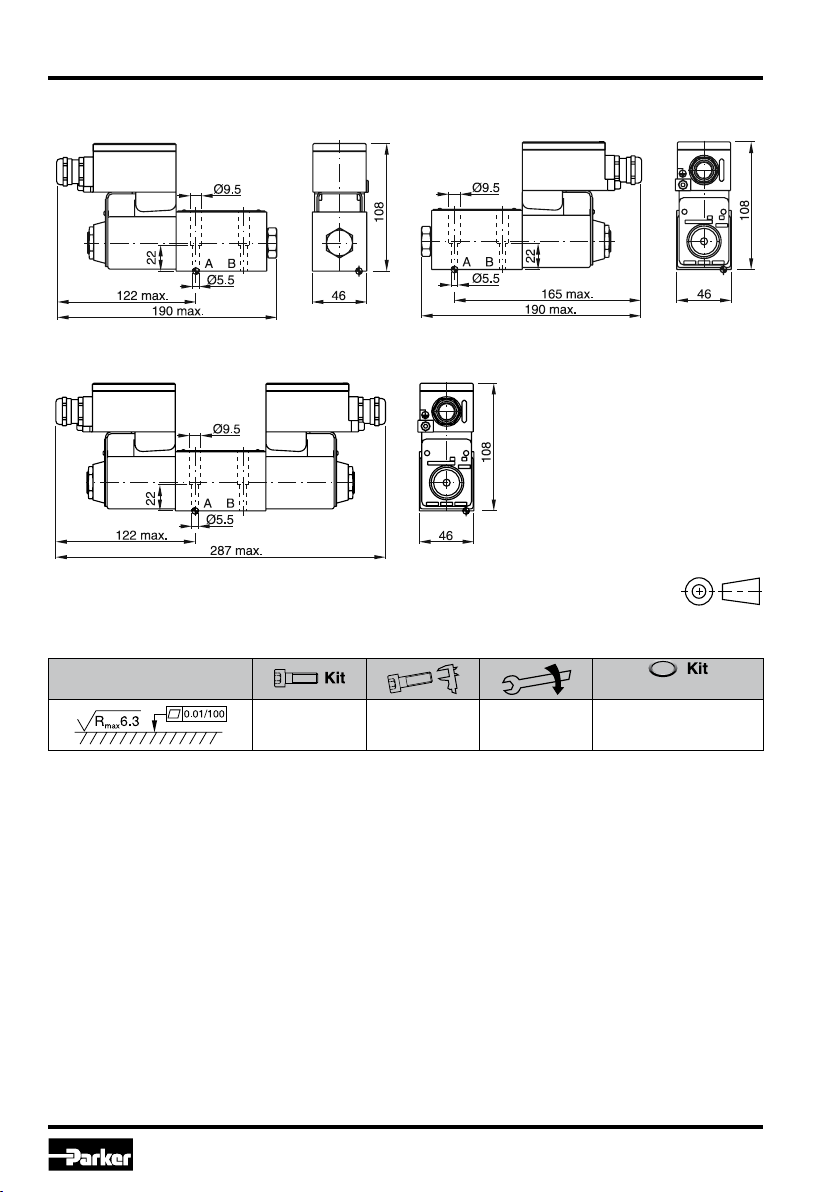

Dimensions

B, E -style H, K -style

C, D -style

Surface nish NBR

BK375 4x M5x30

ISO 4762-12.9

7.6 Nm

±15 %

NBR: SK-D1VW-N-91

FPM: SK-D1VW-V-91
