Paradox Paradox Digiplex DGP-610 Manuel utilisateur

Digiplex LED Keypads

User’s Manual

TABLE OF CONTENTS

INTRODUCTION .......................................................6

1.1 Legend ....................................................................6

BASIC OPERATION .................................................7

2.1 Auditory Feedback (Beep Tones) ...........................8

2.2 Keypad Indicator Lights .........................................8

2.3 LED Keypads ..........................................................8

2.4 Partitioned System..................................................10

2.5 Area Status Display ...............................................11

ARMING ...................................................................12

3.1 Exit Delay Timer ...................................................12

3.2 Regular Arming .....................................................12

3.3 Stay Arming ...........................................................13

3.4 Instant Arming .......................................................14

3.5 Force Arming .........................................................15

3.6 One-Touch Buttons ................................................16

3.7 Keyswitch Arming .................................................17

3.8 Auto-Arming ..........................................................18

3.9 Bypass Programming .............................................19

DISARMING .............................................................22

4.1 Entry Delay Timer .................................................22

4.2 Disarming an Armed System .................................22

4.3 Alarm Memory Display .........................................24

ACCESS CODES .....................................................25

5.1 Keypad Lock-out.....................................................25

5.2 Erasing Access Codes.............................................25

5.3 System Master Code ..............................................25

5.4 User Access Codes .................................................27

TROUBLE DISPLAY ................................................32

ADDITIONAL FEATURES .......................................38

7.1 Panic Alarms ..........................................................38

7.2 Programming Chime Zones ...................................39

7.3 Quick Function Buttons .........................................41

7.4 Programmable Outputs (PGMs) .............................41

FIRE AND BURGLAR ALARMS .............................42

8.1 Standard Fire Zone .................................................42

8.2 Delayed Fire Zone ..................................................42

8.3 Fire Safety Tips...................................................... 44

8.4 Minimizing Home Fire Hazards ............................45

8.5 Burglar Alarm ........................................................45

TESTING AND MAINTENANCE ..............................46

9.1 Burglar Alarm Testing ...........................................46

9.2 Fire Alarm Testing .................................................46

9.3 System Maintenance ..............................................46

9.4 System Test ............................................................47

SYSTEM CHECKLIST .............................................48

10.1 Zone Description .................................................48

10.2 Access Codes .......................................................51

10.3 Special Buttons and Features ...............................55

10.4 Other Information ................................................56

6User’s Manual

1.0 INTRODUCTION

Your Digiplex™ Security System is an advanced technology security

system that will provide you with reliable security protection and powerful

features that are easy to use.

Since you will communicate your instructions to your system through the

keypad, please read this manual carefully and have your installer explain

basic system operation.

1.1 LEGEND

Indicates a warning or an important note.

Indicates useful information or tip.

[WORD]

[NUMBER] Indicates information that must be entered on the keypad.

Italics Indicates references to features, options or sections.

Digiplex LED Keypads 7

2.0 BASIC OPERATION

Your security system communicates by illuminating the “AC” Light, the “Status”

Light, and the various symbols on the screen as explained in Figure 2-1.

Figure 2-1: Basic Overview

8User’s Manual

2.1 AUDITORY FEEDBACK (BEEP TONES)

When you enter information on the keypad, the keypad will guide you with

beep tones to communicate acceptance or rejection of your entries.

Confirmation Beep: When an operation (i.e. arming/disarming) is

successfully entered or when the system switches to a new status/menu, the

keypad emits an intermittent beep tone (“BEEP-BEEP-BEEP-BEEP-BEEP”).

Half Beep: When a step of an operation is successfully entered on the

keypad, the keypad emits a short intermittent beep tone (“BEEP-BEEP-BEEP”).

Rejection Beep: When reverting to a previous status, or when an operation

is incorrectly entered, the keypad emits a continuous beep (“BEEEEEEEEP”).

2.2 KEYPAD INDICATOR LIGHTS

On all Digiplex LED Keypads, the state of the “STATUS”, “AC” Lights, and Action

Symbols (see Figure 2-1 page 7) represents a specific condition in your system.

2.3 LED KEYPADS

There are three versions of the LED Keypads: the 10-zone, the 20-zone,

and the 48-zone keypads. Each keypad can be assigned to one area or

many areas in a Partitioned System. The three keypads function in the

same way and any reference to one keypad applies to each of the LED

Keypads. The only difference between the versions is the number of zones

that each can display.

Digiplex LED Keypads 9

2.3.1 Normal Mode

When no actions are being performed on the keypad, the keypad will remain in

Normal Mode. In Normal mode the LED keypad will illuminate:

• The “AC” Light if power is present

• The Numerical Symbols representing any open zones

• The Area Symbols if any areas are armed

• The [MEM]Symbol if any alarms have occurred

• The [TRBL]Symbol if any troubles are occurring

• The [BYP]Symbol if zones are bypassed

and show the status of the “Status” Light (see Figure 2-1,page 7)

2.3.2 Confidential Mode

The installer can program the keypads not to display the status of your system

automatically by changing the LED keypad from Normal Mode to Confidential

Mode. In Confidential Mode all the Symbols and Keypad Indicator Lights are

extinguished. Depending on how your keypad was programmed by the

installer, you must either press a button or enter your User Access Code to

activate Normal Mode.

2.3.3 Multiple-action

If your installer has enabled this feature, the LED Keypad will permit you to

complete more than one action without having to re-enter your User

Access Code. Press the button to exit the User Menu.

10 User’s Manual

2.3.4 Backlight

The illumination behind the buttons can be modified to suit your needs.

2.4 PARTITIONED SYSTEM

Your installer can design your system to recognize up to four separate

protected areas. A separated system is called a Partitioned System, which

can be useful in situations where shared security systems are more

practical. For example, a company that has both an office area and a

warehouse area can arm and disarm each area separately and control the

access to each area. Therefore, one person may have access to only one

area, whereas another person may have access to all areas. Access to the

areas is determined by the User Access Code.

How do I modify the Backlight?

1) Enter your [ACCESS CODE].

The keypad will emit a Confirmation Beep. The [ACCESS] Symbol will flash.

2) Press the button.

The keypad will emit a Confirmation Beep, the [PRG] Symbol will illuminate,

and the Numerical Symbol for the current setting will illuminate.

3) Use the and buttons to increase or decrease the illumination.

The range is between zero (Numerical Symbol [10]) and seven (Numerical

Symbol [7]) with seven being the brightest.

4) Press the button to save and exit.

Digiplex LED Keypads 11

2.5 AREA STATUS DISPLAY

In Area Status Display you will be able to see the status of the individual

areas in a Partitioned System (see section 2.4).

In Area Status Display the following will illuminate for the area selected:

• The Area Symbol (A1, A2, A3, and A4) if the area is armed. For example,

if you press , and Area 3 is armed, [A3] will illuminate.

• The Numerical Symbols representing any open zones. For example, if

zone 6 was open, then the Numerical Symbol [6] would illuminate.

•The [MEM]Symbol if any alarms have occurred

•The [TRBL]Symbol if any troubles are occurring

•The [STAY]Symbol if the area is Stay or Instant Armed

•The [FORCE]Symbol if the area is Force Armed

•The [BYP]Symbol if zones are bypassed

•The state of the “Status” Light

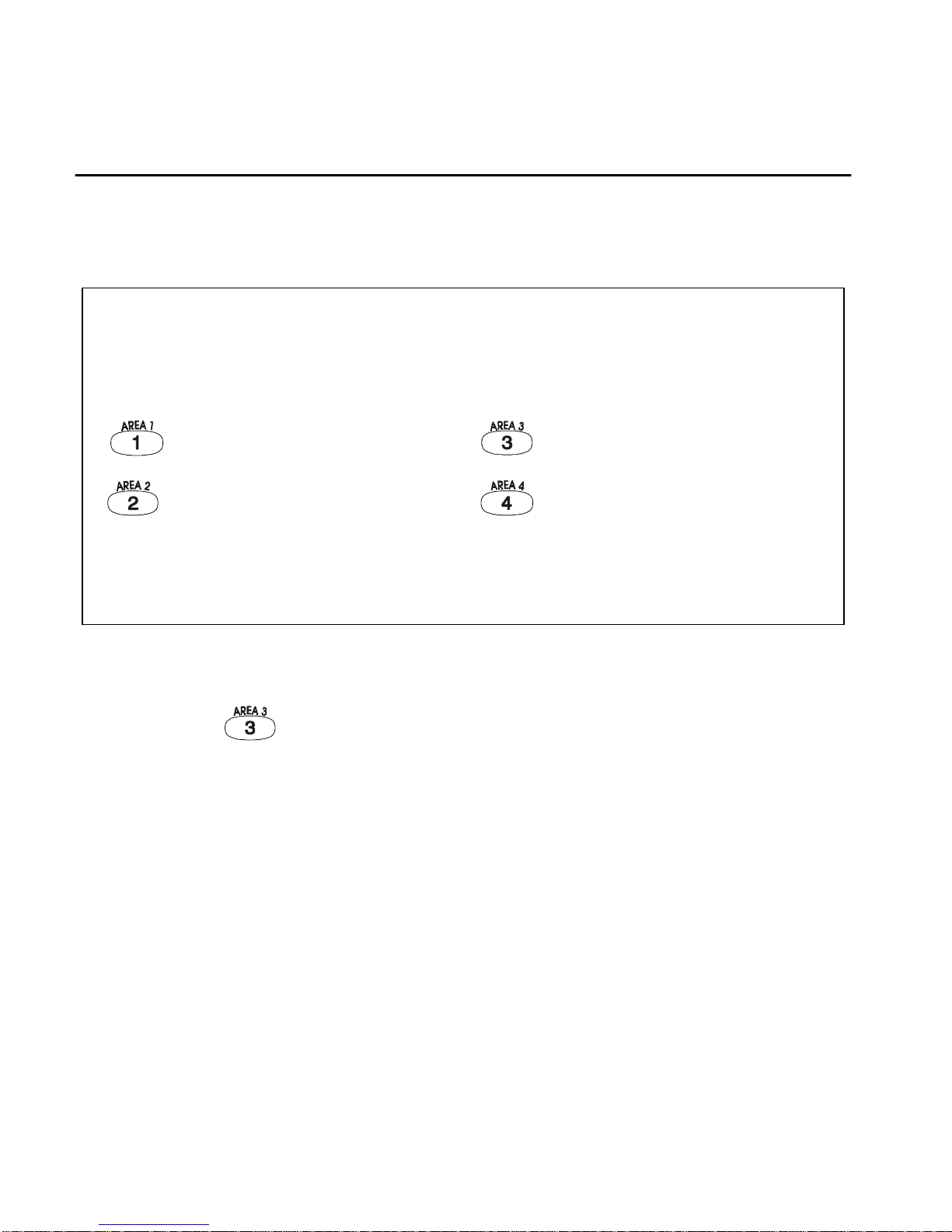

How do I see the status of the zones?

1) Enter your [ACCESS CODE]

2) Press the numbered button corresponding to the desired area:

= Area 1 = Area 3

= Area 2 = Area 4

3) The keypad will emit a Confirmation Beep and will remain that Area’s

status for two minutes then return to Normal or Confidential Mode. You

can perform the next desired action from Area Status Display.
