ParaBody 435103 Manuel utilisateur

Serious Steel

435103 LEG PRESS ADAPTER. KIT

ASSEMBLY INSTRUCTIONS

Part # 6747801 1 Revision: 09/25/97

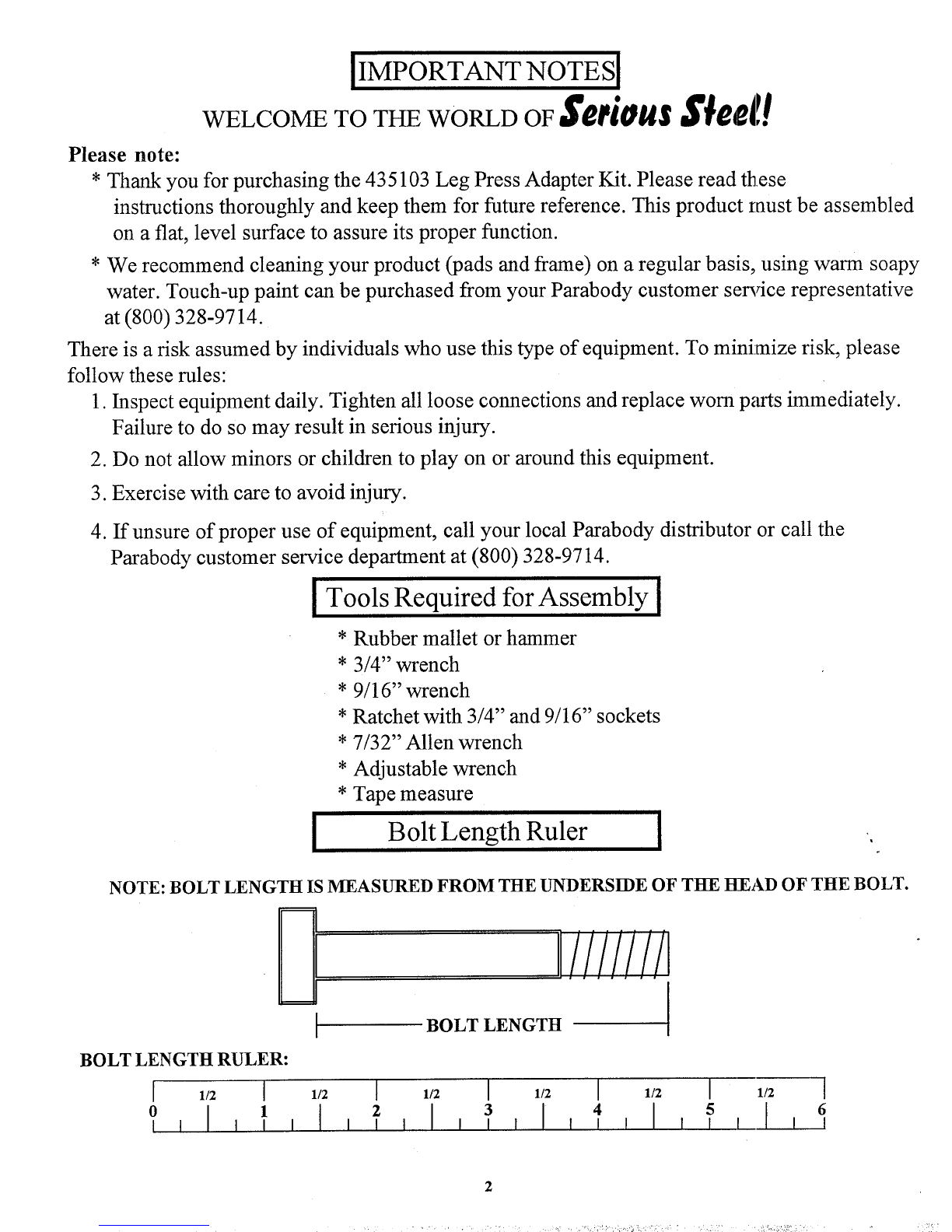

]IMPORTANT NOTES]

WELCOME TO THE WORLD OF $~eiOU$ $~l~i!t

Please note:

* Thankyou for purchasing the 435103Leg Press Adapter Kit. Please read these

instructions thoroughly and keep them for future reference. This product must be assembled

ona flat, level surface to assure its properfunction.

* Werecommendcleaning your product (pads and frame) on a regular basis, using warmsoapy

water. Touch-uppaint can be purchased from your Parabody customer service representative

at (800) 328-9714.

There is a risk assumedby individuals whouse this type of equipment. Tominimizerisk, please

follow these roles:

1. Inspect equipmentdaily. Tighten all loose connections and replace wornparts immediately.

Failure to do so mayresult in serious injury.

2. Donot allow minors or children to play on or around this equipment.

3. Exercise with care to avoid injury.

4. If unsure of proper use of equipment,call your local Parabodydistributor or call the

Parabody customer service department at (800) 328-9714.

I Tools Required for Assemblyi

* Rubber mallet or hammer

* 3/4" wrench

*9/16" wrench

* Ratchet with 3/4" and 9/16" sockets

* 7/32" Allen wrench

* Adjustable wrench

* Tape measure

Bolt Length Ruler I "

NOTE: BOLT LENGTH IS MEASUREDFROMTHE UNDERSIDE OF Tl=l-E H~EAD OF THE BOLT.

BOLT LENGTH RULER:

[ 112 [

0I1

BOLT LENGTH

1/2 ~1/2 I1/2 I1/2 I 1/2 6

4I ’ ’

KEY

PART# DESCRIPTION

6747603 FRONT LEG

3116202 3-1/2" PULLEY

3108102 QUICK DISCONNECTLINK

6427101 KEYHOLECLEVIS

3117305 CLEVIS PIN

3112901 COTTERPIN

6732901 TENSION CORD

6747901 LEGPRESS CABLE

PARTSLIST

QTY KEY PART#

19 6535301

2 10 3102501

1 11 3102802

112 3102502

1 13 3102801

114 3102933

1 15 3102910

DESCRIP’.rlON QTY

1/4" CAPNUT 1

3/8" W, HER 4

3/8" LOCKNUT 2.

1/2" W, HER 4

1/2" LOCKNUT 4

3/8X2 BOLT 2

1/2X3 BOLT 4

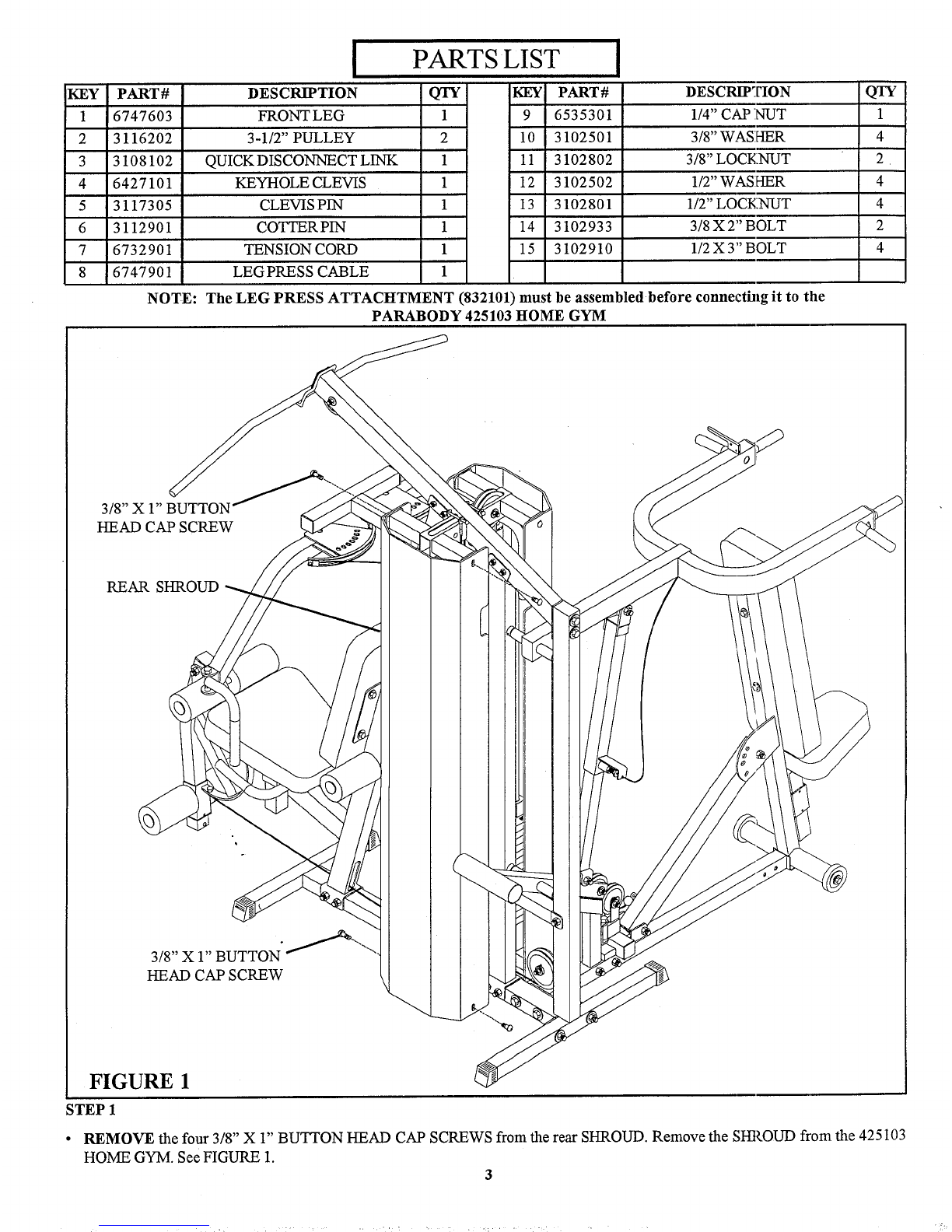

NOTE:The LEGPRESSATTAClqTMENT(832101) must be assembled before connecthlg it to the

PARABODY425103 t~OME GYM

3/8" X1"

HEAD CAP SCREW

3/8" X 1" BUTTON

HEAD CAP SCREW

FIGURE1

STEP1

¯REMOVEthe four 3/8" X 1" BUTTONHEADCAPSCREWSfrom the rear SHROUD.Removethe SHROUDfrom the 425103

HOMEGYM.See FIGURE1. 3

FIGURE 2

STEP2

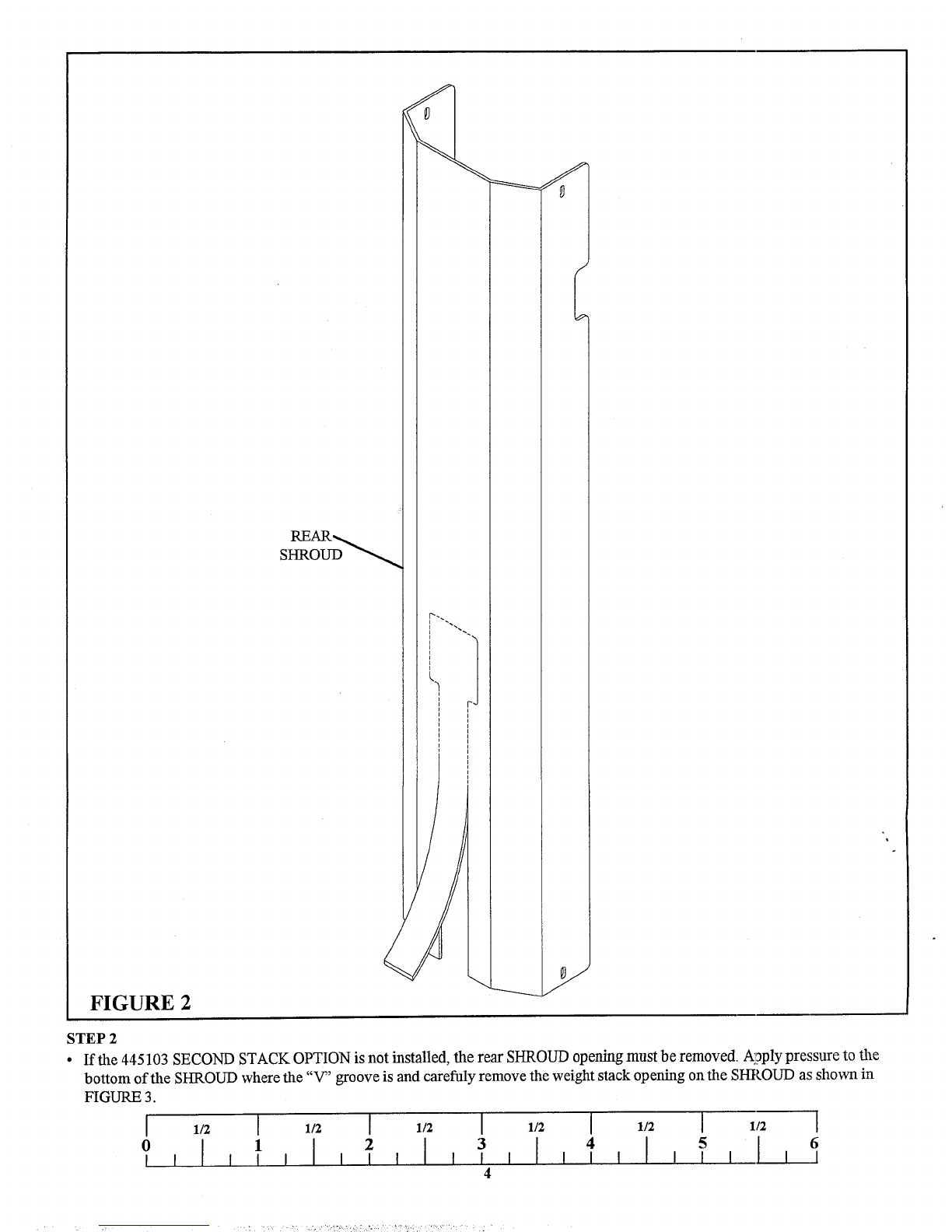

¯If the 445103 SECONDSTACKOPTIONis not installed, the rear SHROUDopening must be removed. AI?ply pressure to the

bottomof the SHROUDwhere the "V" groove is and carefuly removethe weight stack opening on the SHROUDas shownin

FIGURE3.

1/2 [ 1/2 [ 1/2 I 1/2 [ 1/2 6

3/8 X 2"~

BASE

FIGURE3

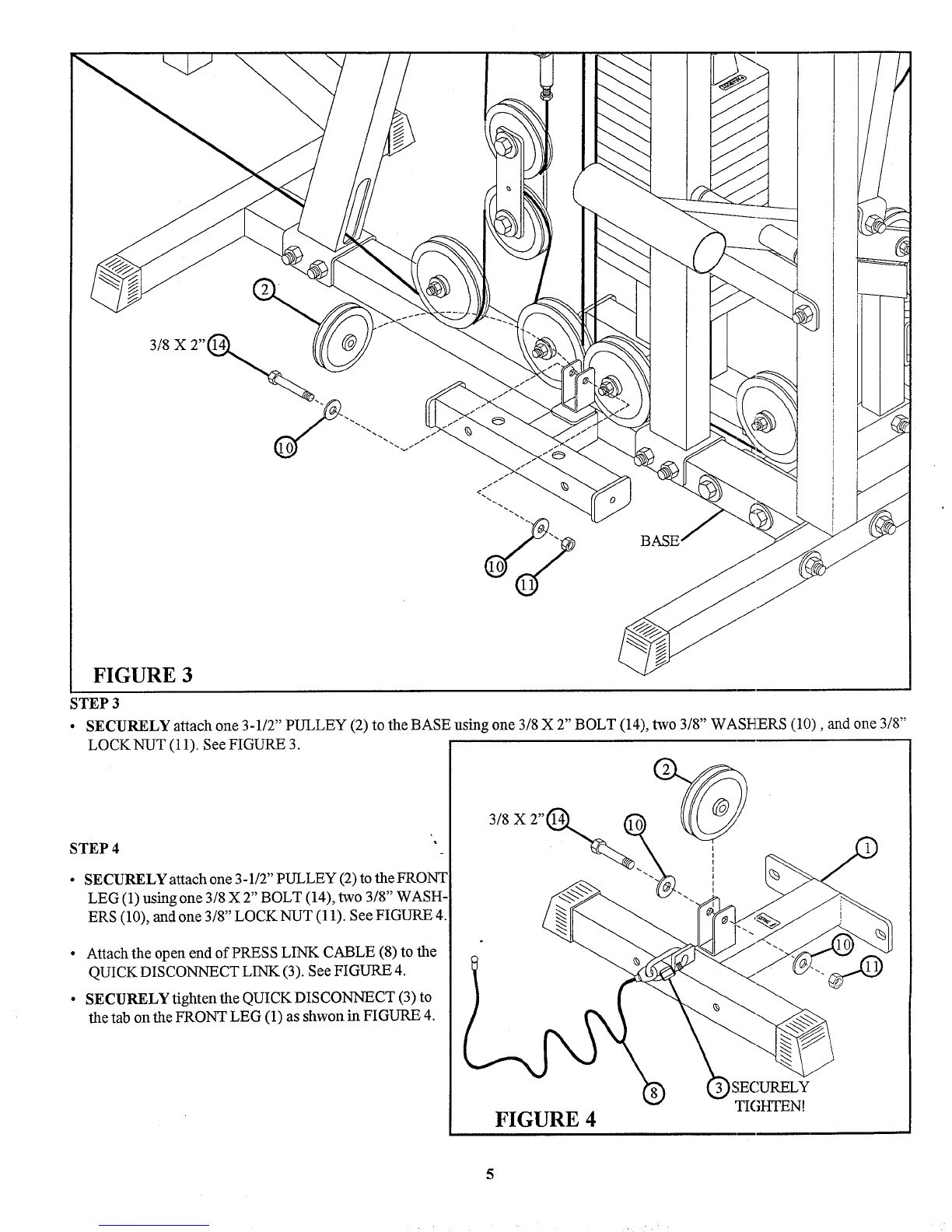

¯ SECURELYattach one 3-1/2" PULLEY(2) to the FRONT

LEG (1) using one 3/8 X 2" BOLT(14), two 3/8" WASH-

ERS (10), and one 3/8" LOCKNUT(11). See FIGURE

¯Attach the open end of PRESSLINKCABLE(8) to the

QUICKDISCONNECTLINK(3). See FIGURE

¯SECURELYtighten the QUICKDISCONNECT(3)

the tab on the FRONTLEG(1) as shwonin FIGURE

’,TEP3

¯SECURELYattach one 3-1/2" PULLEY(2) to the BASEusing one 3/8 X 2" BOLT(14), two 3/8" WASHERS(10), and one

LOCKNUT(11). See FIGURE

TIGHTEN!

FIGURE4

1/2 X 3"(~

~LEG PRESS

FIGURE 5

STEP5

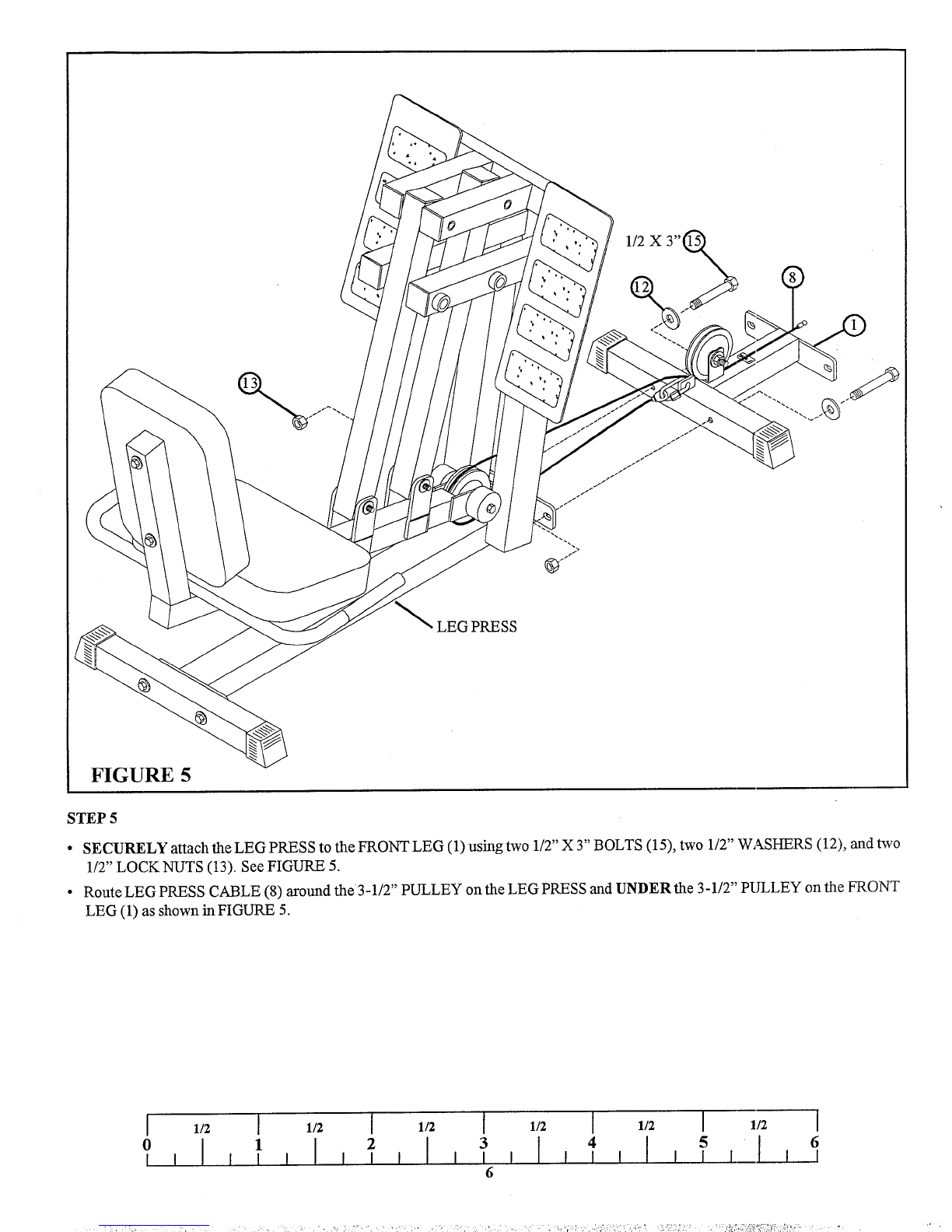

¯ SECURELYattach the LEGPRESSto the FRONTLEG(1) using two 1/2" X 3" BOLTS(15), two 1/2" WASHERS(12), and

1/2" LOCKNUTS(13). See FIGURE

¯Route LEGPRESSCABLE(8) around the3-1/2" PULLEYon the LEGPRESSand UNDERthe 3-1/2" PULLEYon the FRONT

LEG(1) as shownin FIGURE

1/2 [ 1/2 [ 1/2 [ 1/2 [ 1/2 ] 1/2 ]

4 5 6

1~ I I[ I I 6

BASE

FIGURE 6

STEP6

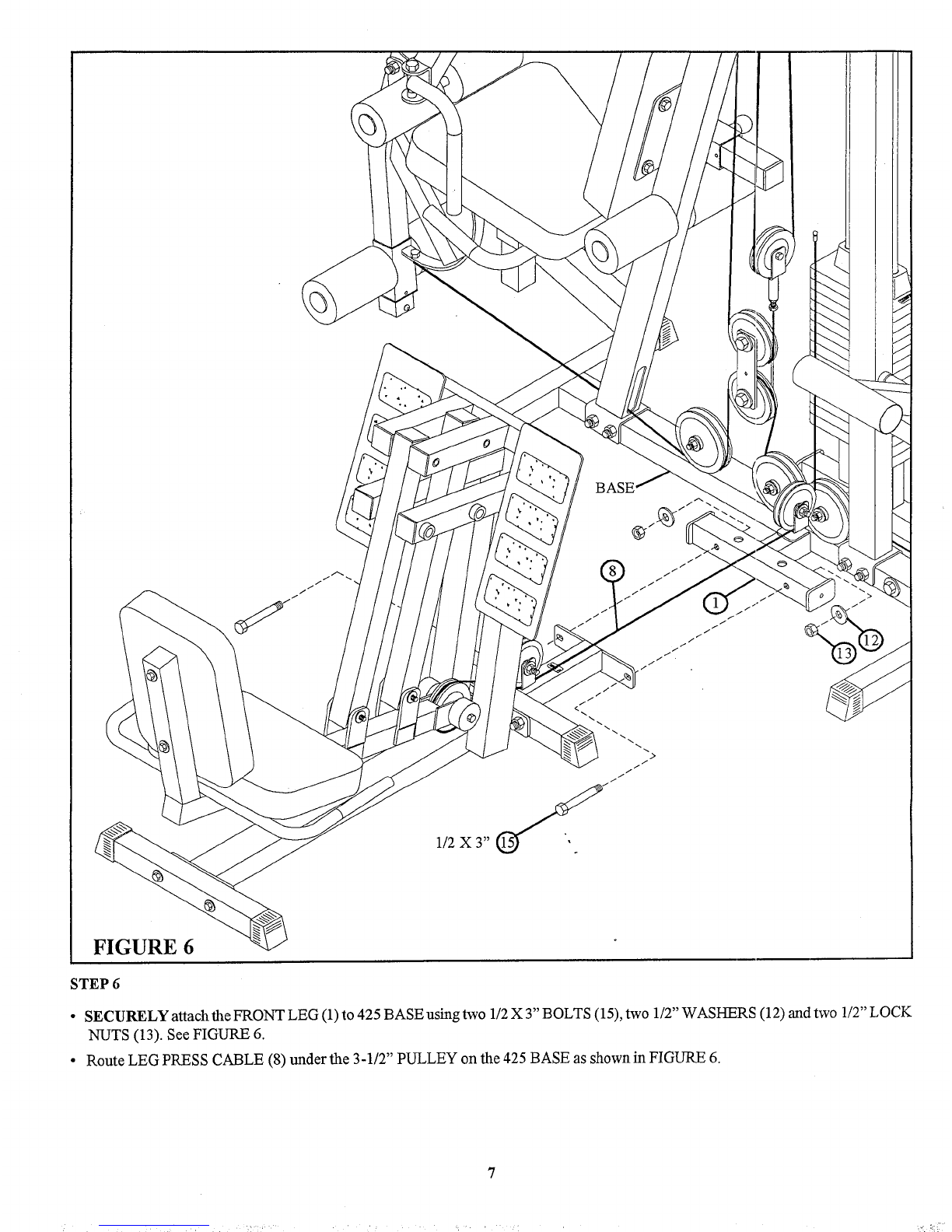

¯ SECURELYattachthe FRONTLEG(1) to 425 BASEusingtwo 1/2 X3" BOLTS(15), two 1/2" WASHERS(12) and two 1/2"

NUTS(13). See FIGURE

¯ Route LEGPRESSCABLE(8) under the 3-1/2" PULLEYon the 425 BASEas shown in FIGURE

FIGURE DETAIL7

LEG

CABLE

LEG

PRESS

CABLE

STEP7

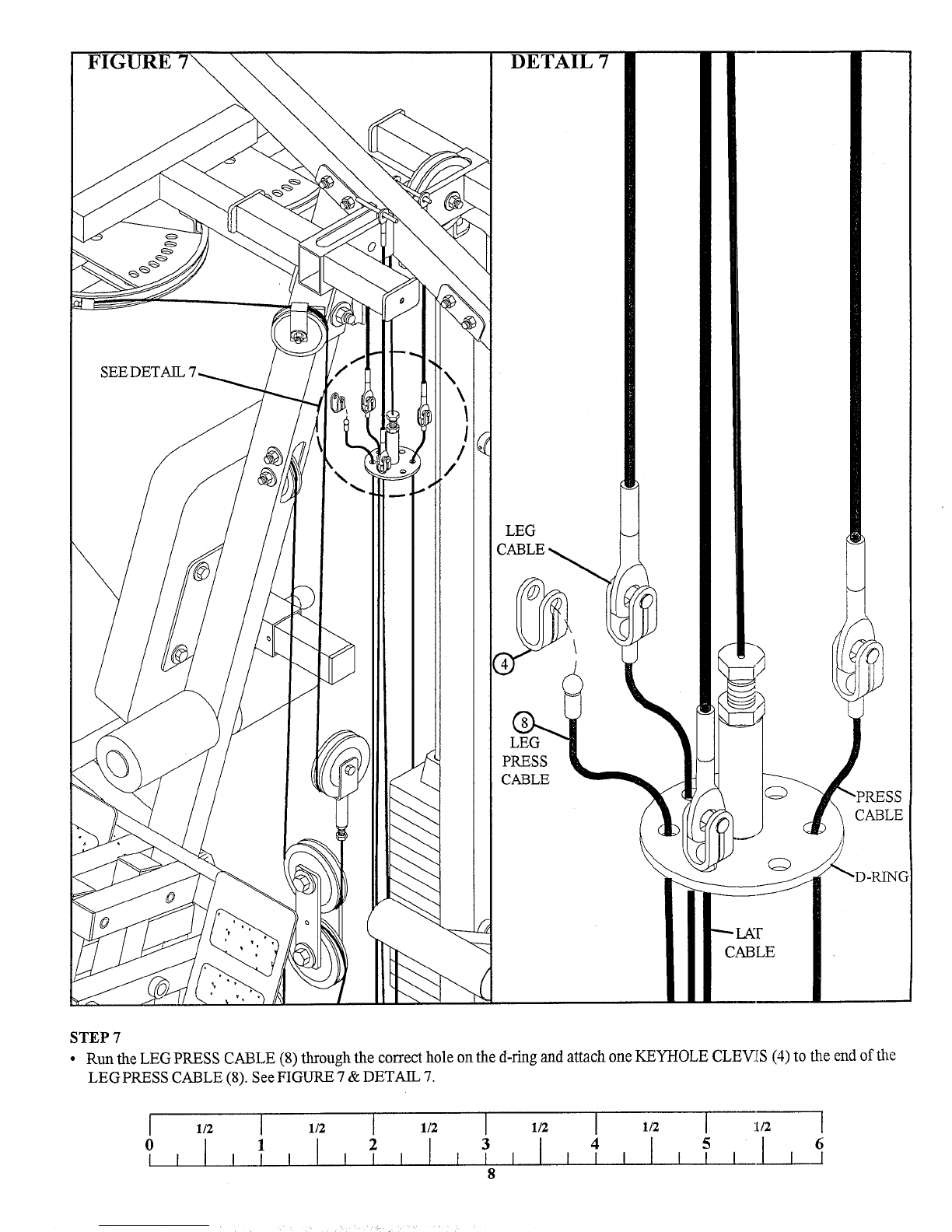

¯Runthe LEGPRESSCABLE(8) through the correct hole on the d-ring and attach one KEYHOLECLEVIS(4) to the end of

LEGPRESSCABLE(8). See FIGURE7 & DETAIL

1/2 ]1/2 [ 1/2 I [ 1/2 I :1/2 [

34 5 6

LEG

CABLE LEG

CABLE ~

CABLE

FIGURE 8 CABLE

STEP8

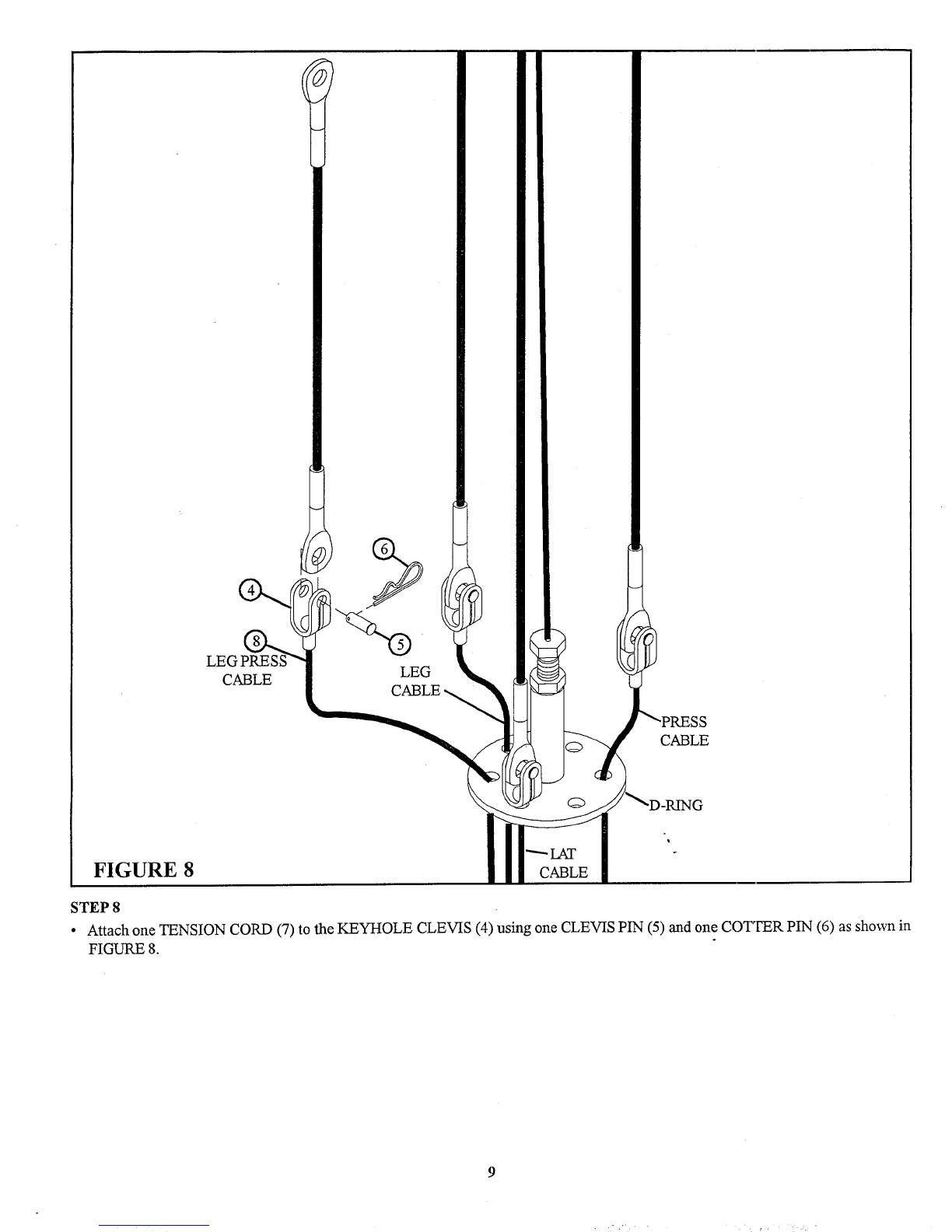

¯Attach one TENSIONCORD(7) to the KEYHOLECLEVIS(4) using one CLEVISPIN (5) and one COTTERPIN (6) as

FIGURE8.

FIGURE 9

BOOM

LEG PRESS

CABLE

STEP 9

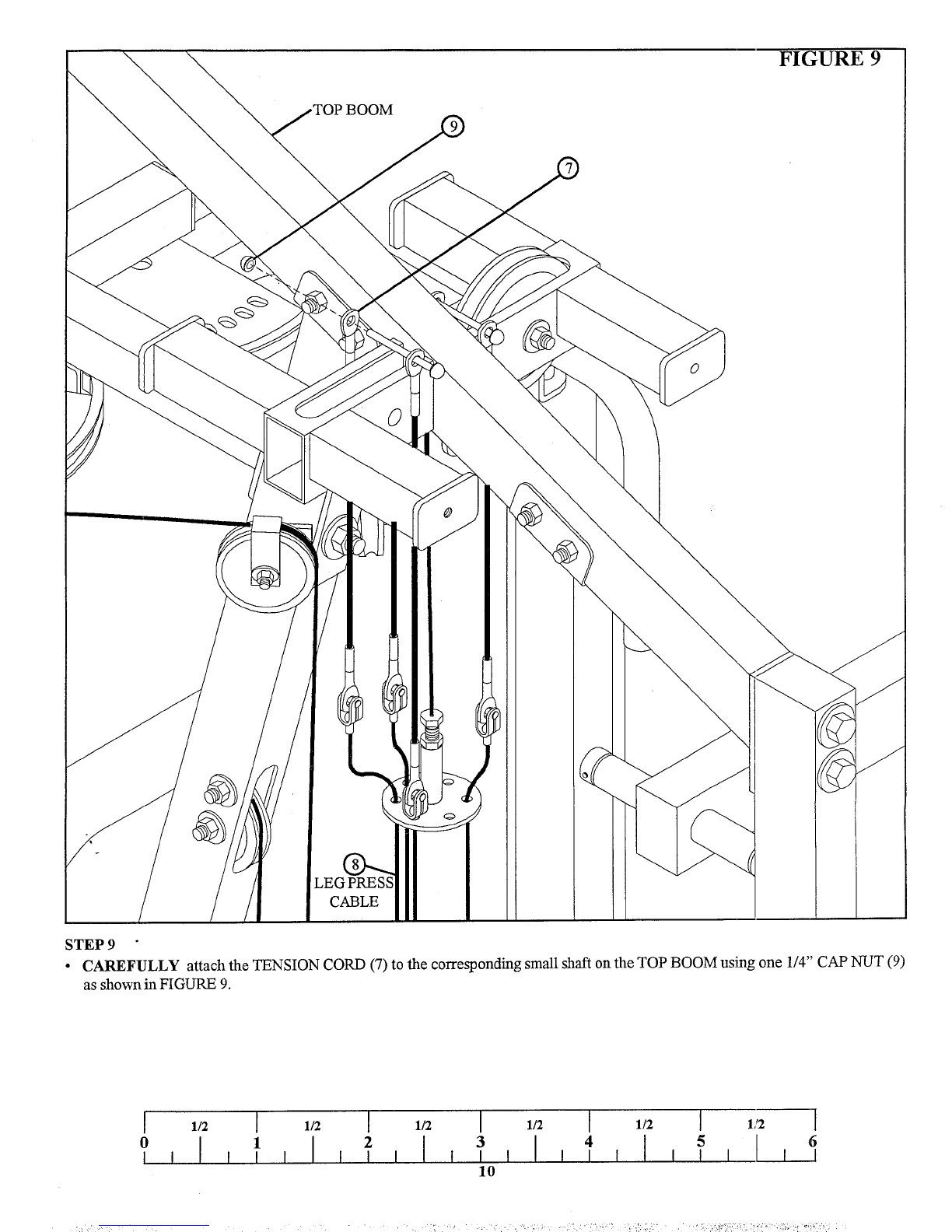

¯CAREFULLYattach the TENSIONCORD(7) to the corresponding small shaft on the TOPBOOMusing one 1/4" CAPNUT(9)

as shownin FIGURE9.

[ 1/2 ] 1/2 [ 1/2 I1/2 [ 1/2 [ 1,’2

2 I , , , I , , ,
