ParaBody 813 Manuel utilisateur
1
813 VKR/CHIN/DIP GYM SYSTEM
CLASSH
PART # 7303601
REV.A Revision: 06/18/02
USER’S GUIDE
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
Version: 813108
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
j
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
IMPORTANT SAFETY INFORMATION
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3
Gym Layout.....................4
NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
Parts list..........................5
Assembly Instructions.....5-10
General Maintenance.......11
Warranty Statement..........12
Product Services..............13
Insert-Registration Card
©
IMPORTANT NOTES
Please note:
Tools Required forAssembly
* Thank you for purchasing the ParaBody 813 Gym System. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.
3

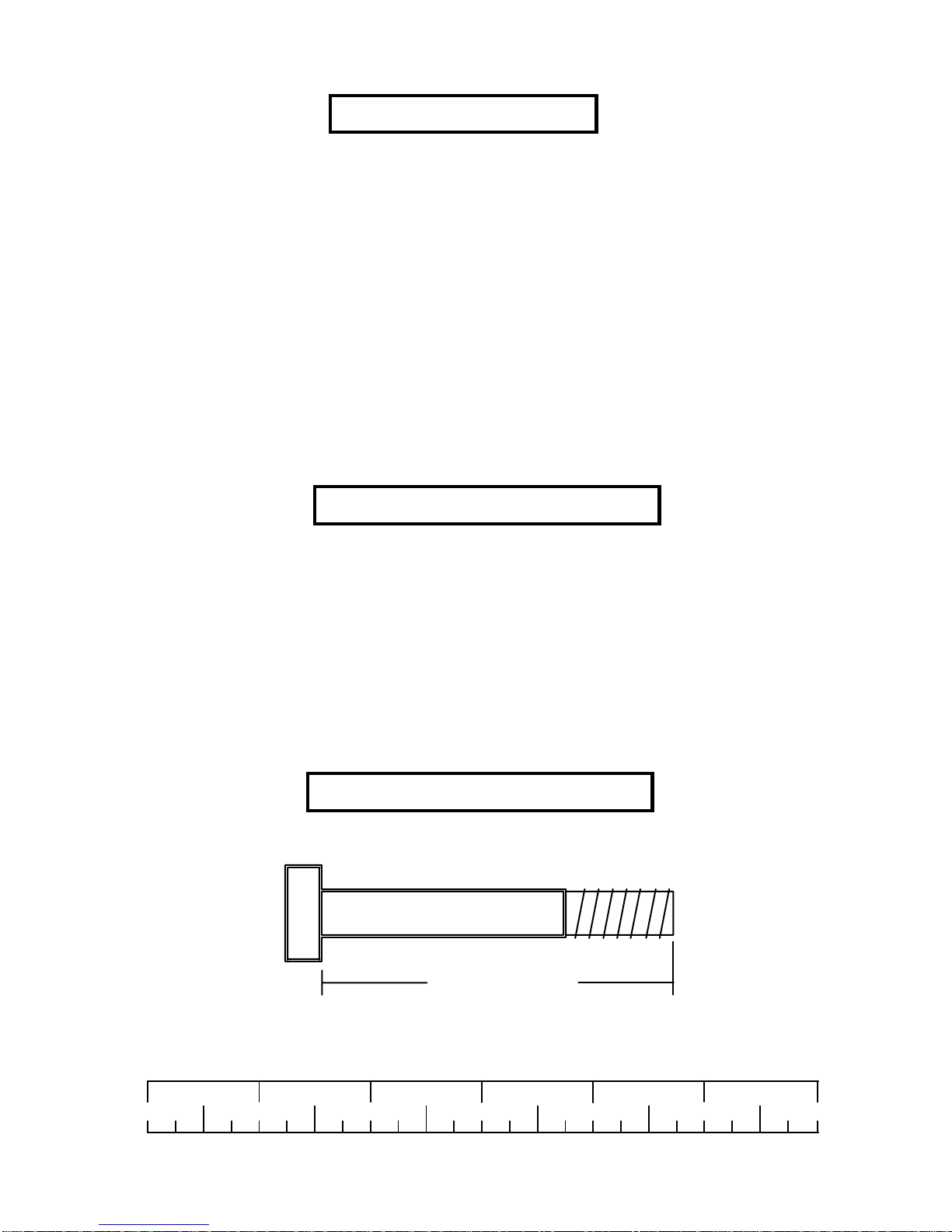

NOTE:BOLTLENGTHIS MEASURED FROMTHEUNDERSIDEOFTHE HEADOFTHEBOLT.
BOLT LENGTH RULER:
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.
Bolt Length Ruler
0123456
1/2 1/2 1/2 1/2 1/2 1/2
BOLT LENGTH
* 9/16” wrench
* Ratchet with 9/16” socket
* Adjustable wrench
* Hammer
* Tape measure
1 Square = 1’ X 1’
4
1’ 2’ 3’ 4’ 5’ 6’ 7’
1’
5’
4’
3’
2’
PARTS LIST
DESCRIPTION
BASECONNECTOR
CHINBAR
VKRSIDE
UPPERBACKSUPPORT
BACKPAD
ARM PAD
3/8”FLATWASHER
3/8”LOCKWASHER
KEY
9
10
11
12
13
14
15
16
PART #
3114702
3235212
3103101
3103103
6236701
6405201
7234801
7076709
DESCRIPTION
3/8”LOCKNUT
3/8X3”BOLT
1-1/4X5”GRIP
1-1/4X7”GRIP
1-3/4”SQ.END CAP
2”SQ.END CAP
2” SQ. COVER CAP
PTDASSY,BASECONNECTOR
QTY
14
20
2
6
1
4
4
1
6102309
6480009
6480509
6480909
6665921
6752721
3114403
3114502
KEY
1
2
3
4
5
6
7
8
QTY
1
1
2
1
1
2
34
6
FIGURE 1
5
STEP1:
• Insert four 2” SQ. COVER CAPS (15) into the ends of the VKR SIDES (3) as shown in FIGURE 1.
• Insert four 2” SQ. END CAPS (14) into the the ends of the VKR SIDES (3) as shown in FIGURE 1.
3
14
15
LEA
LEA
LEA
LEA
LEA
LEA
LEA
LEA
PART # LEA
LEA
LEA
LEA
LEA
LEA
LEA
LEA
6
STEP2:
0123456
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 2
• LOOSELYassemble the UPPER BACK SUPPORT (4) to the VKR SIDES (3) using four 3/8 X 3” BOLTS
(10), eight 3/8” FLATWASHERS (7), and four 3/8” LOCK NUTS (9) as shown in FIGURE 2.
• LOOSELY assemble the two BASE CONNECTORS (1) and (16) to the VKR SIDES (3) using eight 3/8 X 3”
BOLTS (10), sixteen 3/8” FLATWASHERS (7), and eight 3/8” LOCK NUTS (9) as shown in FIGURE 2.
7
10 3/8 X 3”
9
7
3
14
4
9
7
16
1
10 3/8 X 3”
• Insert one 2” SQ. END CAP(14) into the the end of the UPPER BACK SUPPORT (4) as shown in FIGURE 2.
7
STEP3:
FIGURE 3
• LOOSELYassemble the CHIN BAR (2) to the VKR SIDES (3) using two 3/8 X 3” BOLTS (10), four 3/8” FLAT
WASHERS (7), and two 3/8” LOCK NUTS (9).
7
9
• SECURELY tigten allconnectionsmade uptothis point.
10 3/8 X 3”
3
7
2
8
STEP4:
FIGURE 4
• SECURELYattach twoARMPADS (6) to theVKRSIDES(3)using four 3/8 X 3” BOLTS (10), four3/8”LOCK
WASHERS(8),and four 3/8” FLATWASHERS(7)asshown in FIGURE 4.(NOTE:Placethe highsideofARM
PADtowardtheoutside.)
3/8 X 3” 10
3
6
7
8
0123456
1/2 1/2 1/2 1/2 1/2 1/2
9
STEP5:
FIGURE 5
• SECURELYassemble the BACK PAD (5) to the UPPER BACK SUPPORT (4) using two 3/8 X 3” BOLTS (10),
two3/8”LOCKWASHERS (8), two 3/8” FLATWASHERS (7) as shown in FIGURE 5.
4
10
7
5
8
3/8 X 3”
12 3
10
STEP6:
FIGURE 6
• Slide six 1-1/4 X 7” HANDLES (12) over the HANDLES of the VKR SIDES (3) and the CHIN BAR (2) as
shown in FIGURE 6.
12
11
2
12
• Slide two 1-1/4 X 5” HANDLES (11) over theARM PAD HANDLES of the VKR SIDES (3) as shown in
FIGURE 6. (NOTE:Rubbing alcohol can be used on the inside of the grips to make them slide on easier.)
0123456
1/2 1/2 1/2 1/2 1/2 1/2
ThankyouforpurchasingtheParabody813102VKR/CHIN/DIPGYMSYSTEM.Ifunsureofproperuse of
equipment,callyourlocalParabodydistributororcalltheParabodycustomerservicedepartmentat
(800) 328-9714.
