Panasonic AYEB500 - HARD DISK BOX Manuel utilisateur

Nonlinear Editing System

Hard Disk Box

AY-EB500

Before attempting to connect or operate this product, please read these instructions completely



Warning:

This equipment generates and uses radio frequency

energy and if not installed and used properly, i.e., in

strict accordance with the instruction manual, may

cause harmful interference to radio communications.

It has been tested and found to comply with the limits

for a Class A computing device pursuant to Subpart J

of Part 15 of FCC Rules, which are designed to pro-

vide reasonable protection against such interference

when operated in a commercial environment.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead

symbol, within an equilateral triangle,

is intended to alert the user to the

presence of uninsulated "dangerous

voltage" within the product's enclosure

that may be of sufficient magnitude to

constitute a risk of electric shock to

persons.

The exclamation point within an equi-

lateral triangle is intended to alert the

user to the presence of important

operating and maintenance (servicing)

instructions in the literature accompa-

nying the appliance.

The serial number of this product may be found on the

bottom of the unit.

You should note the serial number of this unit in the

space provided and retain this book as a permanent

record of your purchase to aid identification in the

event of theft.

Model No. AY-EB500

Serial No.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER SER-

VICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PER-

SONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SA 1965

SA 1966

For U.S.A

CONTENTS

PREFACE ............................................................................................................................................................................ 1

PRECAUTIONS ................................................................................................................................................................... 1

MAJOR OPERATING CONTROLS AND THEIR FUNCTION .............................................................................................. 2

INITIAL SETTING ................................................................................................................................................................ 3

INSTALLATION ................................................................................................................................................................... 4

CONNECTION .................................................................................................................................................................... 8

SPECIFICATIONS ............................................................................................................................................................... 9

STANDARD ACCESSORIES ............................................................................................................................................... 9

The AY-EB500 Nonlinear Editing System Hard Disk Box

is especially designed for use with the Nonlinear Editing

System.

The Hard Disk Box accepts and supplies power to up to

two 3.5”HDD Units. It is provided with built-in SCSI ports

(2 ports x 2) conforming to the WIDE SCSI standard.

• Do not use strong or abrasive detergents when

cleaning the unit body.

Use a dry cloth to clean the unit when dirty.

In case the dirt is hard to remove, use a mild deter-

gent and wipe gently.

• Do not operate the unit beyond its temperature,

humidity or power source ratings.

Do not use the unit in an extreme environment

where high temperature or high humidity exist.

Use the unit under conditions where temperature is

within 32°F - 95°F (0°C - +35°C), and humidity is

within 10% - 90%.

The input power source is 120V AC 60Hz.

PREFACE

PRECAUTIONS

Up to five AY-EB500 Hard Disk Boxes can be connected

to the Editing System using optional Panasonic SCSI

cables.

• All necessary procedures, with regards to the instal-

lation of this unit should be made by qualified ser-

vice personnel or system installers.

• Do not attempt to disassemble the unit.

In order to prevent electric shock, do not remove

screws or covers. There are no user-serviceable

parts inside.

Do refer all servicing to qualified service personnel.

• Handle the unit with care.

Do not abuse the unit. Avoid striking, shaking, etc. It

could be damaged by improper handling or storage.

• Do not expose the unit to rain or moisture, or try to

operate it in wet areas.

Take immediate action if the unit becomes wet. Turn

the power off and refer servicing to qualified service

personnel. Moisture can damage the unit and also

create the danger of electric shock.

FRONT PANEL

REAR PANEL

1. Power Button/Power Indicator (POWER)(Red)

Press this button to turn on the power. The Power

Indicator lights red while the power is on.

Caution: Do not turn off the power during recording

or playback mode.

2. HDD Operating Indicator (HDD)(green)

Green light indicates that the HDD is in operation.

MAJOR OPERATING CONTROLS AND THEIR FUNCTION

POWER HDD

AY-EB500

B A

chA

3210 chB

3210

SCSI ID

chA

I N OUT I N OUT

chB

~AC IN

io!0

• Switching Power Off

Before switching power off, terminate all the soft-

ware programs according to the procedures

given in the Reference Manual supplied with the

software package (AY-AS501). If power is

switched off while the software (HDD) is running,

the HDD may lose its data stored on it, or fail. Do

not move the HDD for about 30 seconds after

switching power off because the HDD motor is

still running.

• Switching Power On

Switch power on in the order of SCSI-ID1, SCSI-

ID2, SCSI-ID3, SCSI-ID4, and SCSI-ID5. Also

observe the switching on sequence of the HDD

box and the main unit.

Caution

6. AC Inlet (~AC IN)

Connect the provided power cord to this Inlet.

Operating Time Operating Life

8 hours daily 6 years

12 hours daily 4 years

24 hours daily 2 years

7. SCSI Output Connector for Channel B (chB/OUT)

Connect the “chB/IN” terminal of an additional HDD-

BOX to this connector.

8. SCSI Input Connector for Channel B (chB/IN)

Connect the “chB/OUT” terminal of an additional

HDD-BOX to this connector.

Used for connection with the channel B SCSI con-

nector of the SCSI board.

9. SCSI Output Connector for Channel A (chA/OUT)

Connect the “chA/IN” terminal of an additional HDD-

BOX to this connector.

10. SCSI Input Connector for Channel A (chA/IN)

Connect the “chA/OUT” terminal of an additional

HDD-BOX to this connector.

Used for connection with the channel A SCSI con-

nector of the SCSI board.

Set the jumper pins before installing HDDs.

Remove all jumper pins originally set at the factory as

indicated below.

INITIAL SETTING

J6 WIDE SCSI I/O

Connector

DC Power

Connector

T D M W P E T T

E S E P D S P P

Pin 1

Term. Power to SCSI Bus

Install this jumper

pin only.

•Before starting work, carefully read the Operating

Instruction Manual attached to the HDD.

•Before handling HDDs, touch the metal case of

the HDD box to discharge static from the body.

For added safety, wear an antistatic wrist strap.

• Keep unused HDDs on an antistatic mat. Keep

the metal parts of HDDs out of contact with the

metal parts of other HDDs.

Cautions

Before connecting an HDD, pull out the power plug

from the electrical outlet for safety. Failure to do so

may cause electric shock.

Warning

3. SCSI ID Setup Switch for Channel A

(SCSI ID, chA)

The SCSI-ID for Channel A is set with this switch.

Refer to page 8 for ID Number Setting.

4. SCSI ID Setup Switch for Channel B

(SCSI ID, chB)

The SCSI-ID for Channel B is set with this switch.

5. Fans

These Fans prevent temperature rise inside the unit.

Note: The fans are wear items and need to be

replaced periodically.

■Installation to HDD-BOX

qDisconnect the power cord of the HDD-BOX from the

AC outlet receptacle.

wRemove 7 screws from the HDD-BOX.

eSlide the Top Cover in direction (e-1) and pull it

upward (e-2).

e-1

e-2

INSTALLATION

rSecurely fix the new HDD in the HDD Mounting Case

with 4 Mounting Screws (provided).

Mounting Screws

HDD Rear Side HDD Mounting

Case

Top Cover

Do not touch the power unit (indicated below )

with hands, metal or other objects. Otherwise, there

is a danger of electric shock.

Warning

tFix the HDD mounted on the Mounting Case onto

Mounting Angle as indicated below.

HDD

Fixing Angle

Mounting Screws

(provided)

uFasten the Fixing Angle to the HDD Mounting Case

and Chassis securely with three screws (provided).

HDD Mounting Case

HDD Mounting

Angle

Mounting Screws

(supplied)

Chassis

■Wiring

Note: Securely connect cables and wires to the correct

terminals referring to the drawings below. Make sure

not to reverse connectors.

qConnect the cables from the LED PCB (eorange

and rgray) to HDD left.

wConnect the cables from LED PCB (qred and

wgray) to HDD right.

rewq

qwe

HDD

LED(P2)

PCB

HDD

eConnect the cables from the Power PCB (eorange

and rgray) to HDD left.

rConnect the cables from the Power PCB (qyellow

and wgray) to HDD right.

HDD

L HDD

CN3

CN2

Power

PCB

<Front>

yFasten the HDD securely in the position shown

below with two mounting screws (provided).

HDD (left)

SCSI CABLE

ch A

HDD (right)

SCSI CABLE

ch A

tConnect the SCSI ID setup cable (pin q: red) to HDD left.

yConnect the SCSI ID setup cable (pin q: brown) to HDD right.

HDD (left)

HDD (right)

Flat Cable Flat Cable

uConnect a flat cable to HDD left.

iConnect a flat cable to HDD right.

!0 Fix the top cover on the HDD-BOX with 7 screws.

oLower the top cover onto the HDD-BOX (o-1) and

slide it in direction (o-2).

o-2

o-1

Top Cover

If LED fails to light:

Take the following steps to make sure that each cable

is properly connected.

• Press the power switch off and pull out the power

plug from the electrical outlet.

• Check each cable that it is properly connected.

chA

3210 chB

3210

SCSI ID

chA

I N OUT I N OUT

chB

~AC IN

chA

3210 chB

3210

SCSI ID

chA

I N OUT I N OUT

chB

~AC IN

chA

3210 chB

3210

SCSI ID

chA

I N OUT I N OUT

chB

~AC IN

3rd - 5th HDD-BOXes

SCSI ID = 3 - 5 2nd HDD-BOX

SCSI ID = 2 1st HDD-BOX

SCSI ID = 1

chA,

IN chB,

IN chA,

OUT chB,

OUT chA,

IN chB,

chA,

OUT chB,

OUT Connect

Terminators.

CONNECTION

■SCSI ID Setting

•Set the SCSI-ID Setup Switch located on the rear of

the HDD-BOX as shown in the table below.

■Connection of HDD-BOX and SCSI

Board

• Connection of one HDD-BOX

Connect the SCSI connector (OUT) of the SCSI board

and the SCSI connector (IN) of the HDD-BOX. Make sure

to match channels.

Note: The special SCSI cable (ACK/M-WP made by

Adaptec), available as an optional part, is necessary

for this connection.

• Connection of multiple HDD-BOXes

Connect all HDD-BOXes to the SCSI board with optional

SCSI cables as shown below.

Note: Connect them with the WIDE SCSI cables.

■Terminators

• Connection of one HDD-BOX

Insert two terminators into the chA/OUT connector and

the chB/OUT connector of the HDD-BOX.

• Connection of multiple HDD-BOXes

Insert two terminators into the chA/OUT connector and

the chB/OUT connector of the HDD-BOX connected far-

thest from your personal computer.

HDD-BOX SCSI-ID SCSI-ID

Setup Switch

1st Unit 1

2nd Unit 2

3rd Unit 3

4th Unit 4

5th Unit 5

chA,

IN chB,

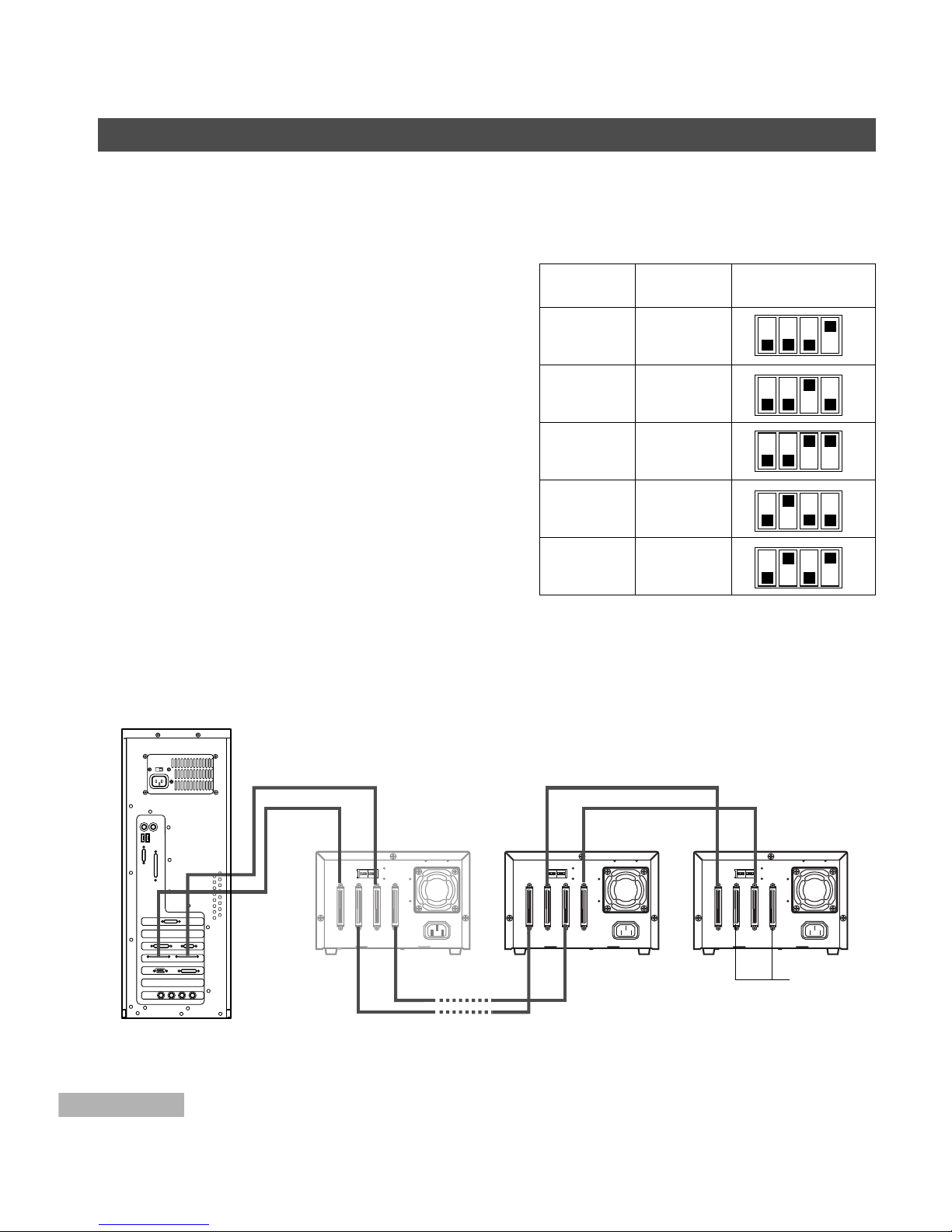

• The connection diagram shown below is an example

for reference.

Autres manuels pour AYEB500 - HARD DISK BOX

Table des matières

Autres manuels Panasonic Stockage

Panasonic

Panasonic RP-SDUB16GAK Manuel utilisateur

Panasonic

Panasonic RP-SDUA64GUK Manuel utilisateur

Panasonic

Panasonic FZ-VSD55 Series Manuel utilisateur

Panasonic

Panasonic RP-SDY16GE1K Manuel utilisateur

Panasonic

Panasonic SUPERDISK LKM-FK73-D Manuel utilisateur

Panasonic

Panasonic KX-NCPS01 Manuel utilisateur

Panasonic

Panasonic RP-SDL16GU1K Manuel utilisateur

Panasonic

Panasonic CF-VFS251W Manuel utilisateur

Panasonic

Panasonic RP-SMFB32GAK Manuel utilisateur

Panasonic

Panasonic JU-475-4 Manuel utilisateur

Panasonic

Panasonic RP-SDRC16GAK Manuel utilisateur

Panasonic

Panasonic AYEB500 - HARD DISK BOX Manuel utilisateur

Panasonic

Panasonic RP-SDUB32GAK Manuel utilisateur

Panasonic

Panasonic RP-SDU64GE1K Manuel utilisateur

Panasonic

Panasonic RP-SDZA64GAK Manuel utilisateur

Panasonic

Panasonic SV-PT1EB Manuel utilisateur

Panasonic

Panasonic RP-SDZA64GAK Manuel utilisateur

Panasonic

Panasonic CF-VFS721W Manuel utilisateur

Panasonic

Panasonic RP-SDQ32GE1K Manuel utilisateur

Panasonic

Panasonic RP-SMGT16GAK Manuel utilisateur

Panasonic

Panasonic RP-SDN16GU1A Manuel utilisateur

Panasonic

Panasonic RP-SDUC16GAK Manuel utilisateur

Panasonic

Panasonic CFVFS712W - SUPERDISK DRIVE Manuel utilisateur

Panasonic

Panasonic AJ-P2C064AG Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur

Dell

Dell PowerVault MD3600f Series Manuel utilisateur

CFI

CFI TERA STOR SATA RAID IV Manuel utilisateur
