Panasonic MJ-M171PWTQ Manuel utilisateur

MJ-M171PWSS

MJ-M171PWSD

MJ-M171PWTQ

Juicer / Blender

Order Number: PMMA100101CE

(6100-K). Unauthorized copying and distribution is a

violation of law.

SPECIFICATION

POWER SOURCE TAIWAN : 110V

POWER CONSUMED 145W

ROTATION SPEED

SWITCH CONTROL

POWER CORD (U) RUSIA : 0.9m (WITH C2 PLUG) HONG KONG : 0.9m (WITH S3 PLUG) TAIWAN: 0.9m (WITH A2 PLUG)

DIMENSIONS (H x W x D) JUICER

DIMENSIONS (H x W x D) BLENDER

NETT WEIGHT (kg) JUICER

NETT WEIGHT (kg) BLENDER

RATED CAPACITY BLENDER

RATED CAPACITY MILL

CONTAINER MATERIAL BLENDER

ATTACHMENT CLEANING BRUSH

GLASS

COFFEE BEAN

3.0K

3.4K

1,000ml

323 X 288 X 212 mm

382 X 288 X 171 mm

HONG KONG & RUSIA : AC220V~240V, 50 - 60Hz

210-230W

JUICER : ON/OFF PUSH BUTTON TYPE / BLENDER : 2 SPEED PUSH BUTTON AND PULSE

JUICER : 12,000 - 13,100 r

m / BLENDER : 11,700 - 12700 r

CONTENTS

6-8

4-5

Page

5 DISASSEMBLY INSTRUCTIONS ..................................................................................................................................................................................................

6 PARTS LOCATION .........................................................................................................................................................................................................................

REPLACEMENT PARTS LIST ..........................................................................................................................................................................................................

SMALL STANDARDIZED METAL PARTS ........................................................................................................................................................................................

PACKING SPECIFICATIONS ............................................................................................................................................................................................................

1 PRECAUTIONS (Strictly follow these instructions) ...................................................................................................................................................................

2 SCHEMATIC DIAGRAM ........................................................................................................................................................................................................................................

3 BASIC WIRING DIAGRAM .............................................................................................................................................................................................................

4 TROUBLESHOOTING GUIDE ........................................................................................................................................................................................................

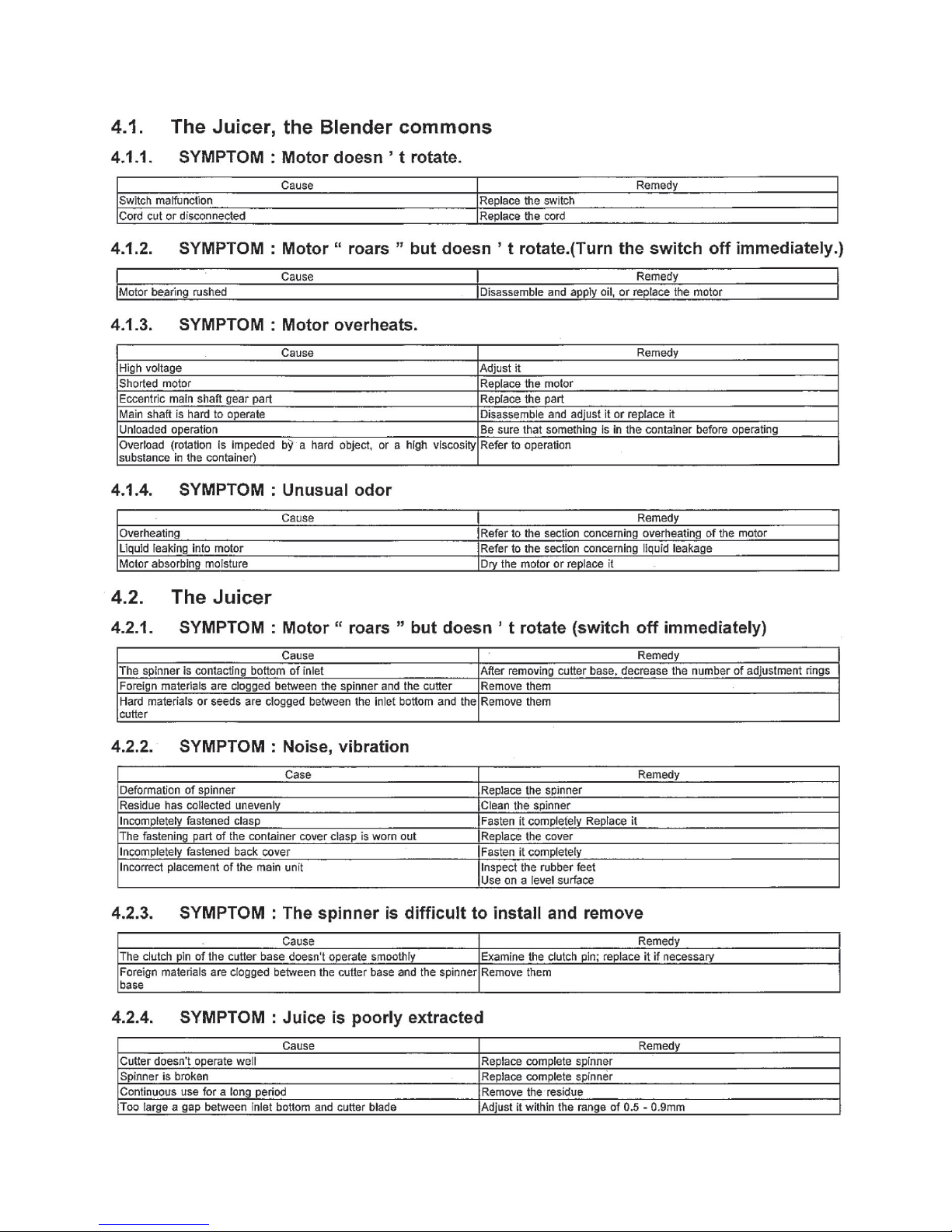

4.1 The Juicer, the Blender commons

4.1.1 SYMPTOM: Motor doesn’t rotate.

4.1.2 SYMPTOM: Motor “roars” but doesn’t rotate. (Turn the switch off immediately)

4.1.3 SYMPTOM: Motor overheats.

4.1.4 SYMPTOM: Unusual odor.

4.2 The Juicer

4.2.1 SYMPTOM: Motor “roars” but doesn’t rotate. (Turn the switch off immediately)

4.2.2 SYMPTOM: Noise, Vibration.

4.2.3 SYMPTOM: The spinner is difficult to install and remove.

4.2.4 SYMPTOM: Juice is poorly extracted.

4.3 The Blender

4.3.1 SYMPTOM: Cutter won’t rotate.

4.3.2 SYMPTOM: Motor rotates but cutter doesn’t rotate.

4.3.3 SYMPTOM: Noise, Vibration.

4.3.4 SYMPTOM: Juice leakage.

4.2.5 SYMPTOM: Juice contains too much residue.

4.2.6 SYMPTOM: Cutter rubs against inlet bottom

4.2.7 SYMPTOM: Leakage of juice.

1 PRECAUTIONS (Strictly follow these instructions.)

2 SCHEMATIC DIAGRAM

3 BASIC WIRING DIAGRAM

4 TROUBLESHOOTING GUIDE

5 DISASSEMBLY INSTRUCTIONS

Upper cap

Upper cap screw

Stopper

spring

6 PARTS LOCATION

REPLACEMENT PARTS LIST

1 PLUNGER AJD08-129-W4 1

2 CONTAINER LID UNIT ASSY AJD93-142-H2 1

3 SPINNER COMPLETE AJ08QK5200 1

4 CONTAINER UNIT ASSY AJD98-142-W4 1

5 SPOUT COVER AJD07-1291W4 1

6 CONNECTOR INSULATION RUBBER AJF03-123 1

7 NUT AJF02M1141 1

8 TOOTH LOCK WASHER AJJ03M1141 1

9 CONNECTOR COMPLETE AJ07QA0600 1

10 CLAMP B AJG04-1291W4 1

11 MOTOR HOUSING UNIT AJA02-143-W4 1

12 CAUTION LABEL AJY02-1291 1 TAIWAN & HONG KONG

12 CAUTION LABEL AJY02K1301 1 RUSSIA

13 CLAMP A AJG03-1291W4 1

14 SWITCH PLATE AJB03-1293S0 1

15 SWITCH AJN99J1295A0 1 HONG KONG & RUSSIA

15 SWITCH AJN99B1305A0 1 TAIWAN

16 CLAMP LINK B AJG94-1292 1

17 SPACER AJG09-1291 2

18 SEAL CAP AVB18M216 1

19 CLAMP LINK A AJG93-1292 1

20 ADJUSMENT WASHER A AJJ01M114 2

21 ADJUSMENT WASHER B AJJ02M114 3

22 MOTOR SCREW X56A98200 3

23 MOTOR SCREW RUBBER AJ26A53000 3

24 MOTOR COVER AJF11-1292 1

25 UPPER CAP AJB04-142-W4 1

26 CAPACITOR AJQ99J1291 1

27 MOTOR ASMS293CR2 1 220 - 240V, HONG KONG & RUSSIA

27 MOTOR ASMS295AR2 1 110~127V, TAIWAN

28 BOTTOM RUBBER AJ31A44200 1

29 N LABEL AJY071291 1 HONG KONG

30 BOTTOM PLATE AJB02-142-W4 1

31 NAME PLATE AJY03B143 1 TAIWAN

31 NAME PLATE AJY03H143 1 HONG KONG

31 NAME PLATE AJY03K143 1 RUSSIA

32 FOOT AJ33A53000 4

33 POWER CORD (C2) AJP99-129-W0 1 RUSSIA

33 POWER CORD (S3) AJP99J129-W0 1 HONG KONG

33 POWER CORD (A2) AJP99B130-W0 1 TAIWAN

34 BRUSH COMPLETE AJ14QF6200 1

35 BRUSH AJ51B42100 1

36 INNER LID AVE44-180-X0 1

37 OUTER LID AVE02-1801W4 1

38 CUP (GLASS) AX03BR6300 1

39 UPPER GASKET AX05B83100 1

40 CUTTING BLADE UNIT AX95BG5200 1

41 WAVE WASHER AX13B451000 1

42 SHAFT WASHER (B) AX27B69200L 1

43 MOUNTING RING ASSY AVE86-219-W4 1

44 STOPPER SPRING AJG01-142 1

45 CONNECTOR UPPER UNIT AMX94BH1100 1

REF. NO. PART NAME PART NO.

SAFETY

PART QTY REMARKS
