Panasonic CF-VDRRT3W Manuel utilisateur

BEDIENUNGSANLEITUNG

Names and Functions of Parts ............ 5

Introduction.......................................... 8

Usage Precautions .............................. 9

Connections to the Computer ........... 11

Placing and Removing Discs ............ 13

Installing the Software ....................... 14

OPERATING INSTRUCTIONS

DVD-ROM & CD-R/RW Drive

CF-VDRRT3W

DEUTSCH

ENGLISH

MODE D’EMPLOI

FRANÇAIS

Noms et fonctions des pièces ............. 5

Introduction........................................ 53

Précautions d’utilisation .................... 54

Raccordement à l’ordinateur ............. 56

Introduction et retrait des disques ..........

Installation des logiciels .................... 59

Anordnung und Funktion der Teile ...........

Einleitung .......................................... 30

Vorsichtshinweise zum Gebrauch .........

Anschluss an den Computer ............. 33

Einlegen und Entfernen von Discs .........

Installieren der Software ................... 36

B’s Recorder/B’s CLiP ....................... 18

PowerDVD ......................................... 22

Using the Drive .................................. 25

Troubleshooting ................................ 26

Specifications .................................... 28

B’s Recorder/B’s CLiP ....................... 40

PowerDVD ......................................... 44

Gebrauch des Laufwerks .................. 47

Störungsbeseitigung ......................... 48

Technische Daten ............................. 51

B’s Recorder/B’s CLiP ....................... 63

PowerDVD ......................................... 67

Utilisation du lecteur .......................... 70

Dépannage ........................................ 71

Fiche technique ................................. 74

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.DO NOT OPEN COVERS

AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL

WARNUNG!

DIESES PROUKT ERZEUGT LASERSTAHLUNG.

DURCHFÜHRUNG ANDERER VORGÄNGE ALS DER HIER ANGEGEBENEN KANN ZU GEFÄHRLICHER

STRAHLUNG FÜHREN.REPARATUREN DÜRFEN

NUR VON QUALIFIZIERTEM FACHPERSONAL

DURCHGEFÜHRT WERDEN.

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.

L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU L’EXÉCUTION DE PROCÉDURES AUTRES QUE

CELLES SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE

EXPOSITION À DES RADIATIONS DANGEREUSES.

NE PAS OUVRIR LES COUVERCLES NI ESSAYER

DE RÉPARER SOI-MÊME.CONFIER TOUT TRAVAIL

D'ENTRETIEN À UN PERSONNEL QUALIFIÉ.

Laser properties of the Drive

Laser Class Class 1 (HHS and IEC 60825-1)

Wavelength for CD 784 nm

for DVD 662 nm

Lasereigenschaften des Laufwerks

Laserklasse:

Klasse 1 (HHS und IEC

60825-1

)

Wellennäge für CD:

784

für DVD: 662 nm

Propriétés du faisceau laser de ce lecteur

Faisceau laser : Classe 1 (HHS et IEC 60825-1)

Longueur d’onde

Pour les CD 784 nm

Pour les DVD 662 nm

CAUTION

ATTENTION

VORSICHT

ADVARSEL

VARNING

VARO!

CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM.

CLASSE 3B RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE.

EXPOSITION DANGEREUSE AU FAISCEAU.

KLASSE 3B SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET.

NICHT DEM STRAHL AUSSETZEN.

KLASSE 3B SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING.

KLASSE’3B SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN.

KLASS 3B SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. STRÅLEN ÄR FARLIG.

AVATTAESSA OLET ALTTIINA LUOKAN 3B NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE, ÄLÄ KATSO SÄTEESEEN.

For U.S.A.

Federal Communications Commission Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the Panasonic Service Center or an experienced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a

computer or peripheral. Also, any changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause

undesired operation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

For Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CD-R

CD-RW

■Discs bearing any of the following logos can be used with this drive.

■Mit diesem Laufwerk konnen alle Discs abgespielt werden, die mit den unten

abgebildeten Logos gekennzeichnet sind.

■Les disques qui portent l’un ou l’autre des logos suivants peuvent être utilisés

avec ce lecteur.

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council Directive

listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC

89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC

Übereinstimmungserklärung - CE-Marke

Diese Ausrüstung erfüllt die Anforderungen der unten angegebenen EC-Direktive:

73/23/EEC Niederspannungsdirektive mit Abänderung 93/68/EEC

89/336/EEC EMC-Direktive mit Abänderungen 92/31/EEC und 93/68/EEC

Avis de comformité - Marque CE

Cet équipement est conforme aux conditions des Directives de la Commission européenne

mentionnées ci-dessous:

73/23/EEC Directive sur la basse tension y compris la modification 93/68/EEC

89/336/EEC Directive CEM y compris les modifications 92/31/EEC et 93/68/EEC

DVD-VIDEO

DVD-RAM

DVD-R

DVD-RW

DVD-ROM

+RW

VIDEO CD

Recordable

Read/Play Write/Read/Play

+R DL

VIDEO CD

CD-EXTRA

CD DIGITAL AUDIO

CD-TEXT

Photo CD

CD-ROM

■Names and Functions of Parts

■Anordnung und Funktion der Teile

■Noms et fonctions des pièces

(A)

(C)

■Top panel

■Oberseite

■Panneau supérieur

(B)

■Disc cover

■Disc-Fachdeckel

■

Couvercle du logement à disque

(A)■Indicator

Green:

Drive’s power is on.

Orange:

Data is being read/written.

*It turns green temporarily when the

SmoothLink function is used.

■Anzeigeleuchte

Leuchtet grün:

Das Laufwerk ist eingeschaltet.

Leuchtet orangefarben:

Die Daten werden gelesen/geschrieben.

Die Anzeigeleuchte leuchtet

vorubergehend grun, wenn die

SmoothLink-Funktion verwendet wird.

■Témoin

Vert:

Le lecteur est allumé

Orange:

Les donnees sont en cours de lecture/

ecriture.

*Il devient vert temporairement lorsque

la fonction SmoothLink est utilisee.

(C)■Open button [OPEN]

■Öffnungstaste [OPEN]

■Touche d’ouverture [OPEN]

(F)

(D)

(E)

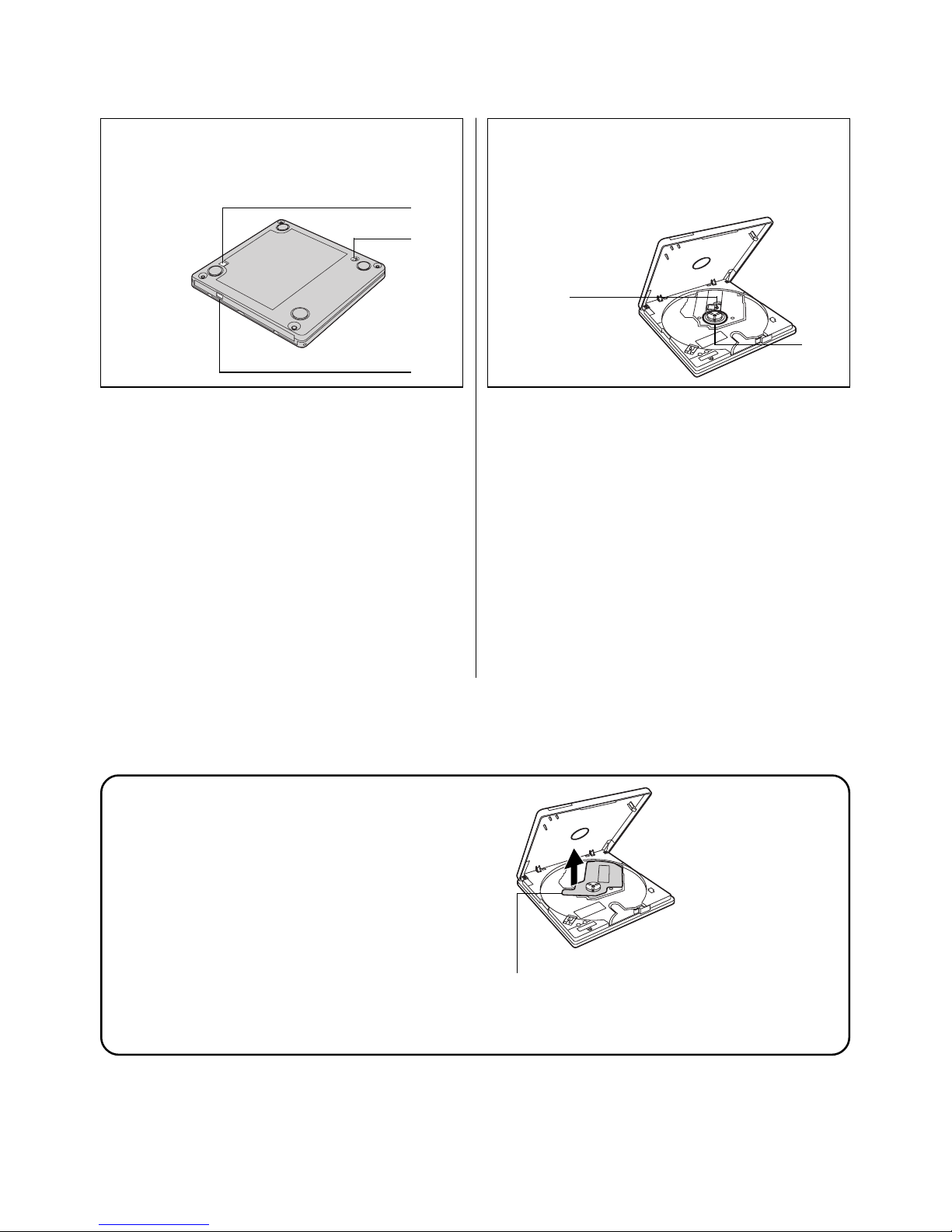

■ Bottom panel

■ Unterseite

■ Panneau inférieur

(D)■Mode switch

■Betriebsartenschalter

■Commutateur de mode

(E)■Emergency open lever

■Notöffnungshebel

■Loquet d’ouverture de secours

(F) ■Interface connector

■Schnittstellenanschluss

■Connecteur d’interface

(H)

(G)

■When disc cover is open

■Bei geoffnetem Disc-Fachdeckel

■Lorsque le couvercle du logement à

disque est ouvert

(G)■Lens

■Abtasterlinse

■Lentille

(H)■Turntable

■Drehteller

■Plateau

■Before use, be sure to remove

the lens protective sheet.

■Achten Sie vor der erstmaligen

Inbetriebnahme des Laufwerks

unbedingt darauf, diese

Schutzfolie zu entfernen.

■

Avant d’utiliser le lecteur,

assurez-vous d’avoir retiré la

feuille protectrice de la lentille.

■Lens protective sheet

■Schutzfolie für Abtasterlinse

■Feuille protectrice de la lentille

■Applicable models

This drive is an option which is specially designed to be used with the following Panasonic

personal computers. No guarantees are made for its operation if it is connected to any

other personal computer.

CF-18 series*1

CF-T1 and CF-T2 series

CF-R1*2series

CF-M34C, CF-M34V, CF-M34U, CF-M34R

*1The drive cannot be used together with a port replicator (CF-VEB181).

*2The USB ports on the right side of the CF-R1 series body cannot be used for connecting

the drive.

■Zutreffende Modelle

Dieses Laufwerk ist eine Option, die speziell für die Verwendung mit der folgenden

Panasonic-Personalcomputern konzipiert wurde. Wir übernehmen keine Garantie, falls

das Laufwerk an andere Personalcomputer angeschlossen wird.

Serie CF-18*3

Serien CF-T1 und CF-T2

Serien CF-R1*4

CF-M34C, CF-M34V, CF-M34U, CF-M34R

*3Das Laufwerk kann nicht zusammen mit einem Portreplikator (CF-VEB181) verwendet

werden.

*4Die USB-Anschlüsse auf der rechten Seite der Geräte der Serie CF-R1 können nicht für

den Anschluss des Laufwerks verwendet werden.

■Modèles applicables

Ce lecteur est une option et il est spécialement conçu pour être utilisé avec les ordinateurs

personnels Panasonic suivants. Son fonctionnement n’est pas garanti s’il est raccordé à un

autre ordinateur personnel.

Série CF-18*5

Séries CF-T1 et CF-T2

Séries CF-R1*6

CF-M34C, CF-M34V, CF-M34U, CF-M34R

*5Le lecteur ne peut pas être utilisé avec un duplicateur de port (CF-VEB181).

*6Les ports USB sur le côté droit du boîtier de la série CF-R1 ne peuvent pas être utilisés

pour raccorder le lecteur.

Thank you for purchasing the DVD-ROM & CD-R/RW Drive for the Panasonic notebook

computer series.

This drive connects to the computer through the USB Interface.

Store this manual in a safe place after reading it.

Introduction

[Illustration in this manual]

Windows XP

indicates Microsoft®Windows®XP Professional Operating System.

Windows 2000

indicates Microsoft®Windows®2000 Professional Operating System.

Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States

and/or other countries.

PowerDVD™is a trademark of CyberLink, Corp.

SmoothLink is a registered trademark of Matsushita Electric Industrial Co., Ltd.

DVD-ROM & CD-R/RW Drive ........... 1

Utility Disc

...................................... 1

(CD-ROM)

B’s Recorder GOLD8 BASIC (hereafter,

B’s Recorder),

B’s CLiP 6 (hereafter, B’s CLiP),

PowerDVD 6 (hereafter, PowerDVD)

Interface Cable

............................. 1

(USB)

Operating Instructions

............... 1

(This book)

To play MPEG2 files, be sure to use PowerDVD.

NOTE

OFF

Usage Precautions

Do not place items other than discs in the drive.

Do not leave the disc cover in the open position or touch the lens.

Under some conditions, dust may build up on the lens, or on a disc. This may result in a

read or write malfunction.

Do not open the drive or move the computer while the drive is being accessed. Doing so

could cause it to malfunction.

In addition, after running an application involving access to a disc, do not open the drive

or remove the disc until the application has been closed.

Do not expose the drive to excessive smoke that may leave a residue, i.e. oil smoke, or

tobacco smoke. Doing so could shorten the life of the drive lens.

We recommend cleaning the drive lens with an air puffer used for camera lenses. (Do not

use any spray-type of lens cleaning products.)

Never insert foreign objects such as paper clips into the drive. Doing so could cause it to

malfunction.

Do not use discs that have become deformed, warped, or are not completely round.

Do not touch the interface cable while the drive is being accessed. Doing so may cause

the drive and/or computer to malfunction.

In the case of DVD-RAM, only non-cartridge discs or removable cartridge discs can be

used.

If the computer has both USB2.0 and USB1.1 ports, use the USB2.0 port.

When connection is made to the USB1.1 port, the drive functions as a USB1.1 drive.

When the drive is used as a USB1.1 drive, the picture and sound playback of DVD-Video

discs may be interrupted and may not play smoothly.

For AutoPlay CDs:

• If an AutoPlay CD does not start after the computer resumes from the standby or hiberna-

tion modes, remove the disc from the drive, then reinsert the disc again after a 15 second

wait.

• An AutoPlay CD may start during file access, depending on the status of the disc.

Bottom panel Mode Switches

Initial setting Set all Mode Switches to OFF

when the drive is in use.

Usage Precautions

Handling Discs with Care:

Before using discs, carefully read through the Operating Instructions, the instructions for

handling the discs, and whatever is written on the disc packaging.

If the discs are not handled properly, they may become dirty or scratched, the writing speed

may be reduced or data may not be recorded or played back properly. Other damage may

result including drive failures.

Keep the following precautions.

Do not touch the data surface.

Keep the disc surfaces clean and free from dirt, dust and fingerprints, and do not allow

them to become scratched.

Do not write on the surface of the disc with a ballpoint pen or other writing instrument nor

paste any paper to it.

Do not drop, bend, or place heavy objects on top of discs.

Do not place or store discs in locations exposed to heat, direct sunlight, humidity or dust.

If the disc is brought from a cold into a warm environment, moisture may form on the disc.

Wipe this moisture off with a soft, dry, lint-free cloth before using the disc.

When discs are not actually being used, make sure to keep them inside their protective

cases or cartridges.

If the disc becomes dirty, clean it with the followings.

To remove dirt from a disc

Wipe a disc with a dry, soft cloth from

the center toward the edges.

If the disc heavily gets dirty, wipe a disc

with a moist, soft cloth from the center toward the edges, and then wipe it again with a

dry cloth to take up remaining moisture.

Use the Panasonic disc cleaner to clean these discs.

Do not use a cloth, CD cleaners or any other such cleaners under any circumstances.

How to hold the disc

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Panasonic Lecteur DVD

Panasonic

Panasonic CF-VDM302AT Manuel utilisateur

Panasonic

Panasonic CF-VDR301U Manuel utilisateur

Panasonic

Panasonic LF-D321U Manuel utilisateur

Panasonic

Panasonic CF-VDD283 Manuel utilisateur

Panasonic

Panasonic DMRE55P Manuel utilisateur

Panasonic

Panasonic SR-8587-B Manuel utilisateur

Panasonic

Panasonic CW-8572-B Manuel utilisateur

Panasonic

Panasonic CF-VDD712M Manuel utilisateur

Panasonic

Panasonic CF-VDM312U Manuel utilisateur

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive Manuel utilisateur

Panasonic

Panasonic LF-D103E Manuel utilisateur

Panasonic

Panasonic CF-VDD711W Manuel utilisateur

Panasonic

Panasonic CF-VDM302AU Manuel utilisateur

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive Manuel utilisateur

Panasonic

Panasonic CF-VDR301U Manuel utilisateur

Panasonic

Panasonic CF-VDM Series Manuel utilisateur

Panasonic

Panasonic CF-VDD723M Manuel utilisateur

Panasonic

Panasonic CF-VDM Series Manuel utilisateur

Panasonic

Panasonic FZ-VDM401 Series Manuel utilisateur

Panasonic

Panasonic LF-D101E Manuel utilisateur

Panasonic

Panasonic CF-VDD272 Manuel utilisateur

Panasonic

Panasonic CF-VDM Series Manuel utilisateur

Panasonic

Panasonic FZ-VDM551 Series Manuel utilisateur

Panasonic

Panasonic CF-VDD285 Manuel utilisateur

Manuels Lecteur DVD populaires d'autres marques

LG GSA-4160B Manuel utilisateur

Sony

Sony DRU-500AX Manuel utilisateur

LG GSA-2164D Manuel utilisateur

Plextor

Plextor PX-755SA Manuel utilisateur

Pioneer

Pioneer BDC-TD03RS Manuel du propriétaire

Samsung

Samsung SM-332B Manuel utilisateur

Freecom

Freecom MOBILE DVD RW II Manuel utilisateur

Plextor

Plextor PX-712 Manuel utilisateur

NEC

NEC ND-3550A Manuel utilisateur

Emprex

Emprex Slim Writer DVD R/RW USB 2.0 External Drive Manuel utilisateur

Philips

Philips PCA532K Manuel utilisateur

Sony

Sony AD-7740H Manuel utilisateur

Philips

Philips PCDV5016 Series Guide de référence

Pioneer

Pioneer LaserMemory DVD-115 Manuel utilisateur

Samsung

Samsung SE-S224Q Manuel utilisateur

IBM

IBM 71P7285 Manuel utilisateur

Pioneer

Pioneer DVR-A04 Manuel utilisateur

IBM

IBM 27L2579 Manuel utilisateur
