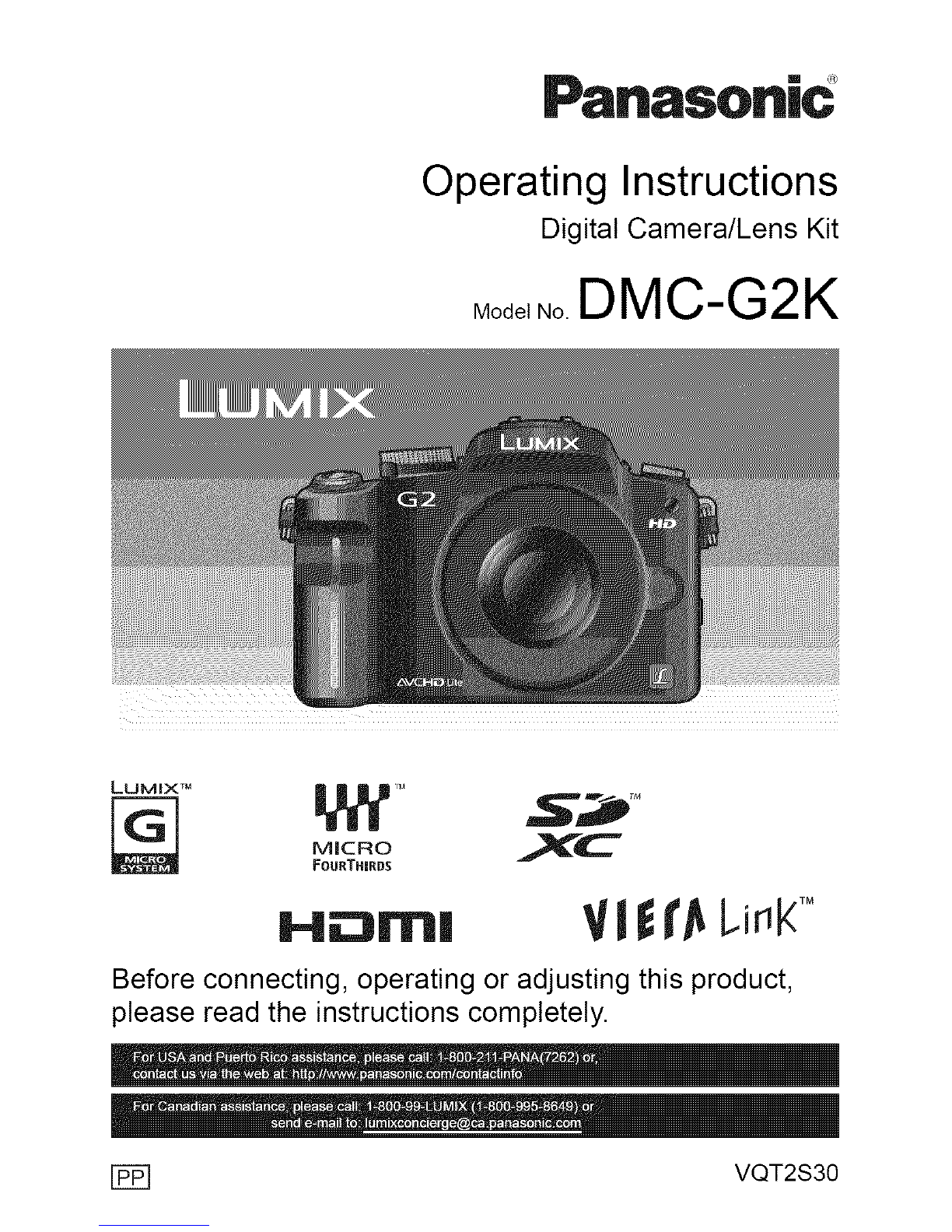

Panasonic Lumix DMC-G2K Manuel utilisateur

Operating Instructions

Digital Camera/Lens Kit

_ode,.o.DMC--G2K

LUMIX TM

MICRO

FOURTHIRDS

H_m| V! I'_l.inkTM

Before connecting, operating or adjusting this product,

please read the instructions completely.

FP-P-] VQT2S30

Advanced (Recording pictures)

Applicable modes: [_[_[]_][_[_

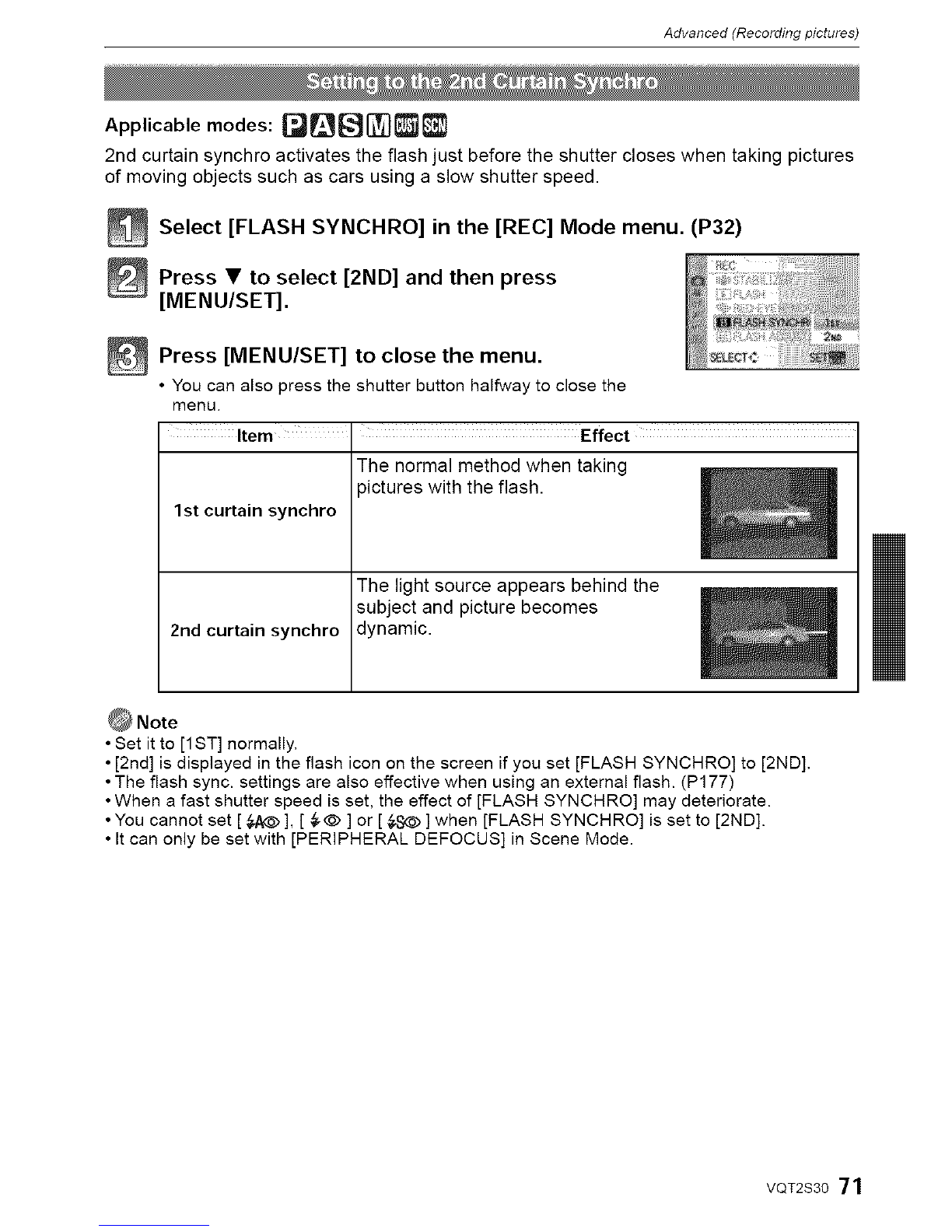

2nd curtain synchro activates the flash just before the shutter closes when taking pictures

of moving objects such as cars using a slow shutter speed.

_ Select [FLASH SYNCHRO] [REC] menu. (P32)

in the Mode

_ Press • to select and then _'_

[2ND] press

[MENU/SET].

_Press to close the

[MENU/SET] menu.

• You can also press the shutter button halfway to close the

menu.

Item I Effect

The normal method when taking

pictures with the flash.

1st curtain synchro

2nd curtain synchro

The light source appears behind the

subject and picture becomes

dynamic.

• Set it to [1ST] normally.

• [2nd] is displayed in the flash icon on the screen if you set [FLASH SYNCHRO] to [2ND].

• The flash sync. settings are also effective when using an external flash. (P177)

• When a fast shutter speed is set, the effect of [FLASH SYNCHRO] may deteriorate.

• You cannot set [ _ ], [ _.@ ] or [ _ ] when [FLASH SYNCHRO] is set to [2ND].

• It can only be set with [PERIPHERAL DEFOCUS] in Scene Mode.

VQT2S30 71

Advanced (Recording pictures)

oode O00

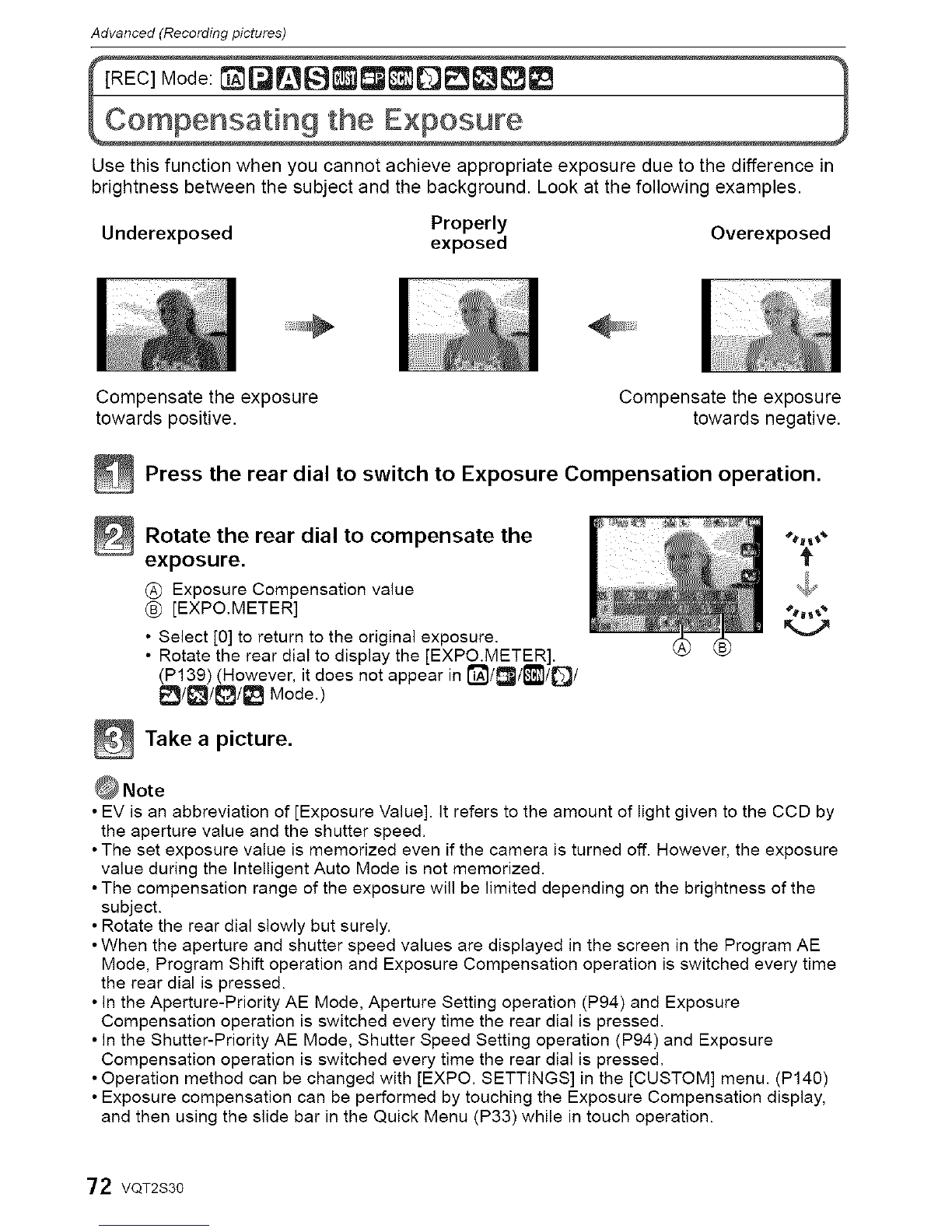

ompensating the Exposure

Use this function when you cannot achieve appropriate exposure due to the difference in

brightness between the subject and the background. Look at the following examples.

Properly

Underexposed exposed Overexposed

Compensate the exposure

towards positive. Compensate the exposure

towards negative.

Press the rear dial to switch to Exposure Compensation operation.

Rotate the rear dial to compensate the

exposure.

(z) Exposure Compensation value

(_ [EXPO.METER]

• Select [0] to return to the original exposure.

• Rotate the rear dial to display the [EXPO.METER].

(P139) (However, it does not appear in i_1_/_'4_11_1

_/_1_/_ Mode.)

_Take a picture.

y-..J

• EV is an abbreviation of [Exposure Value]. It refers to the amount of light given to the CCD by

the aperture value and the shutter speed.

• The set exposure value is memorized even if the camera is turned off. However, the exposure

value during the Intelligent Auto Mode is not memorized.

• The compensation range of the exposure will be limited depending on the brightness of the

subject.

• Rotate the rear dial slowly but surely.

• When the aperture and shutter speed values are displayed in the screen in the Program AE

Mode, Program Shift operation and Exposure Compensation operation is switched every time

the rear dial is pressed.

• In the Aperture-Priority AE Mode, Aperture Setting operation (P94) and Exposure

Compensation operation is switched every time the rear dial is pressed.

• In the Shutter-Priority AE Mode, Shutter Speed Setting operation (P94) and Exposure

Compensation operation is switched every time the rear dial is pressed.

• Operation method can be changed with [EXPO. SETTINGS] in the [CUSTOM] menu. (P140)

• Exposure compensation can be performed by touching the Exposure Compensation display,

and then using the slide bar in the Quick Menu (P33) while in touch operation.

72 VQT2S30

Advanced (Recording pictures)

• In the Quick Menu (P34) while in button operation, if set to [_] (LCD monitor style), exposure

compensation can be set with ,i./V after selecting to display exposure compensation with

_1/1_ or the rear dial.

• In the Quick Menu (P34) while in button operation, if set to [El] (viewfinder style), after

selecting the Exposure Compensation display using the rear dial or 4/1_, pressing the rear dial

or [MENU/SET] will allow you to compensate the exposure with the rear dial or 4/1_.

Taking Pictures usin 9 Burst Mode

Pictures are taken continuously while the shutter button is pressed.

Select the ones you really like from among the pictures you have taken.

Set the drive mode lever to [ [_ ].

_ Focus on the and take a

subject picture.

(_ When Burst Mode is set to high speed [H].

• Hold down the shutter button fully to activate the

Burst Mode.

• Changing the burst speed

1Select [BURST RATE] in the [REC] Mode menu. (P32)

2 Press A/T to select the burst speed and then press

[MENU/SET].

3Press [MENU/SET] to close the menu.

• Youcan also press the shutter button halfway to close the menu.

[H] ' [M] , [L]

(High speed) (Middle speed) (Low speed)

Burst speed (pictures/second) 3.2 2.6 2

Live View during Burst Mode None Available Available

With RAW files 4 to 7 12

1Without RAW files Depends on the remaining capacity of the card 2

il Number of recordable pictures

i2 Pictures can be taken until the capacity of the card becomes full. However the burst speed

will become slower halfway. The exact timing of this depends on the aspect ratio, the picture

size, the setting for the quality and the type of card used.

VQT2S30 73

Advanced (Recording pictures)

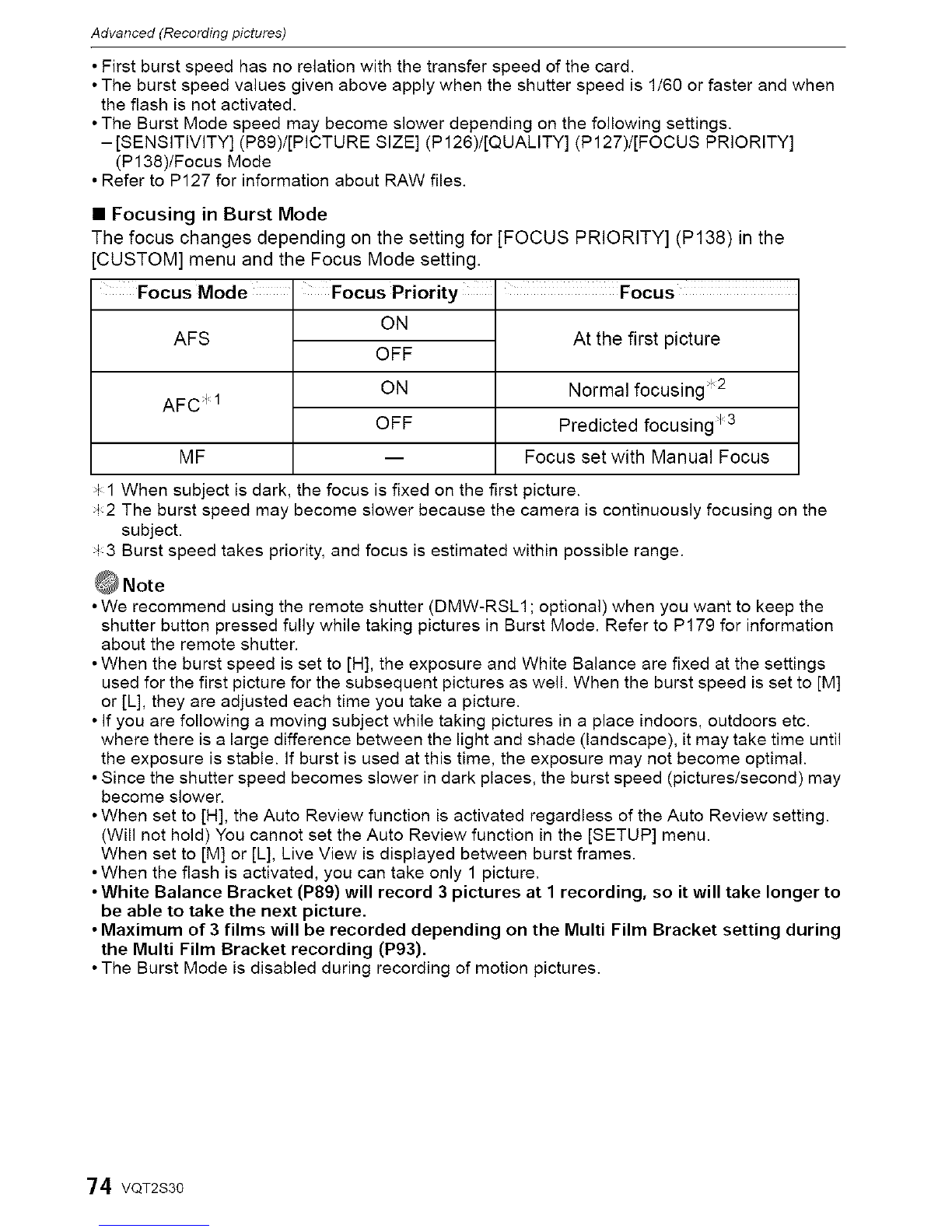

• First burst speed has no relation with the transfer speed of the card.

• The burst speed values given above apply when the shutter speed is 1/60 or faster and when

the flash is not activated.

• The Burst Mode speed may become slower depending on the following settings.

-[SENSITIVITY] (P89)/[PICTURE SIZE] (P126)/[QUALITY] (P127)/[FOCUS PRIORITY]

(P138)/Focus Mode

• Refer to P127 for information about RAW files.

• Focusing in Burst Mode

The focus changes depending on the setting for [FOCUS PRIORITY] (P138) in the

[CUSTOM] menu and the Focus Mode setting.

Focus Mode 'Focus Priority IFocus

AFS

AFC :H

OFF

At the first picture

Normal focusing 2

Predicted focusing 4:3

Focus set with Manual Focus

il When subject is dark, the focus is fixed on the first picture.

i2 The burst speed may become slower because the camera is continuously focusing on the

subject.

i3 Burst speed takes priority, and focus is estimated within possible range.

• We recommend using the remote shutter (DMW-RSL1 ; optional) when you want to keep the

shutter button pressed fully while taking pictures in Burst Mode. Refer to P179 for information

about the remote shutter.

• When the burst speed is set to [H], the exposure and White Balance are fixed at the settings

used for the first picture for the subsequent pictures as well. When the burst speed is set to [M]

or [L], they are adjusted each time you take a picture.

• If you are following a moving subject while taking pictures in a place indoors, outdoors etc.

where there is a large difference between the light and shade (landscape), it may take time until

the exposure is stable. If burst is used at this time, the exposure may not become optimal.

• Since the shutter speed becomes slower in dark places, the burst speed (pictures/second) may

become slower.

• When set to [H], the Auto Review function is activated regardless of the Auto Review setting.

(Will not hold) You cannot set the Auto Review function in the [SETUP] menu.

When set to [M] or [L], Live View is displayed between burst frames.

• When the flash is activated, you can take only 1 picture.

• White Balance Bracket (P89) will record 3 pictures at 1 recording, so it will take longer to

be able to take the next picture.

• Maximum of 3 films will be recorded depending on the Multi Film Bracket setting during

the Multi Film Bracket recording (P93).

• The Burst Mode is disabled during recording of motion pictures.

74 VQT2S30

Advanced (Recording pictures)

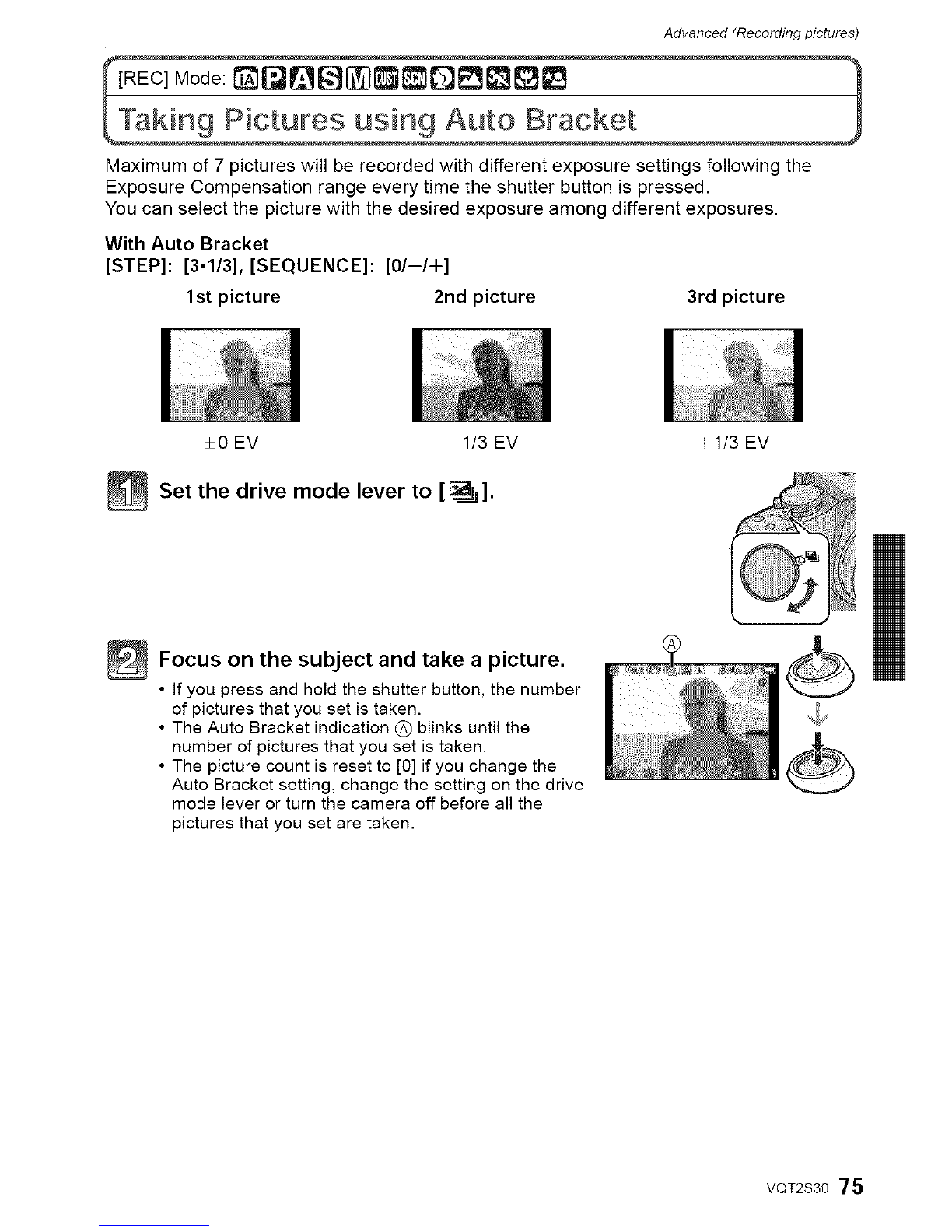

Taking Pictures using Auto Bracket

Maximum of 7pictures will be recorded with different exposure settings following the

Exposure Compensation range every time the shutter button is pressed.

You can select the picture with the desired exposure among different exposures.

With Auto Bracket

[STEP]: [3°1/3], [SEQUENCE]: [0/-/+]

1st picture 2rid picture 3rd picture

+0 EV 1/3 EV

_Set the drive mode lever to _j

[ ].

+ 1/3 EV

_ Focus on subject a picture.

the and take

• If you press and hold the shutter button, the number

of pictures that you set is taken.

• The Auto Bracket indication (_) blinks until the

number of pictures that you set is taken.

° The picture count is reset to [0] if you change the

Auto Bracket setting, change the setting on the drive

mode lever or turn the camera off before all the

pictures that you set are taken.

VQT2S30 75

Advanced (Recording pictures)

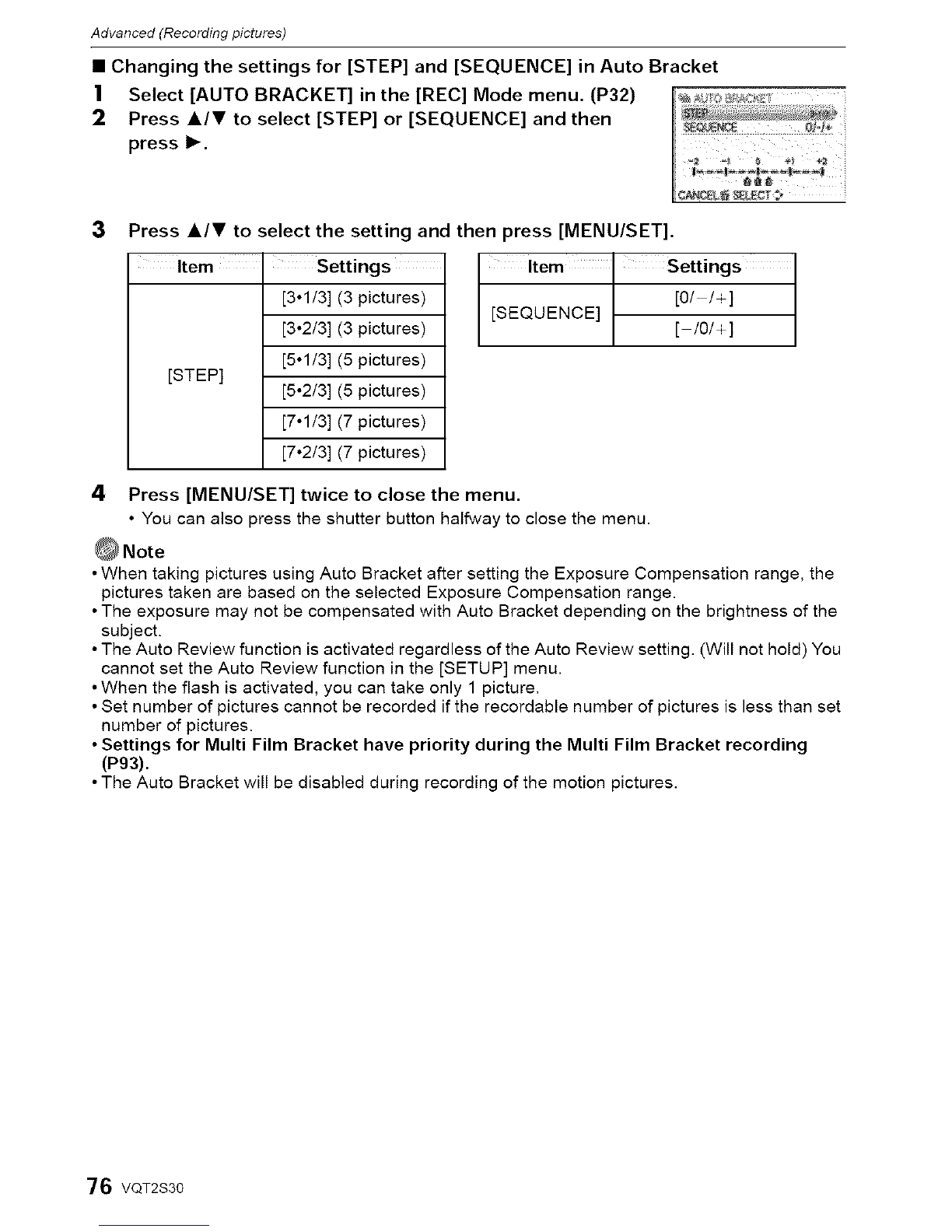

• Changing the settings for [STEP] and [SEQUENCE] in Auto Bracket

|Select [AUTO BRACKET] in the [REC] Mode menu. (P32)

2 Press Air to select [STEP] or [SEQUENCE] and then

press I_.

Press Air to select the setting and then press [MENU/SET].

Item Settings

[3,1/3] (3 pictures)

[3,2/3] (3 pictures)

[5,1/3] (5 pictures)

[STEP] [5,2/3] (5 pictures)

[7,1/3] (7 pictures)

[7,2/3] (7 pictures)

Item I Settings

[o/ /+]

[SEQUENCE] [/0/+]

Press [MENU/SET] twice to close the menu.

•You can also press the shutter button halfway to close the menu.

• When taking pictures using Auto Bracket after setting the Exposure Compensation range, the

pictures taken are based on the selected Exposure Compensation range.

• The exposure may not be compensated with Auto Bracket depending on the brightness of the

subject.

• The Auto Review function is activated regardless of the Auto Review setting. (Will not hold) You

cannot set the Auto Review function in the [SETUP] menu.

• When the flash is activated, you can take only 1 picture.

• Set number of pictures cannot be recorded if the recordable number of pictures is less than set

number of pictures.

• Settings for Multi Film Bracket have priority during the Multi Film Bracket recording

(P93).

• The Auto Bracket will be disabled during recording of the motion pictures.

76 VQT2S30

Advanced (Recording pictures)

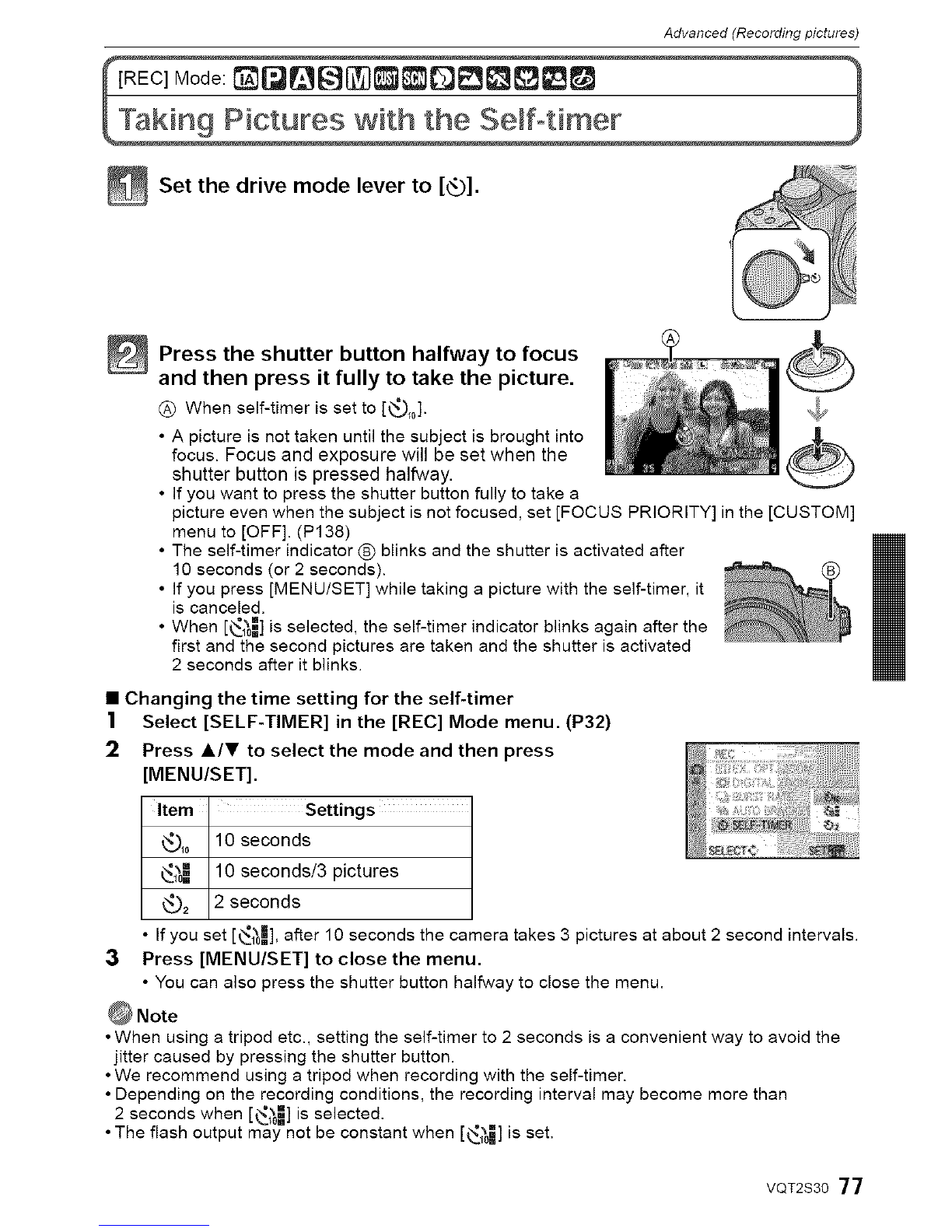

Taking Pictures with the Se fotimer

_Set the drive mode lever to [@].

Press the shutter button halfway to focus

and then press it fully to take the picture.

(_ When self-timer is set to [_--.)_0].

• A picture is not taken until the subject is brought into ,_

focus. Focus and exposure will be set when the _

shutter button is pressed halfway.

• If you want to press the shutter button fully to take a

picture even when the subject is not focused, set [FOCUS PRIORITY] in the [CUSTOM]

menu to [OFF]. (P138)

• The self-timer indicator (_) blinks and the shutter is activated after

10 seconds (or 2 seconds).

• If you press [MENU/SET] while taking a picture with the self-timer, it

is canceled.

• When [_0_] is selected, the self-timer indicator blinks again after the

first and the second pictures are taken and the shutter is activated

2 seconds after it blinks.

• Changing the time setting for the self-timer

| Select [SELF-TIMER] in the [REC] Mode menu. (P32)

2 Press A/T to select the mode and then press

[MENU/SET].

Item Settings

__.),0 10 seconds

_._J 10 seconds/3 pictures

_%)2 2 seconds

• If you set [_.%_],after 10 seconds the camera takes 3 pictures at about 2 second intervals.

3 Press [MENU/SET] to close the menu.

• Youcan also press the shutter button halfway to close the menu.

• When using a tripod etc., setting the self-timer to 2 seconds is a convenient way to avoid the

jitter caused by pressing the shutter button.

• We recommend using a tripod when recording with the self-timer.

• Depending on the recording conditions, the recording interval may become more than

2 seconds when [_._0_] is selected.

• The flash output may not be constant when [_0 l] is set.

VQT2S30 77

Advanced (Recording pictures)

• Operation will be same as [%_)10]even if it is set to [_0_] while Multi Film Bracket recording

(P93).

• Use the Quick Menu (P33) to set when in Intelligent Auto Mode.

• Self-timer cannot be set to [_|] in Intelligent Auto Mode.

• The self-timer will be disabled during recording of the motion pictures.

_ Mode: [_[_[_[_[_]_1_

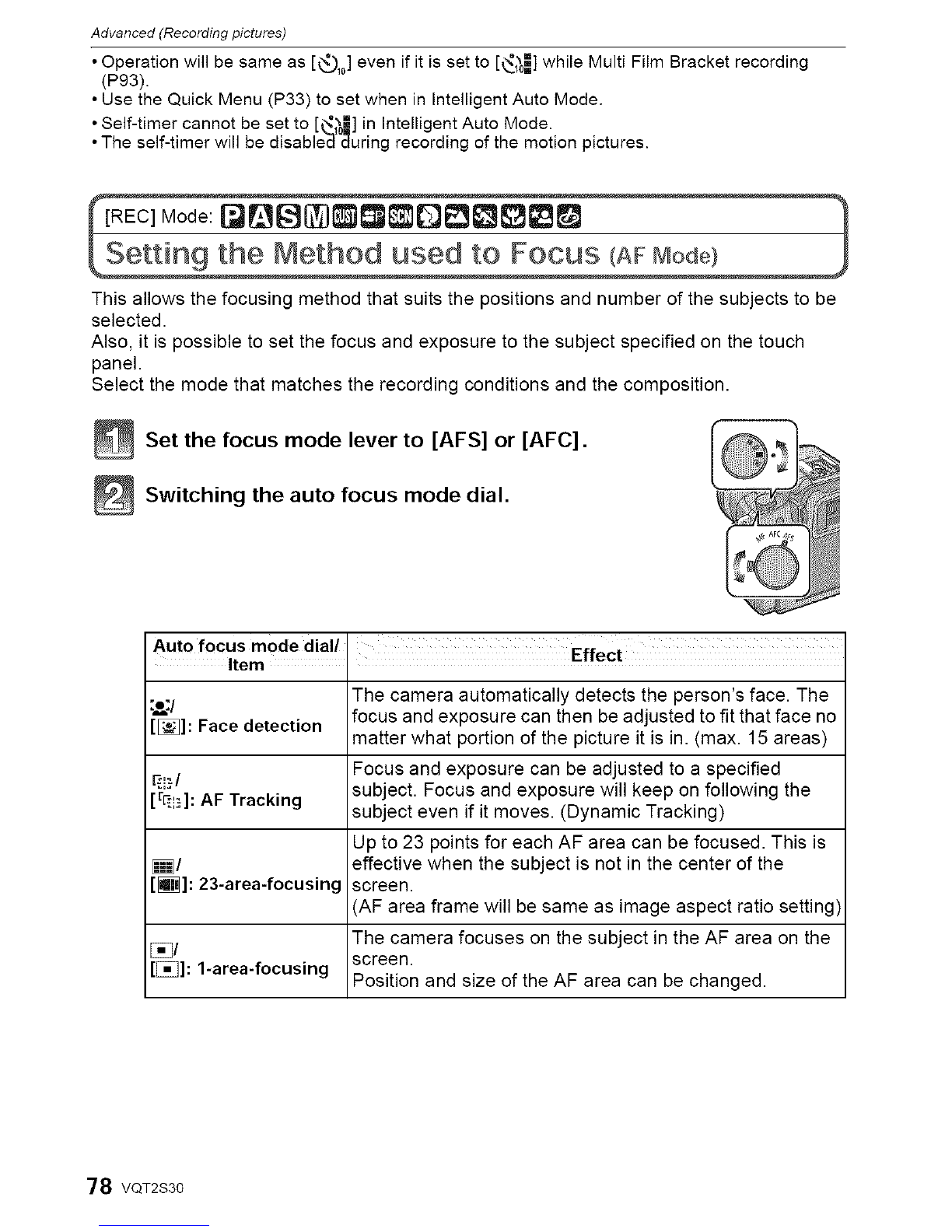

ettin 9 the Method used to Focus (At Mod÷)

This allows the focusing method that suits the positions and number of the subjects to be

selected,

Also, it is possible to set the focus and exposure to the subject specified on the touch

panel,

Select the mode that matches the recording conditions and the composition,

Set the focus mode lever to [AFS] or [AFC].

_ Switching the auto focus mode dial.

Auto focus mode dial/

Item .... Effect

The camera automatically detects the person's face. The

:_-_:/

[[]]: Face detection focus and exposure can then be adjusted to fit that face no

matter what portion of the picture it is in. (max. 15 areas)

Focus and exposure can be adjusted to a specified

r_i:/ subject. Focus and exposure will keep on following the

[r_!_]:AF Tracking subject even if it moves. (Dynamic Tracking)

Up to 23 points for each AF area can be focused. This is

_/ effective when the subject is not in the center of the

[[]]: 23-area-focusing screen.

(AF area frame will be same as image aspect ratio setting)

The camera focuses on the subject in the AF area on the

[_]/ screen.

[[_]]: 1-area-focusing Position and size of the AF area can be changed.

78 VQT2S30

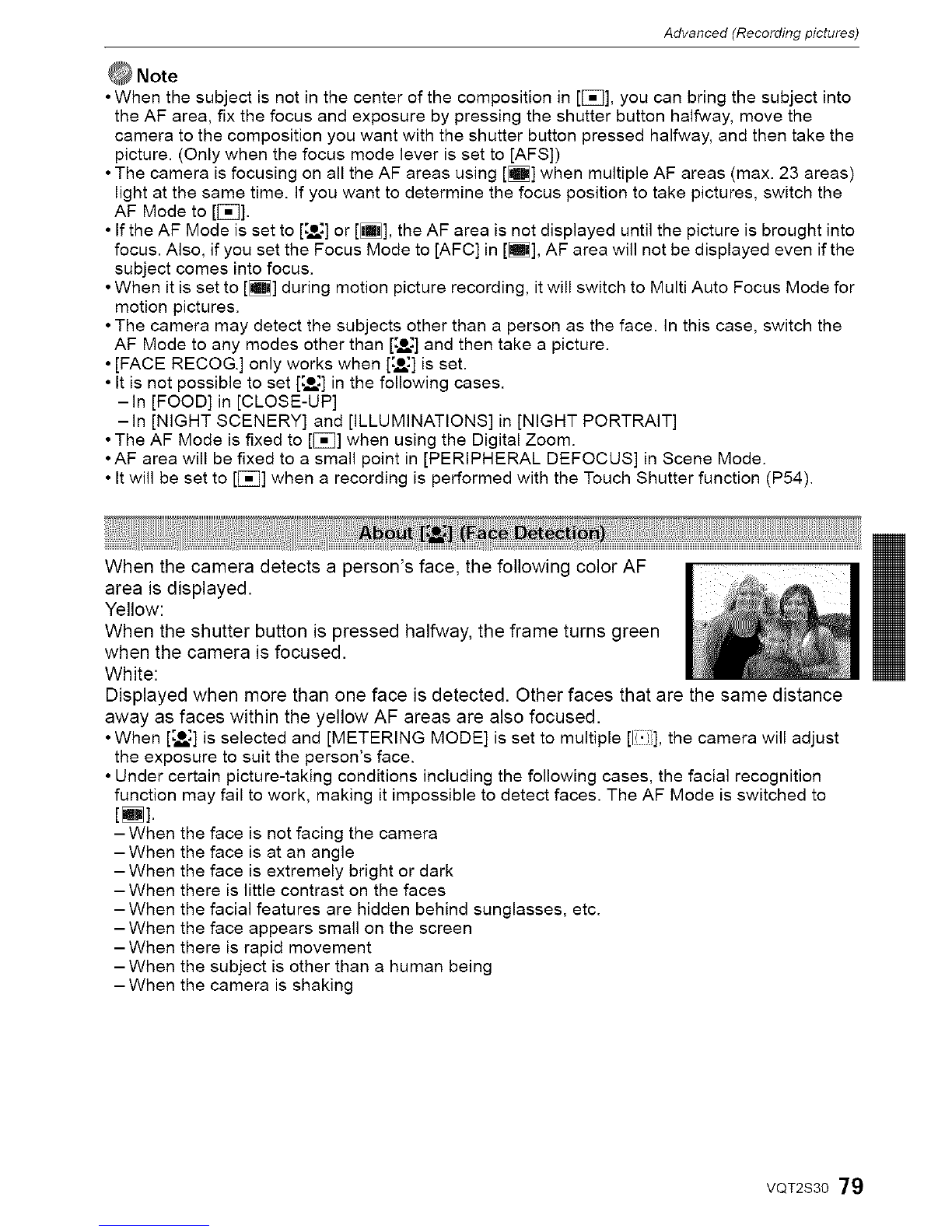

Advanced (Recording pictures)

• When the subject is not in the center of the composition in [[_]], you can bring the subject into

the AF area, fix the focus and exposure by pressing the shutter button halfway, move the

camera to the composition you want with the shutter button pressed halfway, and then take the

picture. (Only when the focus mode lever is set to [AFS])

• The camera is focusing on all the AF areas using [[]] when multiple AF areas (max. 23 areas)

light at the same time. If you want to determine the focus position to take pictures, switch the

AF Mode to [[2_]].

• If the AF Mode is set to [,'_,'] or [[]], the AF area is not displayed until the picture is brought into

focus. Also, if you set the Focus Mode to [AFC] in [_], AF area will not be displayed even if the

subject comes into focus.

• When it is set to [_] during motion picture recording, it will switch to Multi Auto Focus Mode for

motion pictures.

• The camera may detect the subjects other than a person as the face. In this case, switch the

AF Mode to any modes other than [r_,'] and then take a picture.

• [FACE RECOG.] only works when [r_,'] is set.

• It is not possible to set [r_,'] in the following cases.

-In [FOOD] in [CLOSE-UP]

-In [NIGHT SCENERY] and [ILLUMINATIONS] in [NIGHT PORTRAIT]

• The AF Mode is fixed to [[2_]] when using the Digital Zoom.

•AF area will be fixed to a small point in [PERIPHERAL DEFOCUS] in Scene Mode.

• It will be set to [E_]] when a recording is performed with the Touch Shutter function (P54).

When the camera detects a person's face, the following color AF

area is displayed.

Yellow:

When the shutter button is pressed halfway, the frame turns green

when the camera is focused.

White:

Displayed when more than one face is detected. Other faces that are the same distance

away as faces within the yellow AF areas are also focused.

• When [re:] is selected and [METERING MODE] is set to multiple [li-_], the camera will adjust

the exposure to suit the person's face.

• Under certain picture-taking conditions including the following cases, the facial recognition

function may fail to work, making it impossible to detect faces. The AF Mode is switched to

[_].

- When the face is not facing the camera

- When the face is at an angle

- When the face is extremely bright or dark

-When there is little contrast on the faces

-When the facial features are hidden behind sunglasses, etc.

- When the face appears small on the screen

- When there is rapid movement

-When the subject is other than a human being

- When the camera is shaking

VQT2S30 79

Autres manuels pour Lumix DMC-G2K

Table des matières

Autres manuels Panasonic Appareil photo numérique

Panasonic

Panasonic Lumix DMC-F3 Caractéristiques techniques

Panasonic

Panasonic Lumix DMC-ZR3 Caractéristiques techniques

Panasonic

Panasonic LUMIX DMC-GM5K Instructions d'installation et d'entretien

Panasonic

Panasonic Lumix DMC-LZ7P Manuel utilisateur

Panasonic

Panasonic LUXIM DC-G90 Caractéristiques techniques

Panasonic

Panasonic Lumix DC-ZS80D Instructions d'installation et d'entretien

Panasonic

Panasonic Lumix DMC-FZ2500 Manuel utilisateur

Panasonic

Panasonic GH4 Manuel utilisateur

Panasonic

Panasonic Lumix DMC-ZR1 Manuel utilisateur

Panasonic

Panasonic VARICAM LT Guide de référence rapide

Panasonic

Panasonic Lumix DMC-GX7C Caractéristiques techniques

Panasonic

Panasonic DC-BGH1 Manuel utilisateur

Panasonic

Panasonic SDR-H18P Manuel utilisateur

Panasonic

Panasonic Lumix DMC-FP3 Caractéristiques techniques

Panasonic

Panasonic S-S50E Manuel utilisateur

Panasonic

Panasonic Lumix DMC-GX85 Manuel du propriétaire

Panasonic

Panasonic DMCFX33 - DIGITAL STILL CAMERA Mode d’emploi

Panasonic

Panasonic Lumix DMC-G6 Manuel utilisateur

Panasonic

Panasonic Lumix DMC-FS15 Manuel utilisateur

Panasonic

Panasonic Lumix DMC-G3 Instructions d'installation et d'entretien

Panasonic

Panasonic Lumix DMC-FH8 Manuel utilisateur

Panasonic

Panasonic Lumix DMC-TZ37EC Manuel utilisateur

Panasonic

Panasonic Lumix S1H Manuel utilisateur

Panasonic

Panasonic Lumix DMC-ZS15 Mode d’emploi

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
